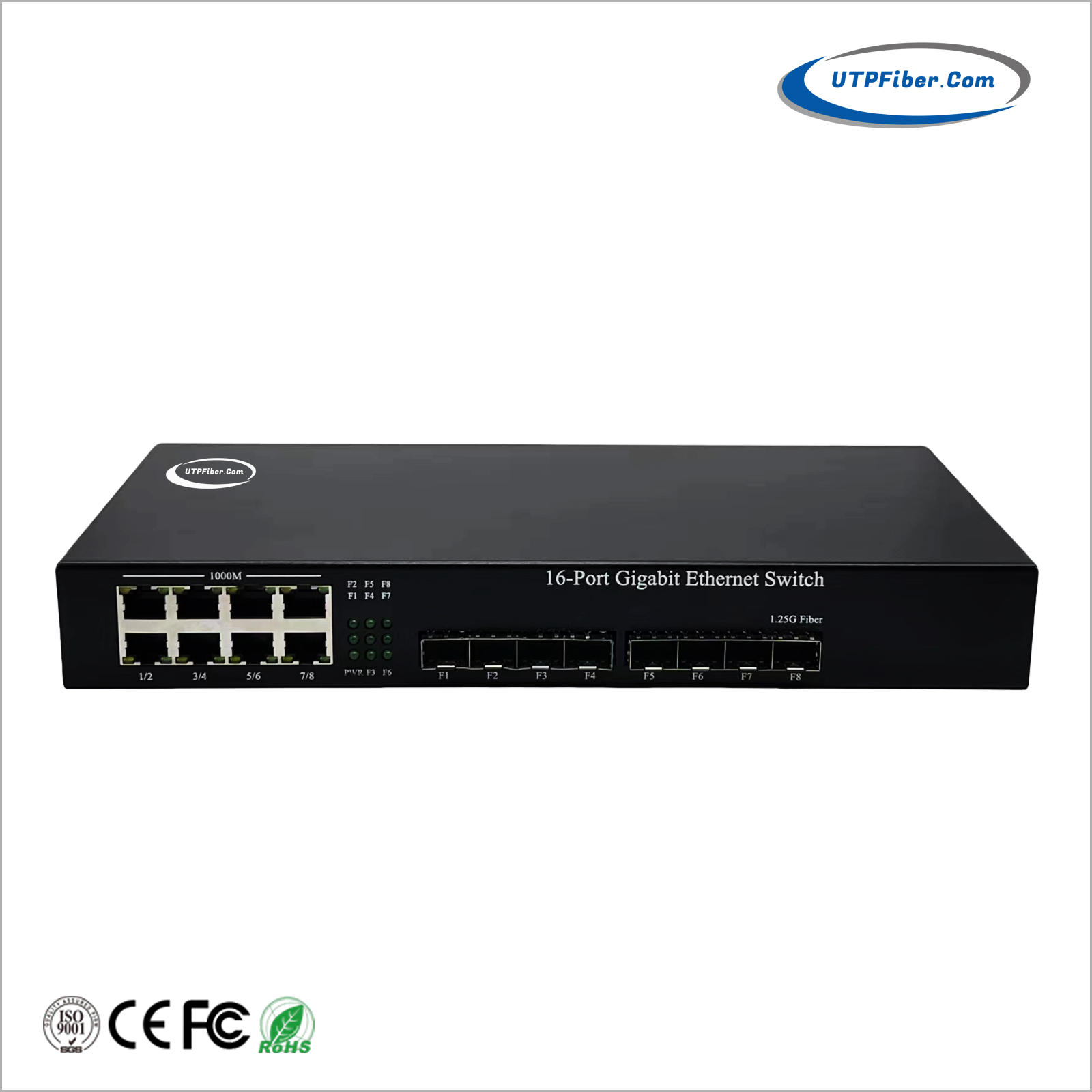

Unmanaged 8-Port 10/100/1000T + 8-Port 1000X SFP Gigabit Ethernet Switch
Model:UF-SW8G8SFP
► 8x10/100/1000Base-T ports, 8x1000Base-X SFP ports
► Supports conversion between 10/100/1000Base-T RJ45 and 1000Base-X SFP
► Support 19” Rackmount installation
The UTP UF-SW8G8SFP is an unmanaged high-performance 16-port Gigabit Ethernet Switch, featuring 8 Gigabit Ethernet ports and 8 SFP ports. It provides robust Gigabit fiber uplink capabilities and non-blocking wire-speed performance, making it an ideal choice for long-distance data transmission deployments. With 8 mini-GBIC 1000BASE-SX/LX SFP (Small-Form Factor Pluggable) interface support, the deployed distance of the UTP UF-SW8G8SFP can be extended from 550 meters (via multi-mode fiber) to 10/20/30/40/50/70/120 kilometers (via single-mode fiber).

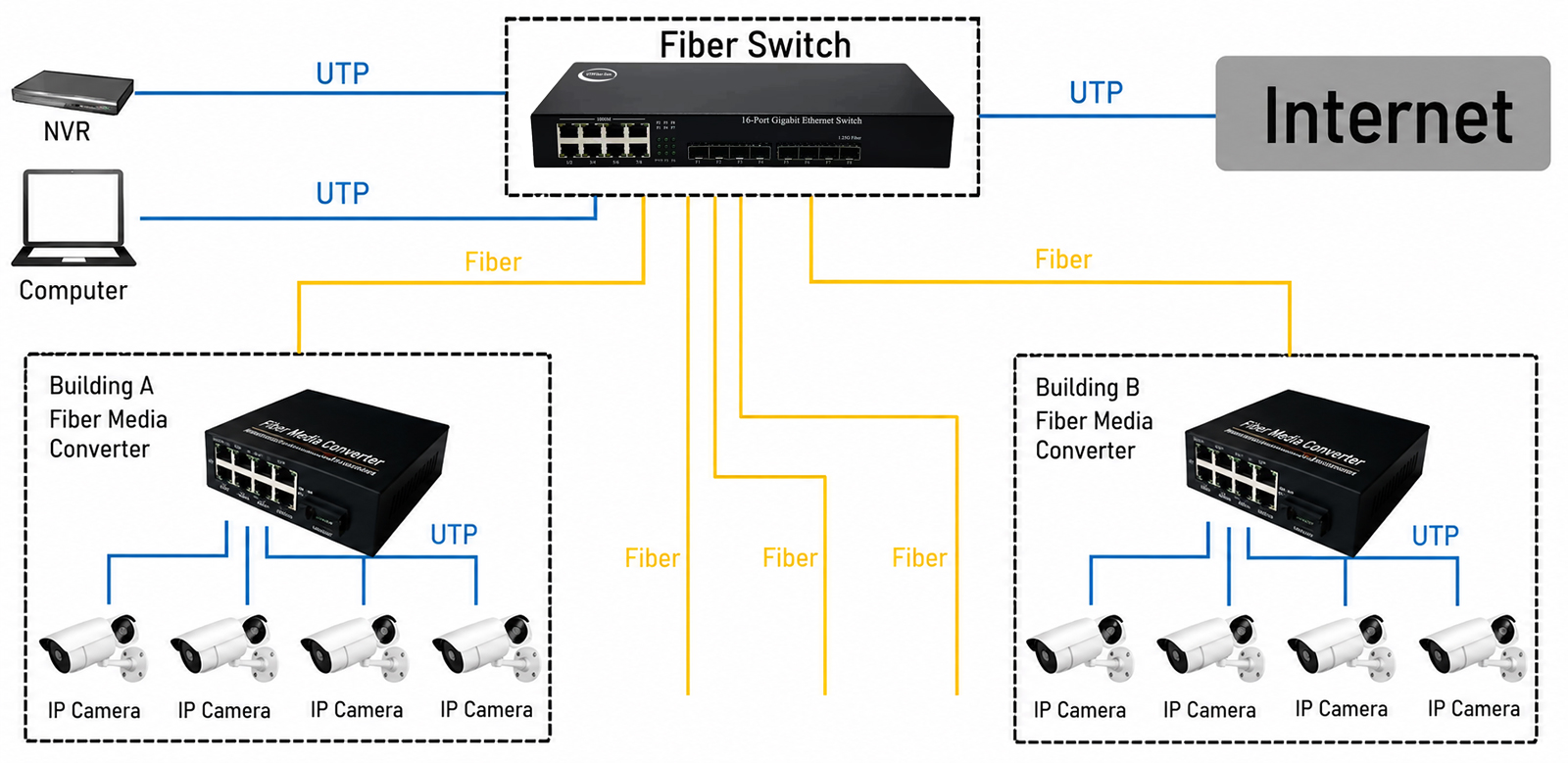

Acting as a premium edge device for FTTx solutions (including FTTH, FTTC, and FTTB), it seamlessly links local networks to metro switches, backbones, or high-capacity servers in a secure topology. With its rugged metal design, it can be easily deployed on a desktop, inside cabinets, or via standard 19-inch rackmount installation. The switch features superior isolation protection and data confidentiality, ensuring stable operation by effectively shielding communication equipment against lightning strikes, surges, and electromagnetic interference in harsh environments.
► 8x10/100/1000Base-T ports, 8x1000Base-X SFP ports
► Supports conversion between 10/100/1000Base-T RJ45 and 1000Base-X SFP
► Support IEEE802.1d Spanning Tree
► Support high performance QoS function on each port
► Support broadcasting storm control
► Support multicast to avoid network congestion
► Internal 8K MAC Address Entities
► Support 9K Jumbo packet
► Support IEEE 802.3x flow control and back pressure control
► Powered by a stable and reliable Marvell chip
► Simple to use, plug and play, no setup required
► Support 19” Rackmount installation
► It adopts double-rib heat dissipation design and built-in heat sink to ensure stable operation for a long time
|
Hardware Specifications |
|
|
Ethernet Ports |
8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
SFP/mini-GBIC Slot |
8 x 1000BASE-X |
|
Network Cables: |
Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module) |
|
Dimension (L x W x H) |
296 x 145 x 43 mm |
|
Weight |
1.05Kg |
|
Power Requirement |
AC100V～240V 50/60Hz |
|
Power Connector |
AC Socket |
|
Power Consumption |
System on: Max. 2.76 watts |
|
Ethernet Full Loading: Max. 11 watts |
|
|
Enclosure |
Metal |
|
Color |
Black |
|
Switch Specifications |
|
|
Switch Processing Scheme |
Store-and-Forward |
|
MAC Address Table |
8K entries |
|
Buffer Space |
1Mbits |
|
Flow Control |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Switch Fabric |
32Gbps |
|
Jumbo Packet Size |
10K |
|
Time Delay |
＜20μs |
|
Standards Conformance |
|
|
Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3z Gigabit Fiber Ethernet |
|
|
IEEE 802.3x Full-duplex flow control |
|
|
IEEE802.1q VLAN |
|
|
IEEE802.1p QoS |
|
|
IEEE802.1d Spanning Tree |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Environment |
|
|
Temperature |
Operating: -10~+55 degrees C |
|
Storage: -40~+70 degrees C |
|
|
Humidity |
Operating: 10~90% (non-condensing) |
|
Storage: 5~90% (non-condensing) |
|
|
Regulatory Approvals |
|
|
Certificates |
ISO9001, CE, RoHS, FCC |
- Download FileName：UF-SW8G8SFP Unmanaged 8G+8SFP Ethernet Switch Datasheet V1.0.pdf Size： 705KB
|
Model |
Description |
|
UF-SW8G8SFP |
Unmanaged 8-Port 10/100/1000T + 8-Port 1000X SFP Gigabit Ethernet Switch |
|
SFP |
► 1000Base-X SFP or 10GBase-X (to be purchased separately) Please select your SFP on our SFP Modules page for details. |
|
Mounting Options: |
► Rackmount or Desktop |
|
Power Options: |
► 100-240VAC, 50/60Hz |
