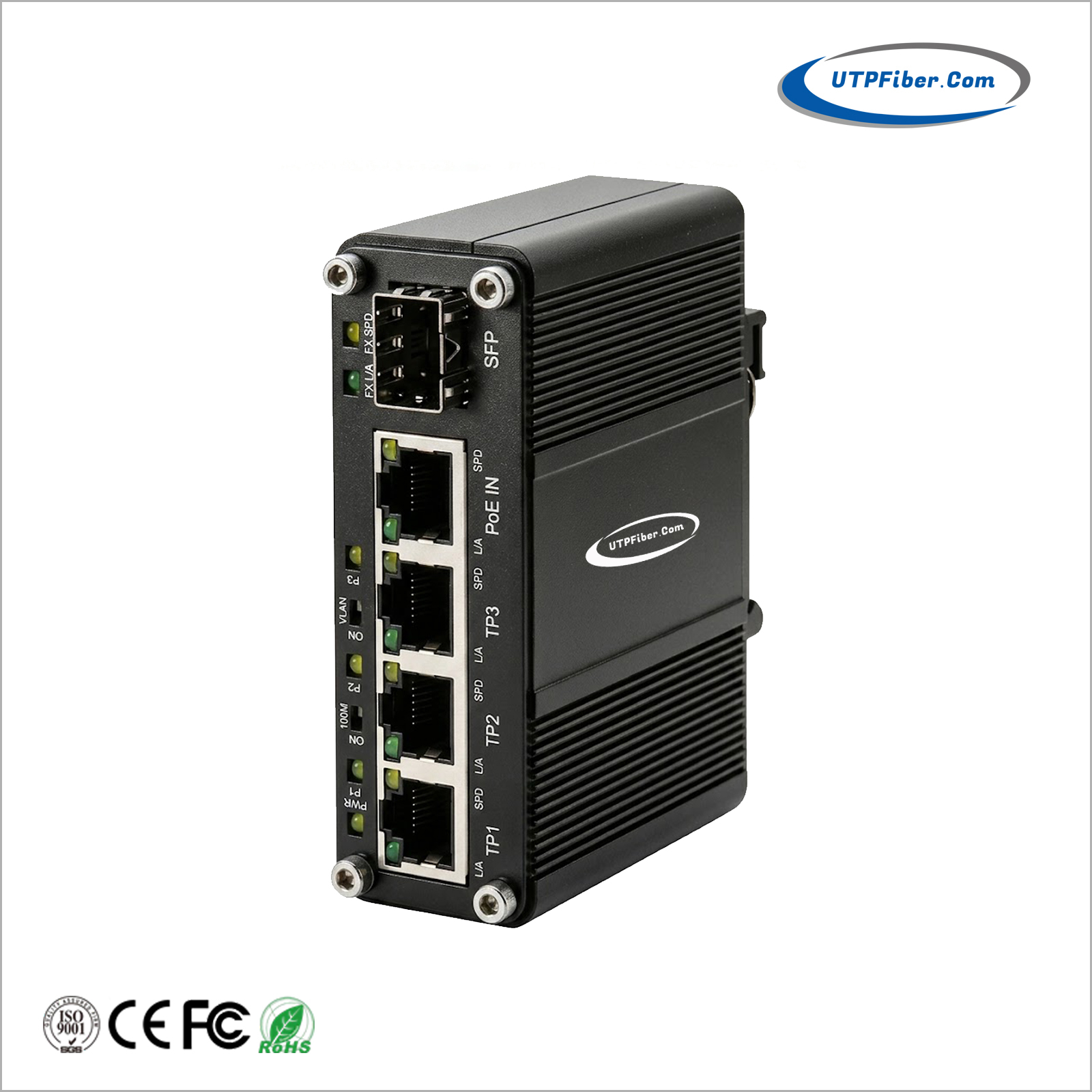

Mini Industrial 802.3bt PoE Powered 4G+1SFP Media Converter with 3-Port PoE Passthrough Extender
Model:UF-IS104GPD-EX
► 802.3bt PoE-Powered, no power adapter required
► PoE Output TP1~3 each port maximum power 30W, total power for the three ports 60W
► Powerful DIP switch function: 1. Fiber ports 100M selection; 2. VLAN
► 1-Port 100/1000Mbps SFP + 4-Port 10/100/1000Mbps RJ45 ports

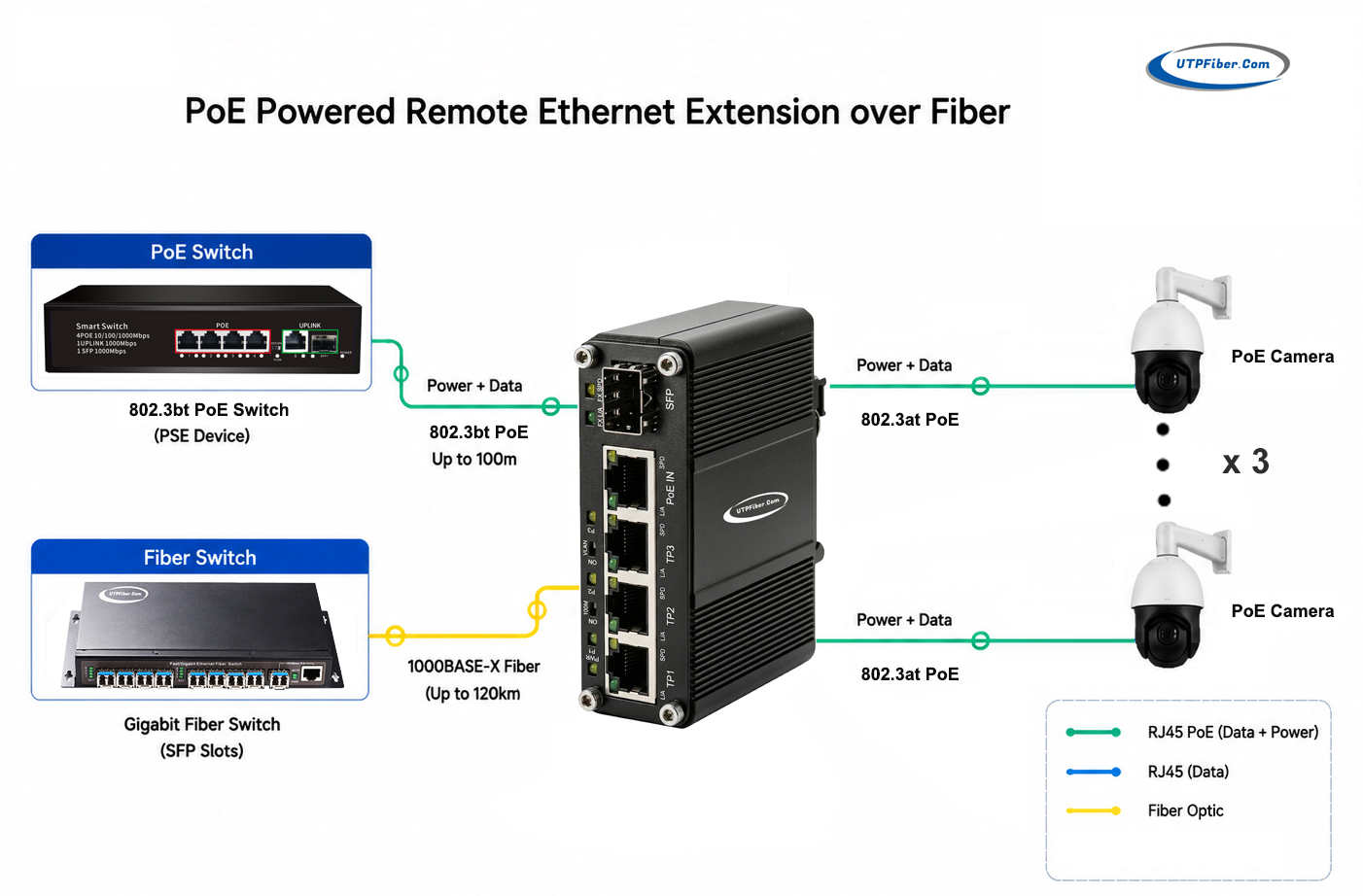

The UF-IS104GPD-EX is an innovative, industrial-grade Gigabit Fiber Media Converter engineered to provide high-performance network extension and versatile power-delivery at the network edge. Featuring a 1-Port 100/1000Base-X SFP slot and 4-Port 10/100/1000Base-T RJ45 interfaces, this device seamlessly bridges long-distance optical fiber backhaul with local copper networks.
Designed as a high-power PoE Powered Device (PD), the unit draws its operational power directly from an upstream IEEE 802.3bt PoE switch or injector via its dedicated "PoE IN" port. This advanced architecture completely eliminates the need for local AC/DC power outlets, drastically lowering deployment costs and simplifying installations in outdoor, remote, or industrially harsh environments.
With DIP switch, it can be forced to 100M SFP port and support VLAN function. This device integrates PoE Passthrough (Extender) functionality to deliver a groundbreaking Three PoE Power Output solution. Through its specialized hardware architecture, it delivers each port 30W IEEE 802.3af/at PoE output via TP1-TP3 RJ45 port to power standard PoE edge devices like IP cameras, total PoE output power for the three ports up to 60W.
Housed in an ultra-compact, fanless IP40 aluminum enclosure, this media converter ensures rock-solid data and power transmission under extreme temperatures, making it the ultimate all-in-one solution for smart city surveillance, wireless backhaul, and industrial automation.
► 802.3bt PoE-Powered Mobility: Operates as a high-power PoE PD compliant with IEEE 802.3bt, no power adapter required
► 3-Port PoE Output: PoE Output TP1~3 each port maximum power 30W, total power for the three ports 60W
► Powerful DIP switch function: 1. Fiber ports 100M selection; 2. VLAN
► Flexible 1G Fiber Extension: 1-Port 100/1000Mbps SFP slot with optical auto-detection, supporting both Fast Ethernet and Gigabit SFP modules for long-distance transmission
► Four Gigabit Ethernet Ports: 4-Port 10/100/1000Mbps RJ45 ports (1x 802.3bt PoE PD Input + 1x 30W PSE PoE Output) ensure full-wire-speed local bridging
► Industrial-Grade Ruggedness: Supports wide operating temperatures (-40°C to +75°C) with a fanless IP40 aluminum housing and heavy-duty industrial ESD/Surge protection
► Ultra-Compact Enclosure: Space-saving mini form factor supports plug-and-play installation via standard 35mm DIN-Rail or Wall-mount brackets
|
Physical Port |
|
|
Copper Ports |
4 x 10/100/1000BASE-T RJ45 (1x PoE IN, 3x PoE OUT) Auto-MDI/MDI-X, Auto-Negotiation |
|
Fiber Ports |
1 x 100Base-FX / 1000Base-X Auto-detection SFP Slot |
|
DIP switch |
100M: ON - FX 100M; OFF - FX 100M/1000M |
|
VLAN: ON - VLAN enabled for TP1-TP3; OFF - VLAN disabled |
|
|
Network Cable Requirements |
10/100/1000BASE-T: 2-pair UTP Cat3/4/5/5e/6 (Max 100m) or 100-ohm STP (Max 100m) |
|
Power Supply & PoE Delivery |
|
|
Power Input Interface |
PoE Input via "PoE IN" RJ45 Port |
|
PoE Standards |
IEEE 802.3af/at/bt compliant |
|
Input Voltage Range |
DC 48V - 57V |
|
PoE Output Interface |
3 PoE Outputs via TP1~TP3 RJ45 Port |
|
PoE Output Power |
TP1~TP3 each port maximum power 30W, total power for the three ports 60W |
|
Power Consumption |
≤5 Watts Max (Self-consumption, without extender load) |
|
Ethernet |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
2K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Switch Fabric: 12Gbps Throughput (packet per second): 8.93Mpps@64bytes |
|
LED Indicator |
|
|
PWR (Power Status) |
ON: Power is supplied normally / OFF: No power input |
|
RJ45 L/A (Green) |
ON: Copper link active / Blinking: Data transmitting / OFF: Disconnected |
|
RJ45 SPD (Amber) |
ON: Operating at 1000 Mbps / OFF: Operating at 10/100 Mbps |
|
P1/P2/P3 (PoE Output) |
ON: PoE power output is normal and load connected |
|
FX L/A (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
FX SPD (Fiber Speed) |
ON: 1000M Fiber running / OFF: 100M Fiber running |
|
Physical Property |
|
|
Casing Protection |
Aluminum Enclosure, IP40 Rated |
|
Cooling Mechanism |
Natural Passive Cooling (Fanless) |
|
Dimensions (L x W x H) |
95 x 70 x 30 mm |
|
Installation Mounting |
35mm DIN-Rail or Wall-mount Bracket installation |
|
Weight |
0.25 Kg (bare device weight) |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
>500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
ISO |
Manufactured in ISO-9001 facility |
|
EMI |
FCC Part15 Subpart B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE) |
|
Shock |
IEC60068-2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
|
Enclosure Protection |
IEC 60529 IP40 |
- Download FileName：UF-IS104GPD-EX Mini Industrial PoE-Powered 4G+1SFP Media Converter with 3-Port PoE Passthrough Datas Size： 863KB
|
Model |
Description |
|
UF-IS104GPD-EX |
802.3bt PoE Powered Industrial 4G+1SFP Media Converter w/ 3-Port 802.3at 30W PoE Extender |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed (Wall-mount bracket optional) |
|
Power Options |
► IEEE 802.3bt 48V~57V DC in-line power |
