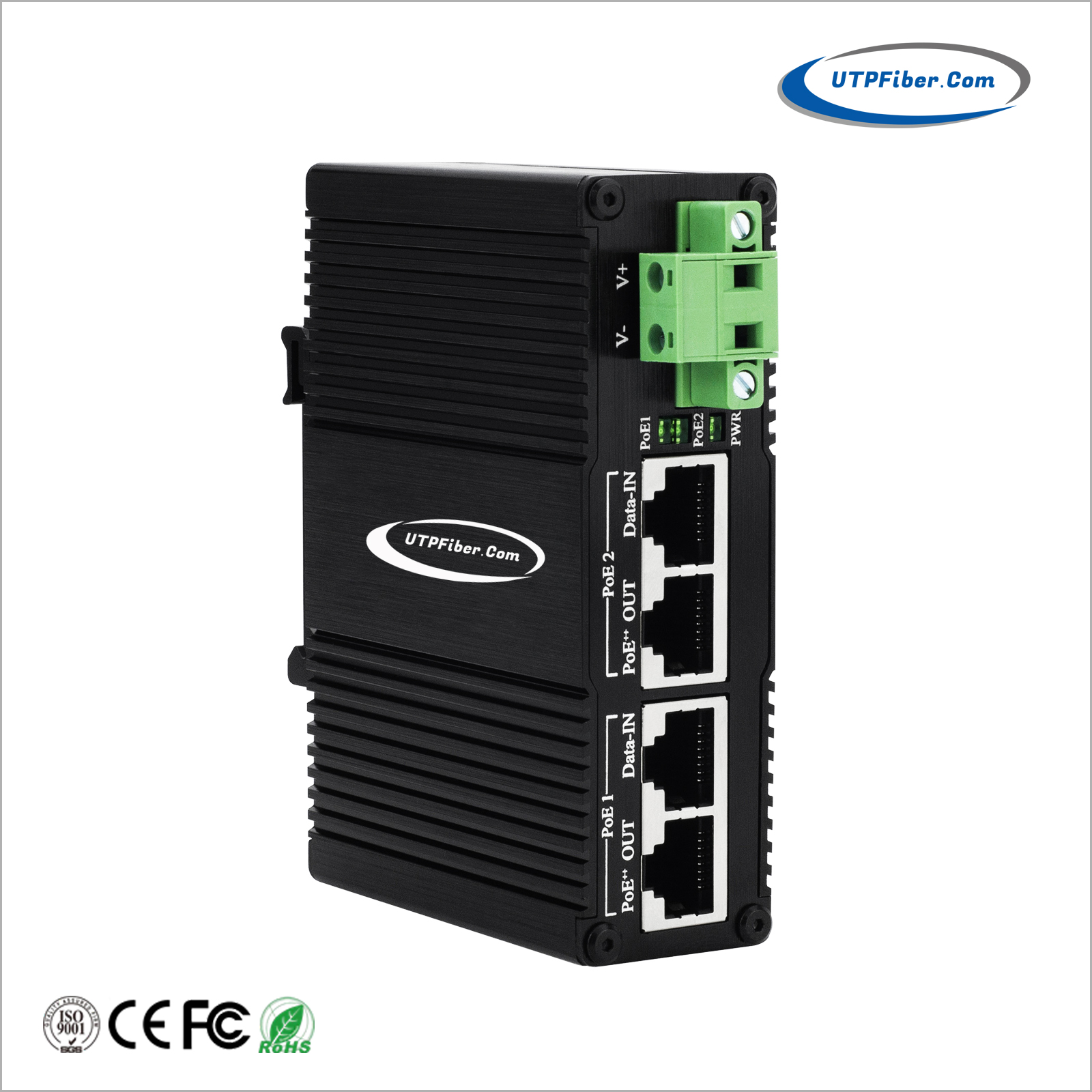

Industrial 2-Port 10Gbps 802.3bt PoE++ Injector with 9-57VDC Power Input
Model:UF-IPOE10G-290
► Support 9-57VDC Wide Range Power Input with Power Booster Function
► Two separate PoE++ injectors in a single device,
► Compliant with IEEE802.3af/at/bt PoE standard
► Up to 180-watt PoE budget (24-57VDC), 120-watt PoE budget (12VDC), 90-watt PoE budget (10VDC)，80-watt PoE budget (9VDC)
► Single port support max 95W PoE, total PoE power on 2 ports not exceed 180W

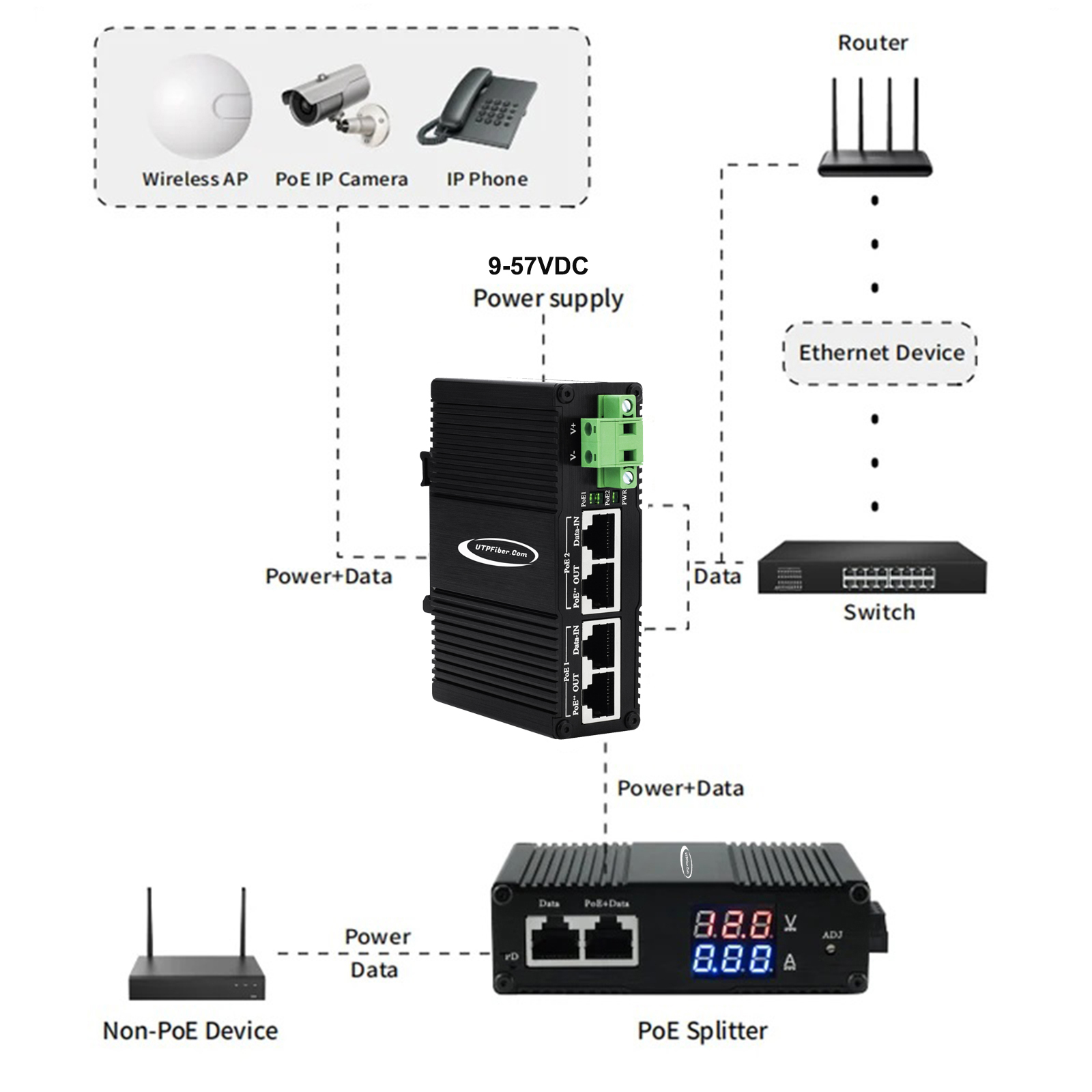

The UF-IPOE10G-290 2 Ports Hardened 10Gbps PoE++ Injector allows you to connect the IEEE 802.3 af/at/bt PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. It is equipped with four 10/100/1000/2.5G/5G/10GBASE-T RJ45 copper interfaces (two for data input and two for PoE data and power output) to handle extremely large amounts of data transmission, making it ideal for next-generation high-bandwidth and high-power network applications. Single port support max 95W PoE, total PoE power on 2 ports not exceed 180W.
To facilitate the 802.3bt PoE++ usage with the commonly-used 9-57VDC power input for transportation and industrial-level applications, the UF-IPOE10G-290 adopts 9-48VDC to 48VDC power booster technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. It supports 180W PoE budget (24-57VDC), 120W PoE budget (12VDC), 90W PoE budget (10VDC) and 80W PoE budget (9VDC).
The Industrial PoE injector use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 80°C (-40°F to 176°F). It is suitable for a wide range of applications, even in harsh environments. The scope of delivery includes a pre-assembled DIN-Rail kit and a wall mounting bracket.
► Support 9-57VDC Wide Range Power Input with Power Booster Function
► Two separate PoE++ injectors in a single device,
► Compliant with IEEE802.3af/at/bt PoE standard
► Up to 180-watt PoE budget (24-57VDC), 120-watt PoE budget (12VDC), 90-watt PoE budget (10VDC)，80-watt PoE budget (9VDC)
► Single port support max 95W PoE, total PoE power on 2 ports not exceed 180W
► Support 10/100/1000/2.5G/5G/10GBASE-T
► Support DIN-Rail & Wall-mount installation.
► Support 6KV Ethernet ESD protection
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T |
|
|
IEEE802.3 x Flow Control |
|
|
Processing Type: |
Pass-Through |
|
10Gbps Full-Duplex |
|
|
Data Rate: |
10M/100M/1G/2.5G/5G/10Gbps |
|
Network Cable: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G: 4-pair UTP Cat 6A/Cat 7 |
|
Connector: |
LAN: 2 x RJ-45, “Data” Input Port POE: 2 x RJ-45, “Data + Power” Output Port DC Connector: 1 x 9-57V DC Input Terminal Block |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
9-57VDC |
|
Power Consumption: |
190W Max. |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
PoE Budget: |
Up to 180-watt PoE budget (24-57VDC) Up to 120-watt PoE budget (12VDC) Up to 90-watt PoE budget (10VDC) Up to 80-watt PoE budget (9VDC) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Standard Accessories |
|
|
Package Contents |
UF-IPOE10G-290 |
|
User's manual |
|
|
Wall-mount kit |
|
|
DIN-Rail kit (pre-assembled) |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
- Download FileName：UF-IPOE10G-290 Industrial 2-Port 95W PoE Injector Datasheet V1.0.pdf Size： 600KB
|
Model |
Description |
|
UF-IPOE10G-290 |
Industrial 2-Port 10Gbps 802.3bt PoE++ Injector with 9-57VDC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
