Hardware Specifications

Product

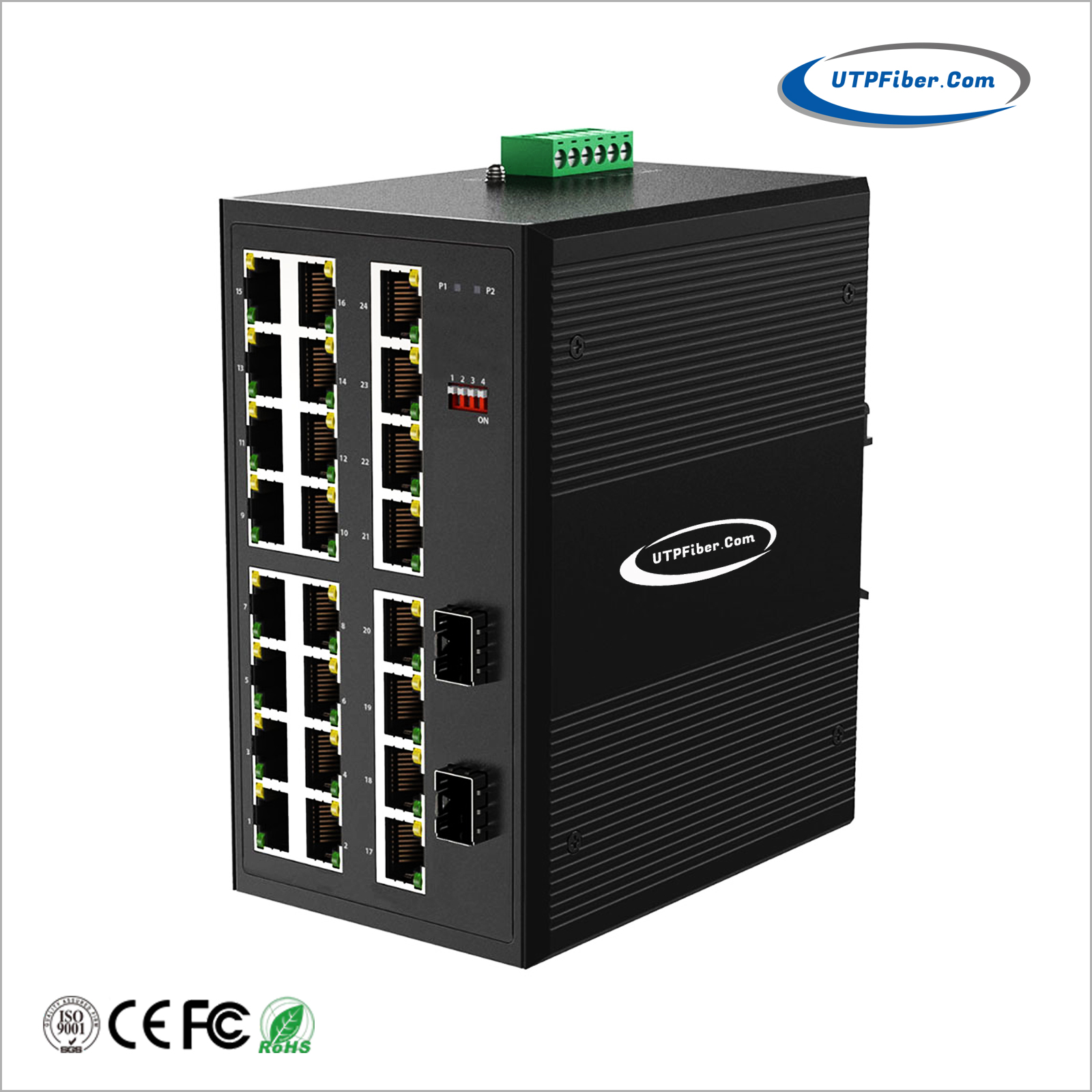

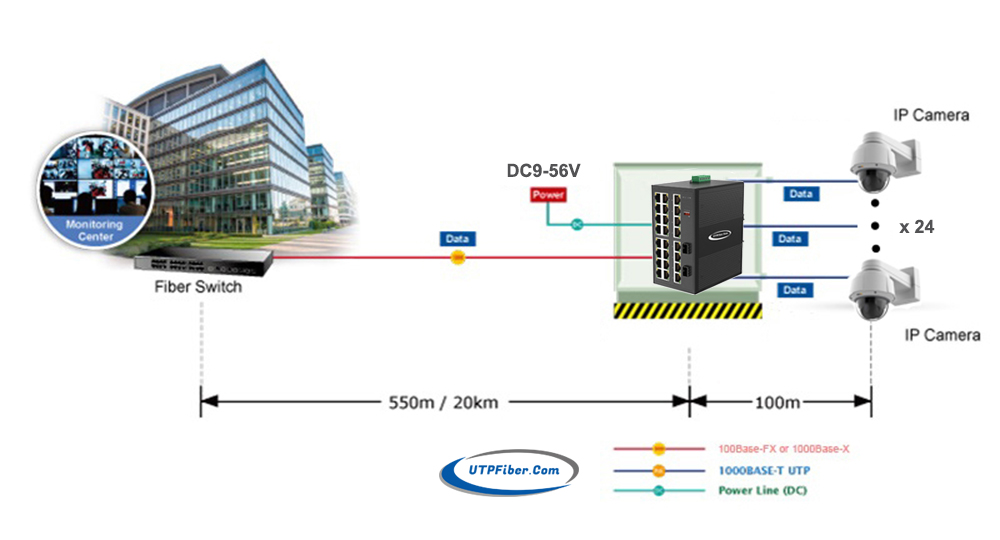

UF-IES224G-SFP

Copper Port

24 x 10/100/1000BASE-T RJ45

Fiber Ports

2 x 100/1000BASE-X SFP

Enclosure

IP40 aluminum case

Installation

DIN-Rail and Wall-mount

Dimension

155 x 128 x 88mm

Weight

1500g(Bare weight), 1800g(With package)

Surge Protection

±6kV DC, ±4kV RJ45

Switching

Switch Architecture

Store-and-Forward

Switch Fabric

52Gbps/non-blocking

Forwarding Rate

38.69 Mpps (64-byte packet size)

Packet Buffer Size

4Mbits

MAX. Packet Length

1500 bytes

MAC Address Table

8K entries, automatic source address learning and aging

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Power Supply

Power Input

2

Power Connector

1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required)

Operating Voltage

DC9-56V

Power Consumption

12 Watts Max (without PoE load)

Protection

Reverse Polarity, Overload Current

Environmental

Operating Temperature

-40℃ to +80℃ (-40 to 176 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~95% (non-condensing)

Cooling

Passive Cooling

MTBF

＞500,000 hours @Telcordia SR-332 GB 50°C

LED Indicators

P1 & P2

ON: Power is being supplied

OFF: Power is not being supplied

Fiber Port

ON: Port connection is active

Blinking: Data transmitted

OFF: Port connection is not active

RJ45 Port Amber LEDs

ON: Port connection is active

Blinking: Data transmitted

OFF: Port connection is not active

RJ45 Port Green LEDs

ON: Port is operating at 1000 Mb/s

OFF: Port is operating at 10/100 Mb/s

DIP Switch

#1

ON: AI VLAN Disabled

OFF: AI VLAN Enable

AI VLAN is essentially port isolation on each of the RJ45 ports. All ports are only able to communicate with the SFP Port when this option is enabled.

#2

ON: AI Extend Enable

OFF: AI Extend Disable

AI extend is a common ethernet switch feature designed to extend LAN transmission distance up to 250m. The downside is that port speeds will be limited to only 10Mbps.

#3

ON: AI QoS Enable

OFF: AI QoS Disable

When AI QoS is enabled on the 4 and 8 port models, all ports will prioritize Video and VoIP traffic flows over others.

#4

Function Reserve

Package Contents

Device

1 x Industrial Ethernet Switch

Installation Kit

1 x DIN-Rail Clip, 2x Wall-Mount Kits

Documentation

1 x Quick Start Guide

1 x Warranty card

Regulatory & Warranty

Standard Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet

ISO

Manufactured in ISO-9001 facility

Safety

IEC62368-1:2020+A11:2020

EMI

FCC Part 15B Class A, IEC 61000-3-2

EMS

IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV
IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV

Shock

IEC 60068-2-27

Free Fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Environmental

RoHS 2011/65/EU Annex II(EU)

Warranty

5 Years
