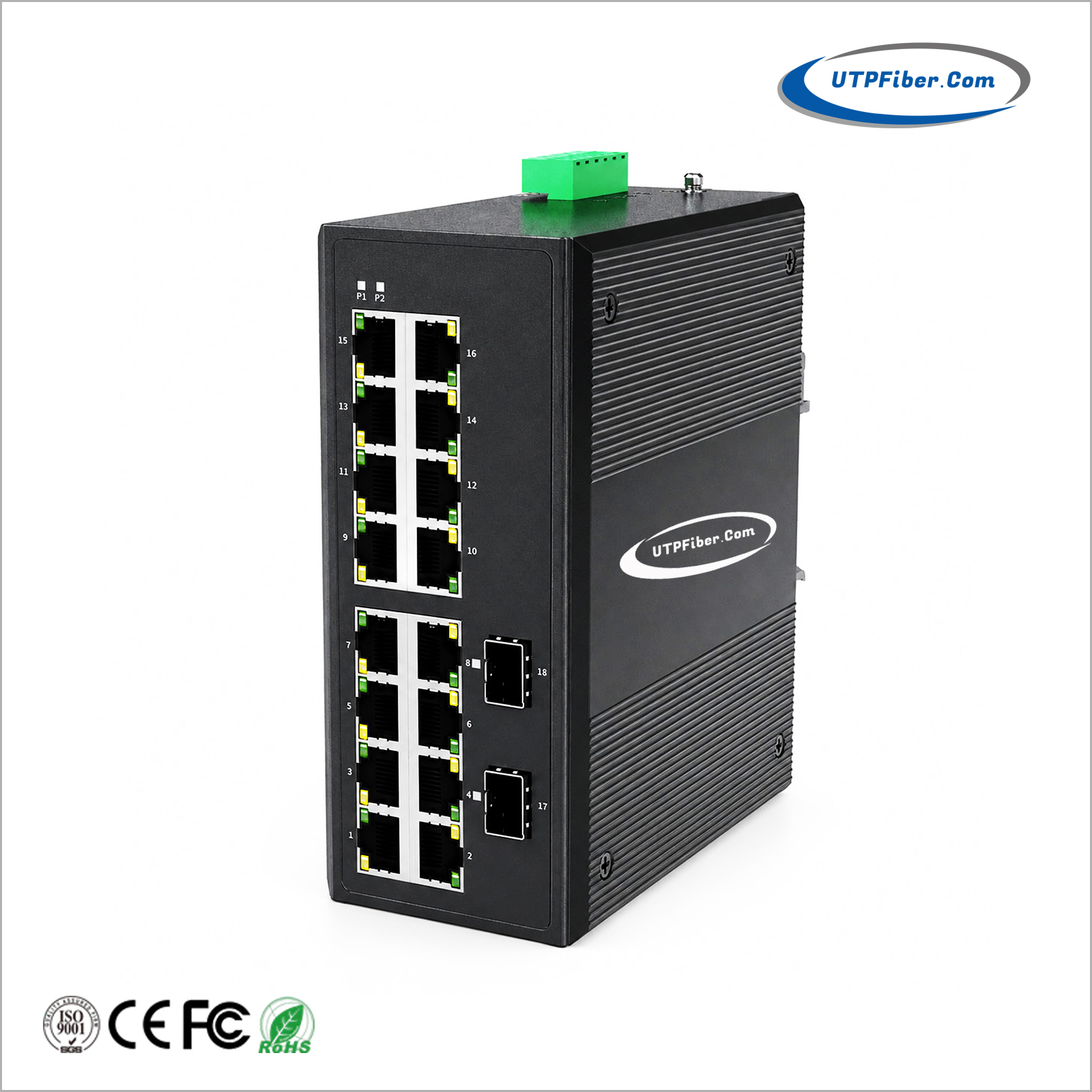

Industrial 16-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Model:UF-IES216G-SFP
► Support 2-Port 100/1000BASE-X SFP + 16-Port 10/100/1000BASE-T
► 9-56VDC redundant power with reverse polarity protection
► -40 to +80℃ operating temperature
► Installation method: DIN-Rail or Wall Mount
The UF-IES216G-SFP, a cutting-edge Industrial Ethernet switch, stands out as the ultimate choice for industrial networking applications, thanks to its exceptional performance capabilities. Equipped with 16 ports 10/100/1000Base-T and 2 ports 100/1000Base-X SFP uplink ports, this switch not only guarantees stable and reliable Ethernet transmission but also boasts an exquisitely engineered design and unwavering reliability.
When it comes to ensuring reliable and high-performance networking in industrial environments, the 16 Port Unmanaged Industrial Switch is an essential tool. With its rugged design and wide operating temperature range of -40 to 80℃, this switch can withstand even the harshest conditions. Its wide-range DC9~56V power input further enhances its reliability, allowing it to be powered by various sources commonly found in industrial settings. Whether you’re working in a factory, warehouse, or outdoor location, this switch provides seamless connectivity for up to 16 devices without the need for complex configurations. Trust in the durability and efficiency of the 16 Port Unmanaged Industrial Switch to keep your network running smoothly under any circumstances.
The 16 Port Unmanaged Industrial Switch offers seamless connectivity for industrial applications, providing reliable networking solutions for various environments. With a jumbo frame of up to 9K and a backplane bandwidth of 52G, this switch ensures high-speed data transmissions with minimal delays. Its unmanaged feature simplifies installation and maintenance, making it easy to set up and operate without complex configurations. Whether used in factories, warehouses, or outdoors, this switch guarantees stable connections for multiple devices without compromising performance. Experience the convenience of efficient networking with the 16 Port Unmanaged Industrial Switch – a versatile solution designed to meet the demands of modern industrial operations.
► Support 2-Port 100/1000BASE-X SFP + 16-Port 10/100/1000BASE-T
► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
► Supports MAC address auto-learning and auto aging
► Support 9K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology
► IEEE 802.1Q VLAN Transparency
► Complete status indicator, working state at a glance
► Support IPv6 Protocol, Electric 6KV surge protection
► IP40 Aluminum case, Fanless design
► 9-56VDC redundant power with reverse polarity protection
► -40 to +80℃ operating temperature
► Installation method: DIN-Rail or Wall Mount
|
Hardware Specifications |
|
|
Product |
UF-IES216G-SFP |
|
Copper Port |
16 x 10/100/1000BASE-T RJ45 |
|
Fiber Ports |
2 x 100/1000BASE-X SFP |
|
Enclosure |
IP40 aluminum case |
|
Installation |
DIN-Rail and Wall-mount |
|
Dimension |
160 x 132 x 70mm |
|
Weight |
990g(Bare weight), 1250g(With package) |
|
Surge Protection |
±6kV DC, ±4kV RJ45 |
|
Switching |
|
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
52Gbps/non-blocking |
|
Forwarding Rate |
23.8 Mpps (64-byte packet size) |
|
Packet Buffer Size |
4Mbits |
|
MAX. Packet Length |
9K bytes |
|
MAC Address Table |
8K entries, automatic source address learning and aging |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Power Supply |
|
|
Power Input |
2 |
|
Power Connector |
1 removable 5-contact terminal blocks |
|
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
|
|
Operating Voltage |
DC9-56V |
|
Power Consumption |
10 Watts Max (without PoE load) |
|
Protection |
Reverse Polarity, Overload Current |
|
Environmental |
|
|
Operating Temperature |
-40℃ to +80℃ (-40 to 176 ℉) |
|
Storage Temperature |
-40℃ to +85℃ (-40 to 185 ℉) |
|
Operating Humidity |
5%~95% (non-condensing) |
|
Cooling |
Passive Cooling |
|
MTBF |
＞500,000 hours @Telcordia SR-332 GB 50°C |
|
LED Indicators |
|
|
P1 & P2 |
ON: Power is being supplied OFF: Power is not being supplied |
|
Fiber Port |
ON: Port connection is active Blinking: Data transmitted OFF: Port connection is not active |
|
RJ45 Port Amber LEDs |
ON: Port connection is active Blinking: Data transmitted OFF: Port connection is not active |
|
RJ45 Port Green LEDs |
ON: Port is operating at 1000 Mb/s OFF: Port is operating at 10/100 Mb/s |
|
Package Contents |
|
|
Device |
1 x Industrial Ethernet Switch |
|
Installation Kit |
1 x DIN-Rail Clip, 2x Wall-Mount Kits |
|
Documentation |
1 x Quick Start Guide |
|
1 x Warranty card |
|
|
Regulatory & Warranty |
|
|
Standard Compliance |
IEEE 802.3 Ethernet |
|
ISO |
Manufactured in ISO-9001facility |
|
Safety |
IEC62368-1:2020+A11:2020 |
|
EMI |
FCC Part 15B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
|
Warranty |
5 Years |
- Download FileName：UF-IES216G-SFP Unmanaged Industrial 16G+2SFP Ethernet Switch Datasheet V1.0.pdf Size： 706KB
|
Model |
Description |
|
UF-IES216G-SFP |
Industrial 16-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch |
|
SFP |
►100/1000Base-X SFP (to be purchased separately) Please select your SFP on our SFP Modules page for details. ► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 9-56VDC Power Supply. Open Wire for Terminal Block ► Power Supply is to be purchased separately. |
