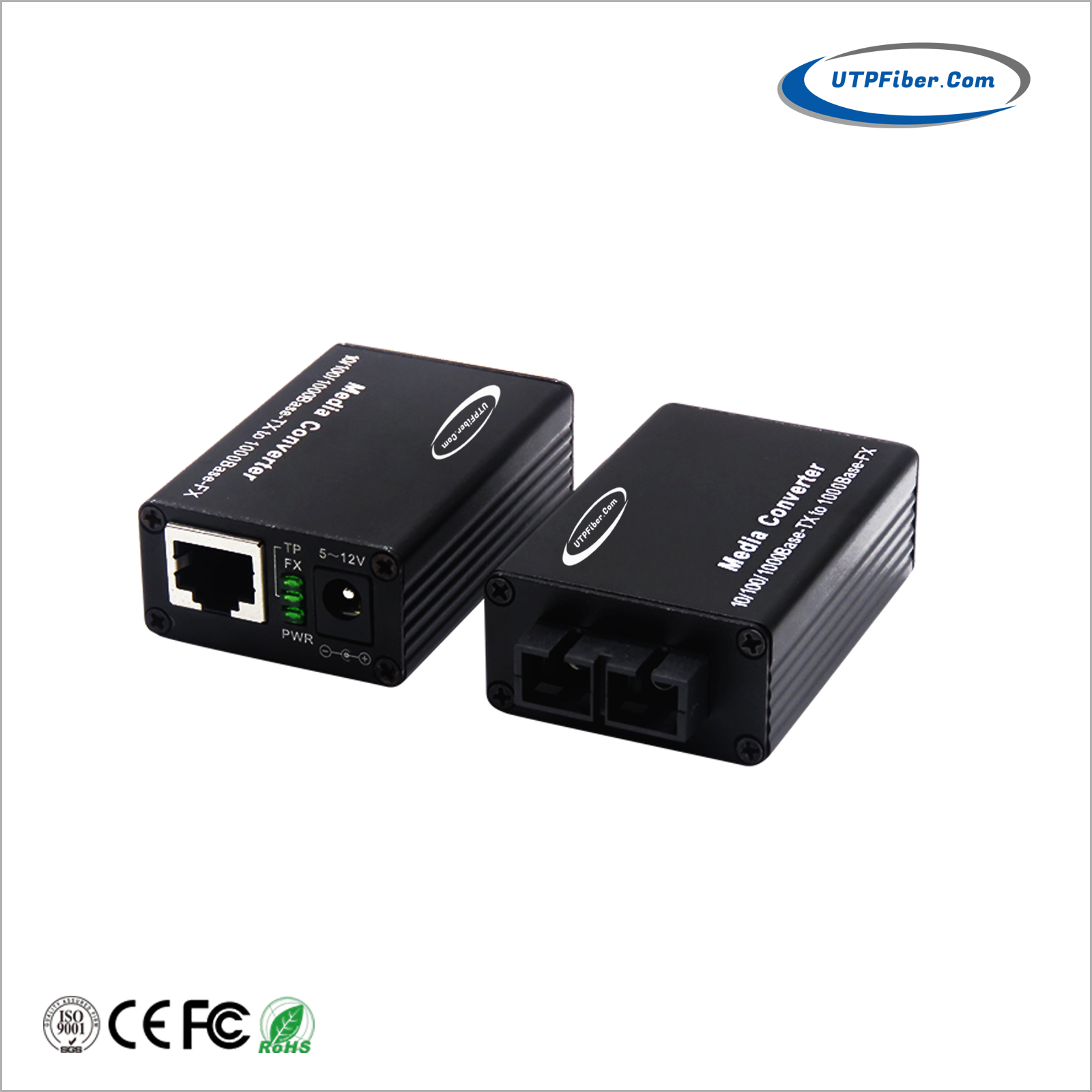

Micro Mini 10/100/1000BASE-T to 1000BASE-SX/LX Gigabit Media Converter
Model:UF-M1GE series
► 1×1000Base-SX/LX to 1×10/100/1000Base-T Port
► RJ45 support auto MDI/MDI-X function
► Wide-range power design (5~12VDC)
► 1×9 built-in fiber module
► Small volume
► Low power consumption

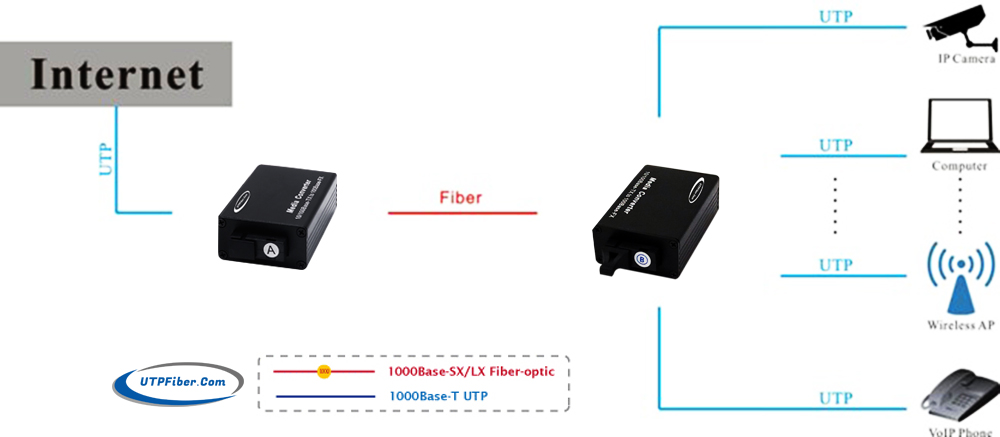

The UF-M1GE series is a 10/100/1000Mbps adaptive Gigabit Ethernet micro mini Media Converter. It has one 10/100/1000Mbps Ethernet port and one 1.25Gbps fiber port. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. There are also have many other advantages such as isolation protection, good data security, working stability and easy maintenance. The mini media converter adopts aluminum alloy casing, which has better heat dissipation performance and looks more delicate.
► Supports mutual conversion between 10/100/1000Base-T and 1000Base-SX/LX
► 1 x 1.25Gbps optical port, 1 x 10/100/1000M adaptive RJ45 port
► Adaptive rates of 10/100/1000M, MDI/MDI-X auto-negotiation, and full/half-duplex auto-adaptation
► Both optical and electrical links have complete connection/activity status indicators
► The optical port supports single-mode, multimode, single-fiber, and dual-fiber
► Supports IEEE 802.3x flow control and backpressure flow control
► Supports a wide input voltage range of 5 to 12V
► Supports transmission of ultra-long data packets up to 9K bytes
► Supports low-latency transmission
► The low-power chip design results in minimal heat generation, enabling stable operation for extended periods
► The product is lightweight and compact, with dimensions of only 83*36.8*23.2mm
|
Ethernet |
|
|
Standards: |
IEEE 802.3, 10BASE-T |
|
IEEE 802.3u, 100BASE-TX |
|
|
IEEE 802.3u, 100BASE-FX |
|
|
IEEE 802.3ab, 1000BASE-T |
|
|
IEEE 802.3z, 1000BASE-SX/LX |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3x Full-duplex flow control |
|
|
Flow Control: |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Jumbo Frame: |
9K |
|
Network Cables: |
Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on 1x9 optical transceiver) |
|
Processing Type: |
Store and Forward |
|
MAC Table Size: |
2K |
|
Buffer Space: |
1Mbit |
|
Maximum Packet Length |
9K bytes |
|
Time Delay: |
＜20μs |
|
Connector: |
1 x 10/100/1000BASE-T RJ45 |
|
Optical Port: |
1 x 1000Base-X SC (in default)/ST/FC (Optional) |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
5-12V DC, 1A max. |
|
Power Consumption: |
0.75W～3W |
|
LED Indicators |
|
|
FX: |
Fiber Link Status |
|
TP: |
Ethernet Link Status |
|
Dimensions (LxWxH): |
83 x 36.8 x 23.2mm |
|
Weight: |
100g (device only) |
|
Casing: |
Compact-sized aluminum case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-M1GE Mini 101001000M Fiber Media Converter Datasheet V2.0.pdf Size： 482KB
|
Model |
Description |
|
UF-M1GE |
10/100/1000BASE-T to 1000BASE-SX Media Converter (SC, MM) -220/550m |
|
UF-M1GE-T |
10/100/1000BASE-T to 1000BASE-SX Media Converter (ST, MM) -220/550m |
|
UF-M1GE-F |
10/100/1000BASE-T to 1000BASE-SX Media Converter (FC, MM) -220/550m |
|
UF-M1GE-20 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -20km |
|
UF-M1GET-20 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (ST, SM) -20km |
|
UF-M1GEF-20 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (FC, SM) -20km |
|
UF-M1GE-40 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -40km |
|
UF-M1GE-60 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -60km |
|
UF-M1GE-80 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -80km |
|
UF-M1GE-120 |
10/100/1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -120km |
|
UF-M1GES-20A * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1310nm, SC, SM) Gigabit Media Converter -- 20km |
|
UF-M1GES-20B * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 20km |
|
UF-M1GES-40A * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1310nm, SC, SM) Gigabit Media Converter -- 40km |
|
UF-M1GES-40B * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 40km |
|
UF-M1GES-60A * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1490nm, SC, SM) Gigabit Media Converter -- 60km |
|
UF-M1GES-60B * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 60km |
|
UF-M1GES-80A * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1490nm, SC, SM) Gigabit Media Converter -- 80km |
|
UF-M1GES-80B * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 80km |
|
UF-M1GES-120A * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1490nm, SC, SM) Gigabit Media Converter -- 120km |
|
UF-M1GES-120B * |
10/100/1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 120km |
|
Remarks * |
The WDM Media Converters should run in pair. It means you must connect A to one end while B to the other end. |
|
Mounting Options: |
► Desktop, wall mountable ►Media converter Chassis installation |
|
Power Options: |
► 2A 5VDC Power Supply |
