AC Powered Starlink 10G 150W PoE Injector w/ 12VDC Out
Model:UF-SK10G150W-12V
► Supports auto-negotiation for 10G / 5G / 2.5G / 1000M / 100M Ethernet data pass-through.
► Delivers 150W power to support the Starlink Standard Version Gen2/Gen3 via the PoE port and 12V DC (1.5A) via a dedicated DC barrel jack.
► Built-in AC/DC power module; features a rear IEC AC inlet with a dedicated On/Off rocker switch.

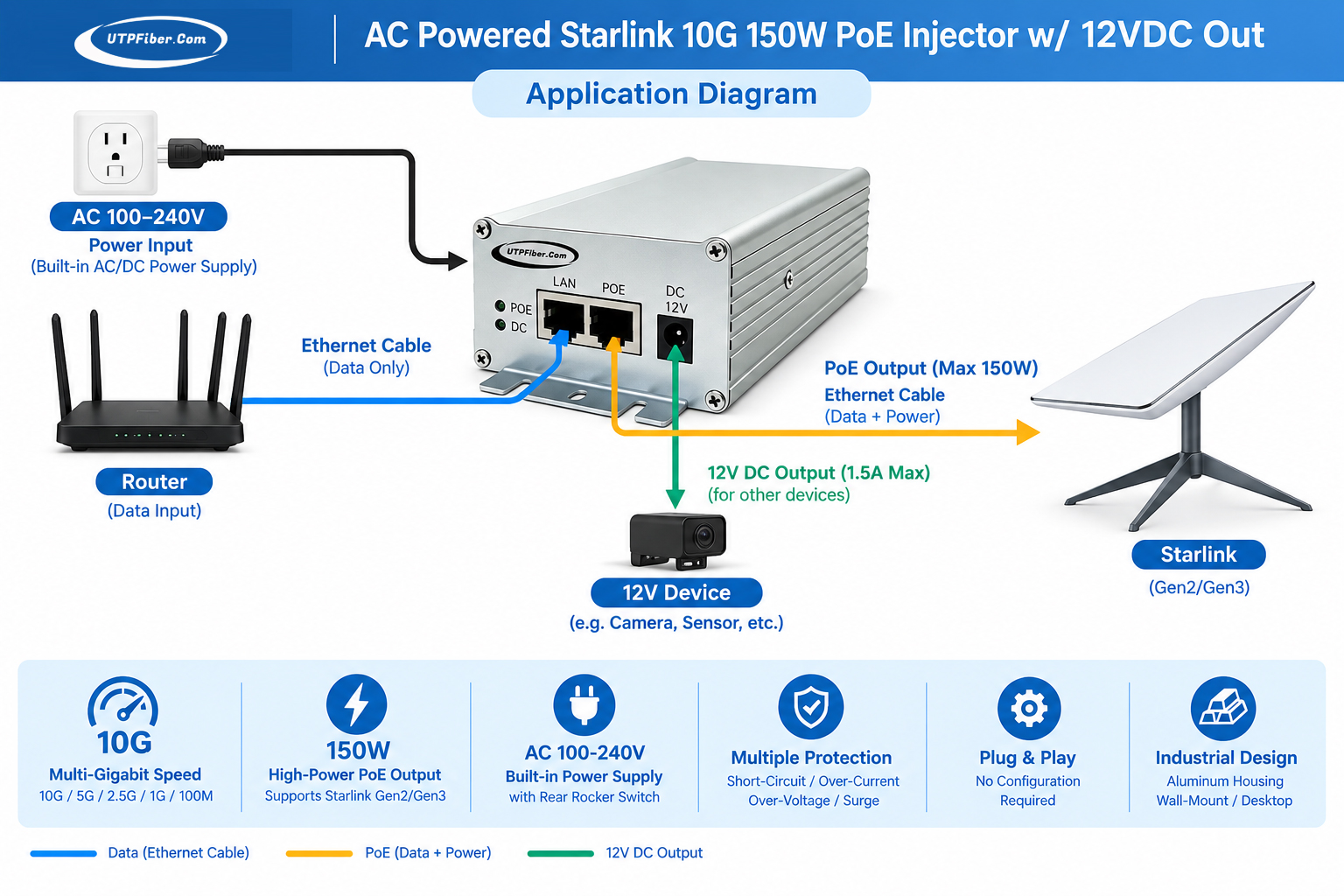

The UF-SK10G150W-12V Starlink 10G 150W PoE Injector is a single-port Power over Ethernet injector designed to deliver high-speed data transmission up to 10Gbps along with robust 56V/150W PoE output and an auxiliary 12V/1.5A DC output. Efficiently delivers 150W power to support the Starlink Standard Version Gen2/Gen3 for power supply for reliable performance. Built into a heavy-duty extruded aluminum enclosure with built-in mounting flanges, it simplifies hardware installation by powering Starlink PoE end-devices and non-PoE 12V equipment through a single AC input connection.
Featuring an integrated AC power supply with a rear master switch and dual LED status indicators, The UF-SK10G150W-12V High-Power 150W PoE Injector delivers stable and efficient power to Starlink V2 and V3 Dish antennas through a single ethernet cable for the replacement of Starlink router. Supplies power and data via one single ethernet cable to Starlink V3 Dish effective distance is 328ft (100m) and expands network to connecting your computer, new router, switch and other devices. The premium aluminum housing ensures excellent thermal performance, durability, and long-term reliability.
► Multi-Gigabit Speed: Supports auto-negotiation for 10G / 5G / 2.5G / 1000M / 100M Ethernet data pass-through.
► Dual Power Output: Delivers 150W power to support the Starlink Standard Version Gen2/Gen3 via the PoE port and 12V DC (1.5A) via a dedicated DC barrel jack.
► Integrated Power Supply: Built-in AC/DC power module; features a rear IEC AC inlet with a dedicated On/Off rocker switch.

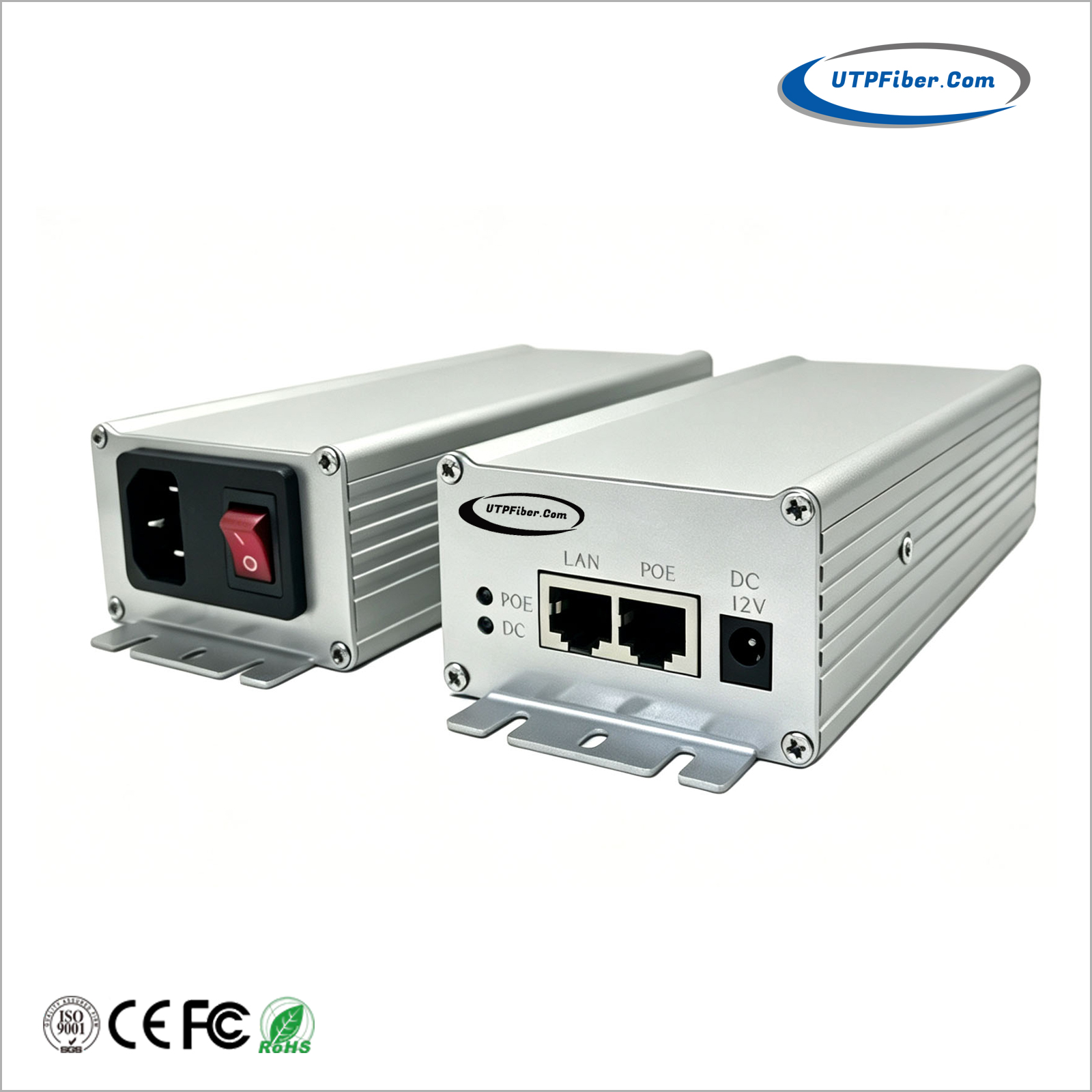

► Industrial Aluminum Housing: Durable extruded aluminum chassis with integrated mounting flanges for wall or desktop installation.
► Front Panel Diagnostics: Clear LED indicators for instant monitoring of POE and DC 12V output status.
► Plug and Play Installation: Requires no software configuration; includes auto-sensing power delivery to prevent damage to incorrect devices.
► Safety & Circuit Protection: Features built-in short-circuit, over-current, over-voltage, and surge protection.
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3bz 2.5G/5G/10GBASE-T |
|
|
Processing Type: |
Pass-Through |
|
10Gbps Full-Duplex |
|
|
Data Rate: |
10M/100M/1G/2.5G/5G/10Gbps |
|
Network Cable: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
|
Connector: |
LAN: 1 x RJ-45, “Data” Input Port POE: 1 x RJ-45, “Data + Power” Output Port DC Connector: 1 x 12V DC Output Jack (5.5mm / 2.1mm) AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-20°C to 75°C (-4°F to 167°F) |
|
Storage Temperature: |
-40°C to 70°C (-40°F to 167°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz |
|
Auxiliary DC Output: |
Voltage: 12V DC Current: 1.5A Max |
|
Power Switch: |
Integrated Rear Rocker Switch (ON / OFF) |
|
Power Consumption: |
120 watts max. |
|
Protection: |
Short-Circuit Protection, Over-Current Protection, Over-Voltage Protection |
|
PoE (Power over Ethernet) |
|
|
PoE Power Budget: |
150W (56V 2.7A) |
|
Port: |
RJ45 |
|
Power Pin Assignment |
1/2/3/6(+), 4/5/7/8(-) |
|
PoE Output |
1 * High Power PoE Port |
|
LED Indicators |
|
|
DC: |
12V DC Output Status |
|
PoE: |
PoE Status |
|
Mechanical |
|
|
Dimensions (W×D×H): |
191 x 73 x 45mm |
|
Weight: |
650g |
|
Casing: |
Aluminum Shell with Wall-Mount Brackets/Flanges |
|
Mounting Options: |
Desktop/Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
- Download FileName：UF-SK10G150W-12V Starlink 10G 150W PoE Injector with 12VDC Out Datasheet V1.0.pdf Size： 564KB
|
Model |
Description |
|
UF-SK10G150W-12V |
AC Powered Starlink 10G 150W PoE Injector w/ 12VDC Out with power cord |
|
Mounting Options |
► Wall-mount / Desktop |
|
Power Options |
► 100-240V voltage input |
