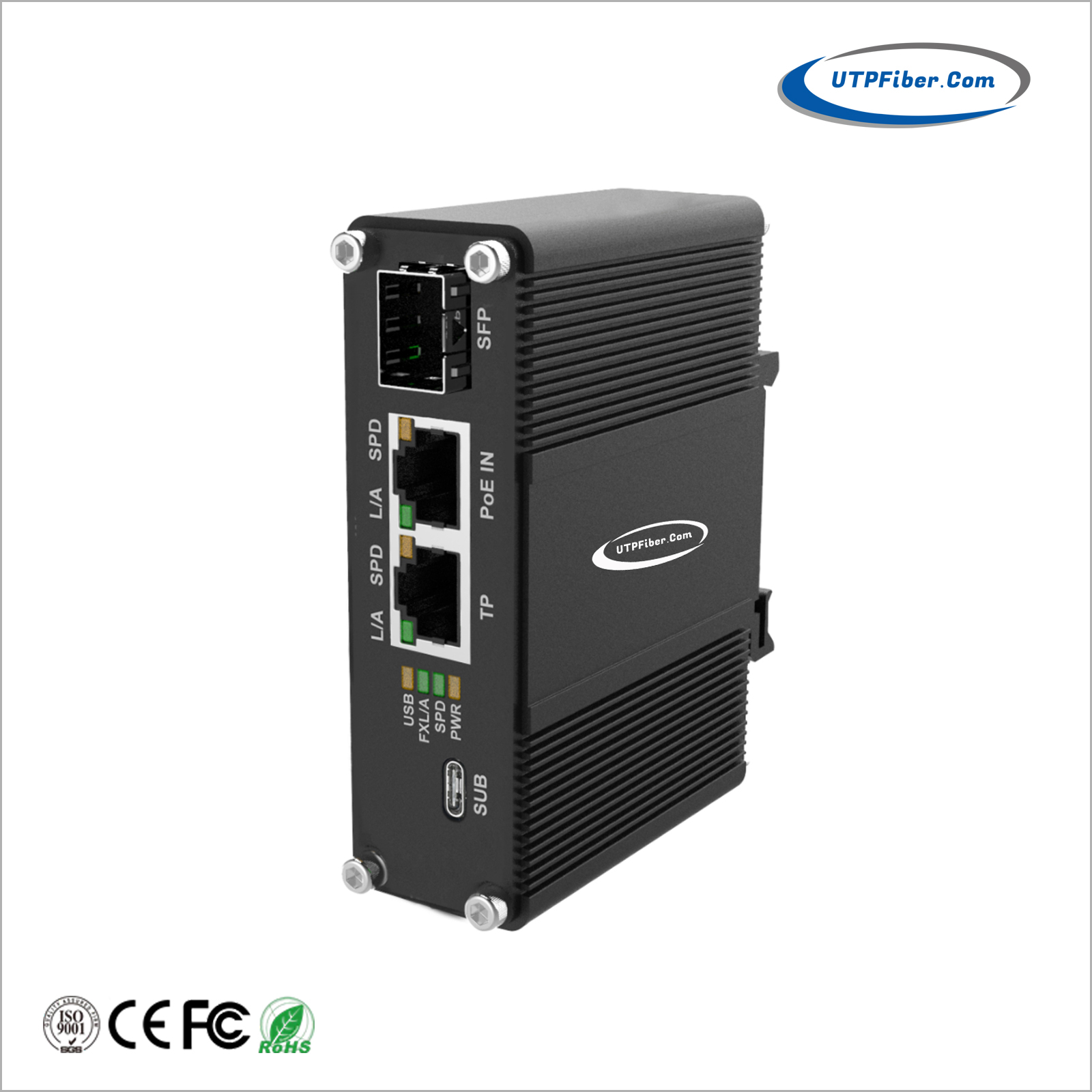

Mini Industrial PoE-Powered Gigabit SFP Media Converter with 60W USB-C PD Output
Model:UF-IS102GPD-C
► PoE-Powered Convenience
► 60W Intelligent USB-C Power Delivery
► Flexible Dual Copper Ports
► Auto-Adaptive SFP Slot
► Industrial-Grade Design
► Compact & Easy Deployment
The UF-IS102GPD-C series is an advanced, mini-refined industrial-grade PoE-to-Fiber media converter designed to deliver ultra-flexible data networking and high-power charging capabilities.

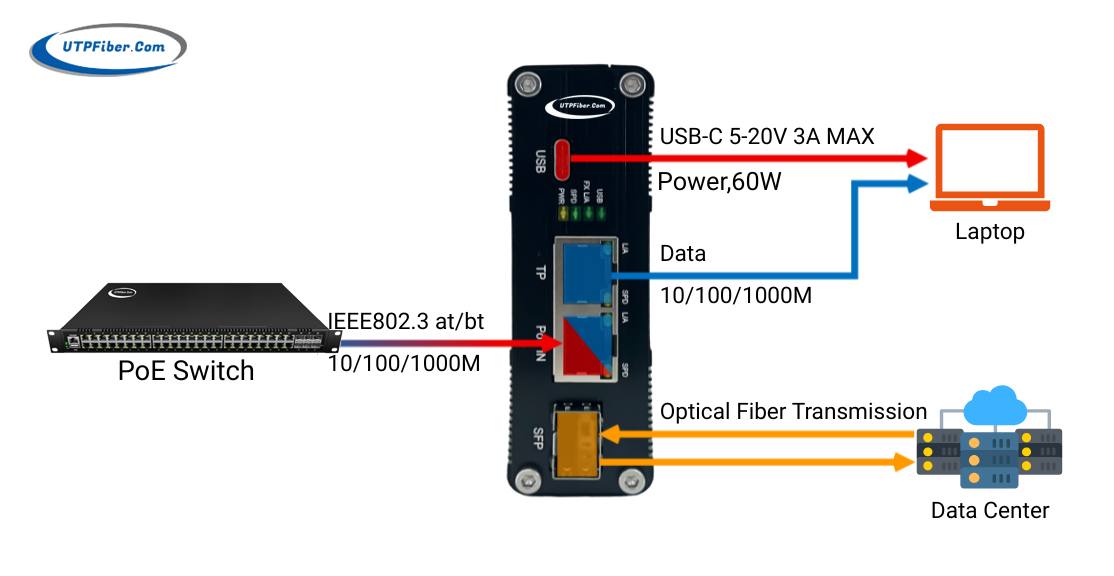

The device features a unique architecture that accepts IEEE 802.3at/bt Power over Ethernet (PoE) input from a remote PSE switch or PoE injector through its "PoE IN" RJ45 port, enabling it to operate seamlessly without requiring an additional local power supply. At the same time, it natively bridges copper and fiber networks using one 10/100/1000BASE-T RJ45 port and one self-adaptive 100/1000BASE-X SFP slot for long-distance optical transmission.
Crucially, the integrated USB-C port incorporates smart USB PD 2.0/3.0 protocols, delivering up to 60W (5V-20V, 3A Max) DC power to power or charge downstream laptops, tablets, or industrial terminal devices. Encased in a rugged IP40 aluminum housing, this ultra-compact device is tailor-made for harsh industrial automation, IoT, and edge-computing applications.
► PoE-Powered Convenience: Fully powered via remote IEEE 802.3at/bt PoE input, cutting down cabling complexity and eliminating local AC/DC power adapters
► 60W Intelligent USB-C Power Delivery: Standard USB PD 2.0/3.0 charging protocol compatibility, capable of delivering dynamic power voltages (5V-20V up to 3A) to modern type-C smart equipment.
► Flexible Dual Copper Ports: Equipped with 1x 10/100/1000M standard Ethernet RJ45 port and 1x 10/100/1000M PoE PD input port.
► Auto-Adaptive SFP Slot: Supports 100Base-FX and 1000Base-X optical auto-detection, breaking copper network distance limitations via single-mode or multi-mode fibers.
► Industrial-Grade Design: Operates over extreme temperature ranges (-40°C to +75°C} with an IP40 aluminum casing, excellent ESD/Surge protection, and fanless passive cooling.
► Compact & Easy Deployment: Highly space-saving form factor (95 x 70 x 30mm})with plug-and-play DIN-Rail or Wall-mount installation.
|
Physical Port |
|
|
Copper Ports |
2 x 10/100/1000BASE-T RJ45 (1x Standard TP, 1x PoE IN) Auto-MDI/MDI-X, Auto-Negotiation |
|
Fiber Ports |
1 x 100Base-FX / 1000Base-X Auto-detection SFP Slot |
|
USB-C Output Port |
1 x Type-C USB 3.0 / USB PD 3.0 (Compatible with USB 2.0/PD 2.0) |
|
Network Cable Requirements |
10/100/1000BASE-T: 2-pair UTP Cat3/4/5/5e/6 (Max 100m) or 100-ohm STP (Max 100m) |
|
Power Supply & PoE Delivery |
|
|
Power Input Interface |
PoE Input via "PoE IN" RJ45 Port |
|
PoE Standards |
IEEE 802.3at / IEEE 802.3bt compliant |
|
Input Voltage Range |
DC 48V - 57V |
|
USB PD Output Voltage |
5V, 9V, 12V, 15V, 20V (Dynamic negotiations) |
|
USB PD Output Current |
3.0A Maximum |
|
Total Power Budget |
60W Max (Dependent on PoE power input source) |
|
Power Consumption |
≤5 Watts Max (Self-consumption, without downstream USB-C load) |
|
Ethernet |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
2K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Switch Fabric: 12Gbps Throughput (packet per second): 8.93Mpps@64bytes |
|
LED Indicator |
|
|
PWR (Power Status) |
ON: Power is supplied normally / OFF: No power input |
|
USB (Load Link) |
ON: Connected to valid downstream USB-C Powered Device (PD) |
|
RJ45 L/A (Green) |
ON: Copper link active / Blinking: Data transmitting / OFF: Disconnected |
|
RJ45 SPD (Amber) |
ON: Operating at 1000 Mbps / OFF: Operating at 10/100 Mbps |
|
FX L/A (Fiber Link) |
ON: Optical fiber is connected / Blinking: Data transmitting |
|
FX SPD (Fiber Speed) |
ON: 1000M Fiber running / OFF: 100M Fiber running |
|
Physical Property |
|
|
Casing Protection |
Aluminum Enclosure, IP40 Rated |
|
Cooling Mechanism |
Natural Passive Cooling (Fanless) |
|
Dimensions (L x W x H) |
95 x 70 x 30 mm |
|
Installation Mounting |
35mm DIN-Rail or Wall-mount Bracket installation |
|
Weight |
0.25 Kg (bare device weight) |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
>500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
ISO |
Manufactured in ISO-9001 facility |
|
EMI |
FCC Part15 Subpart B Class A, IEC 61000-3-2 |
|
EMS |
IEC61000-4-2 ESD: Contact:±8kV, Air:±15kV IEC61000-4-5 Surge: Power: ±6kV; RJ45:±4kV/±6kV(PoE) |
|
Shock |
IEC60068-2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Environmental |
RoHS 2011/65/EU Annex II(EU) |
- Download FileName：UF-IS102GPD-C Industrial PoE-Powered Gigabit Media Converter with 60W USB-C Output Datasheet V1.0.pd Size： 713KB
|
Model |
Description |
|
UF-IS102GPD-C |
Industrial PoE-Powered Gigabit Ethernet Media Converter w/ 60W USB-C PD Output: 1 x 10/100/1000BASE-T RJ45 with IEEE 802.3 at/bt PoE Power Input, 1 x 10/100/1000BASE-T RJ45, 1 x 100/1000BASE-X SFP Slot, 1 x USB-C PD output (5-20V, 3A Max 60W) |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed (Wall-mount bracket optional) |
|
Power Options |
► IEEE 802.3af/at/bt 48V~54V DC in-line power |
