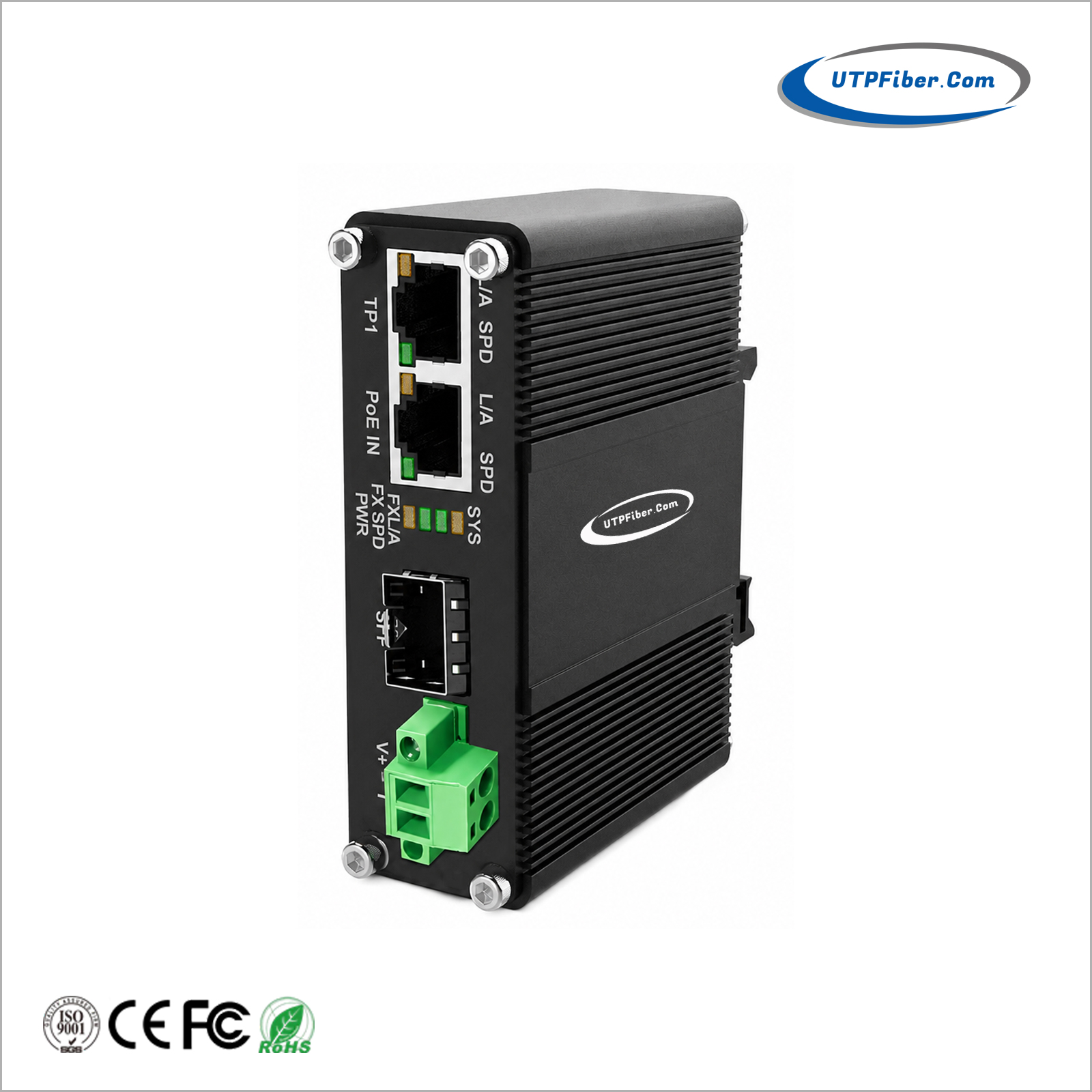

PoE Powered Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Media Converter
Model:UF-IS102GPD-SFP
► IEEE802.3af/at/bt PoE Powered – no power adapter required
► Optional 12-48VDC terminal block power input
► 2 x 10/100/1000Base-T RJ45 port,
1 x 100/1000Base-X SFP port
► Installation method: DIN Rail or Wall mounting

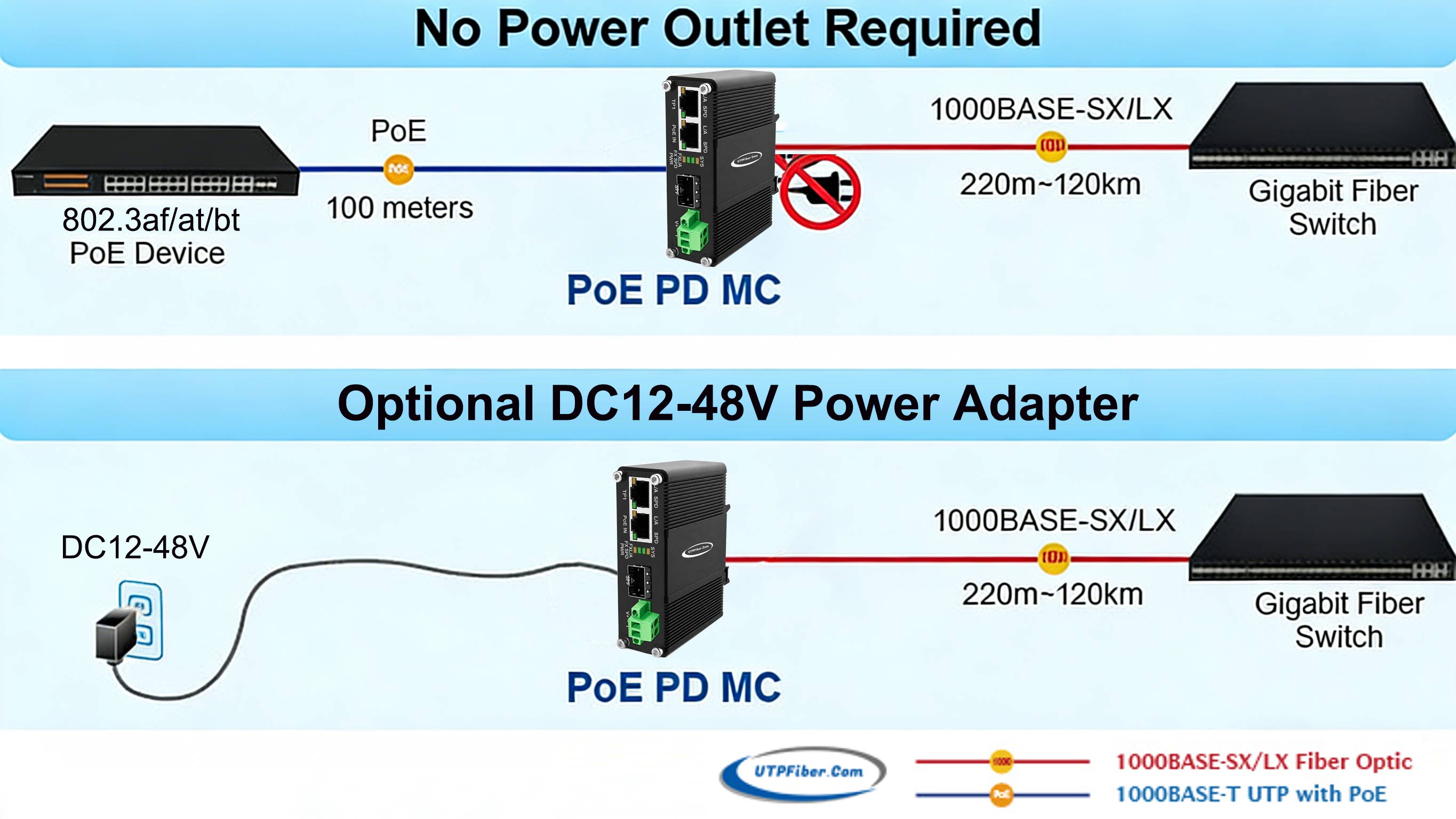

Eliminates the need for a local power outlet. The UF-IS102GPD-SFP is a game-changing PoE Powered Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Media Converter designed for ultra-flexible deployment in harsh and remote environments. By integrating advanced PoE PD (Powered Device) technology, this converter can be powered directly through the Ethernet cable from a PoE switch or injector (supporting IEEE 802.3af/at/bt standards), making it the "lifesaver" for installations on outdoor poles, ceilings, or space-constrained cabinets where power outlets are unavailable.
Beyond its PoE capability, it features a 12-48VDC power input as a versatile backup, ensuring reliability in any power scenario. Despite its micro-sized footprint (95 x 70 x 30mm), this "hardened" device is built for extremes, operating flawlessly in temperatures from -40C to +80C. Housed in a rugged IP40 aluminum enclosure with 6KV surge protection, it provides a stable 10/100/1000T to 100/1000X SFP fiber link for Intelligent Transportation Systems (ITS), security surveillance, and industrial automation.
► IEEE802.3af/at/bt PoE Powered – no power adapter required
► Optional 12-48VDC terminal block power input
► 2 x 10/100/1000Base-T RJ45 port,
1 x 100/1000Base-X SFP port
► Support Auto-MDIX and full/half duplex self-negotiation mode
► 10K Bytes Jumbo Frame
► Support IEEE802.3az energy efficient Ethernet technology
► Electric 6KV surge protection, easy to use in outdoor environment
► Complete status indicators, working state at a glance
► Metal case, no fan design
► Installation method: DIN Rail or Wall mounting
|
Physical Port |
|
|
RJ45 port and speed |
2 x 10/100/1000Base-T |
|
Fiber port and speed |
1 x 100/1000Base-X SFP |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 10K Bytes |
|
MAC address table |
2K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Switch Fabric: 12Gbps Throughput (packet per second): 8.93Mpps@64bytes |
|
LED Indicator |
|
|
Power |
Connect-always ON |
|
RJ45 |
Link/Act: connect-always; data exchange-blinking |
|
Fiber |
Link/Act: connect-always; data exchange-blinking |
|
Power Information |
|
|
Dual power input |
Option 1: IEEE 802.3af/at/bt PoE 48V-54V DC in-line power Option 2: DC12-48V (terminal block) external power adapter |
|
Power consumption |
5W Max. |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum housing |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
95 x 70 x 30 mm |
|
Installation mode |
DIN Rail or Wall-Mount |
|
Weight |
86g (device only) |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IS102GPD-SFP PD Powered Mini Industrial 2G+1SFP Media Converter Datasheet V1.0.pdf Size： 815KB
|
Model |
Description |
|
UF-IS102GPD-SFP |
PoE Powered Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Media Converter, dual power input: PD Powered RJ45 input when using as PoE-Powered Gigabit Media Converter, 12-48VDC Type-C power input as normal Gigabit Media Converter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed (Wall-mount bracket optional) |
|
Power Options |
► IEEE 802.3af/at/bt 48V~54V DC in-line power |
|
► Optional 12-48VDC USB power input |
