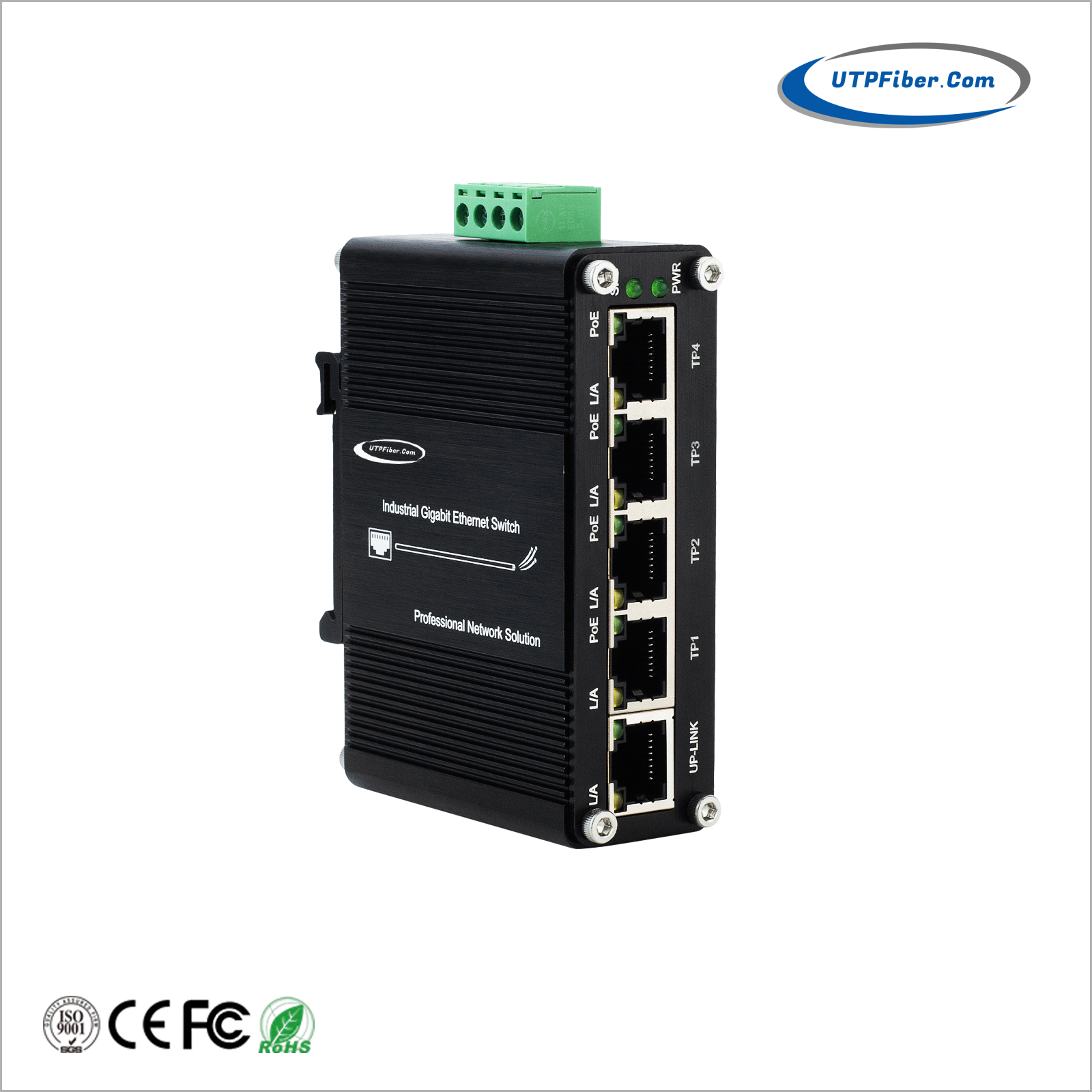

Mini Industrial 4-Port Gigabit PoE+ Switch with 9–57V DC Input
Model:UF-IS6005GP-12V
► 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T
► 9~57VDC wide range power input with power booster function
► Supports IEEE 802.3at PoE+ (Max 30W PoE at one port), Up to 120W PoE budget (24-56VDC), 60W PoE budget (12VDC)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Mini Industrial 4-Port Gigabit PoE+ Switch with 9–57V DC Booster
Product Overview
The UF-IS6005GP-12V is a compact, unmanaged industrial Gigabit PoE+ switch designed for network deployments powered by low-voltage DC sources. It features four 10/100/1000BASE-T RJ45 PoE+ ports and one 10/100/1000BASE-T RJ45 uplink port.
With a built-in DC voltage booster, the switch accepts a wide 9–57V DC input range and provides IEEE 802.3af/at PoE output to compatible powered devices. Its PoE power budget reaches up to 60W with a 12V DC input and up to 120W with a 24–56V DC input.
The compact aluminum enclosure, fanless design, redundant power inputs, and DIN-rail or wall-mount installation make it suitable for industrial networking, remote IP surveillance, intelligent transportation systems, and solar-powered network deployments.
Frequently Asked Questions
1. How many PoE ports does the UF-IS6005GP-12V provide?
It provides four Gigabit RJ45 PoE+ ports and one additional Gigabit RJ45 uplink port.
2. What is the DC input voltage range?
The product page specifies a 9–57V DC input range. The actual supply voltage must remain within the specified range and meet the system's power requirements.
3. What is the maximum PoE power budget?
The stated maximum is 60W with a 12V DC input and up to 120W with a 24–56V DC input. The available power depends on input voltage and system operating conditions.
4. Does the switch have an SFP fiber port?
No. The UF-IS6005GP-12V has five RJ45 copper ports, including four PoE+ ports and one Gigabit uplink. It does not have an SFP slot.
5. Can it be used in a solar-powered network?
Yes. It can be used in a solar-powered network when paired with a suitably designed DC power system. A solar panel, battery, and charge controller are not stated as integrated components of this switch.
6. What is its operating temperature range?
The specified operating temperature range is -40°C to +80°C.
7. How can the switch be installed?
It supports DIN-rail and wall mounting. The DC power supply is purchased separately according to the ordering information.
Request a Quote
Looking for a compact industrial PoE+ switch for a low-voltage DC or solar-powered network? Contact UTP Fiber with your required input voltage, PoE device count, power budget, and installation environment. Our team can help you confirm product suitability for your application.
Key Features
-
4 Gigabit PoE+ Ports: Four 10/100/1000BASE-T RJ45 ports support IEEE 802.3af/at PoE, delivering up to 30W per port.
-
1 Gigabit RJ45 Uplink: One additional 10/100/1000BASE-T port connects the switch to an upstream network.
-
Wide DC Input with Voltage Booster: Supports 9–57V DC input with built-in voltage-boosting technology for low-voltage DC power systems.
-
Flexible PoE Power Budget: Up to 60W total PoE power with a 12V DC input and up to 120W with a 24–56V DC input.
-
Redundant Power Inputs: Dual power-input design supports power redundancy when connected to suitable independent power sources.
-
Industrial Operating Temperature: Designed to operate from -40°C to +80°C.
-
Compact, Fanless Design: Aluminum housing with passive cooling for space-constrained installations.
-
Flexible Mounting: Supports DIN-rail and wall mounting.
-
Network Compatibility: Supports Auto-MDI/MDI-X, full/half-duplex negotiation, IEEE 802.3az Energy-Efficient Ethernet, and 9KB jumbo frames.
Typical Applications

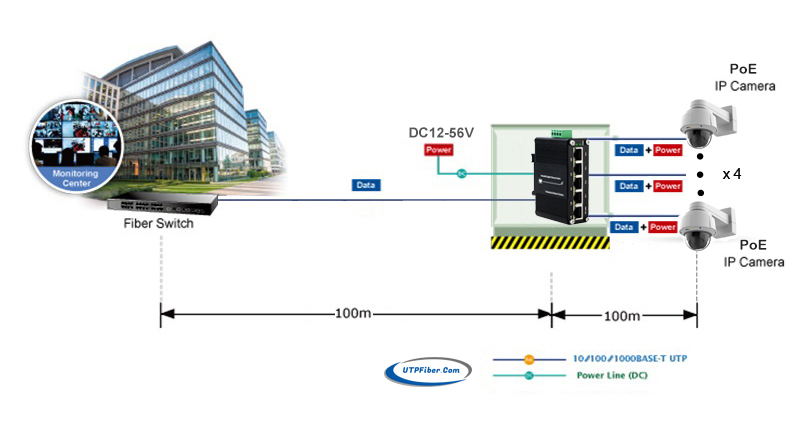

Solar-Powered IP Surveillance
Connect IP cameras in remote locations where low-voltage DC power is available from a solar power system. The switch's DC voltage booster helps provide PoE power to compatible cameras.
Industrial Automation
Connect Ethernet-enabled industrial devices in control cabinets, production facilities, and distributed industrial networks.
Intelligent Transportation Systems
Provide Gigabit Ethernet connectivity and PoE power for compatible roadside cameras and network devices, subject to the project's environmental and power requirements.
Remote Network Installations
Deploy multiple PoE devices at locations where conventional AC power is inconvenient and a suitable DC power source is available.
Outdoor and Harsh-Environment Network Cabinets
Use the industrial temperature range and compact DIN-rail or wall-mount design in appropriately protected equipment enclosures.
|
Ethernet |
|
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Size: |
1M |
|
Switch Fabric: |
10Gbps |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
2K MAC Addresses |
|
Interface |
|
|
Copper Ports: |
5 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
PoE Injector Ports |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Uplink Ports: |
1 x 10/100/1000BASE-T RJ45 |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
|
PoE Power Supply Type |
Mid-span |
|
Power Pin Assignment |
4/5 (+), 7/8 (-) |
|
PoE Power Output |
IEEE 802.3af Standard |
|
PoE Power Budget |
120W maximum@24-56V DC 60W maximum@12V DC |
|
Lightning protection |
The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
907,476 hours @ Telcordia SR-332 Standard |
|
Heat Dissipation: |
10 BTU/h (Non-PoE) 420 BTU/h (30W PoE) |
|
Cooling: |
Passive Cooling, Fanless Design |
|
Noise Level: |
0 dBA |
|
Electrical and Mechanical |
|
|
Input Power: |
9-57VDC, Redundant Power (Terminal Block) |
|
Connector: |
1 removable 5-contact terminal blocks |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
125W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
RJ45: |
Link/Act: connect-always; data exchange-twinkle |
|
Dimensions (LxWxH): |
100 x 70 x 30 mm |
|
Weight: |
250g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
EMC/EMI/EMS |
FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD): LEVEL 4 IEC 6100-4-2 (EFT): LEVEL 4 IEC 6100-4-2 (Surge): LEVEL 4 IEC 6100-4-2 (CS)：LEVEL 3 IEC 61000-4-2(PFMP) : LEVEL 5 EN61000-4-3 (RS): LEVEL 4 |
|
Shock |
IEC60068-2-27 |
|
Freefall |
IEC60068-2-31 |
|
Vibration |
IEC60068-2-6 |
|
Safety |
EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508 |
- Download FileName：UF-IS6005GP-12V Mini Industrial 4G+1TP Solar Power PoE Switch Datasheet V2.0.pdf Size： 517KB
|
Model |
Description |
|
UF-IS6005GP-12V |
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Solar Power PoE Switch w/ 9-57V Booster, PoE Power budget: 60W@12VDC, 120W@24-56VDC |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
