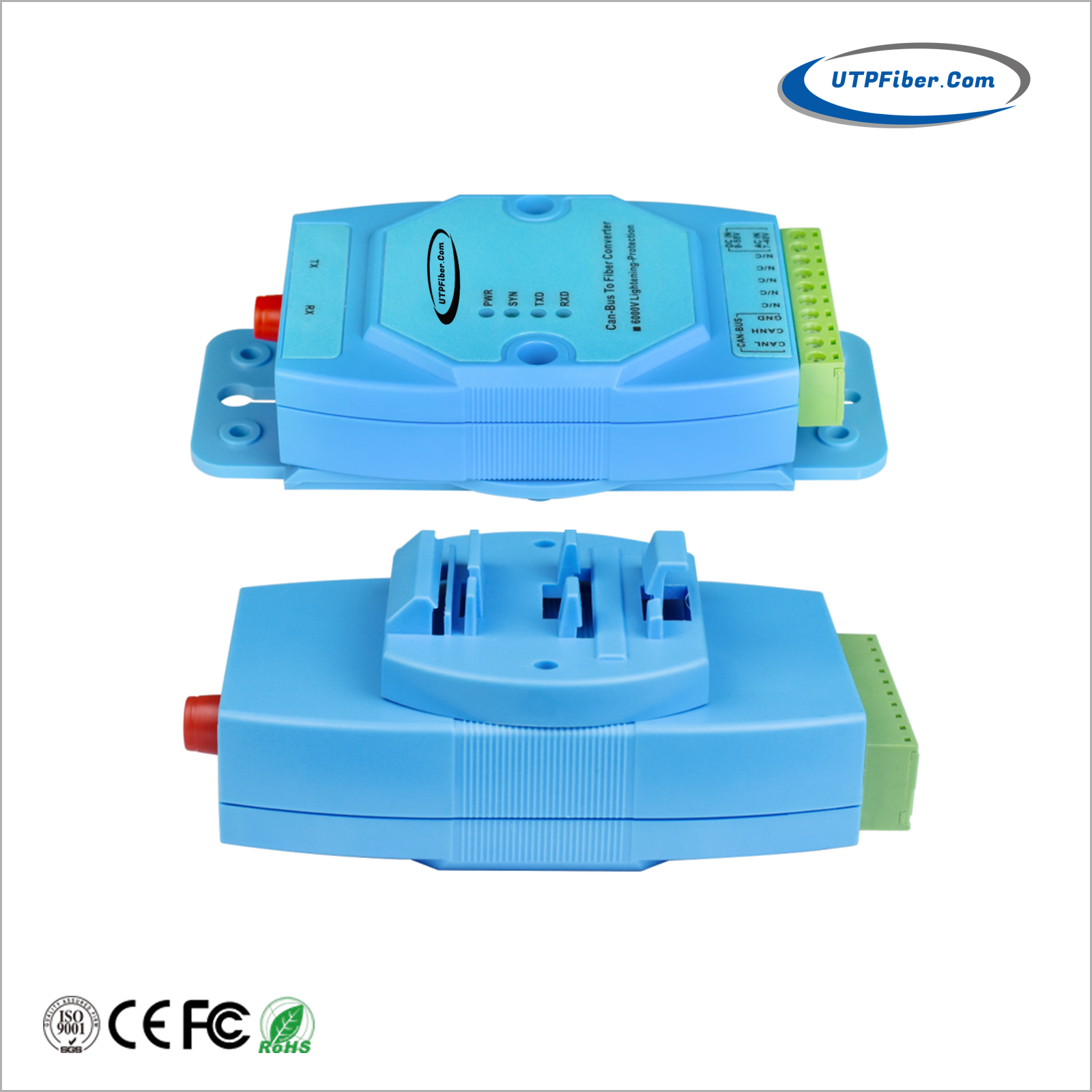

Mini Industrial 2Ch CAN Bus Fiber Modem
Model:UF-CAN102 Series
► Provide 2 CAN bus interface, an optical port
► CAN transparent data transmission, without any set
► CAN interface Maximum number of nodes 128, CAN interface rate 0-1Mbps
► CAN interface speed in line with international CAN1.0, CAN2.0 standard

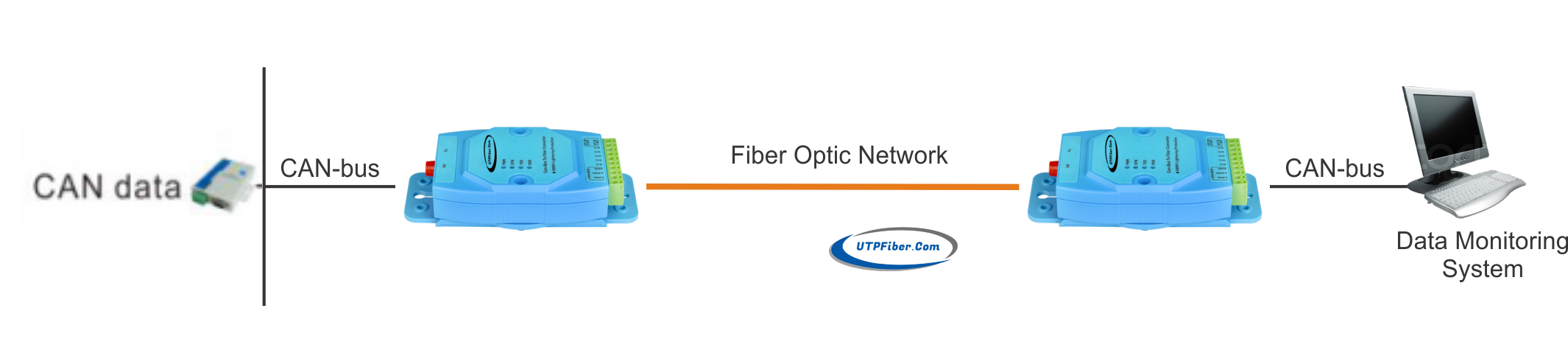

The CAN fiber modem can transfer CAN bus signal to optical signal and transmit over fiber, which can extend the communication distance of CAN bus. At the same time, due to adopting optical fiber communication, it solves the problems of electromagnetic interference, ground ring interference and lightning damage, and greatly improves the reliability, security and confidentiality of data communications and can be widely used in various industrial control, process control and traffic control applications. It is particularly suitable for banks, power and departments or systems that have special requirements for electromagnetic interference.
► Based on proprietary integrated circuit
► Provide 2 CAN bus interface, an optical port
► CAN transparent data transmission, without any set
► CAN interface Maximum number of nodes 128, CAN interface rate 0-1Mbps
► CAN interface speed in line with international CAN1.0, CAN2.0 standard
► DC9-55V or AC7-50V wide supply that includes an automatic polarity detection function, no need to distinguish positive and negative installation
► Provide DIN 35mm rail mounting, or wall mounting
► CAN interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs, open standard peak output voltage 6KV
|
Optical Fiber |
|
|
Multi-mode Fiber：50/125um, 62.5/125um |
|
|
Maximum transmission distance |
2Km |
|
Wavelength |
850/1310nm |
|
Transmitting power |
Multimode 850nm: -18dBm Multimode 1310nm: -25dBm |
|
Receiver sensitivity |
-40dBm~-28dBm |
|
Fiber Type |
FC/SC/ST (FC in default) |
|
Single-mode Fiber： 9/125um |
|
|
Transmission distance |
20~120Km |
|
Wavelength |
1310/1550nm |
|
Transmitting power |
≥-9dBm |
|
Receiver sensitivity |
-40dBm~-28dBm |
|
Fiber Type |
FC/SC/ST (FC in default) |
|
CAN Bus Interface |
|
|
Protocol |
Comply with international CAN1.0, CAN2.0 standards |
|
No. of Ports |
2 |
|
Rate |
0~1000Kbps |
|
Physical Interface |
Industrial Terminal |
|
CAN Signals |
CANH, CANL, GND |
|
Power Supply |
|
|
Power input |
AC7V~50C; DC9-55V |
|
Power consumption |
≤2W |
|
Access terminal |
4-pin 5.08mm pitch plug-in terminal |
|
Working environment |
|
|
Working Temperature |
-40°C ~ 85°C |
|
Storage Temperature |
-40°C ~ 85°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
MTBF |
>100,000 hours |
|
Mechanical: |
|
|
Dimension (LxWxH) |
133mm×125mm×26mm |
|
Casing |
PVC engineering plastics |
|
Installation |
35mm DIN-Rail, Wall Mounting |
|
Weight |
0.25KG |
- Download FileName：UF-CAN102 Series Industrial 2Ch CAN Bus Fiber Modem Datasheet V1.0.pdf Size： 1011KB
|
Model |
Description |
|
Mini Industrial 2Ch CAN Bus Fiber Modem |
|
|
UF-CAN102 |
Mini Industrial 2Ch CAN Bus Fiber Modem: Multimode, Dual Fiber, FC, 2KM |
|
UF-CAN102-20 |
Mini Industrial 2Ch CAN Bus Fiber Modem: Single Mode, Dual Fiber, FC, 20KM |
|
UF-CAN102-S20 |
Mini Industrial 2Ch CAN Bus Fiber Modem: Single Mode, Single Fiber, FC, 20KM |
|
Note*: Default FC fiber connector, SC, ST optional |
|
