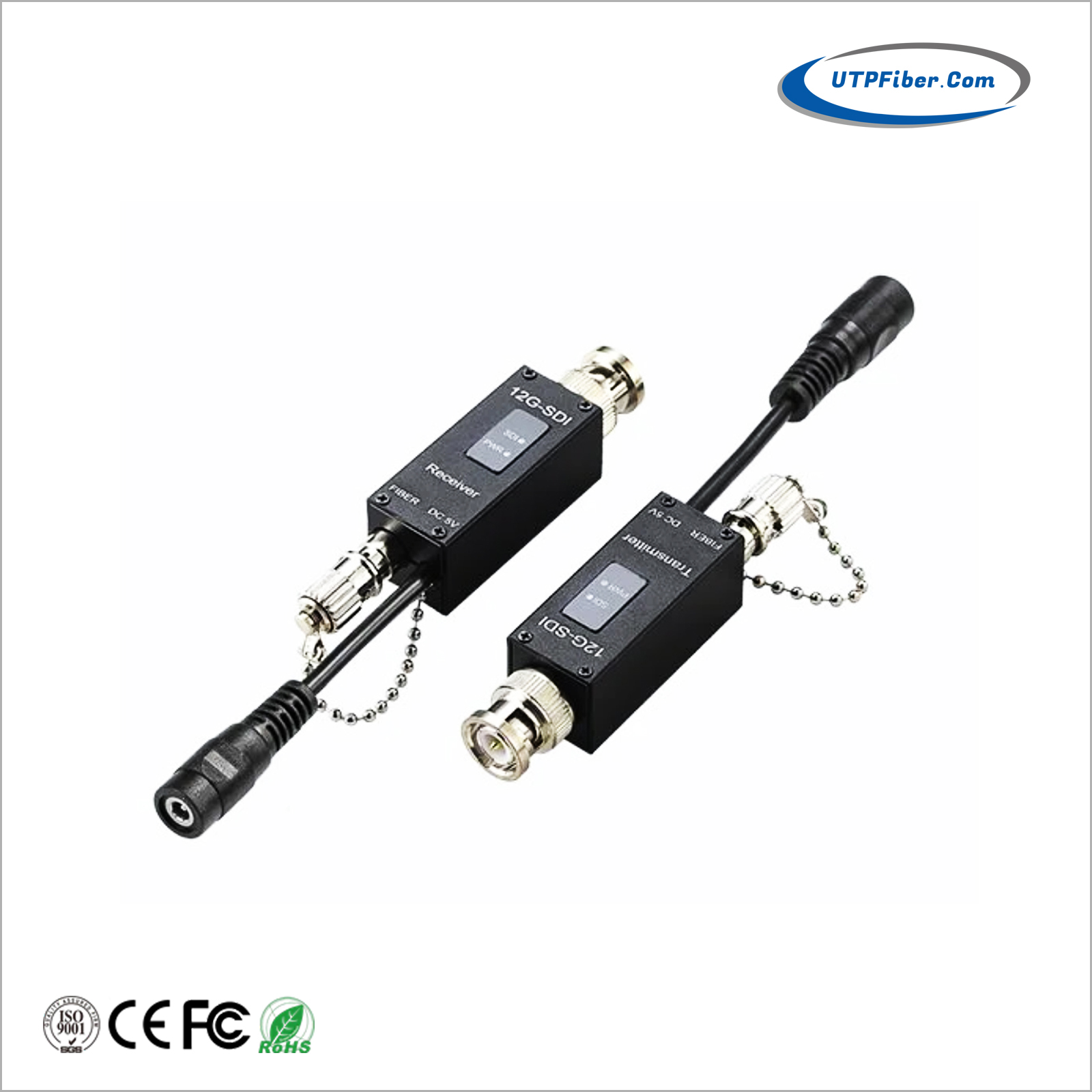

Micro Mini 4K 12G-SDI to Fiber Converter Extender
Model:UF-12GSDI-MN
► Extends uncompressed multi-rate 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI or SD-SDI video signals over fiber
► 12Gbps max. physical data rate over fiber
► Supports clock recovery and clock re-shaping
► Supports Single-Mode Fiber distance up to 10 km

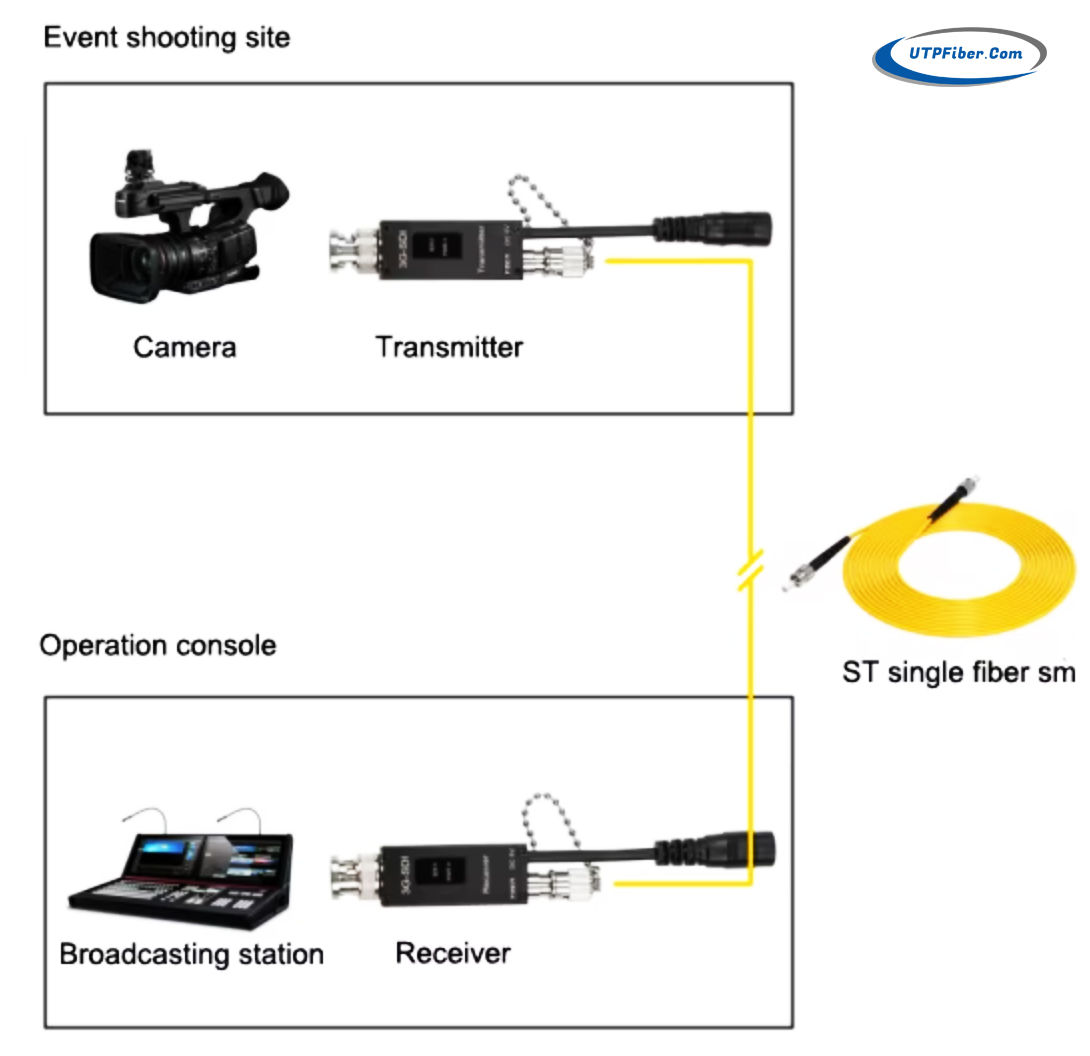

The UF-12GSDI-MN extender set transmits a single 12G-SDI video channel supporting 4K UHD resolutions (up to 2160p@60Hz) over optical fiber with uncompromised signal fidelity. Designed for effortless, zero-configuration plug-and-play operation, it features a built-in ST/UPC optical port supporting distances up to 10 km over single-mode fiber (SMF). Fully compliant with SMPTE ST 2082, the system is backward compatible with legacy broadcast standards, including SMPTE ST 2081, SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 344M (ED-SDI), and SMPTE 259M (SD-SDI), with real-time status LEDs for power, fiber link, and SDI signals.
Engineered to meet demanding field requirements, the converter delivers uncompressed, zero-latency signal extension over a single fiber core. Featuring integrated clock recovery (reclocking), adaptive input equalization, and cable drivers, it automatically detects incoming 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals while strictly adhering to major SMPTE standards (ST 2082-1, ST 2081-1, 424M, 292M, 259M, 297M, 305M, and 310M). Its ultra-compact, highly integrated design incorporates industrial-grade components to deliver stable performance in harsh environments. Thanks to fiber optic media, it offers wide operating temperature tolerance and complete immunity to electromagnetic interference (EMI), lightning strikes, and power surges, ensuring maximum reliability.
► Extends uncompressed multi-rate 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI or SD-SDI video signals over fiber
► Supports SMPTE ST-2082 12G-SDI 2160P@60Hz, SMPTE ST-2081 6G-SDI 2160P@30Hz, SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB ASI compliant signal
► 12Gbps max. physical data rate over fiber
► Industrial temperature hardened units (-20 to +75C)
► Supports clock recovery and clock re-shaping
► Supports Single-Mode Fiber distance up to 10 km over one strand of 9/125um fiber
► High quality and resolution real-time video transmission
► LED status providing rapid reading of operational status
► Plug and play, no setting required
|
Fiber Interface |
|
|
Fiber type |
Single fiber single mode |
|
Wavelength |
1270nm ~ 1310nm |
|
Rate (Max) |
12Gbps |
|
Transmitter power |
-3 ~ 0 dBm |
|
Receiver sensitivity |
-12 dBm |
|
Transmission distance |
10km |
|
Fiber connector |
ST/UPC |
|
Video Interface |
|
|
Protocol standard |
SMPTE ST-2082 and downwards compatible |
|
SMPTE rate |
270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s,11.88Gbit/s |
|
Support standard (digital video format) |
SMPTE 259M SD-SDI 480i，576i |
|
SMPTE 292M HD-SDI 720P, 1080i |
|
|
SMPTE 424M 3G-SDI 1080P60Hz |
|
|
SMPTE ST-2081 6G-SDI 2160P30Hz |
|
|
SMPTE ST-2082 12G-SDI 2160P60Hz |
|
|
EQ mode cable transmission distance |
50m at 11.88Gbps (Belden 1694A) |
|
120m at 5.94 Gbps |
|
|
200m at 2.97 Gbps |
|
|
300m at 1.485 Gbps |
|
|
600m at 270Mbps |
|
|
Signal amplitude |
800mV±10% |
|
Impedance |
75Ω |
|
Connector |
BNC male (IEC169-8 standard) |
|
Power Parmeter |
|
|
Adapter Type |
DC5V 1A |
|
Power Input |
AC 100 ~ 240V, 50-60Hz |
|
Overload current protection |
Support |
|
Power physical interface |
DC 3.5*1.35mm |
|
Power consumption |
<1.5W |
|
Mechanical parameter |
|
|
Casing |
Aluminum alloy |
|
Installation |
Direct Plug-in / In-Line |
|
Product size (D x W x H) |
72 × 18 × 18 mm (including BNC connector) |
|
Net weight of product |
0.2kg/pair |
|
LED Indicators: |
|
|
FIBER |
Fiber Status |
|
VIDEO |
SDI Status |
|
PWR |
Power Status |
|
Environmental |
|
|
Operating temperature |
-20°C ~75°C |
|
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
Working life |
> 100,000 hours |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
CE, RoHS and FCC |
|
- Download FileName：UF-12GSDI-MN Micro Mini 12G-SDI over Fiber Extender Datasheet V1.0.pdf Size： 1.04MB
|
Model |
Description |
|
UF-12GSDI-MN |
Micro Mini 12G-SDI Fiber Optic Converter, Single Mode Single Fiber ST 10KM, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Direct Plug-in / In-Line |
|
Power Options |
► DC5V 1A Power Adapter |
|
► Power Adapter included |
