UF-IPOE95-XM12 Industrial Gigabit M12 X-Code 802.3bt 90W PoE++ Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3bt compliant device with Intelligent Detection that provides 1-port 10/100/1000 Base-T PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.

UF-IPOE95-XM12 supports a wide input range of 9~57VDC, perfectly suited for use with solar power system and RV/Vehicle/Truck/Bus system or battery (DC12/24/36V input) where need POE ports. Featuring M12 connectors provide excellent protection against moisture, dust, vibration, ensure robust, reliable connections in harsh industrial environments. Compliant with international EMI and EMS standards, offering a stable and secure power and data transmission solution in challenging conditions.

Why Choose the UF-IPOE95-XM12?

• Simplified power integration: Combines Ethernet data and PoE power delivery in one device.

• Flexible DC power options: Supports a broad range of DC input voltages.

• Secure industrial connections: M12 connectivity is suited to installations requiring robust connector retention.

• Space-conscious installation: Compact aluminum housing with DIN-rail or wall-mount options.

• Designed for demanding environments: Wide operating temperature range for industrial and transportation deployments.

• IEEE 802.3bt PoE++: Supports IEEE 802.3af/at/bt-compliant powered devices, with up to 95W PoE output under specified input-voltage conditions.

• Wide DC Input: Accepts 9–57VDC, supporting 12V, 24V, 36V, and other compatible DC power systems within the rated range.

• Built-In Voltage Booster: Helps provide high-power PoE output when operating from lower-voltage DC sources.

• Industrial M12 Connectivity: Uses an M12 A-coded power input and M12 X-coded Ethernet connections for robust industrial networking.

• Gigabit Ethernet: Supports 10/100/1000BASE-T data transmission.

• Wide Operating Temperature: Operates from -40°C to +80°C.

• Flexible Installation: Supports DIN-rail and wall mounting.

• Plug-and-Play Operation: Automatic PoE detection and LED indicators simplify deployment and troubleshooting.

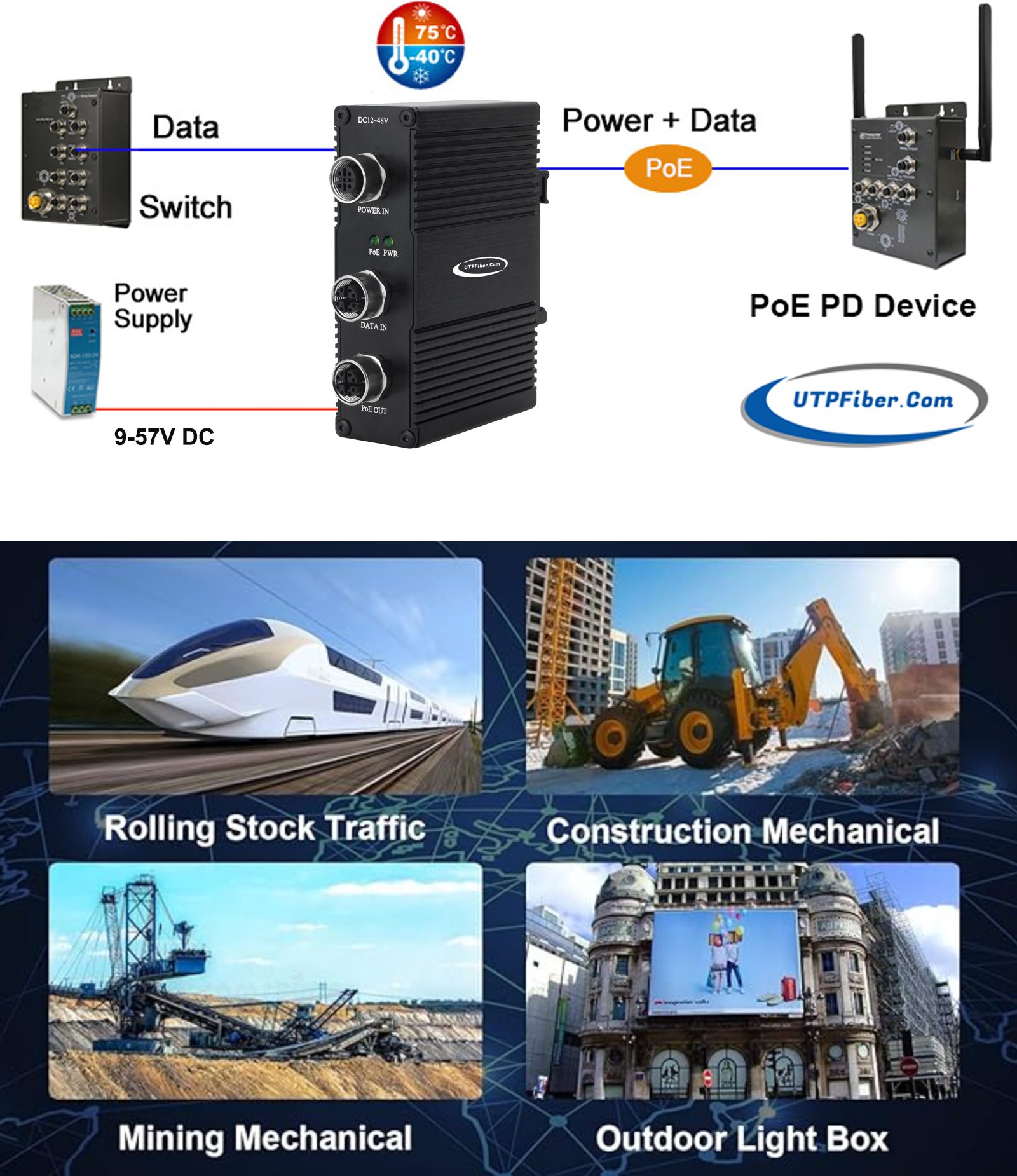

Industrial Applications

Railway and Rolling Stock Networks

Supply power and Gigabit Ethernet connectivity to compatible onboard network devices. M12 connectors provide secure connections for applications exposed to vibration and mechanical disturbance.

Vehicle and Transportation Systems

Integrate PoE-powered equipment into compatible bus, truck, RV, and other vehicle networks using supported DC power sources.

Industrial IP Cameras

Provide Ethernet connectivity and PoE power to compatible industrial cameras where a conventional RJ45-based installation may not meet the application's connector requirements.

Wireless Access Points and Edge Devices

Power compatible PoE-enabled access points and other network endpoints in industrial or mobile installations, subject to their power requirements and connector compatibility.

Low-Voltage DC-Powered Systems

Use the wide DC input range in suitable battery-powered and other low-voltage installations where high-power PoE is required.

• Download FileName：UF-IPOE95-XM12 Industrial Gigabit 95W PoE++ Injector Datasheet V1.0.pdf Size： 735KB

Frequently Asked Questions

1. What is the maximum PoE output power of the UF-IPOE95-XM12?

It supports up to 95W at 11–57VDC input, 90W at 10VDC, and 80W at 9VDC. Actual power delivery also depends on the powered device, cable, and operating conditions.

2. Does this M12 PoE injector support IEEE 802.3bt?

Yes. It supports IEEE 802.3af/at/bt PoE standards and is designed to power compatible PoE devices.

3. What DC input voltage does it support?

The rated input range is 9–57VDC, making it suitable for compatible 12V, 24V, and 36V DC systems, as well as other supported voltages within this range.

4. What connectors does this model use?

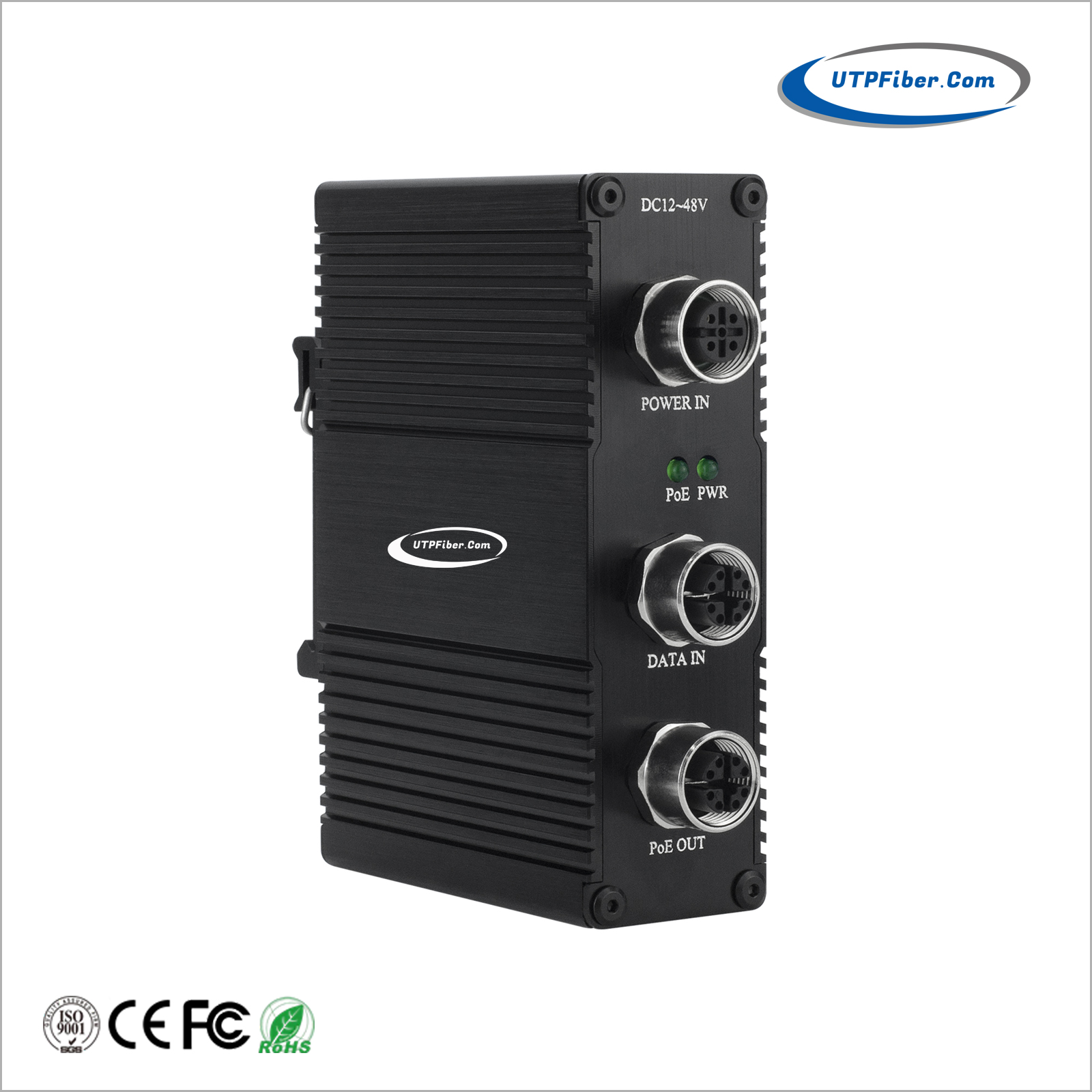

The power input uses a 4-pin female M12 A-coded connector. The Ethernet connections use M12 X-coded connectors. Confirm the exact data-in and PoE-out port configuration and mating cable requirements before ordering.

5. Is this product suitable for railway applications?

The product is designed for industrial transportation and railway-related applications. Please request the applicable EN 50155 test reports or certificates and confirm the required compliance level for your project before placing an order.

6. What is the operating temperature range?

The specified operating temperature range is -40°C to +80°C.

7. How can I install the injector?

The device supports DIN-rail and wall mounting. The DIN-rail bracket is supplied as the default installation option, and a wall-mount bracket is included.

8. Is a DC power supply included?

The DC power supply is purchased separately. Select a suitable power supply based on the input voltage, required PoE output, and total system power consumption.
