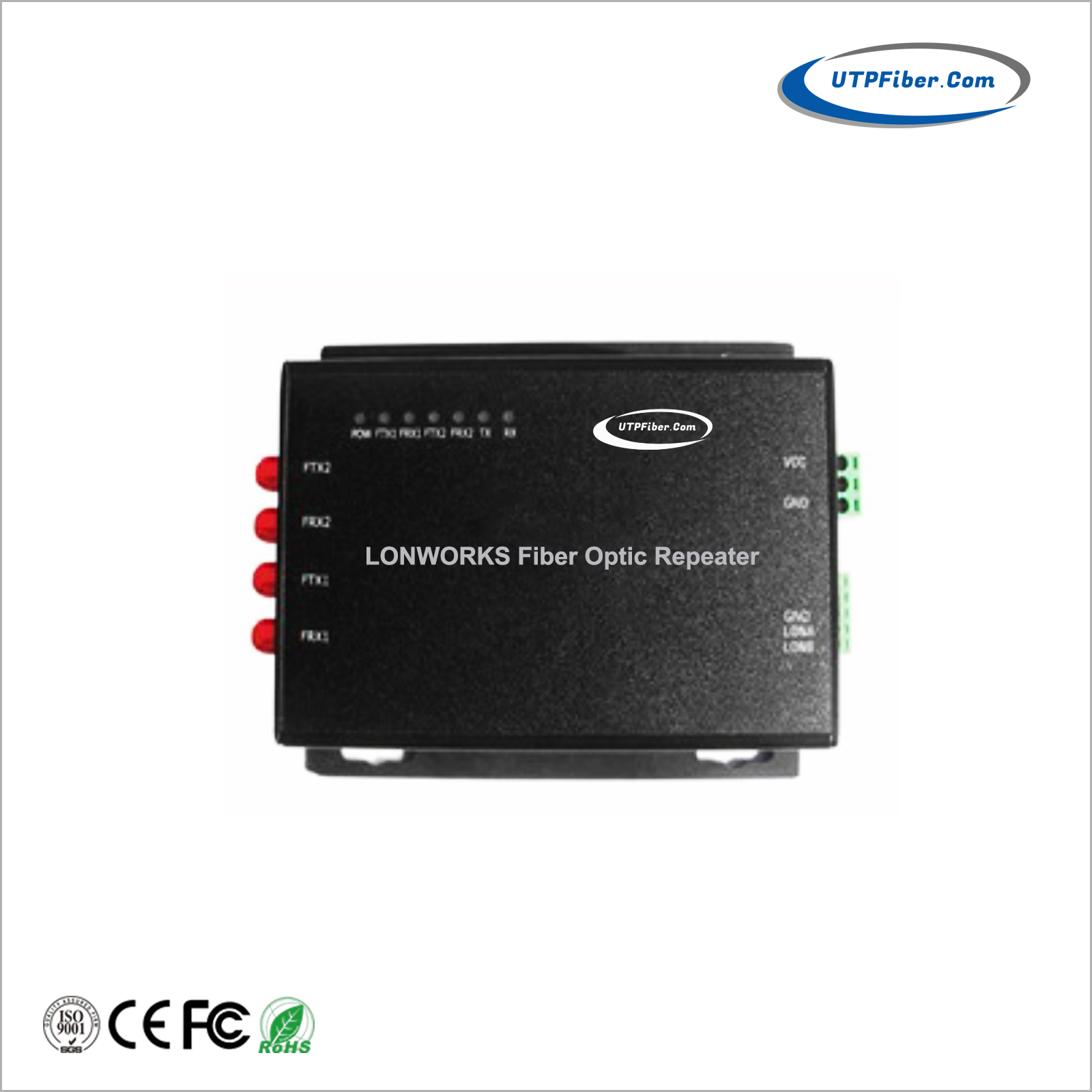

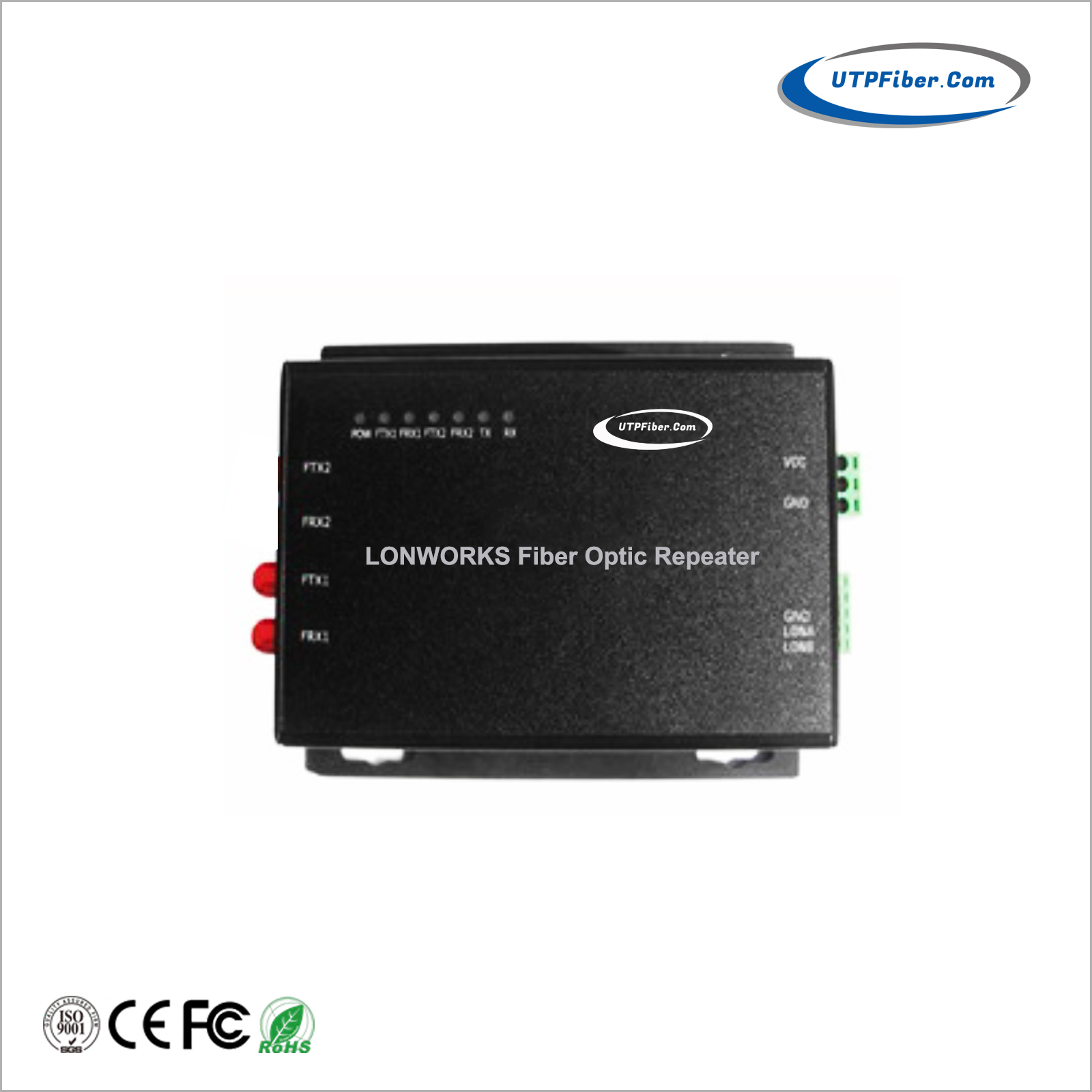

Industrial 1-Port LonWorks TP/FT-10 to 1-Port Fiber Optic Converter
Model:UF-LON1 Series
► Plug-and-play operation with no software or protocol configuration required.
► Point-to-Point connection
► Automatic signal retiming and regeneration to maintain signal integrity over long distances.
Industrial LonWorks TP/FT-10 to Fiber Optic Converter
Model: UF-LON1 Series
The UF-LON1 Series Industrial LonWorks Fiber Optic Converter extends LonWorks fieldbus communication over optical fiber. It converts electrical signals from LonWorks TP/FT-10 twisted-pair networks into optical signals for point-to-point fiber transmission, helping connect remote LonWorks network segments while reducing the impact of electromagnetic interference and ground potential differences.
Designed for building automation, industrial control, and intelligent transportation applications, the UF-LON1 provides transparent LonWorks signal transmission without requiring software configuration or changes to the LonTalk communication protocol.
Available in multimode and single-mode versions, the converter supports fiber transmission distances of up to 2 km over multimode fiber and 25 km over single-mode fiber, with longer single-mode distances available as options.
How Does a LonWorks Fiber Optic Converter Work?
A LonWorks fiber optic converter converts the electrical TP/FT-10 signals from a LonWorks network into optical signals. At the remote end, a compatible converter converts the optical signals back into electrical LonWorks signals.
This arrangement allows LonWorks communication to travel over optical fiber without converting the network into Ethernet or translating the LonTalk protocol into IP.
Typical connection:

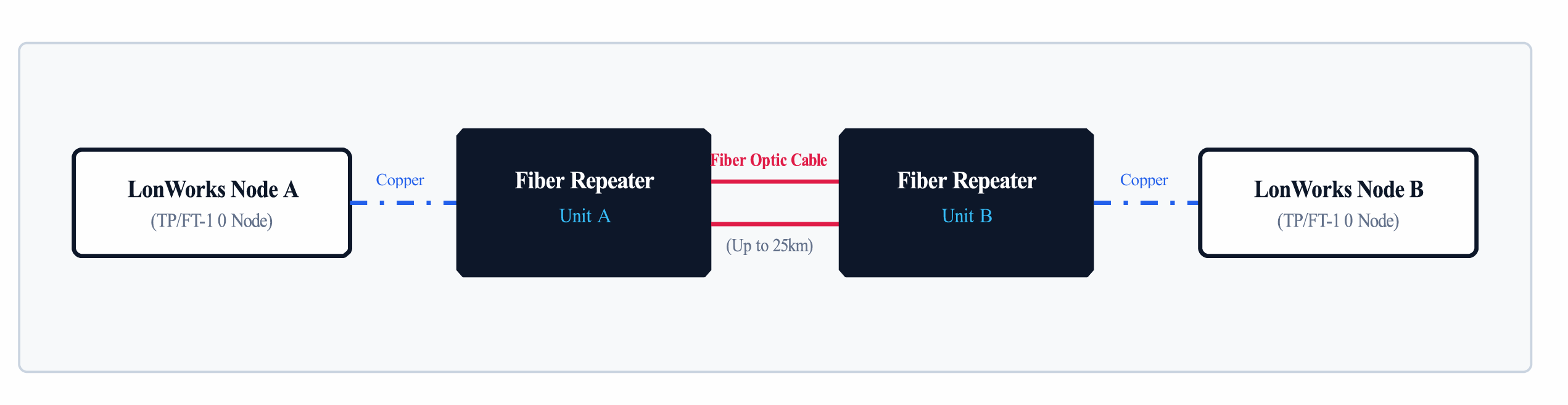

LonWorks Controller → UF-LON1 Converter → Optical Fiber → UF-LON1 Converter → Remote LonWorks Device or Network Segment
A compatible converter is required at each end of the fiber link. Confirm the model, fiber type, connector, and optical distance before deployment.
Key Features
-
LonWorks TP/FT-10 Support: Designed for LonWorks fieldbus networks using the TP/FT-10 transceiver.
-
Transparent Signal Conversion: Converts LonWorks electrical signals to optical signals while transparently carrying LonTalk protocol traffic.
-
Point-to-Point Fiber Connection: Connects two compatible LonWorks interfaces over an optical fiber link.
-
Multimode and Single-Mode Options: Choose the appropriate model according to the fiber type and required transmission distance.
-
Extended Communication Distance: Supports up to 2 km over multimode fiber and 25 km over single-mode fiber in the standard configurations listed.
-
Electrical Isolation: Fiber transmission helps isolate connected equipment electrically and reduces ground-loop concerns between network segments.
-
Industrial Protection: Features overcurrent and reverse-polarity protection.
-
Simple Installation: Plug-and-play operation with power, fiber-link, and LonWorks data status indicators.
-
Flexible Mounting: Desktop or wall-mount installation.
Applications
Building Automation Systems (BAS)
Extend LonWorks communication between building automation controllers, field devices, and remote system segments when a fiber link is required between locations.
Industrial Control Networks
Connect LonWorks-based control equipment across electrically noisy environments where optical fiber can help reduce electromagnetic interference and ground-potential differences.
Intelligent Transportation Systems (ITS)
Provide fiber connectivity for compatible LonWorks fieldbus equipment deployed across transportation infrastructure.
Distributed Control and Monitoring
Link remote LonWorks network segments over longer distances than a direct copper connection would typically allow, subject to the selected fiber configuration and network design.
|
LonWorks Interface |
|
|||
|
Protocol Support |
LonWorks® (LonTalk® protocol transparent) |
|
||
|
Transceiver Type |
TP/FT-1 0 (Free Topology Transceiver) |
|
||
|
Baud Rate |
78 Kbps |
|
||
|
Connector & Wire |
3-pin / 5-pin detachable screw terminal block |
|
||
|
Copper Distance |
Up to 500m (Free Topology) / Up to 2,700m (Bus Topology) |
|
||
|
Optical Fiber Interface |
|
|||
|
Optical Port |
1 x Optical Port (TX / RX pair) for Point-to-Point link |
|
||
|
Connector Type |
ST (Default), SC, or FC (Optional) |
|
||
|
Wavelength |
Multi-Mode: 850nm | Single-Mode: 1 31 0nm |
|
||
|
Fiber Distance |
Multi-Mode: 0~2km | Single-Mode: 25km (up to 80km optional) |
|
||
|
|
Electrical & Mechanical Parameters |
|||
|
|
Input Voltage |
24 VDC |
||
|
|
Power Consumption |
< 5.0 W @ 24VDC |
||
|
|
Circuit Protection |
Overcurrent protection, Reverse polarity protection |
||
|
|
Operating Temp. |
-20°C to +70°C (-4°F to 158°F) |
||
|
|
Operating Humidity |
20% to 90% RH (non-condensing) |
||
|
|
Housing & Rating |
High-strength aluminum alloy enclosure, IP40 protection |
||
|
|
Installation |
Desktop or Wall Mounting |
||
|
|
Dimensions / Weight |
135 mm x 115.6 mm x 36 mm (L x W x H) / Approx. 400g |
||
- Download FileName：UF-LON1 Series LONWORKS Fiber Optic Converter Datasheet V1.0.pdf Size： 451KB
|
Model |
Description |
|
UF-LON1-M |
Industrial-Grade LONWORKS Fiber Optic Media Converter, Multimode, Dual Fiber ST, 2KM |
|
UF-LON1-S |
Industrial-Grade LONWORKS Fiber Optic Media Converter, Single Mode, Dual Fiber ST, 25KM |
|
Mounting Options |
► Desktop or Wall Mount |
|
Power Options |
► Industrial Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
Frequently Asked Questions
1. What is a LonWorks fiber optic converter?
It is a device that converts electrical LonWorks fieldbus signals into optical signals for transmission over fiber, then converts them back to electrical LonWorks signals at the other end.
2. Does the UF-LON1 support LonWorks TP/FT-10?
Yes. The UF-LON1 Series is specified for TP/FT-10 LonWorks networks operating at 78 Kbps.
3. What is the maximum fiber transmission distance?
The listed standard options support up to 2 km over multimode fiber and 25 km over single-mode fiber. Single-mode options for longer distances, up to 80 km, are available. Confirm the exact model and optical budget for the required distance.
4. Does this product convert LonWorks to Ethernet or IP?
No. The UF-LON1 provides transparent electrical-to-optical signal conversion for a LonWorks link. It is not an Ethernet media converter, LonWorks/IP router, or protocol gateway.
5. Does the converter require software configuration?
The product is designed for plug-and-play operation without software or protocol configuration. The connected network must still follow the appropriate LonWorks wiring and topology requirements.
6. Can I connect two LonWorks devices through fiber?
The UF-LON1 supports point-to-point fiber links. Use a compatible converter at each end and confirm the wiring, fiber type, connector, and model compatibility before installation.
7. What power supply does it require?
The listed input is 24 VDC, with power consumption below 5 W. The power supply is purchased separately.
8. Which fiber connector should I choose?
ST is the standard connector option, while SC and FC are available as options. Select the connector that matches the installed fiber infrastructure.
