Hardware Specification

Model

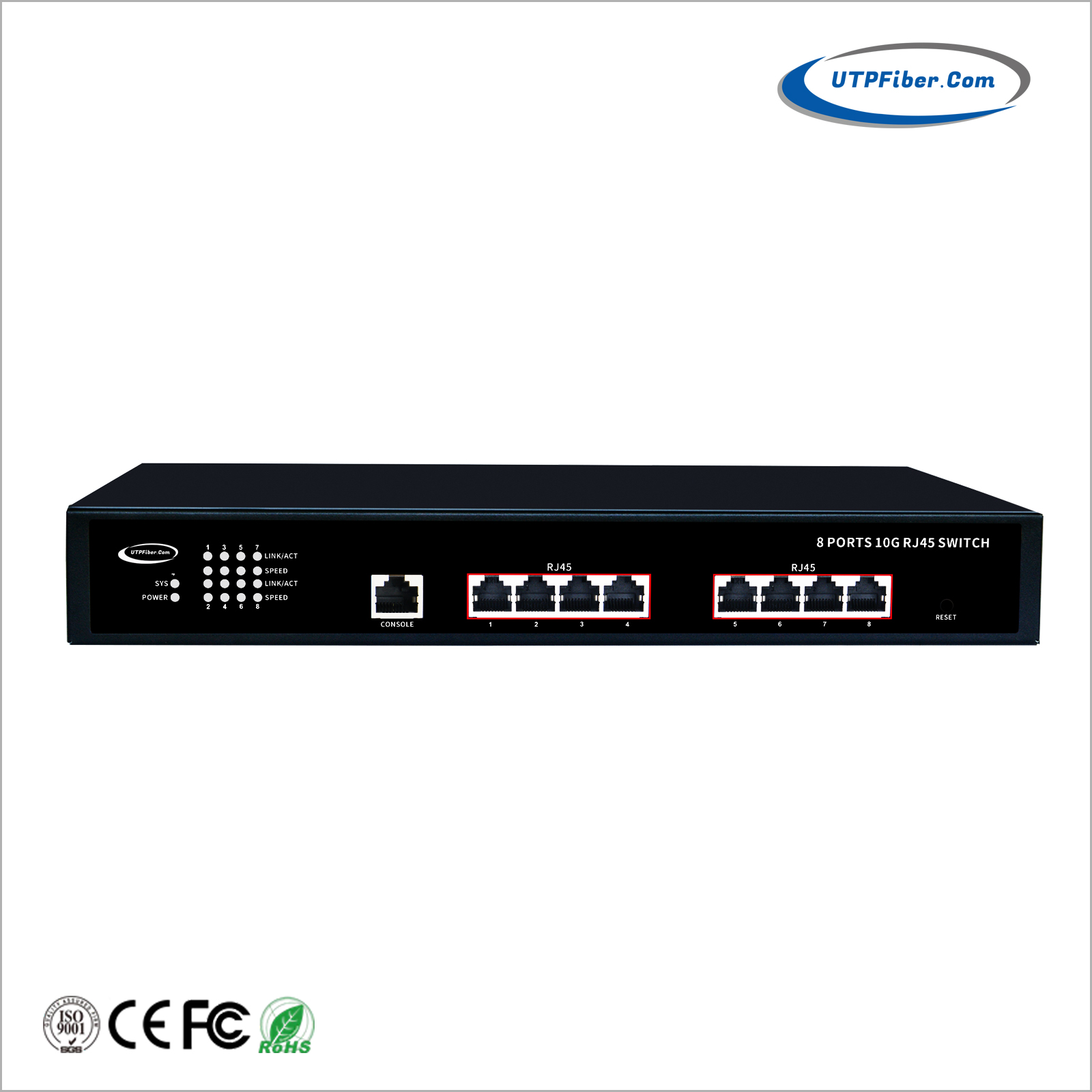

UF-L3SW10G08

Support Criteria

IEEE 802.3, 802.3u, 802.3x,802.3af/at, CSMA/CD,TCP/IP

Port

8*10G Adaptive port

1*Console port

Basic Function

Port power priority feature

Wire-speed forwarding

MAC self-learning and aging

IEEE802.3X Full-duplex and backpressure for half-duplex mode

Backplane bandwidth

160Gbps

MAC Addresses List

16K

Packet forwarding ratez

119.04Mpps

Package cache

12M

VLAN table

4K

Jumbo frame

9.6kbytes

Forwarding method

Store and forward

Forwarding

rate

10BASE-T:14880PPS/port

100BASE-T:148800PPS/port

1000BASE-T:1488000PPS/port

2500BASE-T:3720000PPS/port

10000BASE-T:14880000PPS/port

LED indicator

 SYS, Link/Act:10G

Environment

Operating Temperature：-10℃ - -55℃

Power

Built in power base board

Input：110-240V，50/60HZ

60W/12V

Weight &Size

2.2KG

312mm*185mm*46mm(L*W*H)

Software Specification

Port Management

Enable/Disable port

Speed, duplex, MTU setting

Flow-control setting

Port information view

Port Mirroring

Support port and aggregation group access direction

Port Speed Limiting

Support port speed limit, the granularity of the speed limit is determined by the chip

Port Isolation

Support port isolation setting

Storm control

Support location unicast, unknown multicast, broadcast storm control

Link Aggregation

Support static manual aggregation, support VLACP dynamic aggregation

VLAN

Access/Trunk/Hybrid

Support VLAN division based on port, protocol and MAC, support QINQ

Support GVRP dynamic VLAN registration

Voice VLAN (support required)

MAC

Support static add and delete

MAC address learning quantity limit

Support dynamic aging time setting

Spanning Tree

Support 802.1d（STP）; Support IGMP-snooping；

Support 802.1S（MSTP）

Multicasting

Support static add and delete；Support IGMP-snooping；

Support MLD-snooping；Support V1/2/3 dynamic multicast snooping

DDM

Support SFP/SFP+DDM

ACL

Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number

QOS

Classification based on 802.1P (COS); classification based on DSCP.

Classification based on source IP, destination IP, port number; support for SP, WRR scheduling policies.

Support traffic speed limit CAR

LLDP

Support LLDP link discovery protocol

User Setting

Add/Remove Users

Log

User login, operation, status, event record log

Anti-attack

DOS Defense

Support for CPU protection, limiting the rate of upgoing CPU messages

ARP binding (IP, MAC, PORT binding)

Certification

Support 802.1X port authentication; support AAA authentication

Network Diagnosis

Support ping、telnet、trace

System Administration

Device reset, configuration save/revert, upgrade management, time setting, etc.

Management Function

CLI

Support serial port command line management

TELNET

Support telnet remote management

SSH

Support SSHV1/2 remote management

SNMP

Support V1/2/3

Support trap: cold start, warm start ,link down, link up

Web

Support two levels of settings, two or three levels of view

RMON

Support RMONV1

Layer 3 Function

Routing

Static routing, RIP, OSPF

IPv6 static routing, RIPng, OSPFv3

IPv4/IPv6 dual stack

Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6
