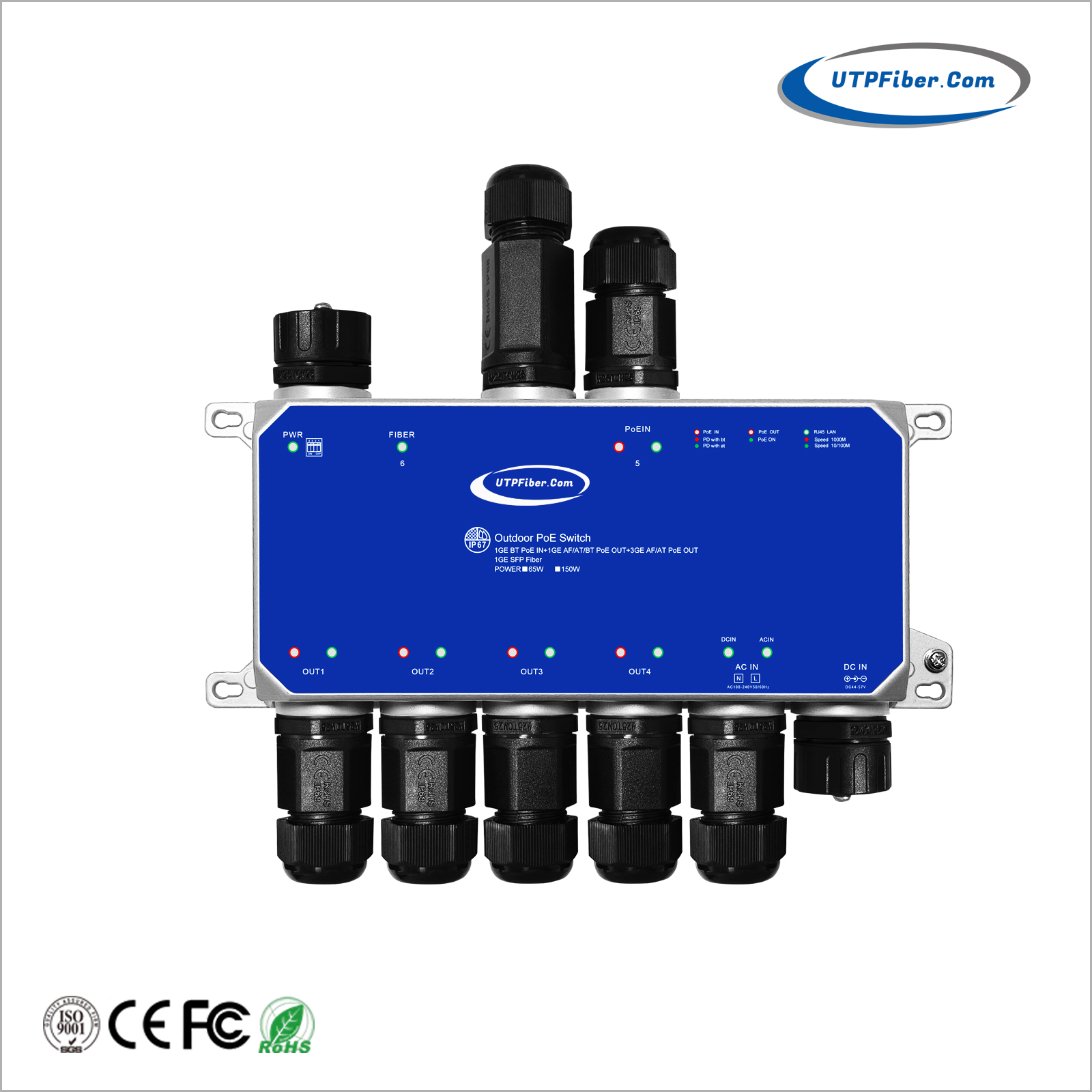

IP67 Waterproof 4-Port 10/100/1000T PoE + 1-Port Gigabit TP/SFP Ethernet Switch
Model:UF-WF105GP Series
► IP67 Outdoor Design: Industrial weather-resistant housing with cable glands.
► 90W High-Power PoE: Port 1 up to 90W (802.3bt); Ports 2–4 up to 30W/port (802.3at/af).
► 65W / 150W Power Budget: Available in two power models for various applications.
► Flexible Power Input: Supports AC (100–240V), DC (44–57V), and optional PoE IN (PD).
► Gigabit SFP Uplink: 1 × 1000Base-X slot for long-distance optical connection.
The UF-WF105GP Series (comprising UF-WF105GP-65W and UF-WF105GP-150W) is an unmanaged, high-power outdoor industrial PoE switch series designed for high-reliability surveillance, wireless coverage, and remote networking in harsh environments. Housed in an IP67 weather-resistant enclosure, each switch features 4 Gigabit Ethernet PoE Output ports and 1 Gigabit SFP Fiber Uplink port. Additionally, Port 5 can be optionally customized as a Gigabit PoE IN (PD Input) port to accommodate versatile power-over-ethernet passthrough deployment scenarios.
Within the series, Port 1 supports high-power IEEE 802.3bt output (up to 90W), ideal for power-hungry devices like heavy-duty PTZ cameras or outdoor Wi-Fi APs, while Ports 2–4 support IEEE 802.3af/at (up to 30W per port). Depending on site deployment requirements, users can choose between the 65W power budget model or the 150W power budget model. Supported by flexible power input options (AC 100-240V, DC 44-57V, and optional PD input), along with DIP-switch enabled Port Isolation, 250m Extended Transmission, and Smart PoE/Fiber Watchdog (PoE DOG / Fiber DOG), this series provides an exceptionally reliable and adaptable outdoor networking solution.
► IP67 Outdoor Design: Industrial weather-resistant housing with cable glands.
► 90W High-Power PoE: Port 1 up to 90W (802.3bt); Ports 2–4 up to 30W/port (802.3at/af).
► 65W / 150W Power Budget: Available in two power models for various applications.
► Flexible Power Input: Supports AC (100–240V), DC (44–57V), and optional PoE IN (PD).
► Gigabit SFP Uplink: 1 × 1000Base-X slot for long-distance optical connection.
► PoE & Fiber Watchdog: Auto-detects and reboots frozen end devices or fiber links.
► 250m Extended Mode: DIP switch-enabled long-reach network transmission.
► Port Isolation Mode: Prevents broadcast storms and enhances network security.
► Wall & Pole Mounting: Built-in 13mm slots support both wall and pole mount setup.

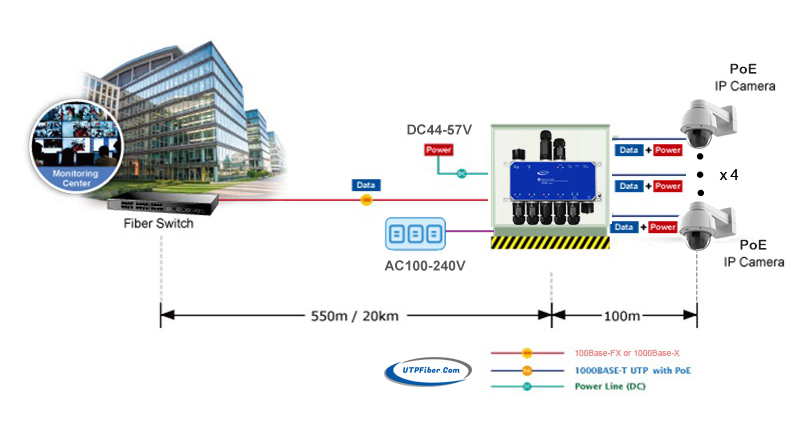

Applications
-
Full-Load Multi-Camera Surveillance: Perfect for powering multiple high-power 802.3bt/at outdoor PTZ cameras with heaters, IR illuminators, and optical zoom concurrently
. -
Industrial IoT & Smart City Infrastructure: Serves as a rugged distribution switch for municipal smart poles, traffic intersections, and smart parking systems
. -
Long-Range Mining & Oil/Gas Facilities: Combines 120km fiber uplink capabilities with an IP67 explosion/corrosion-resistant alloy chassis for harsh industrial locations
. -
Perimeter Intrusion Detection: Provides uninterruptible operations via built-in PoE DOG and Fiber DOG auto-recovery functions
.
|
Model |
UF-WF105GP-65W| UF-WF105GP-150W |
|
Product name |
Gigabit IP67 Outdoor Waterproof PoE Switch |
|
Material |
Aluminum die-casting body Nylon waterproof joint |
|
Waterproof grade |
IP67 |
|
Wire diameter |
Support network cables with a Φ of 4-8mm |
|
Fixed Port |
4 × 10/100/1000Base-T RJ45 PoE OUT 1 × 10/100/1000Base-T RJ45 Port (Default Uplink / Optional PoE IN) 1 × 100/1000Base-X SFP Slot |
|
PoE Standards & Output |
Port 1: Supports IEEE 802.3af/at/bt, Max. 90W PoE OUT Ports 2–4: Supports IEEE 802.3af/at, Max. 30W PoE OUT per port |
|
PoE OUT Pin Assignment |
BT Mode: 1/2 (+), 4/5 (+), 3/6 (-), 7/8 (-) AF/AT Mode: 1/2 (+), 3/6 (-) |
|
Power Supply / Input Options |
AC Input: AC 100V–240V, 50/60Hz DC Input: DC 44V–57V PoE IN (Optional): Supports IEEE 802.3bt PD Input |
|
Smart DIP Functions |
Port Isolation: Suppresses broadcast storms Extend Mode: Up to 250m long-distance transmission PoE/Fiber Watchdog: Auto-detects and reboots frozen devices/links |
|
PoE Watchdog |
PoE auto execution, detection and resets fault device, when PoE is on |
|
Fiber Watchdog |
Fiber auto execution, detection and resets fault device, when Fiber is on |
|
Switching Bandwidth |
12Gbps |
|
Packet Forwarding Rate |
8.928Mpps |
|
MAC Address Table |
2K |
|
Packet Buffer |
2Mbit |
|
PoE OUT Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meter, When Extend Mode Enabled) 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-T: Cat6 or later UTP (100 meter) |
|
Fiber Transmission Distance |
SFP: 1G single-mode or multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
|
LED Indicator |
PoE Out: on LED PoE Port: LAN link on LED Uplink Port: LAN link on LED, LAN SPEED 1G LED PoE Watchdog: on LED (inbox) Power: AC IN LED, DC IN LED |
|
Power` |
Power Input： 1*AC IN_2P*3.81mm Built-in power AC: 1) UF-WF105GP-150W: 100-240VAC 50-60Hz 1.0A MAX 155W 2) UF-WF105GP-65W: 100-240VAC 50-60Hz 1.0A MAX 70W 1*DC IN_DC5.5*2.5mm Power Consumption: USE Without PoE: DC 12-57V MAX 5W USE PoE: DC44-57V MAX 180W |
|
Operating Temperature/Humidity |
-40～+80°C 5% to 90% RH (Relative Humidity), Non-condensing |
|
Storage Temperature/Humidity |
-40～+90°C 5% to 95% RH (Relative Humidity), Non-condensing |
|
Product /Packing Size (L*W*H) |
255*150*48mm (Main body size) 305*265*63mm (Packing Size) |
|
N.W/G.W (kg) |
UF-WF105GP-65W: 1.12kg/1.38kg; UF-WF105GP-150W: 1.25kg/1.51kg |
|
Lightning Protection level |
6KV 8/20us, Differential mode 2KV, Common mode 6KV |
|
Installation |
Desktop/Wall Mount / Pole Mount (Supports 8mm–10mm wide hose clamps via 13mm slots) |
|
Certificate |
CE-EMC EN55032; CE-LVD EN62368; |
- Download FileName：UF-WF105GP Series IP67 Waterproof 4G+1TP SFP PoE Switch Datasheet V1.0.pdf Size： 747KB
|
Model |
Description |
|
UF-WF105GP-65W |
IP67 Waterproof 4-Port 10/100/1000T PoE (Port 1 supports 802.3bt 90W PoE Port 2-4 supports 802.3at 30W PoE) + 1-Port Gigabit TP/SFP Ethernet Switch, with built-in 65W power supply, support DC44-57V power input |
|
UF-WF105GP-150W |
IP67 Waterproof 4-Port 10/100/1000T PoE (Port 1 supports 802.3bt 90W PoE Port 2-4 supports 802.3at 30W PoE) + 1-Port Gigabit TP/SFP Ethernet Switch, with built-in 150W power supply, support DC44-57V power input |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Desktop/Wall Mount / Pole Mount |
|
Power Options |
► Built-in 65W or 150W Power Supply |
|
► DC Power Supply Optional |
