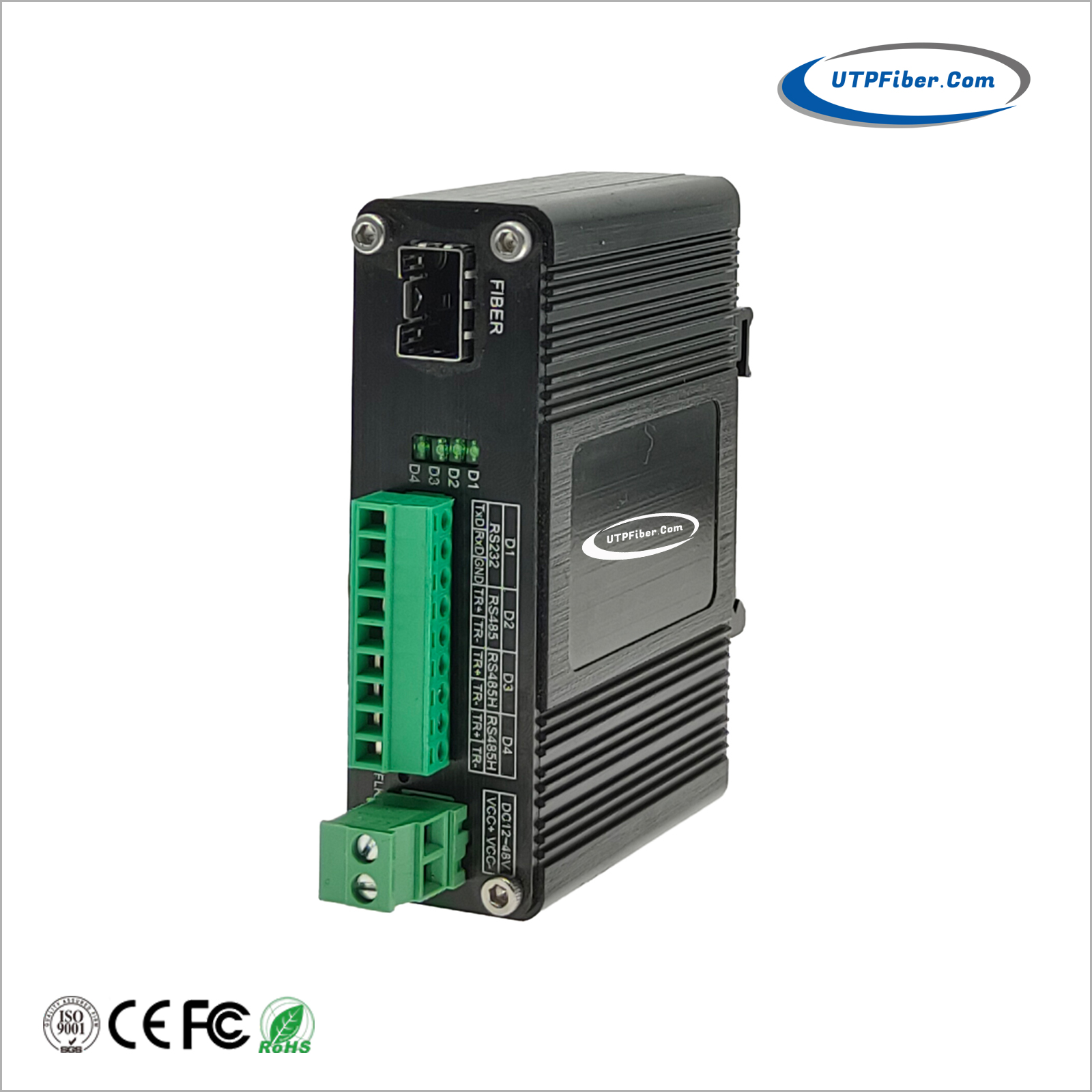

Mini Industrial RS232/422/485 to SFP Fiber Media Converter
Model:UF-IRS110-SFP
► Support 1Ch RS232 and 3Ch RS485 serial port data
► 2Ch RS485H can be grouped into 1Ch High Speed RS422
► The high-speed serial data can be used for DMX512 communication in Stage Lighting Control
► Support DIN-Rail & Wall-mount installation
► Support 10~56VDC wide voltage input
The UF-IRS110-SFP Mini Industrial RS232/422/485 to SFP Fiber Media Converter is specifically designed for UART long-distance communication applications. This product is tailored for the industrial control field and features an exclusive design supporting automatic single-fiber ring networking for multiple devices. It offers flexible power supply options with a wide input voltage range of 10~56VDC and complies strictly with international ISO standards.
Built to industrial-grade technical standards, the device boasts strong electromagnetic interference resistance, salt spray protection, vibration resistance, and shock absorption, ensuring stable and reliable performance over extended periods. Its wide operating temperature range of -40°C to +75°C makes it suitable for both extreme cold and high-heat environments, meeting the demands of various industrial sites.
The reinforced aluminum housing enhances its protection level, while its compact size, fanless design, low power consumption, high reliability, excellent stability, and easy maintenance make it an ideal choice for various applications.
This product is widely used in industrial equipment, fire protection, power and water management, rail transit, safe city projects, traffic monitoring, wind power, photovoltaic systems, and building automation control systems.
► Serial data is fully transparent, baud rate is self-adaptive, no setting is required
► Support 1Ch RS232 and 3Ch RS485 serial port data
► 2Ch RS485H can be grouped into 1Ch High Speed RS422
► The high-speed serial data can be used for DMX512 communication in Stage Lighting Control
► Comply with EIA-232-E and TIA/EIA-485-A standards
► The maximum baud rate of serial port data supports 1000Kbps
► Support DIN-Rail & Wall-mount installation
► Support 10~56VDC wide voltage input
► Wide operating temperature -40℃~ +75℃
|
Fiber Optical Interface |
|
|
Fiber interface |
100BASE-FX SFP |
|
Cable requirement |
Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um Single mode or multi-mode (may vary on SFP module) |
|
Fiber port |
1 Fiber Port |
|
Transmission distance |
2km to 120km (may vary on SFP module) |
|
Wavelength |
1310nm/1490nm/1550nm |
|
Serial Interface |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422 |
|
Standard |
EIA /TIA RS232/485/422 |
|
Serial Distance |
RS232: 15 meters, RS485/422: 1000 meters |
|
Rate |
Max 2Mbps |
|
UART Communication |
|
|
Data interface |
RS485 or RS232 |
|
Working mode |
Transparent, no delay |
|
Baud Rate |
Max. 1000Kbps |
|
Power Requirements |
|
|
Power input |
10~56VDC |
|
Power consumption |
<5W |
|
Power connector |
Terminal block |
|
Power protection |
Reverse polarity protection |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
FX |
Fiber Link Status |
|
DAT |
Serial Data Signal |
|
Mechanical |
|
|
Dimensions (LxWxH) |
100 x 70 x 30mm |
|
Weight |
0.25KG |
|
Casing |
Aluminum |
|
Mounting Options |
DIN-Rail or Wall Mount |
|
Environmental |
|
|
Working Temperature |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Working Humidity |
5%~95% (Non-Condensing) |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-IRS110-SFP Mini Industrial Serial to SFP Fibre Converter Datasheet V1.0.pdf Size： 470KB
|
Model |
Description |
|
UF-IRS110-SFP |
Mini Industrial RS232/422/485 to SFP Fiber Media Converter, not including SFP modules |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Power Options |
► 12-48VDC Power Supply |
|
► Power Adapter needs to be purchased separately. |
|
|
Mounting Options |
► DIN-Rail or Wall-Mount |
