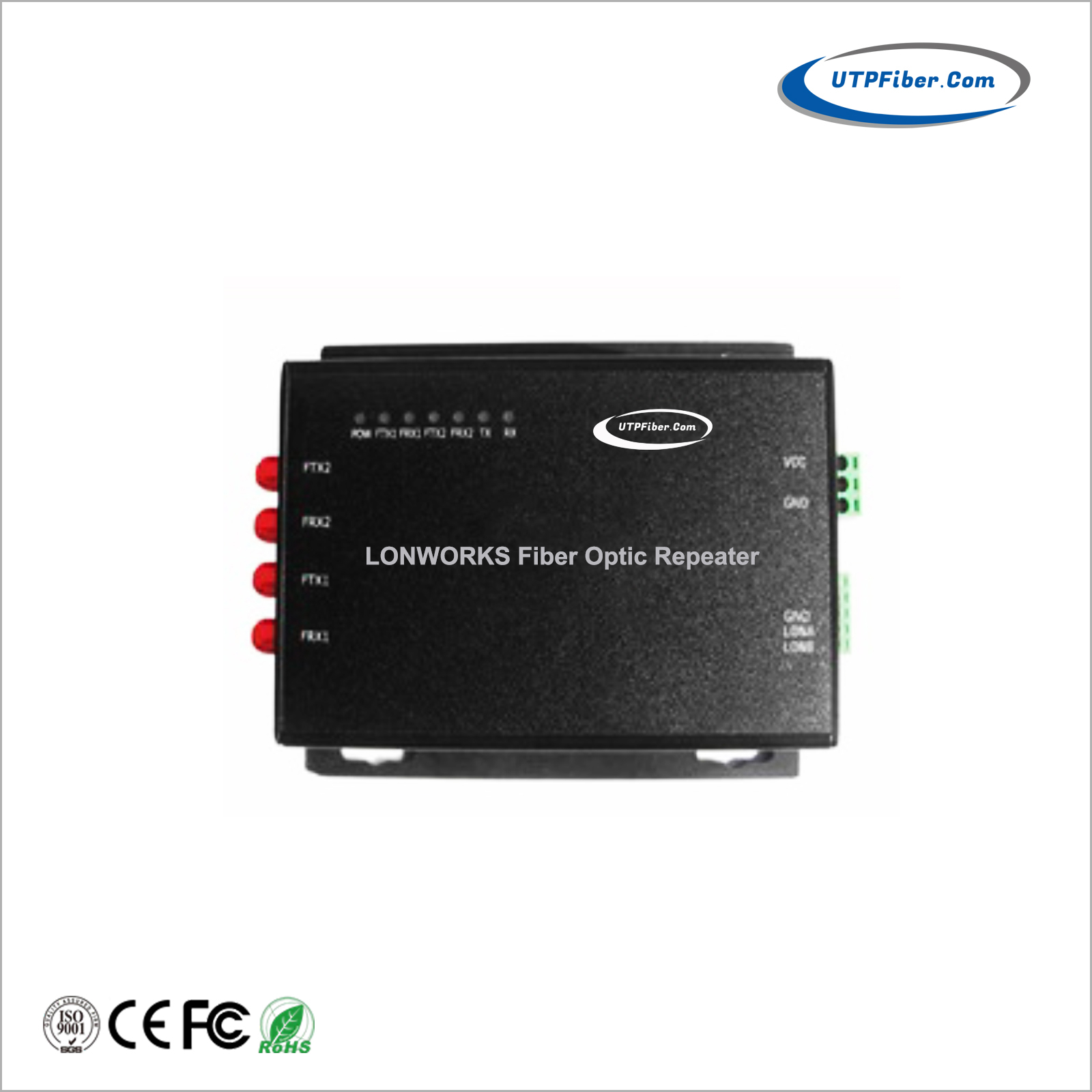

Industrial 1-Port LONWORKS to 2-Port Fiber Optic Converter

Model: UF-LON2 Series

The UF-LON2 Series Industrial LonWorks Fiber Optic Converter extends LonWorks fieldbus communication over optical fiber. It converts electrical signals from LonWorks TP/FT-10 twisted-pair networks into optical signals for reliable long-distance transmission.

Featuring one LonWorks interface and two fiber ports, the UF-LON2 supports point-to-point fiber connections and daisy-chain network extensions. Optical fiber helps reduce the impact of electromagnetic interference (EMI/RFI), ground potential differences, and lightning-related electrical disturbances on communication links.

Available in multimode and single-mode versions, the UF-LON2 supports fiber transmission distances of up to 2 km over multimode fiber and 25 km over single-mode fiber, with single-mode options up to 80 km available.

Designed for building automation, industrial control, intelligent transportation, industrial networking, and supervisory control and data acquisition (SCADA) applications, the UF-LON2 offers transparent LonWorks signal transmission without requiring software or protocol configuration.

Why Extend LonWorks over Fiber?

• Long-distance communication: Connect remote LonWorks network segments over optical fiber.

• Reduced electromagnetic interference: Optical fiber is resistant to electromagnetic interference affecting copper communication cables.

• Electrical isolation: Fiber helps eliminate direct conductive ground paths between connected locations.

• Flexible network layout: Two fiber ports support daisy-chain extensions where required by the network design.

• Simple deployment: Plug-and-play operation reduces configuration work.

Key Features

• LonWorks TP/FT-10 Support: Supports LonWorks fieldbus communication using the TP/FT-10 free-topology transceiver.

• One LonWorks Interface: Connects to a LonWorks network through a detachable 3-pin screw terminal block.

• Two Fiber Ports: Supports fiber connections for point-to-point links and daisy-chain network extensions.

• Transparent Transmission: Carries LonWorks/LonTalk communication transparently without protocol conversion.

• Multimode and Single-Mode Options: Supports different fiber types to suit the required transmission distance.

• Extended Fiber Distance: Up to 2 km over multimode fiber and 25 km over single-mode fiber; longer single-mode options up to 80 km are available.

• Signal Regeneration: Automatic signal retiming and regeneration help maintain signal integrity over long-distance links.

• Industrial Protection: Includes overcurrent and reverse-polarity protection.

• Status Monitoring: LED indicators provide visual information for power, fiber link, and LonWorks data activity.

• Flexible Installation: Desktop or wall mounting.

• Wide Operating Temperature: Designed to operate from -20°C to +70°C.

Applications

Building Automation Systems (BAS)

Extend LonWorks communication between building automation controllers and remote field devices using optical fiber links.

Industrial Control Networks

Connect LonWorks-based control systems across industrial environments where electromagnetic interference or ground-potential differences may affect copper communication wiring.

Intelligent Transportation Systems (ITS)

Provide fiber connectivity for compatible LonWorks fieldbus equipment used in transportation infrastructure and distributed monitoring systems.

Industrial Networking

Extend LonWorks communication between remote equipment locations using multimode or single-mode optical fiber.

Supervisory Control and Data Acquisition (SCADA)

Support LonWorks fieldbus connectivity in distributed monitoring and control installations that require longer communication distances or electrical isolation.

How Does a 2-Port LonWorks Fiber Optic Converter Work?

The UF-LON2 converts electrical LonWorks TP/FT-10 signals into optical signals for transmission over fiber. At the receiving end, a compatible converter restores the optical signals to electrical LonWorks signals.

Its two fiber ports allow fiber connections for point-to-point links and daisy-chain extensions, helping connect LonWorks network nodes across multiple locations.

Typical connection:

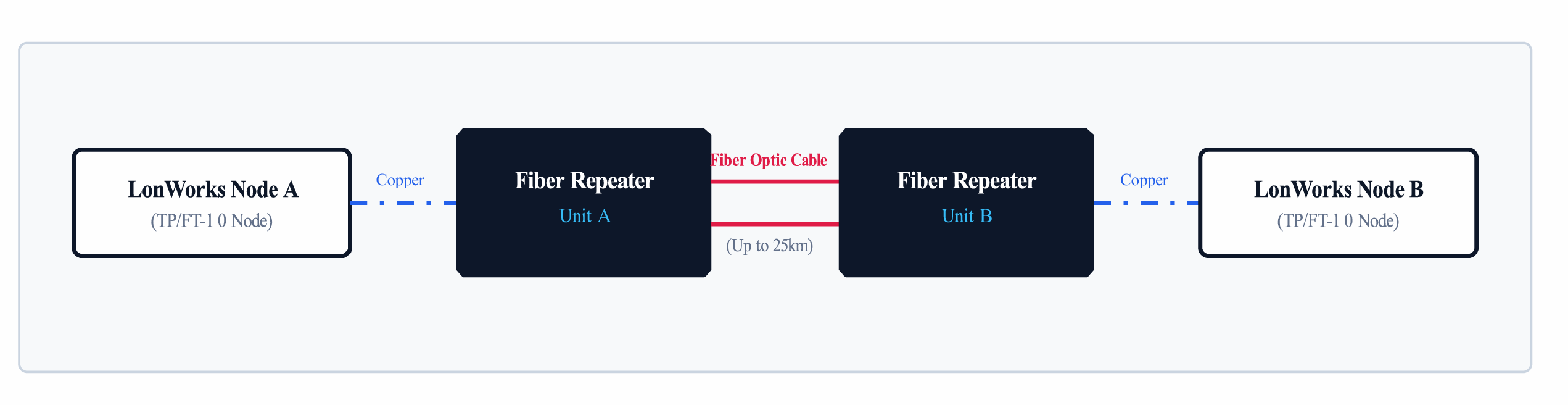

LonWorks Controller or Network Segment → UF-LON2 → Fiber Link → Compatible UF-LON2 or Supported Fiber Network Segment

Confirm the required topology, fiber port connections, and compatible equipment before installation.

Technical Specifications

• Download FileName：UF-LON2 Series LONWORKS Fiber Optic Converter Datasheet V1.0.pdf Size： 473KB

Frequently Asked Questions

1. What is the UF-LON2 LonWorks fiber optic converter?

The UF-LON2 is an industrial converter that transports LonWorks TP/FT-10 fieldbus communication over optical fiber. It has one LonWorks interface and two fiber ports.

2. What is the difference between UF-LON1 and UF-LON2?

The UF-LON2 has two fiber ports to support daisy-chain connections, while the UF-LON1 is the single-fiber-link version described on its product page. Select the model according to the required fiber topology.

3. What is the maximum fiber transmission distance?

The standard configurations support up to 2 km over multimode fiber and 25 km over single-mode fiber. Single-mode options up to 80 km are available. Confirm the exact model and optical link requirements when ordering.

4. Does the UF-LON2 support TP/FT-10?

Yes. The datasheet specifies LonWorks TP/FT-10 operation at 78 Kbps.

5. Does the converter translate LonWorks into Ethernet or IP?

No. The UF-LON2 provides transparent electrical-to-optical signal conversion for LonWorks communication. It is not a LonWorks-to-Ethernet/IP gateway.

6. Does the converter require software configuration?

The product is designed for plug-and-play operation without software or protocol configuration.

7. What power supply does it require?

The specified power input is 24 VDC, and power consumption is less than 5 W. The industrial power supply is purchased separately.

8. Which fiber connectors are available?

ST is the standard connector option; SC and FC are available as options. Confirm the connector type when placing an order.
