Mini Industrial 4-Port Gigabit PoE+ Switch with 1 SFP Uplink

Product Overview

The UF-IS6105GP-SFP-12V is a compact, unmanaged industrial Gigabit PoE+ switch designed for industrial Ethernet networks, remote IP surveillance, and solar-powered network deployments.

It provides four 10/100/1000BASE-T RJ45 PoE+ ports, one additional Gigabit RJ45 uplink port, and one 100/1000BASE-X SFP slot. The SFP interface supports a fiber-optic uplink using a compatible SFP transceiver, while the RJ45 ports connect Ethernet devices such as IP cameras and wireless access points.

With a 12–56V DC input range and built-in voltage booster, the switch is designed for low-voltage DC power systems. Its PoE power budget is up to 60W with a 12V DC input and up to 120W with a 24–56V DC input. Dual power inputs, fanless cooling, a compact aluminum enclosure, and a -40°C to +80°C operating temperature range support deployment in industrial environments.

Frequently Asked Questions

1. How many ports does the UF-IS6105GP-SFP-12V have?

It has five RJ45 ports in total, including four PoE+ ports and one additional Gigabit RJ45 uplink, plus one SFP fiber-optic slot.

2. What PoE standard does it support?

The four PoE ports support IEEE 802.3af/at, with a maximum of 30W per port.

3. What is the maximum PoE power budget?

The specified budget is up to 60W with a 12V DC input and up to 120W with a 24–56V DC input. The available power depends on the input voltage and system operating conditions.

4. What type of fiber connection does it support?

The SFP slot supports 100BASE-FX/1000BASE-X transceivers as indicated by the product's 100/1000BASE-X interface specification. The fiber type and transmission distance depend on the selected compatible SFP module.

5. Is the SFP module included?

The product ordering information states that the SFP module is purchased separately. The DC power supply is also sold separately.

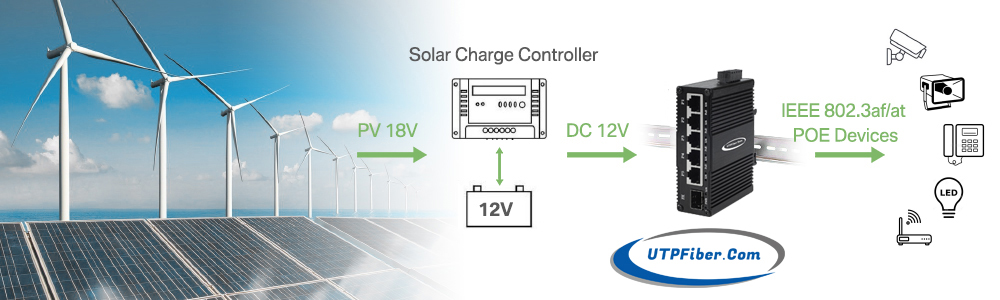

6. Can it be used in a solar-powered network?

Yes. It can be used in a solar-powered network when paired with a properly designed DC power system. Solar panels, batteries, and charge controllers are external components, not integrated features of the switch.

7. What is the operating temperature range?

The specified operating temperature range is -40°C to +80°C.

Request a Quote

Need a compact industrial PoE+ switch with both copper and fiber uplinks? Contact UTP Fiber with your DC input voltage, PoE device requirements, fiber type, and transmission distance to confirm the appropriate configuration for your application.

Key Features

• 4 Gigabit PoE+ Ports: Four 10/100/1000BASE-T RJ45 ports support IEEE 802.3af/at PoE, with up to 30W per port.

• Copper and Fiber Uplinks: One additional Gigabit RJ45 port and one 100/1000BASE-X SFP slot provide flexible network uplink options.

• Wide-Range DC Input: Supports 12–56V DC input with built-in voltage-boosting technology.

• Flexible PoE Power Budget: Up to 60W total PoE power at 12V DC input and up to 120W at 24–56V DC input.

• Redundant Power Inputs: Dual DC power inputs support power redundancy when connected to suitable independent power sources.

• Industrial Temperature Range: Operates from -40°C to +80°C.

• Compact, Fanless Design: Aluminum housing with passive cooling for space-constrained installations.

• Flexible Mounting: Supports DIN-rail and wall mounting.

• Gigabit Ethernet Performance: Supports IEEE 802.3az Energy-Efficient Ethernet and jumbo frames up to 9KB.

Typical Applications

Solar-Powered IP Surveillance

Connect IP cameras at remote locations where a suitable low-voltage DC power source is available. Use the SFP uplink to connect the local camera network to a fiber-optic backbone.

Industrial Ethernet Networks

Connect industrial Ethernet devices in control cabinets, production facilities, and distributed network installations.

Intelligent Transportation Systems

Provide Gigabit Ethernet and PoE connectivity for compatible roadside cameras and network devices, subject to the project's power and environmental requirements.

Remote Monitoring Networks

Combine copper Ethernet connections for local powered devices with a fiber uplink to connect remote network segments.

Utility and Infrastructure Networks

Deploy the compact switch in suitable industrial enclosures where wide-range DC input, fiber connectivity, and an extended operating temperature range are required.

• Download FileName：UF-IS6105GP-SFP-12V Unmanaged Industrial 5G+1SFP Solar Power PoE Switch Datasheet V1.0.pdf Size： 443KB
