Industrial 2-Port Gigabit PoE+ Media Converter with 2 SFP Ports and 1+1 Fiber Redundancy

The UF-IS6212GP is an unmanaged industrial Gigabit PoE+ media converter with two 10/100/1000BASE-T PoE+ ports and two 100/1000BASE-X SFP fiber ports. It supports 1+1 fiber link redundancy, allowing automatic switching between the primary and backup fiber ports when the active fiber link fails. The converter also provides PoE watchdog, 250m long-distance transmission mode, redundant 44–57VDC power input, and -40°C to +80°C operation for industrial Ethernet and critical network applications.

Industrial 2-Port Gigabit PoE+ Media Converter with 2 SFP Ports

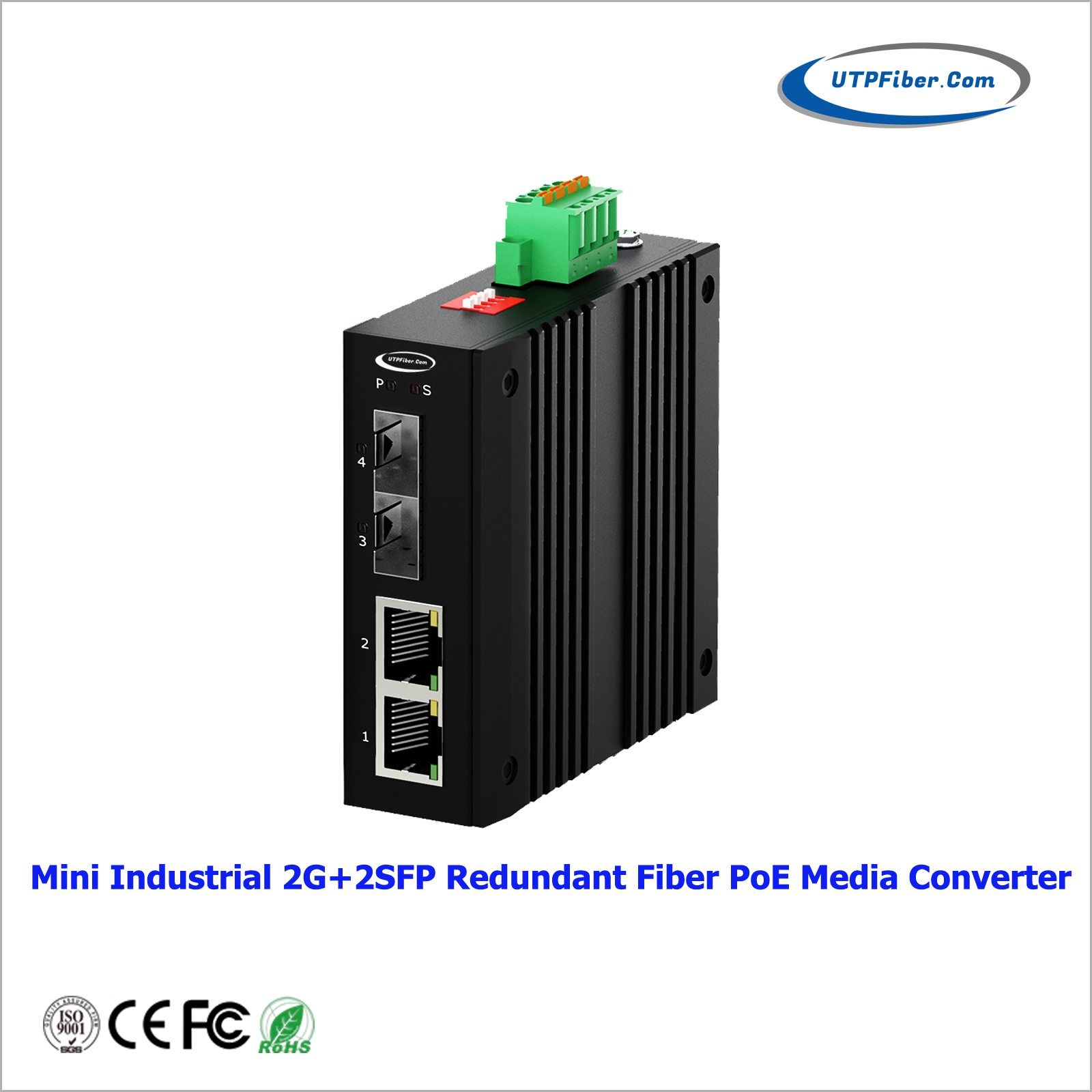

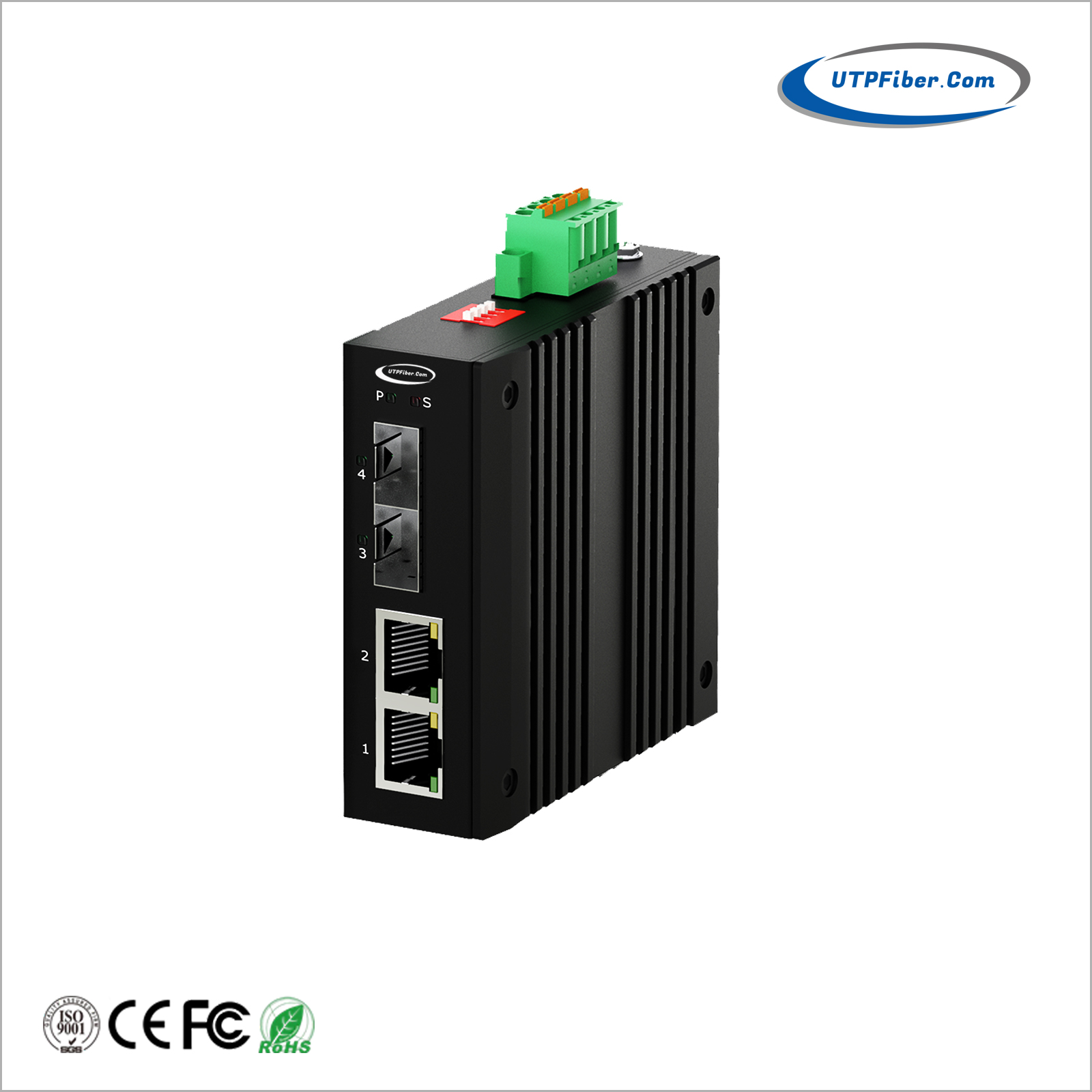

The UF-IS6212GP is a compact unmanaged industrial Gigabit PoE+ media converter that combines two 10/100/1000BASE-T PoE+ copper ports with two 100/1000BASE-X SFP fiber ports. It is designed to extend Ethernet and PoE connectivity over fiber while providing 1+1 fiber link redundancy for critical network connections.

The two SFP ports can be configured as a redundant fiber pair through the DIP switch. When the active fiber link fails, the converter can automatically switch to the backup fiber link and recover the connection when the primary link becomes available again.

The UF-IS6212GP also supports PoE watchdog, 250m long-distance transmission mode, redundant 44–57VDC power input, 4KV surge protection, and -40°C to +80°C industrial operation. Its fanless IP40 aluminum housing and DIN-Rail installation make it suitable for industrial Ethernet, transportation, IP surveillance, factory automation, and other critical network environments.

What Problems Does the UF-IS6212GP Solve?

1. How can a critical Ethernet link stay connected if one fiber fails?

A single fiber uplink creates a potential single point of failure. The UF-IS6212GP provides two SFP fiber ports that can be configured as a 1+1 redundant fiber link. If the active fiber path fails, the converter can automatically switch to the backup fiber port.

2. How can PoE devices be connected to a fiber network?

The UF-IS6212GP combines copper PoE+ ports with SFP fiber interfaces. It can receive fiber-based Ethernet data and provide both network connectivity and PoE power to compatible devices through its RJ45 ports.

3. How can remote PoE devices be monitored and recovered automatically?

The built-in PoE Watchdog monitors connected PoE devices. When a connected device becomes unresponsive, the watchdog function can automatically restart the PoE connection to help restore the device.

4. How can Ethernet and PoE be extended beyond the normal 100m copper limit?

The dedicated 250m long-distance mode extends Ethernet and PoE connectivity beyond the standard 100m copper Ethernet distance for supported deployments.

5. How can PoE networking equipment operate reliably in harsh environments?

The UF-IS6212GP uses a fanless IP40 industrial housing and supports -40°C to +80°C operation, with surge, reverse-polarity and over-voltage protection for industrial and outdoor-adjacent network environments.

6. How can industrial network equipment be installed in a limited space?

The converter uses a compact 30 × 85 × 85mm housing and DIN-Rail mounting, making it suitable for control cabinets, electrical boxes, machine equipment and distributed industrial network nodes.

How Does 1+1 Fiber Redundancy Work?

The UF-IS6212GP uses two SFP fiber ports to provide a primary and backup optical path.

Primary Fiber Link → SFP Port 1

Backup Fiber Link → SFP Port 2

When fiber redundancy mode is enabled through the DIP switch:

1. SFP Port 1 operates as the primary fiber link.

2. SFP Port 2 provides the backup fiber path.

3. The converter monitors the active optical link.

4. If the primary fiber link fails, traffic is automatically switched to the backup fiber port.

5. When the primary link recovers, the system can automatically recover the original fiber path.

This 1+1 fiber protection architecture helps maintain network connectivity for critical Ethernet and PoE applications where fiber-link availability is important.

PoE Watchdog for Automatic Device Recovery

The UF-IS6212GP includes a built-in PoE Watchdog function for monitoring connected PoE devices.

When a connected PoE device becomes unresponsive, the watchdog function can automatically detect the problem and restart the PoE connection. This helps reduce the need for manual intervention at remote locations.

PoE Watchdog is particularly useful for remotely deployed devices such as:

• IP cameras

• Wireless access points

• PoE communication devices

• Remote monitoring equipment

• Industrial PoE terminals

The PoE Watchdog function can be enabled or configured through the DIP switch.

250m Long-Distance Ethernet & PoE Transmission

The UF-IS6212GP provides a dedicated 250m long-distance transmission mode for supported Ethernet and PoE connections.

When enabled through the DIP switch, the long-distance mode allows compatible copper Ethernet/PoE connections to reach up to 250 meters, extending beyond the conventional 100-meter Ethernet cabling distance.

This function is useful for distributed IP surveillance, factory equipment, transportation infrastructure and other installations where PoE devices are located farther from the network access point.

The 250m mode is configured through the DIP switch and should be used with compatible network devices and cabling.

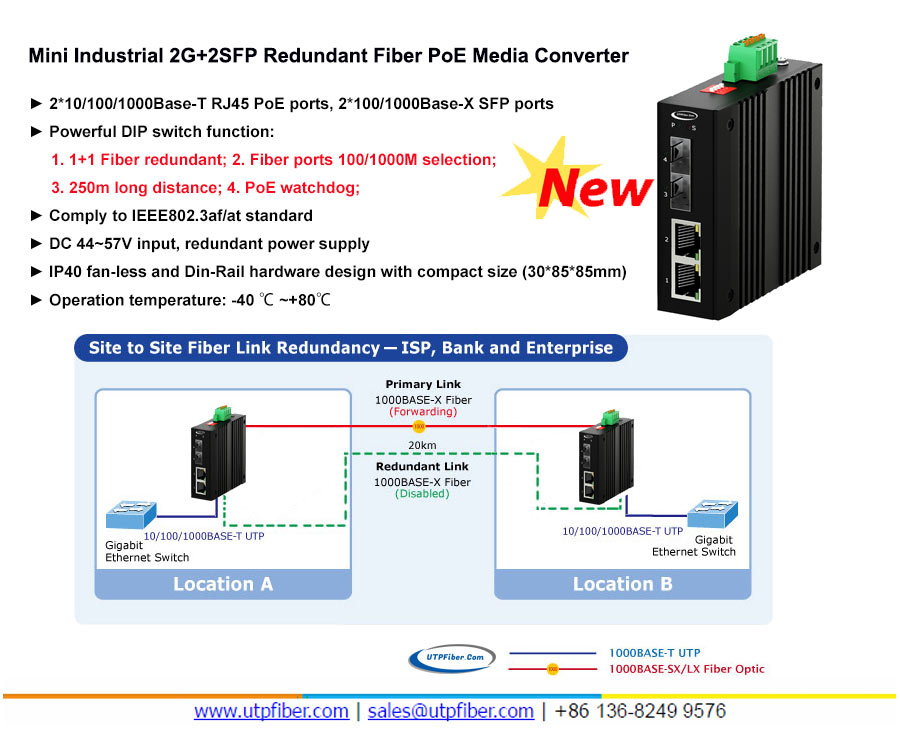

Key Features

• 2 × 10/100/1000BASE-T PoE+ ports

• 2 × 100/1000BASE-X SFP ports

• 1+1 fiber link redundancy with automatic protection switching

• IEEE 802.3af/at PoE+ support

• Up to 30W PoE+ per copper port

• Up to 60W total PoE power budget

• PoE Watchdog for automatic PoE device monitoring and recovery

• 250m long-distance Ethernet/PoE transmission mode

• 44–57VDC redundant power input

• Reverse-polarity and over-voltage protection

• 4KV surge protection

• 10K-byte jumbo frame and 1M large packet buffer

• 8G switching capacity

• 8K MAC address table

• Fanless IP40 industrial housing

• Compact 30 × 85 × 85mm design

• DIN-Rail installation

• -40°C to +80°C operating temperature

• Unmanaged plug-and-play operation

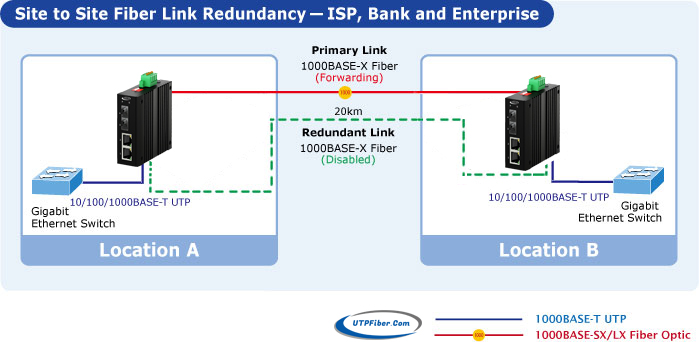

Application I: 1+1 Fiber Redundancy

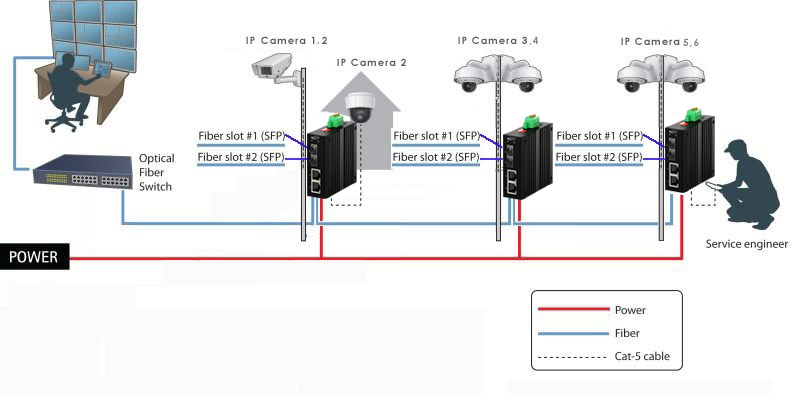

Application II: Daisy-Chain Connection

Applications

The UF-IS6212GP is designed for industrial Ethernet and PoE networks that require fiber connectivity, redundant fiber paths, and reliable remote PoE device operation.

Industrial Ethernet

• Factory automation

• Industrial control networks

• Machine networking

• Process automation

• Industrial communication systems

IP Surveillance

• Industrial IP cameras

• Transportation surveillance

• Remote video monitoring

• Security monitoring networks

Transportation

• Railway and roadside networking

• Traffic monitoring

• Transportation communication systems

• Distributed PoE devices

Critical PoE Networks

• Redundant PoE fiber links

• Remote access points

• Industrial PoE terminals

• Remote monitoring equipment

Oil & Gas and Harsh Industrial Environments

• Oil and gas facilities

• Chemical plants

• Processing facilities

• Outdoor industrial cabinets

• Distributed industrial network nodes

• Download FileName：UF-IS6212GP Mini Industrial 2G+2SFP Redundant Fiber PoE Media Converter Datasheet V1.0.pdf Size： 601KB

Frequently Asked Questions

What is the UF-IS6212GP?

The UF-IS6212GP is an unmanaged industrial Gigabit PoE+ media converter with two 10/100/1000BASE-T PoE+ ports and two 100/1000BASE-X SFP ports.

Does the UF-IS6212GP support fiber redundancy?

Yes. The two SFP ports can be configured as a 1+1 redundant fiber pair through the DIP switch.

How does the fiber redundancy function work?

One SFP port operates as the primary fiber path and the second SFP port provides the backup path. If the active fiber link fails, traffic can automatically switch to the backup fiber link.

Does it support PoE+?

Yes. The converter complies with IEEE 802.3af and IEEE 802.3at and can provide up to 30W of PoE power per copper port.

What is the total PoE power budget?

The total PoE power budget is up to 60W.

What is PoE Watchdog?

PoE Watchdog monitors connected PoE devices and can automatically restart the PoE connection when a connected device becomes unresponsive.

Does the converter support 250m Ethernet transmission?

Yes. A dedicated 250m long-distance mode can be enabled through the DIP switch for supported copper Ethernet/PoE connections.

What is the fiber transmission distance?

The fiber transmission distance depends on the SFP module installed in the converter. Single-mode or multimode SFP modules can be selected according to the required network distance.

Is the UF-IS6212GP managed?

No. The UF-IS6212GP is an unmanaged industrial media converter. Its key functions, including fiber redundancy, fiber speed selection, 250m mode and PoE Watchdog, are configured through the DIP switch.

What power supply does it use?

The converter accepts 44–57VDC and provides redundant power input with reverse-polarity and over-voltage protection.

Can it be installed on a DIN rail?

Yes. The converter uses a compact 30 × 85 × 85mm IP40 fanless housing with DIN-Rail installation.

What applications is the UF-IS6212GP designed for?

Typical applications include industrial Ethernet, IP surveillance, transportation networks, factory automation, oil and gas facilities, chemical plants and other critical PoE network environments.
