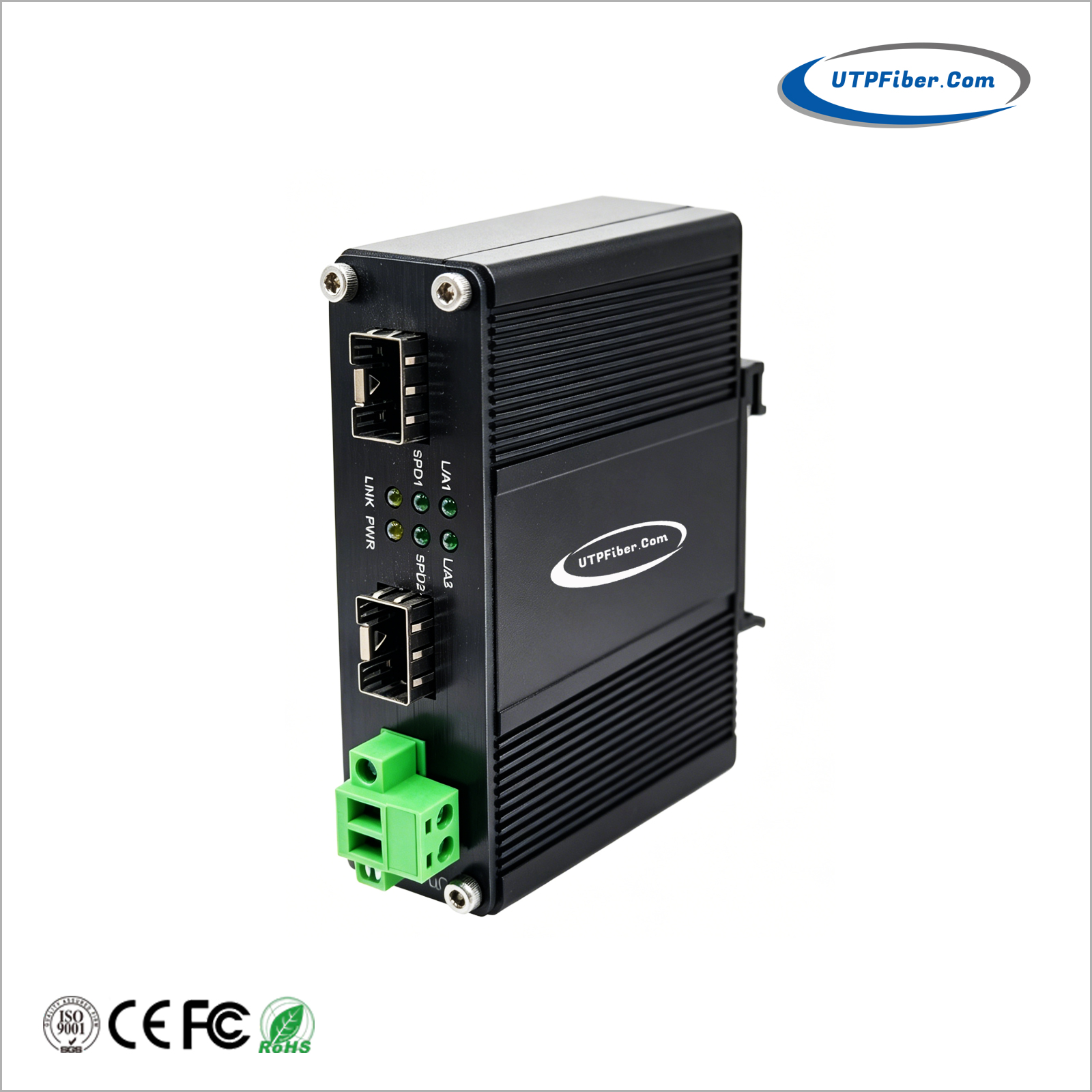

Industrial 100/1000BASE-X SFP-to-SFP OEO Converter

The UF-IF1G-OEO is an industrial 100/1000BASE-X SFP-to-SFP OEO converter and 3R fiber repeater designed to extend fiber optic networks and regenerate optical signals over long distances.

It supports dual-speed 100BASE-FX and 1000BASE-SX/LX operation with two interchangeable SFP ports, allowing users to select suitable SFP transceivers according to fiber type, wavelength, and transmission distance.

The converter provides 3R signal regeneration, reshaping, and retiming, helping maintain signal integrity for long-distance fiber transmission.

With a wide -40°C to +80°C operating temperature, 12–48VDC power input, and DIN-Rail or wall-mount installation, the UF-IF1G-OEO is designed for industrial Ethernet, fiber backbone, remote network extension, and fiber-to-fiber conversion applications.

Key Benefits

• 100/1000BASE-X dual-speed fiber transmission

• Two interchangeable SFP ports

• SFP-to-SFP fiber-to-fiber conversion

• 3R regeneration, reshaping, and retiming

• Supports multimode-to-multimode and multimode-to-single-mode conversion

• Supports single-mode-to-single-mode transmission

• Protocol-transparent fiber transmission

• Supports CWDM/DWDM wavelength conversion applications with compatible SFP modules

• Transmission distance up to 80 km with suitable single-mode SFP modules

• Wide operating temperature from -40°C to +80°C

• 12–48VDC power input

• DIN-Rail or wall-mount installation

• Compact aluminum housing

• Plug-and-play installation

What Problems Does the UF-IF1G-OEO Solve?

The UF-IF1G-OEO is designed for fiber network applications where a standard fiber connection is not sufficient for the required transmission distance, fiber type, or optical interface.

It can help solve common fiber networking challenges such as:

Extending a Fiber Network

When the distance between two network locations exceeds the practical reach of an existing fiber link, the UF-IF1G-OEO can be deployed as an intermediate 3R fiber repeater to regenerate the optical signal and extend the network.

Connecting Different Fiber Types

The two SFP ports allow different compatible SFP transceivers to be installed on each side of the converter. This can support applications such as multimode-to-single-mode fiber conversion.

Converting Fiber Interfaces

The SFP-to-SFP architecture provides a flexible way to connect two fiber network segments using different compatible optical transceivers.

Supporting Different Optical Wavelengths

With compatible SFP modules, the converter can be used in wavelength conversion applications, including CWDM and DWDM network architectures.

Deploying Fiber Equipment in Harsh Environments

With an operating temperature range of -40°C to +80°C and DIN-Rail or wall-mount installation, the UF-IF1G-OEO is suitable for industrial and remote network environments.

What Is 3R Regeneration in Fiber Optic Transmission?

3R stands for Regeneration, Reshaping, and Retiming.

In fiber optic transmission, 3R regeneration restores an optical signal before it continues to the next transmission segment.

Regeneration

The received signal is regenerated to restore the signal level and transmission quality.

Reshaping

The signal waveform is reshaped to improve signal integrity.

Retiming

The signal timing is recovered and synchronized before transmission to the next fiber segment.

A 3R fiber repeater is therefore different from a passive fiber connection because it actively regenerates the transmitted signal.

The UF-IF1G-OEO uses 3R regeneration as part of its fiber-to-fiber OEO transmission function, making it suitable for applications that require reliable long-distance optical signal transmission.

Why Use an SFP-to-SFP OEO Converter?

An SFP-to-SFP OEO converter provides greater flexibility than a fixed optical interface because the optical transceiver can be selected according to the network requirements.

With two interchangeable SFP ports, the UF-IF1G-OEO can support different combinations of:

• Fiber type

• Transmission distance

• Optical wavelength

• Connector type

• Network speed

For example, one side can use a multimode SFP while the other side uses a single-mode SFP, allowing the converter to bridge different fiber infrastructures.

The SFP-based architecture also allows the optical modules to be replaced or upgraded without replacing the entire converter, subject to compatibility requirements.

100/1000BASE-X Dual-Speed Support: Supports 100BASE-FX and 1000BASE-SX/LX fiber transmission through interchangeable SFP transceivers.

SFP-to-SFP Fiber Conversion: Provides direct fiber-to-fiber connectivity between two optical network segments.

3R Signal Regeneration: Regenerates, reshapes, and retimes optical signals for long-distance fiber transmission.

Flexible Fiber Conversion: Supports multimode-to-multimode, multimode-to-single-mode, and single-mode-to-single-mode fiber connections.

Long-Distance Transmission: Supports transmission distances up to 80 km when used with suitable single-mode SFP modules.

Protocol-Transparent Transmission: Designed to transmit compatible network protocols without requiring protocol-specific configuration.

Wavelength Conversion: Can support CWDM or DWDM wavelength conversion applications when used with compatible SFP transceivers.

Wide Temperature Operation: Supports an operating temperature range of -40°C to +80°C for industrial environments.

Industrial Installation: Supports DIN-Rail or wall-mount installation.

Flexible Power Input: Supports 12–48VDC power input.

Compact Industrial Design: Features a compact aluminum housing suitable for space-constrained industrial installations.

Plug-and-Play Deployment: Designed for simple installation without complex software configuration.

Typical Applications

The UF-IF1G-OEO can be used in a variety of industrial and professional fiber optic networking applications.

Industrial Ethernet Network Extension

Extend industrial Ethernet networks between remote locations using fiber optic links.

Long-Distance Fiber Transmission

Use the 3R regeneration function to extend fiber transmission through multiple network segments.

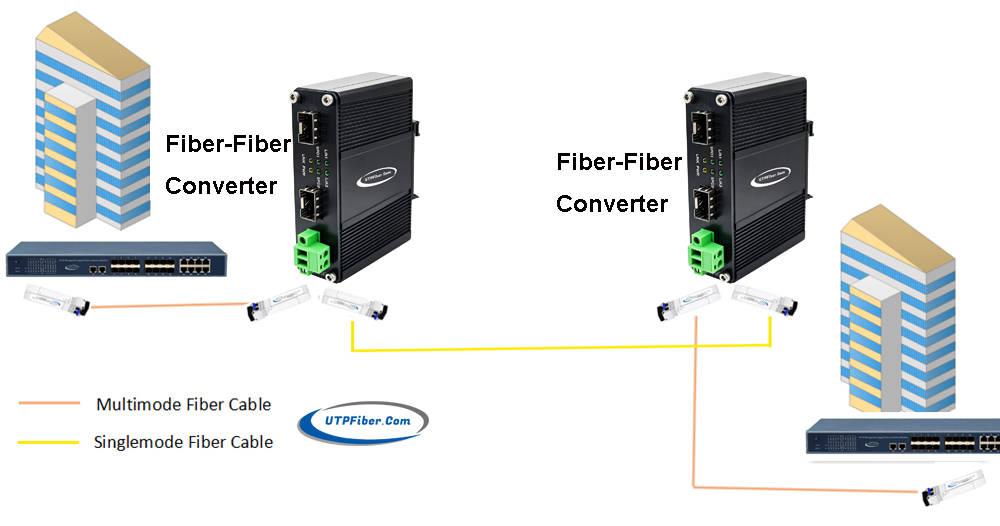

Multimode-to-Single-Mode Conversion

Connect existing multimode fiber infrastructure to a single-mode fiber backbone using appropriate SFP transceivers.

Fiber Backbone Extension

Deploy the converter between fiber network segments to extend backbone connectivity between buildings, industrial sites, or remote facilities.

CWDM/DWDM Wavelength Conversion

Use compatible CWDM or DWDM SFP modules to support wavelength conversion within optical transport networks.

Remote Industrial Network

The wide-temperature design and flexible mounting options make the UF-IF1G-OEO suitable for remote industrial communication equipment and network cabinets.

Telecommunications and Data Communication

The transparent fiber-to-fiber architecture can be used for compatible optical communication and transmission applications where protocol transparency is required.

Frequently Asked Questions

What is the UF-IF1G-OEO?

The UF-IF1G-OEO is an industrial 100/1000BASE-X SFP-to-SFP OEO converter and 3R fiber repeater designed for fiber network extension, optical signal regeneration, and fiber-to-fiber conversion.

What does OEO mean?

OEO stands for Optical-Electrical-Optical. An OEO converter receives an optical signal, processes or regenerates the signal electrically, and then converts it back to an optical signal for transmission through the next fiber segment.

What does 3R mean?

3R means Regeneration, Reshaping, and Retiming. It refers to the regeneration and restoration of an optical communication signal before it continues to the next transmission segment.

What fiber speeds does the UF-IF1G-OEO support?

The UF-IF1G-OEO supports 100Mbps and 1000Mbps fiber transmission through compatible 100/1000BASE-X SFP transceivers.

Does the UF-IF1G-OEO support both multimode and single-mode fiber?

Yes. The converter supports multimode and single-mode fiber applications when appropriate SFP transceivers are installed.

Can the UF-IF1G-OEO convert multimode fiber to single-mode fiber?

Yes. By installing compatible multimode and single-mode SFP transceivers on the two SFP ports, the UF-IF1G-OEO can bridge multimode and single-mode fiber segments.

What is the maximum transmission distance?

The transmission distance depends on the selected SFP transceivers and fiber type. With suitable single-mode SFP modules, the transmission distance can reach up to 80 km.

Does the UF-IF1G-OEO support SFP modules?

Yes. The UF-IF1G-OEO uses two interchangeable 100/1000BASE-X SFP ports. SFP modules are purchased separately.

Can the UF-IF1G-OEO be used as a fiber repeater?

Yes. The UF-IF1G-OEO can operate as a 3R fiber repeater for extending compatible fiber transmission links.

Can the UF-IF1G-OEO be used for CWDM or DWDM?

Yes. The converter can be used for compatible CWDM or DWDM wavelength conversion applications when appropriate optical modules are selected.

What is the operating temperature of the UF-IF1G-OEO?

The UF-IF1G-OEO supports an operating temperature range of -40°C to +80°C (-40°F to +176°F).

What power supply does the UF-IF1G-OEO require?

The UF-IF1G-OEO supports a 12–48VDC power input.

Can the UF-IF1G-OEO be installed on a DIN rail?

Yes. The converter supports both DIN-Rail and wall-mount installation.

Is the UF-IF1G-OEO a managed Ethernet switch?

No. The UF-IF1G-OEO is a fiber-to-fiber OEO converter and 3R repeater rather than a managed Ethernet switch.

Does the UF-IF1G-OEO require special software?

No. The product is designed for plug-and-play deployment and does not require complex software configuration for standard operation.

What is the difference between an OEO converter and a standard fiber media converter?

A standard fiber media converter typically converts between copper Ethernet and fiber Ethernet. An OEO converter such as the UF-IF1G-OEO provides fiber-to-fiber conversion and can regenerate optical signals, making it suitable for fiber link extension, fiber type conversion, and certain wavelength conversion applications.

Which UTP Fiber product should I use for 100/1000BASE-X fiber-to-fiber conversion?

The UF-IF1G-OEO is designed specifically for 100/1000BASE-X SFP-to-SFP fiber-to-fiber conversion and 3R optical signal regeneration.
