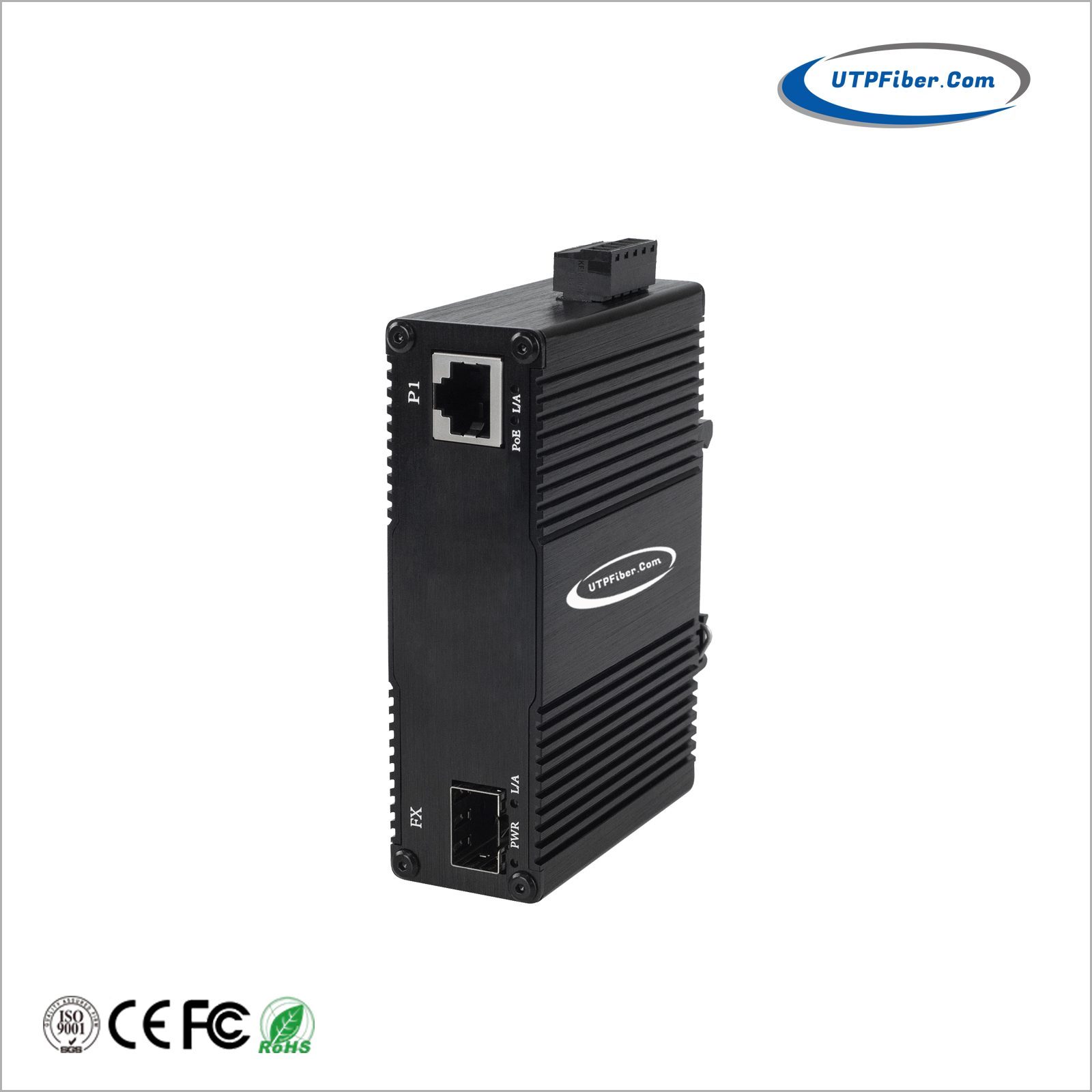

Industrial 10G/5G/2.5G/1G/100BASE-X SFP+ to 10/100/1G/2.5G/5G/10GBASE-T PoE+ Converter w 12V Booster
Model:UF-IS6101XGP30-12V
► 1 x 10/100/1G/2.5G/5G/10GBASE-T RJ45 with IEEE 802.3at PoE+ injector function
► 1 x 10G/5G/2.5G/1G/100BASE-X SFP+ slot interface
► 12~56VDC wide range power input with power booster function
► Cut-Through / Pass-Through Mode
UF-IS6101XGP30-12V is a mini industrial 10G PoE+ media converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1G/2.5G/5G/10G 802.3at PoE+ copper port and one 10G/5G/2.5G/1G/100BASE-X SFP+ fiber optic port delivered in an IP40 rugged but compact-sized case with redundant power system.
To facilitate the IEEE 802.3at PoE+ usage with the commonly-used 12-56V DC power input for transportation and industrial-level applications, the UF-IES1GP-SFP-12V adopts 12-48V DC to 48V DC power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.
The 10GBASE-X SFP+ fiber-optic interfaces support multiple speeds—10G/5G/2.5G/1G/100BASE-X —allowing administrators to select the appropriate SFP/SFP+ transceiver based on distance and speed requirements. The device also supports flexible conversion between multi-mode and single-mode fiber, extending transmission distances from 300 meters to 80 kilometers using 10GBASE-SR or 10GBASE-LR modules.

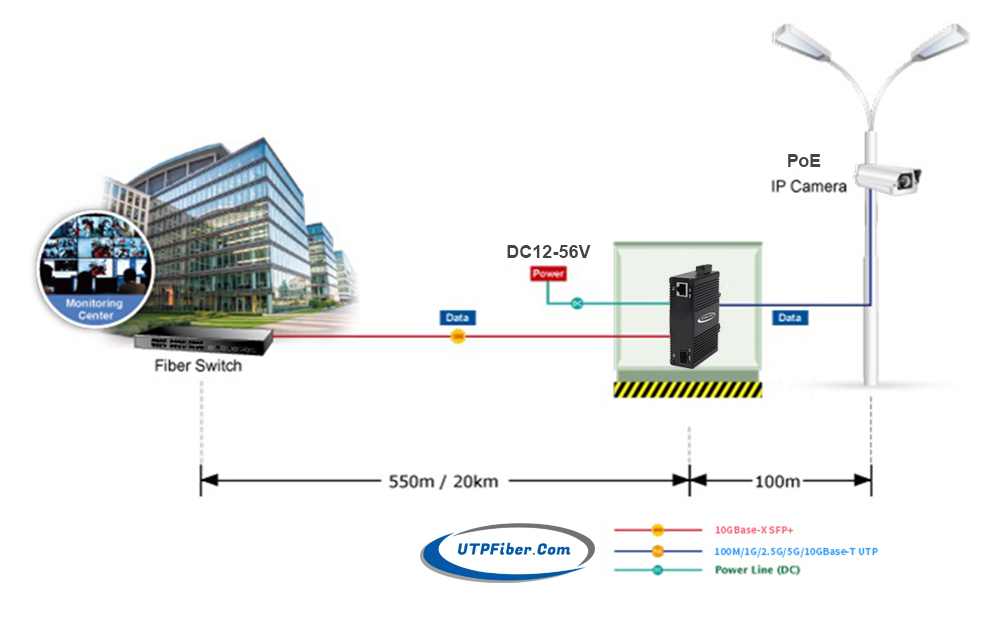

The UF-IS6101XGP30-12V is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80 degrees C. The Ethernet port supports full-duplex mode. Users can use different type of SFP+ modules (single-mode/multi-mode fiber, 1/2 core) as needed.
► 1 x 10/100/1G/2.5G/5G/10GBASE-T RJ45 with IEEE 802.3at PoE+ injector function
► 1 x 10G/5G/2.5G/1G/100BASE-X SFP+ slot interface
► 12~56VDC wide range power input with power booster function
► Cut-Through / Pass-Through Mode
► Support IEEE802.3az energy efficient Ethernet technology
► Extensive LED indicators for network diagnostics
► Supports 6000 VDC Ethernet ESD protection
► Power input polarity protection design, no worry about wrong operation
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 80°C operating temperature
|
Physical Port |
|
|
RJ45 port and speed |
1 x 10000/5000/2500/1000/100/10BASE-T RJ45 |
|
Fiber port and speed |
1 × 10GBASE-SR/LR SFP+ |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x IEEE 802.3x full-duplex flow control IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Transmission mode |
Cut-Through / Pass-Through Mode |
|
Latency |
< 500ns |
|
Bandwidth |
20Gbps |
|
Power over Ethernet |
|
|
PoE standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
POE Power Voltage |
DC48V Max. output power 30W |
|
POE RJ45 Pins |
Positive: 4,5(+) and Negative: 7,8(-) |
|
LED Indicator |
|
|
Power |
Connect-always ON |
|
PoE |
PD Plug ON status |
|
RJ45 |
Link/Act: connect-always; data exchange-blinking |
|
Fiber |
Link/Act: connect-always; data exchange-blinking |
|
Power Information |
|
|
Power access mode |
Phoenix terminal |
|
Redundant power input |
DC12-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
5W Max. (PoE not activated) |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum housing |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions (L x W x H) |
100mm x 70mm x 30mm |
|
Installation mode |
DIN Rail or Wall-Mount |
|
Weight |
280g |
|
Working Environment |
|
|
Operating Temperature |
-40℃ ~ +80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Standard Warranty |
5 years and lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-IS6101XGP30-12V Mini Industrial 10G SFP+ 30W PoE+ Media Converter Datasheet V1.0.pdf Size： 673KB
|
Model |
Description |
|
UF-IS6101XGP30-12V |
Mini Industrial 10G/2.5G/1GBASE-X SFP+ to 10/100/1G/2.5G/5G/10GBASE-T 802.3at PoE+ Media Converter w/ 12-56V Booster |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
