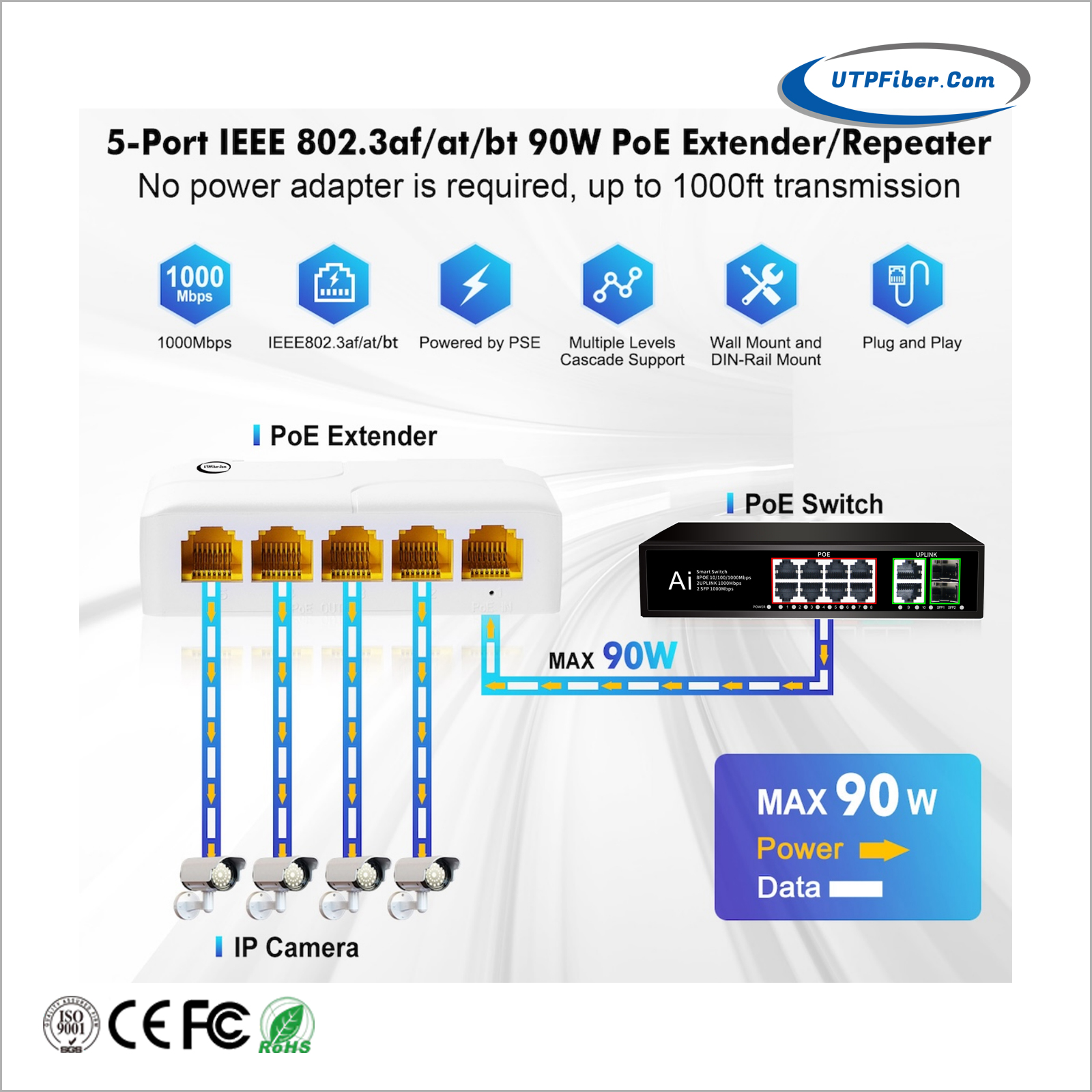

The UF-DPE104G Gigabit PoE+ Extender/Switch is a compact, powerful device that uses the latest network standards to extend your Ethernet signal over a distance of up to 100 meters per device. With the ability to reach up to 500 meters total range, this extender offers flexibility and versatility.

This amplifier is powered via Power over Ethernet (PoE), which means that no separate power supply is required. This allows it to be used in locations without existing power cables or sockets. Extending the range or increasing the connection options requires no additional effort. The 4 PoE ports offer a maximum budget of 85W PoE power.

Port 2 delivers up to 60W, while ports 3-5 can each provide a maximum of 30W per port. In addition, ports 2-5 support both PoE and non-PoE compatible end devices, allowing for flexible use.

This solution is ideal for providing a reliable network connection in control cabinets or electrical enclosures. The additional ports can be used for IoT devices or other smart home end devices, further increasing the versatility and application possibilities of this extender.

The switch offers the possibility to choose between two operating modes via a switch: OFF-normal mode or ON-VLAN & 250M PoE. In VLAN & 250m PoE mode, end devices cannot communicate with each other, which is also known as port isolation. In addition, the network range for 100Mbps devices is extended to a maximum of 250m, while the range for Gigabit devices remains at 100m.

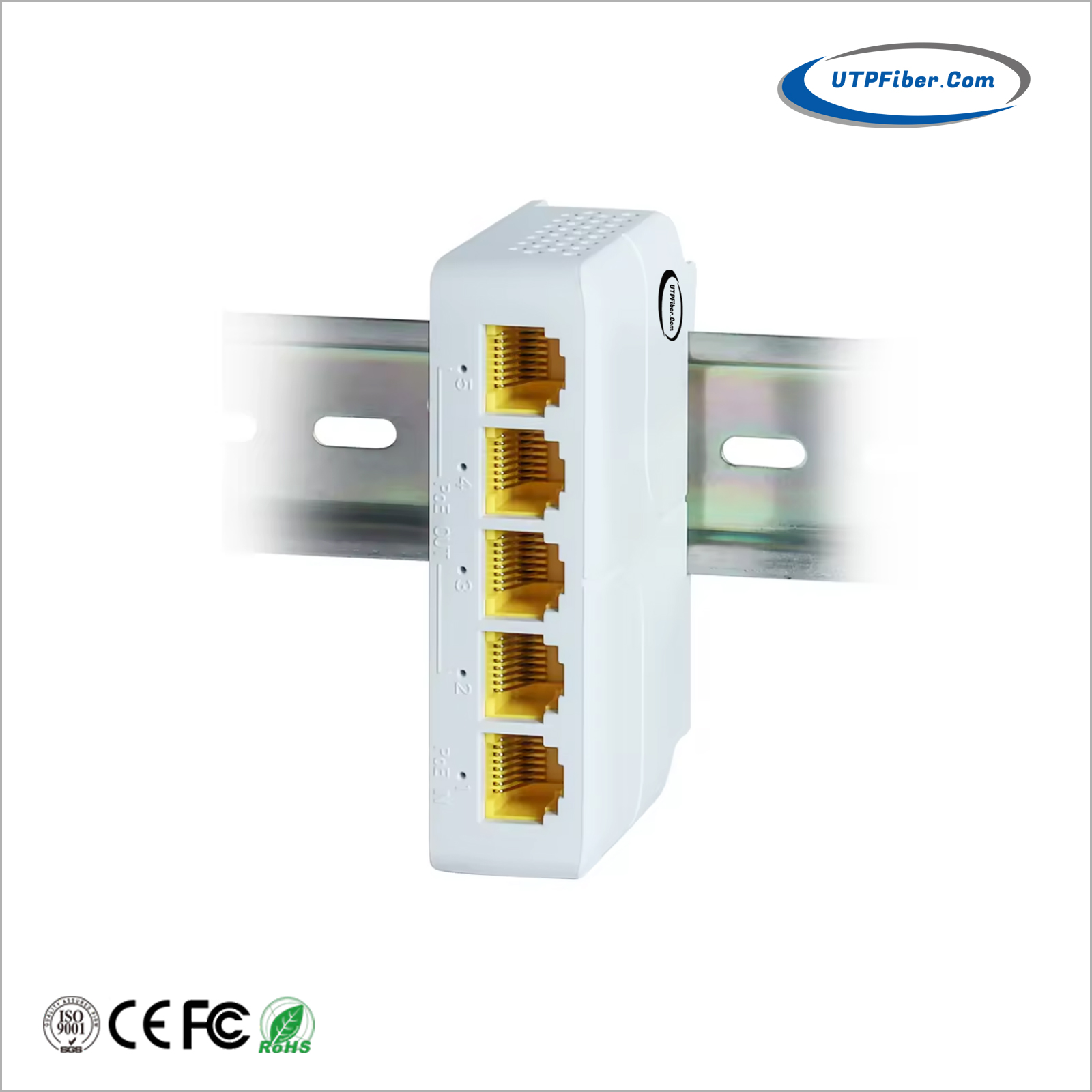

►     Compact switch for DIN rail 5x 10/100/1000M copper ports of which port 2 max. 60W, port 3-5 PoE output ports max. 30W per port, port 1 = PoE PD BT 90W input

►     Compact PoE switch with PD input and PoE outputs for DIN rail

►     Port 2 PoE output with max. 60W PoE according to IEEE802.3bt

►     Port 3-4 PoE output with max. 30W according to IEEE802.3af/at

►     Port 1 PoE PD input Power supply via PoE network, no AC or DC power supply required, supports standard PoE bt, input max 90 W, PoE voltage 44-57 VDC PoE Pin: Input: 1/2 (+), 3/6 (-), 4/5 (+), 7/8(-); Output: 1/2 (+), 3/6 (-)

►     Compact design: L+W+H = 82 x 52 x 23mm

►     Cascading of max. 4 switches possible (no POE left for devices)

►     One Touch VLAN function can be activated via switch

• Download FileName：UF-DPE104G DIN-Rail 4-Port Gigabit PoE Extender Datasheet V1.0.pdf Size： 506KB
