4K60Hz HDMI & Bi-Di RS232/RS485 Fiber Optic Extender
Model:UF-HD460B Series
► Uncompressed 4K@60Hz Video: Fully compliant with HDMI 2.0 standards
► HDCP & EDID Compliance: Supports HDCP 1.4 / 2.2 / 2.3 encryption for content protection
► Bi-Directional RS232 or RS485 Serial Data Control
► Dual Power Interface & Wide Input Range: Supports DC 5.5×2.1mm or USB Type-C

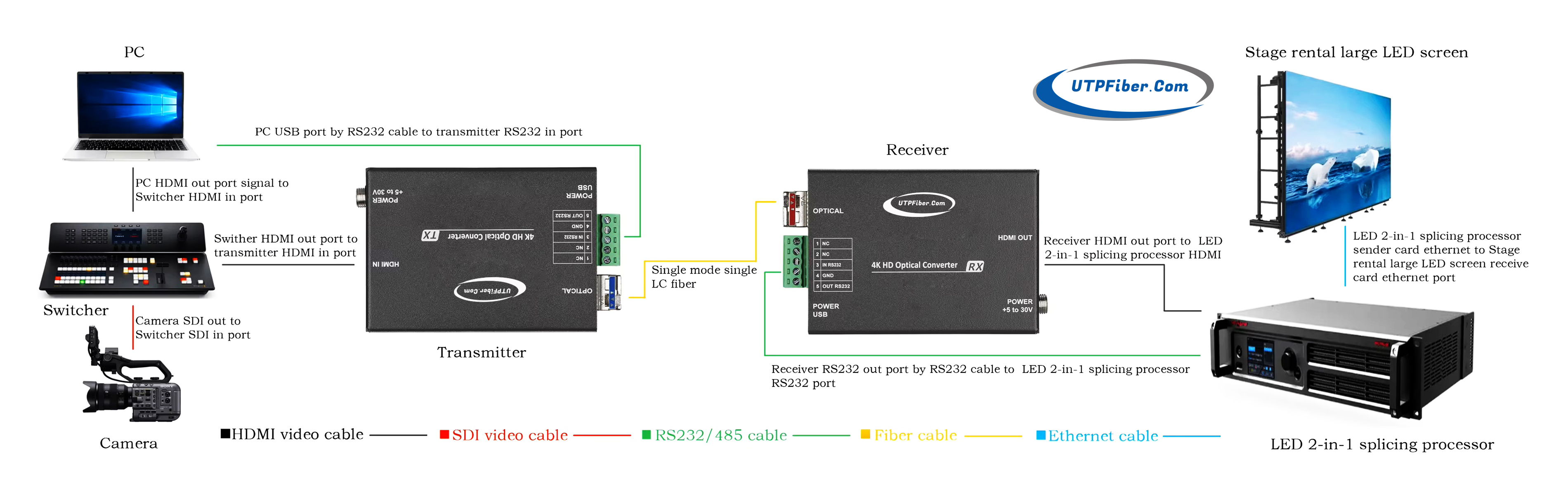

The UF-HD460B series 4K60Hz HDMI & Bi-Di RS232/RS485 Fiber Optic Extender is a professional, broadcast-grade optical transmission system independently developed with proprietary intellectual property. Integrating years of industry expertise and advanced optical technology, it enables uncompressed, zero-latency transmission of 1-channel forward 4K@60Hz HDMI video and 1-channel bi-directional serial data over a fiber optical cable. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM3.
Designed for flexible field setup and fixed installations, the system supports a wide-voltage power input range of DC 5V–30V and features dual power supply interfaces (DC 5.5×2.1mm locking jack and USB Type-C). Constructed with imported optical transceivers and core components on a multi-layer PCB, it provides exceptional stability, strong anti-interference performance, wide operating temperature support, and resistance to lightning, power surges, and electromagnetic radiation.
► Uncompressed 4K@60Hz Video: Fully compliant with HDMI 2.0 standards, delivering zero-latency, uncompressed 4K@60Hz video transmission.
► HDCP & EDID Compliance: Supports HDCP 1.4 / 2.2 / 2.3 encryption for content protection. Utilizes EDID transparent pass-through mode for automatic parameter matching between displays and signal sources.
► Bi-Directional Serial Data Control: Features transparent pass-through for bi-directional RS232 (default) or RS485 (factory customizable) data.
► Pluggable Hot-Swappable SFP+ Slot: Modular SFP design supports hot-swapping. Allows flexible replacement of SFP modules (multi-mode or long-range single-mode) for cost-effective deployment and easy maintenance.
► Dual Power Interface & Wide Input Range: Supports DC 5V–30V wide voltage input with dual powering options via DC 5.5×2.1mm or USB Type-C.
► Comprehensive LED Indicators: Provides real-time visual feedback for power, video signal, optical link, and data communication status.
► Plug and Play: Hardware-based design requires no software installation or field tuning.
|
Video: |
|
|
Video Standard |
HDMI 2.0 |
|
HDCP Protocol |
HDCP1.4/2.2/2.3 |
|
Video Bandwidth |
18 Gbps |
|
Resolution |
4K@60Hz (Backward compatible) |
|
Color Space |
RGB, YUV 4:4:4 / 4:2:2 / 4:2:0 |
|
Pixel Clock |
594 MHz |
|
Recommended HDMI Cable Length |
≤10 Meters |
|
RS232/RS485 Data: |
|
|

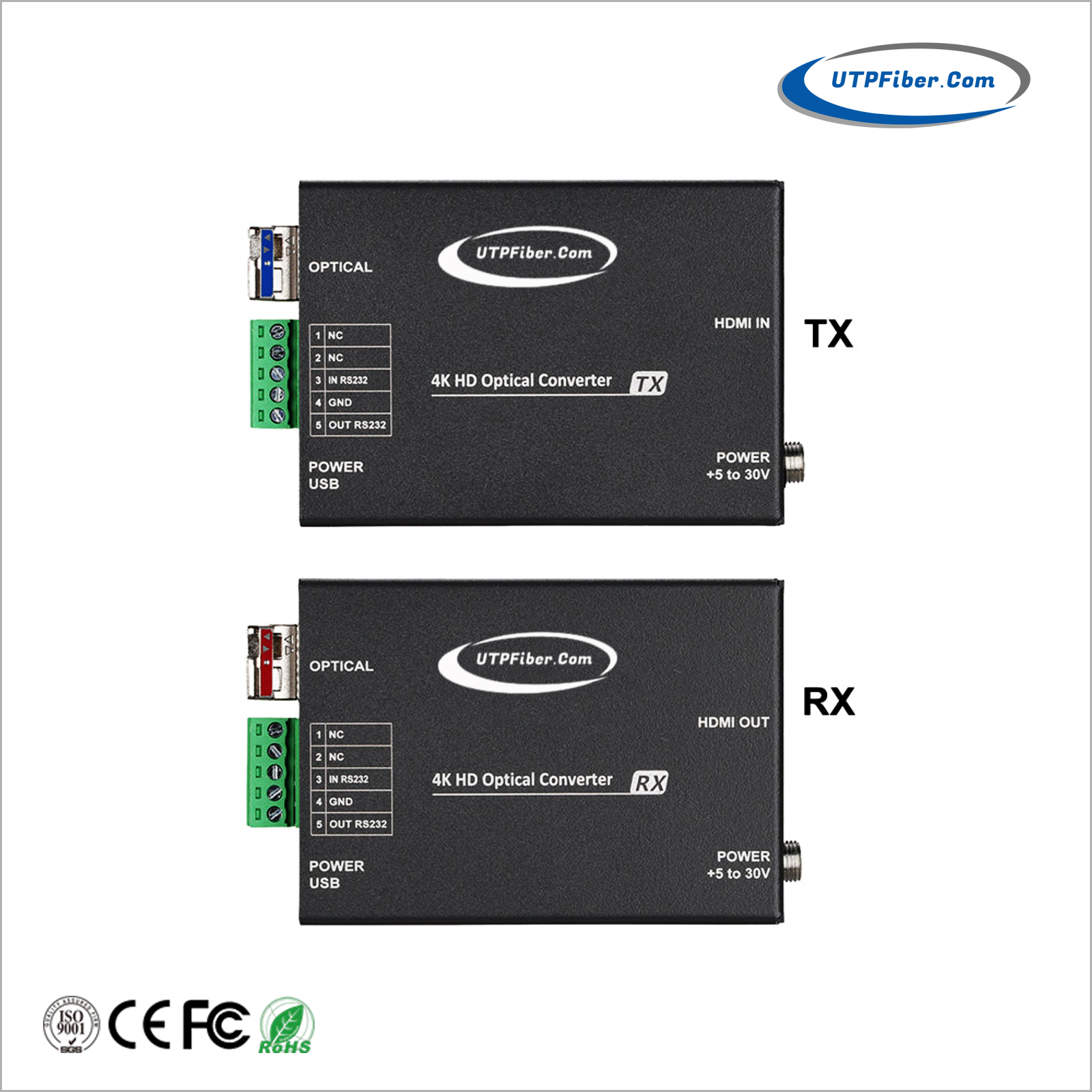

Physical Interface |
5-pin Phoenix Connector (3.81mm) |
|
Pinout Definition |
1: RS485 backup interface, 2: RS485 backup interface, 3: IN RS232, 4: GND, 5: OUT RS232 |
|
Baud Rate |
0 ~ 115,200 bps |
|
Data Bits |
8 bits |
|
Operating Mode |
Transparent Pass-Through |
|
Optical Fiber: |
|
|
Optical Connector |
LC |
|
Fiber Interface |
SFP+ |
|
Optical Wavelength |
1310nm/1550nm (850nm optional) |
|
Transmit Optical Power |
> -3 dBm |
|
Receive Sensitivity |
> -10 dBm |
|
Transmission Bandwidth |
10Gbps |
|
Transmission Distance |
OM3 MMF 300 meters |
|
Mechanical: |
|
|
Housing Material |
Aluminum Alloy |
|
Dimensions (LxWxH) |
87.3 × 61.9 × 24.0 mm |
|
Net Weight |
300g per pair |
|
Mounting Options |
Desktop / 1/4" Threaded Shoe Mount |
|
Package Contents |
l Transmitter (TX) Unit x 1 l Receiver (RX) Unit x 1 l SFP+ Video Optical Transceiver Modules x 1 Pair l 5-Pin Terminal Blocks (3.81mm) x 2 l 12V 1A Power Adapters (DC 5.5×2.1mm) x 2 l User Manual x 1 l Warranty Card / Certificate of Quality x 1 |
|
Environmental: |
|
|
Operating Temperature |
-20° to +70° C |
|
Storage Temperature |
-40° to +85° C |
|
Humidity (storage / operating) |
5% to 95% (non-condensing) |
|
Operating Lifespan / MTBF |
> 100,000 Hours |
|
Power Requirements: |
|
|
Power Supply Mode |
DC 5.5×2.1mm / USB Type-C |
|
Input Voltage |
DC 5V ~ 30V |
|
Overload Protection |
Supported |
|
Power Consumption |
< 2 W |
|
Regulatory Approvals: |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-HD460B Series 4K60Hz HDMI Fiber Extender with BiDi RS232 or RS485 Data Datasheet V1.0.pdf Size： 720KB
|
Model |
Description |
|
UF-HD460B232 |
4K60Hz HDMI2.0 over Fiber Optic Extender w/ BiDi RS232 Data, OM3 Multimode Dual Fiber LC 300 Meters, including Transmitter & Receiver, used by pairs |
|
UF-HD460B232-S10 |
4K60Hz HDMI2.0 over Fiber Optic Extender w/ BiDi RS232 Data, Single Mode Single Fiber LC 10KM, including Transmitter & Receiver, used by pairs |
|
UF-HD460B485 |
4K60Hz HDMI2.0 over Fiber Optic Extender w/ BiDi RS485 Data, OM3 Multimode Dual Fiber LC 300 Meters, including Transmitter & Receiver, used by pairs |
|
UF-HD460B485-S10 |
4K60Hz HDMI2.0 over Fiber Optic Extender w/ BiDi RS485 Data, Single Mode Single Fiber LC 10KM, including Transmitter & Receiver, used by pairs |
|
Power Options |
► DC12V 1A Power Supply |
|
► Power Adapter included |
|
|
Mounting Options |
► Desktop / 1/4" Threaded Shoe Mount |
