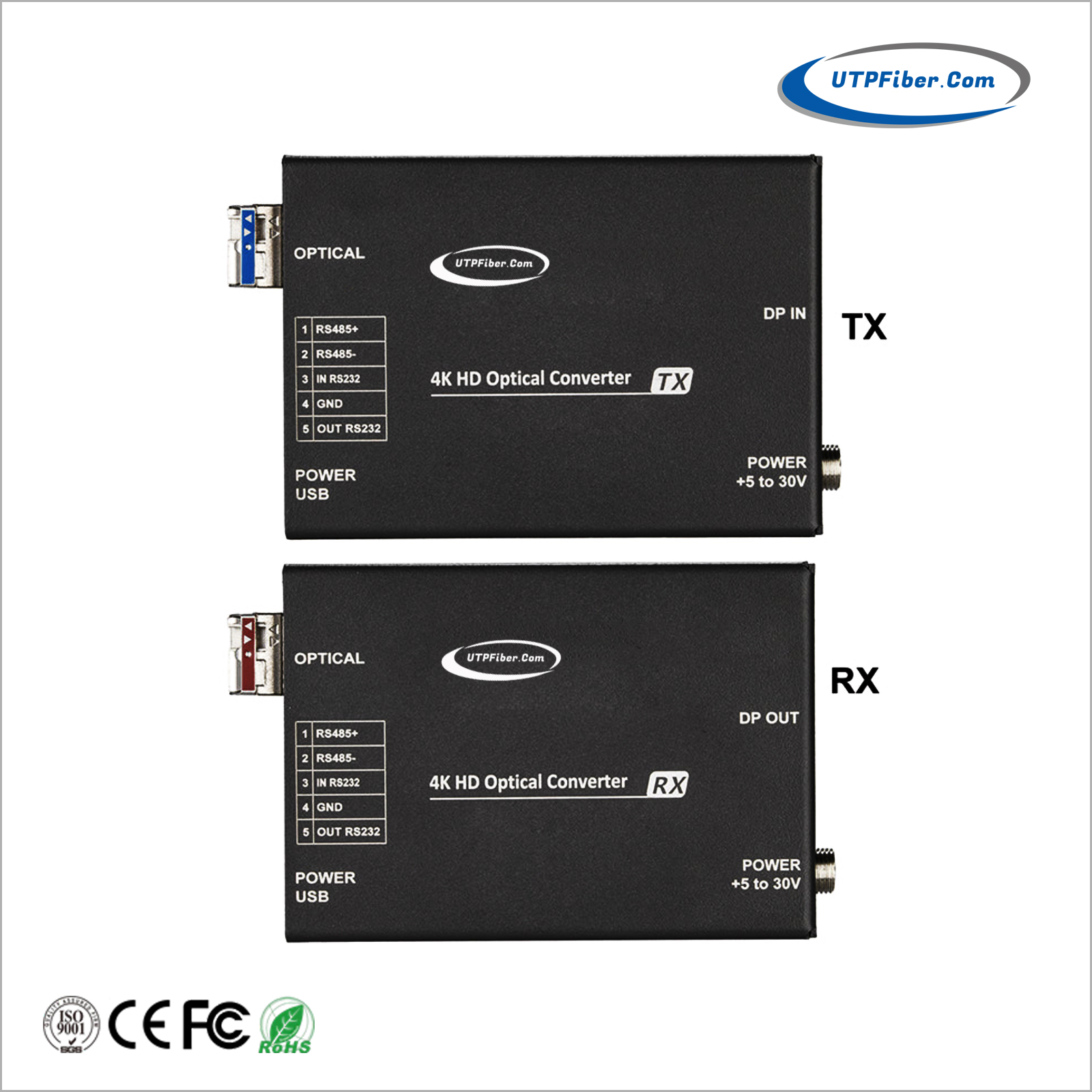

4K60Hz DisplayPort Fiber Extender with Bi-Di RS232 & RS485
Model:UF-DP460B Series
-
VESA DisplayPort 1.2 Compliant
-
Supports HDCP 1.4 / 2.2 / 2.3 content protection, 3D display, and HDR (High Dynamic Range) video formats
-
Features EDID pass-through to ensure seamless signal matching between display and source devices
-
Simultaneously transmits RS232 and RS485 control data via transparent pass-through technology
-
Wide operating voltage range of DC 5V–30V via a standard DC 5.5*2.1mm locking power jack, as well as an auxiliary USB Type-C 5V input
. -
Plug and Play

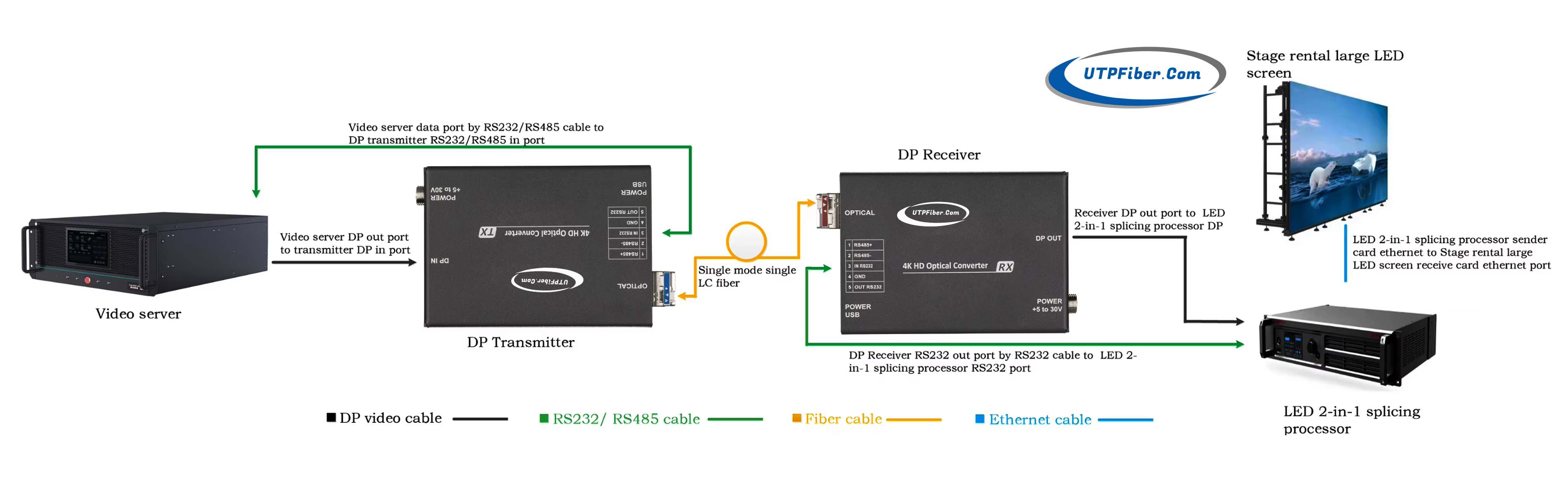

The UF-DP460B series 4K60Hz DP & Data Optical Converter is a professional, broadcast-grade optical extender independently developed with proprietary intellectual property rights. Incorporating years of industry experience, advanced international technologies, and core market demands, this system provides a reliable, high-performance solution for long-distance Ultra-HD video and data transmission.
The extender enables uncompressed, zero-latency transmission of 1-channel 4K@60Hz DisplayPort video along with 2 bi-directional serial data channels (RS232 and RS485) over fiber optical cable. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM3. Engineered for maximal flexibility in field and rental applications, it features a wide-voltage supply range (+5V to +30V DC) with dual input options via a threaded DC 5.5*2.1mm port and a USB Type-C interface.
Built using high-grade imported core components on multi-layer PCB circuits, the extender delivers exceptional circuit stability, anti-interference capability, wide-temperature resistance, lightning protection, surge immunity, and ESD resistance, making it ideal for live event production, broadcast, control rooms, and staging rentals.
-
VESA DisplayPort 1.2 Compliant: Fully supports VESA DisplayPort 1.2 standards with video bandwidth up to 17.28 Gbps
. -
Cross-Platform Interoperability: Compatible with matching HDMI optical converters (e.g., DP Transmitter to HDMI Receiver, or HDMI Transmitter to DP Receiver)
. -
Content Encryption & Visuals: Supports HDCP 1.4 / 2.2 / 2.3 content protection, 3D display, and HDR (High Dynamic Range) video formats
. -
Intelligent EDID Management: Features EDID pass-through to ensure seamless signal matching between display and source devices, avoiding resolution errors or image distortion; supports custom EDID settings
. -
Dual Bi-Directional Data Channels: Simultaneously transmits RS232 and RS485 control data via transparent pass-through technology for remote camera PTZ, video processor, or display menu control
. -
Pluggable SFP+ Design: Modular SFP+ design supports hot-swapping and flexible deployment of Single-Mode or Multi-Mode optical transceivers according to distance requirements
. -
Flexible Dual Power Inputs: Wide operating voltage range of DC 5V–30V via a standard DC 5.5*2.1mm locking power jack, as well as an auxiliary USB Type-C 5V input
. -
Comprehensive LED Status Monitoring: Real-time visual feedback LEDs for DC power, Type-C power, optical link status, video signal detection, and RS232/RS485 data activity
. -
Long Distance Transmission: Reaches up to 10 km over single-mode optical fiber (standard SFP+ module included) and up to 300 m over multi-mode optical fiber
. -
Plug and Play: Hardware-only design; no software driver installation or field debugging required
.
|
Video: |
|
|
DisplayPort Standard |
VESA DisplayPort 1.2 |
|
Video Bandwidth |
17.28 Gbps |
|
Resolution |
4K@60Hz (Backward compatible) |
|
Color Space |
RGB, YUV 4:4:4 / 4:2:2 / 4:2:0 |
|
HDCP Compliance |
HDCP 1.4 / 2.2 / 2.3 |
|
EDID Mode |
Pass-through / Custom EDID |
|
Recommended Cable Length |
≤10 Meters (DisplayPort) |
|
RS232/RS485 Data: |
|
|
Physical Interface |
5-pin Phoenix Connector (3.81mm) |
|
Pinout Definition |
1: RS485+, 2: RS485-, 3: IN RS232, 4: GND, 5: OUT RS232 |
|
Baud Rate |
0 ~ 115,200 bps |
|
Data Bits |
8 bits |
|
Operating Mode |
Transparent Pass-Through |
|
Optical Fiber: |
|
|
Optical Connector |
LC |
|
Module Data Rate |
10 Gbps (SFP+) |
|
Optical Wavelength |
1310nm / 1550nm (850nm optional) |
|
Transmit Optical Power |
> -3 dBm |
|
Receive Sensitivity |
> -10 dBm |
|
Transmission Distance |
OM3 MMF 300 meters |
|
Mechanical: |
|
|
Housing Material |
Aluminum Alloy |
|
Dimensions (LxWxH) |
87.3 × 61.9 × 24.0 mm |
|
Net Weight |
300g per pair |
|
Mounting Options |
Desktop / 1/4" Threaded Shoe Mount |
|
Package Contents |
l Transmitter (TX) Unit x 1 l Receiver (RX) Unit x 1 l SFP+ Video Optical Transceiver Modules x 1 Pair l 5-Pin Terminal Blocks (3.81mm) x 2 l 12V 1A Power Adapters (DC 5.5*2.1mm) x 2 l User Manual x 1 l Warranty Card / Certificate of Quality x 1 |
|
Environmental: |
|
|
Operating Temperature |
-20° to +70° C |
|
Storage Temperature |
-40° to +85° C |
|
Humidity (storage / operating) |
5% to 95% (non-condensing) |
|
Operating Lifespan / MTBF |
> 100,000 Hours |
|
Power Requirements: |
|
|
Power Supply Mode |
DC 5.5*2.1mm / USB Type-C |
|
Input Voltage |
DC 5V ~ 30V |
|
Overload Protection |
Supported |
|
Power Consumption |
< 2 W |
|
Regulatory Approvals: |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-DP460B Series 4K60Hz DP Fiber Extender with BiDi RS232 or RS485 Data Datasheet V1.0.pdf Size： 684KB
|
Model |
Description |
|
UF-DP460B232B485 |
4K60Hz DisplayPort over Fiber Optic Extender w/ BiDi RS232 & RS485 Data, OM3 Multimode Dual Fiber LC 300 Meters, including Transmitter & Receiver, used by pairs |
|
UF-DP460B232B485-S10 |
4K60Hz DisplayPort over Fiber Optic Extender w/ BiDi RS232 & RS485 Data, Single Mode Single Fiber LC 10KM, including Transmitter & Receiver, used by pairs |
|
Power Options |
► DC12V 1A Power Supply |
|
► Power Adapter included |
|
|
Mounting Options |
► Desktop / 1/4" Threaded Shoe Mount |
