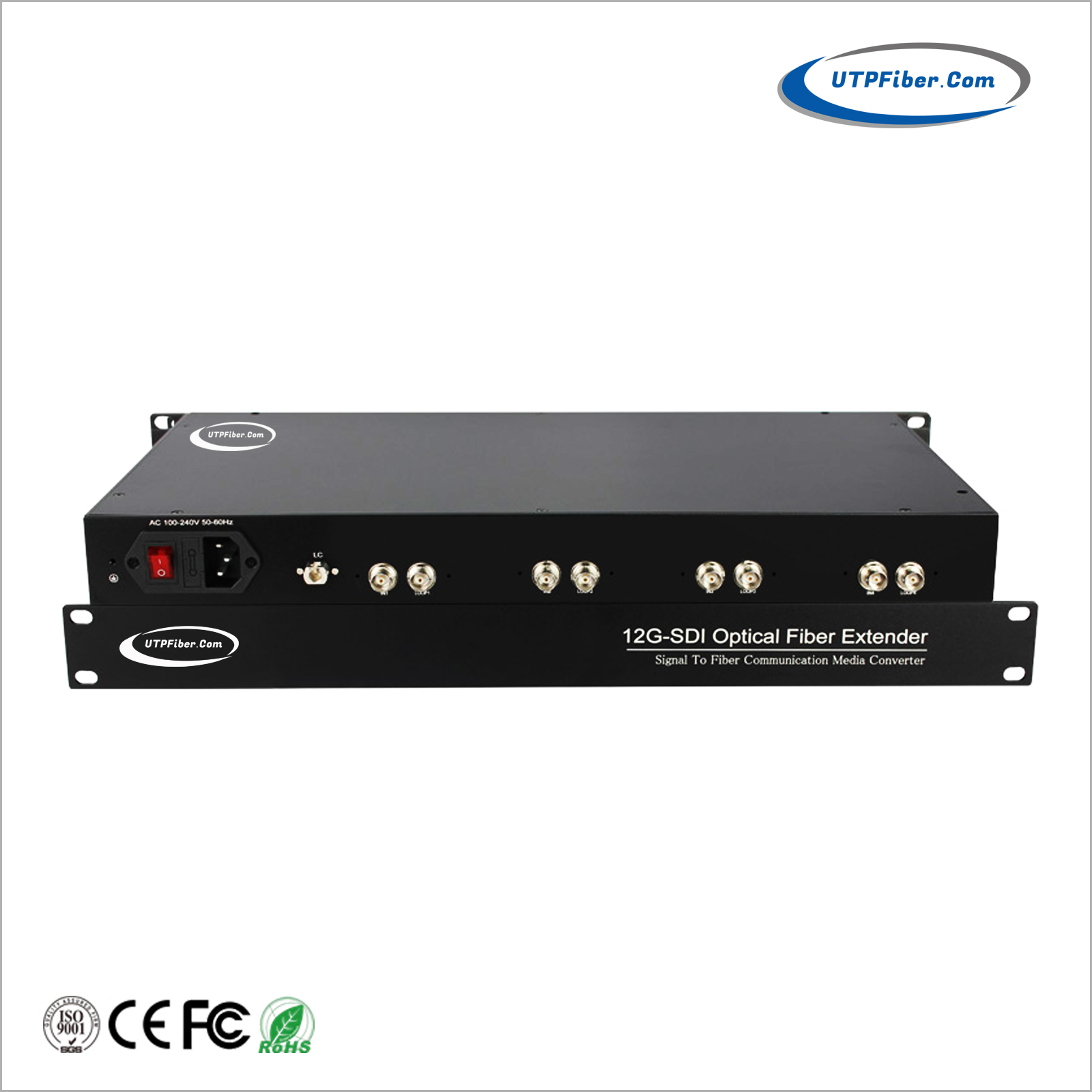

4-Channel 12G-SDI over 1 Fiber Optic Extender with Loop Out
Model:UF-12GSDI-4V-10
► 4-Channel 12G/6G/3G/HD/SD-SDI video transmission over optic fiber
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Long transmission up to 10 km (6.2miles)
The UF-12GSDI-4V-10 4-Channel 12G-SDI to Fiber Extender kit is a 19inch rack that will allow any user to transport 4-Channel of 12G-SDI Serial Data Interface over a single strand of fiber. Furthermore, this 12G SDI over Fiber Kit of Transmitter and Receiver are used by pairs. This sturdy Fiber Extender creates an easy drop environment for users that require multiple 12G-SDI sources on one Fiber across any application.

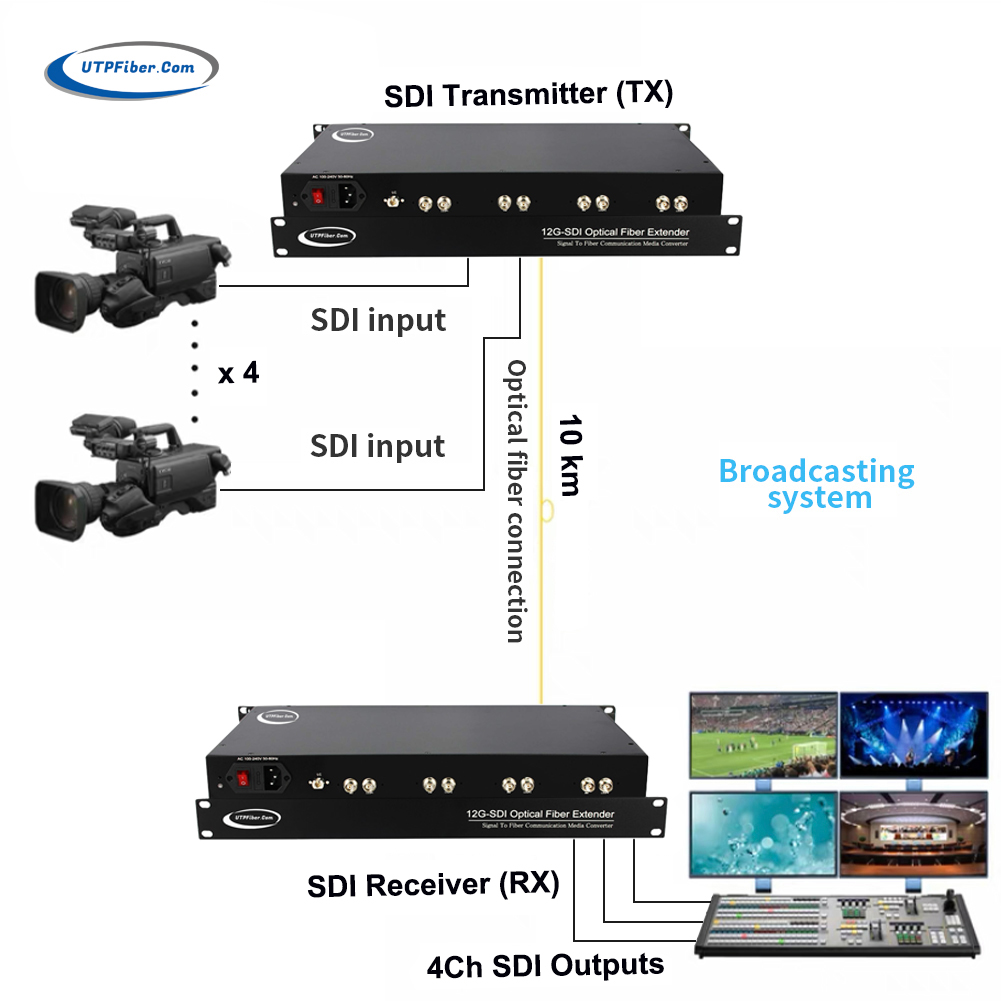

With an additional very desirable option, the transmitter with 4 SDI inputs has loop output, and the optical receiver has dual outputs, allowing one output to be utilized while also providing the ability to monitor on the second mirrored output. UTP Fiber has an excellent reputation as a Manufacturer of high quality and low cost price products to help complete your project on time, in a loss free high quality kit that will ensure you stay under budget. Our Fiber Optic Extender is Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment. Our 4-Channel 12G SDI over Fiber Kit Unit supports 10km on a single mode fiber. This unit is an SDI over Fiber multiplexer and SDI over Fiber demultiplexer.
► 4-Channel 12G/6G/3G/HD/SD-SDI video transmission over optic fiber
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Automatic cable equalization to ensure signal integrity
► Integrated Clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270Mbps
► Directly compatible with 12G/6G/3G/HD/SD-SDI camera systems
► CWDM technology to achieve multi-channel signal transmission
► Long transmission up to 10 km (6.2miles)
► Full digital non-compression broadcast level transmission
► Working temperature range (-20°C ~75°C)
|
Fiber index |
|
|
Wavelength |
1470~1610nm |
|
Rate |
12Gbps |
|
Tx power |
0~-3dB |
|
Rx sensitivity |
-12dB |
|
Fiber Core |
1-Core |
|
Fiber connector |
LC (default) FC/SC/ST (optional) |
|
Video index |
|
|
Signal type |
DVB -ASI, SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI |
|
Work standards |
ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Bit rates |
12Gbps |
|
Video input / output |
|
|
Signal type |
DVB -ASI, SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital video |
|
Video Channel |
4-Channel |
|
Loop Out |
4-Channel |
|
Input impedance |
75 Ohm |
|
Enter the automatic cable equalization |
≤70m@12G SDI Belden 1694A |
|
Clock recovery |
When 270 Mbps, 1. 485 Gbps, 2. 97Gbps, 5.94Gbps, and 11. 88Gbps are automatic, the others are bypass |
|
Input level |
800mVp-p±10% |
|
Enter the echo loss |
＞10dB @ 11.88 Gbps |
|
Output DC offset |
<±0. 5V |
|
Output echo loss |
＞10dB @ 11.88 Gbps |
|
The biggest shake |
＜0. 1UI(1485Mbps) |
|
Signal overshoot |
＜5% (1485Mbps) |
|
Equipment information |
|
|
The shell metal |
Aluminum alloy |
|
Way to install |
Rack-mounted |
|
Dimensions (LxWxH) |
485 x 260 x 45 mm |
|
Product net weight (unit: pair) |
4. 5KG |
|
Product weight (including the outer packaging) |
5KG |
|
Packing size (LxWxH) |
522 x 210 x 90 mm |
|
Input voltage |
AC100-250V，50-60HZ |
|
Power dissipation |
＜15W |
|
Overload protection |
support |
|
Over current protection |
support |
|
LED Indicators: |
|
|
FIBER |
Fiber Status |
|
VIDEO (SDI Input) |
Video 1~Video 4 |
|
VIDEO (SDI Output) |
Video 1~Video 4 |
|
PWR |
Power Status |
|
Environmental |
|
|
Operating temperature |
-20°C ~75°C |
|
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
Working life |
> 100,000 hours |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
CE, RoHS and FCC |
|
- Download FileName：UF-12GSDI-4V-10 4Ch 12G-SDI over Fiber Extender Datasheet V1.0.pdf Size： 699KB
|
Model |
Description |
|
UF-12GSDI-4V-10 |
4-Channel 12G-SDI Fiber Converter w/ Loop-out, SMF 10KM, LC Fiber Connector, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Rack Mount Installation |
|
Power Options |
►Built-in AC Power Supply |
|
► Power Supply included |
