2.5G/1G/100M Copper to 2.5G/1000BASE-X SFP Media Converter
Model:UF-MC2.5G
► Support the interconversion between 2.5G/1G/100M Copper and 2.5G/1000BASE-X SFP;
► DIP switch support 2.5G/1000BASE-X SFP;
► Support for 12V DC input;

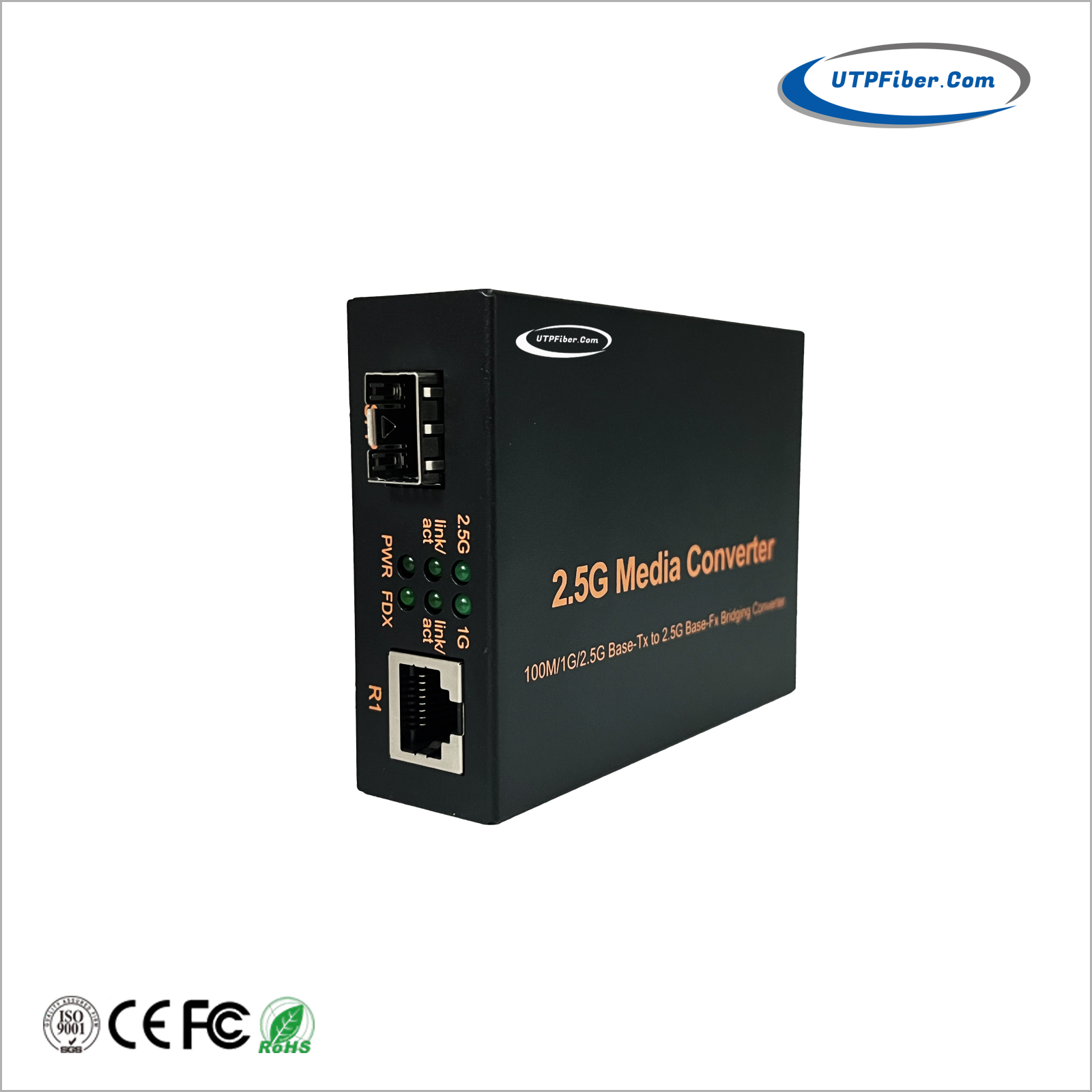

UF-MC2.5G 2.5G Ethernet to Fiber Media Converter
Product Description
The UF-MC2.5G 2.5G Ethernet to Fiber Media Converter converts Ethernet signals between a 100M/1G/2.5G RJ45 copper interface and a 1G/2.5G SFP fiber interface. It provides a flexible solution for extending multi-gigabit Ethernet connectivity over fiber-optic networks.
Equipped with one 2.5G/1G/100M RJ45 port and one 1G/2.5G SFP slot, the UF-MC2.5G supports flexible network deployment through a DIP switch that selects the operating mode. In 2.5G mode, the copper port supports 100M/1G/2.5G auto-negotiation while the fiber interface operates at 2.5G. In 1G mode, both interfaces operate at 1G.
The SFP slot allows users to select compatible single-mode or multimode optical transceivers, including supported single-fiber or dual-fiber options. This makes the converter suitable for a variety of fiber-link requirements. The device can also be used with compatible 2.5G/1G GPON, EPON, or XPON SFP ONU sticks, subject to module compatibility.
Key Features
-
Multi-Rate Ethernet Conversion: Supports 100M/1G/2.5G copper Ethernet and 1G/2.5G SFP fiber connectivity.
-
Flexible Speed Selection: DIP switch for selecting 1G or 2.5G operating mode.
-
SFP-Based Fiber Options: Supports compatible single-mode or multimode SFP modules, with single-fiber or dual-fiber configurations depending on the selected transceiver.
-
ONU Stick Connectivity: Can be used with compatible GPON/EPON/XPON SFP ONU sticks.
-
Network Traffic Management: Supports QoS, broadcast storm suppression, IEEE 802.3x flow control, and back-pressure flow control.
-
Compact Metal Housing: Space-saving design for desktop or wall-mounted installation.
-
12V DC Power Input: Simple power arrangement for network deployments.
-
Port Protection: Supports up to 4 kV port lightning protection as specified in the product documentation.

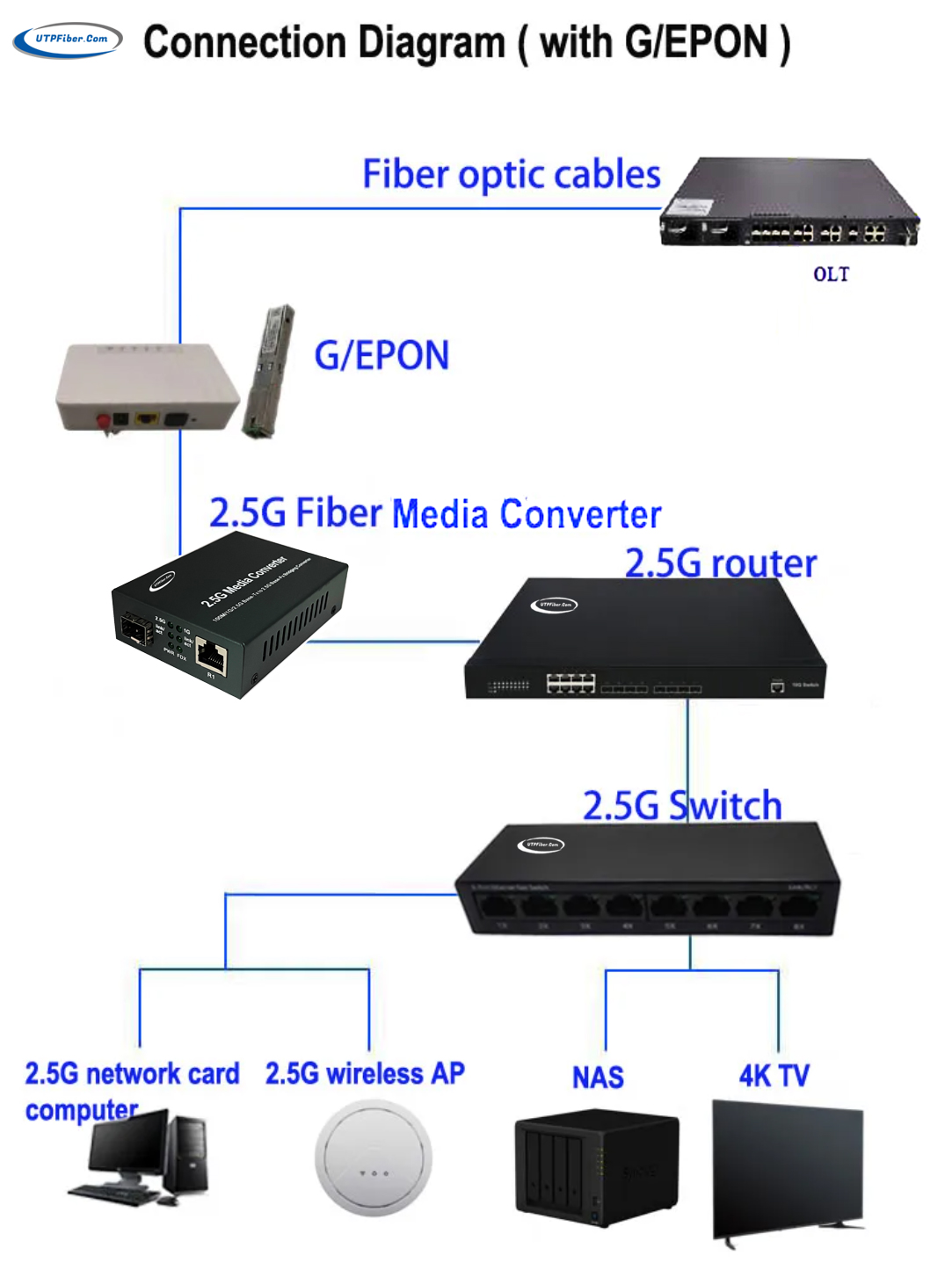

I: 2.5G GPON/EPON/XPON SFP ONU STICK
II: 2.5G network card, 2.5G wireless AP, 2.5G router, 2.5G switch
Typical Applications

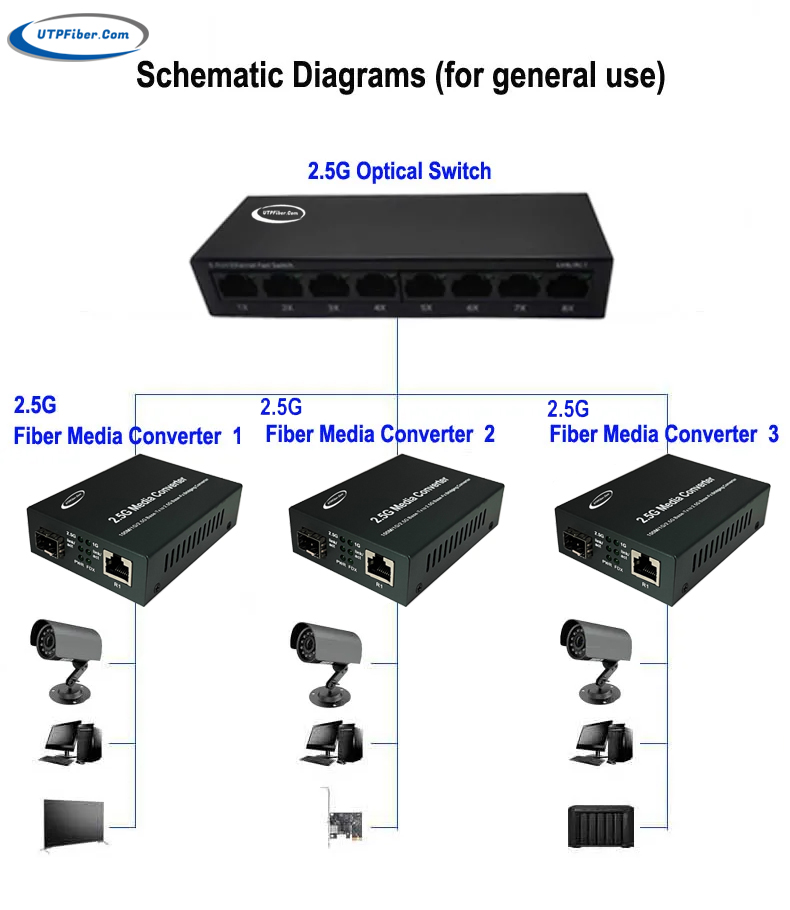

1. Multi-Gigabit Ethernet Fiber Extension
Connect 2.5G Ethernet equipment to a fiber network to extend connectivity beyond the reach of copper cabling.
2. Wi-Fi Access Point Uplinks
Connect compatible 2.5G Ethernet wireless access points to fiber-based network infrastructure through an appropriate SFP transceiver.
3. Network Switch and Router Connectivity
Provide a copper-to-fiber connection between compatible Ethernet equipment and fiber network links.
4. GPON/EPON/XPON ONU Stick Applications
Connect compatible SFP ONU sticks to Ethernet equipment for supported fiber-access deployments. Verify ONU stick compatibility and required operating modes before installation.
5. Small Office and Broadband Networks
Support multi-gigabit connectivity in small office, broadband access, and other Ethernet network environments that require fiber connections.
|
Ethernet |
|
|
Standards: |
IEEE 802.3bz 2.5GBASE-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-SX/LX |
|
|
IEEE802.3x Flow control |
|
|
IEEE802.1q VLAN |
|
|
IEEE802.1p QoS |
|
|
IEEE802.1d Spanning Tree |
|
|
Flow Control: |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Fabric: |
10Gbps |
|
MAC: |
2K |
|
Jumbo Frame: |
9K |
|
Network Cables: |
2.5G/1G/100M BASE-T: 100BASE-TX :Cat5 or later UTP(≤100 meter) 1000BASE-TX :Cat6 or later UTP(≤100 meter) 2500 Base-TX: Cat6 or later UTP(≤30 meter) 2.5G/1GBASE-X: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m 9/125μm single-mode fiber optic cable, up to 80km |
|
Connector: |
1 x 2.5G/1G/100Base-T RJ45 |
|
Optical Port: |
1 x 2.5G/1000BASE-X SFP (Via DIP switch) |
|
DIP Switch |
|
|
2.5G: |
fiber speed: 2.5G UTP speed: 100M/1000M/2.5G auto-adaptive port of 100M/1G/2.5G |
|
1G: |
fiber speed:1000M UTP speed:1000M |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
12V DC, 1A max. |
|
Power Consumption: |
5W |
|
LED Indicators |
|
|
PWR: |
Power Status |
|
2.5G: |
2.5Gbps Speed Rate |
|
1G: |
1Gbps Speed Rate |
|
Link/Act: |
Link Status |
|
FDX: |
Fiber Signal is detected |
|
Dimensions (WxDxH): |
94 x 70 x 26mm (1.02''x 2.76''x 3.7'') |
|
Weight: |
250g (device only) |
|
Casing: |
Compact-sized metal case |
|
Mounting Options: |
Desktop, wall mountable Media converter Chassis installation |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-MC2.5G Fiber Media Converter Datasheet V2.0.pdf Size： 863KB
|
Model |
Description |
|
UF-MC2.5G |
2.5G/1G/100M Copper to 2.5G/1000BASE-X SFP Media Converter |
|
SFP |
2.5G/1G SFP (to be purchased separately) Please select your SFP on our SFP Modules page for details. |
|
Mounting Options: |
► Desktop, wall mountable ► 14-Slot Media converter Chassis (needs to be customized) |
|
Power Options: |
► 1A 12VDC Power Supply (included) |
Frequently Asked Questions
What is a 2.5G Ethernet media converter?
A 2.5G Ethernet media converter connects copper Ethernet equipment to a fiber-optic network by converting electrical Ethernet signals to optical signals through an SFP interface.
Does the UF-MC2.5G support both 1G and 2.5G fiber connections?
Yes. The DIP switch selects either 1G mode or 2.5G mode. In 2.5G mode, the RJ45 port supports 100M/1G/2.5G auto-negotiation while the fiber interface operates at 2.5G. In 1G mode, both interfaces operate at 1G.
Can I choose single-mode or multimode fiber?
Yes. The SFP slot supports compatible single-mode or multimode transceivers. The required fiber type, connector, wavelength, and transmission distance depend on the selected SFP module.
Can the converter work with a GPON or EPON ONU stick?
It can be used with compatible GPON/EPON/XPON SFP ONU sticks. Compatibility depends on the ONU stick model, operating mode, and network configuration, so verify compatibility before ordering.
Is the SFP module included?
The SFP module is purchased separately, allowing users to select a compatible transceiver for their intended fiber link.
