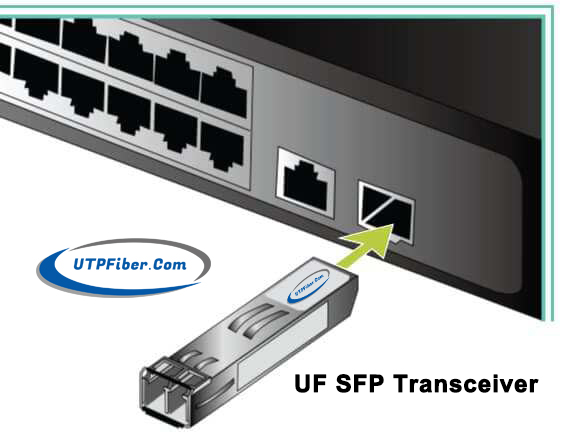

10GBASE-LR SFP+ 1310nm 20km Transceiver

Model:UF-SFP-10G-20

Data rate: 10G
Distance: 20km
Wavelength (nm): 1310
Source: DFB+PIN
DDM: YES
Media Type: SMF

上一张

下一张

The UF-SFP-10G-20 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 20Km over Single Mode Fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3 aq 10GBASE-LRM. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Data-rate of 10.3125Gbps operation
1310nm DFB laser and PIN photo detector
Optical interface compliant to IEEE 802.3ae
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Maximum link length of 20Km on 9/125um SMF
All-metal housing for superior EMI performance
+3.3V single power supply and Hot Pluggable
Operating case temperature: 0 to +70°C
Low power consumption

Cisco Compatible	SFP-10G-LR	Vendor Name	UTP Fiber
Form Factor	SFP+	Max Data Rate	10.3125Gbps
Wavelength	1310nm	Max Cable Distance 	20km
Connector	LC Duplex	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
DDM/DOM	Supported	Commercial Temperature Range	-5 to 70°C (23 to 158°F)
TX Power	-3~2dBm	Receiver Sensitivity	<-15dBm
Power Consumption	<1W	Receiver Overload	0.5dBm
Bit Error Ratio (BER)	1E-12	Extinction Ratio	>3.5dB
EMC (Electro Magnetic Compatibility)	Supported	MTBF	1,000,000 Hours
Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI	Warranty	2 Years

Download FileName：UF-SFP-10G-20 10G SFP+ SMF 20Km Datasheet V1.0.pdf Size： 290KB

Part Number	Product Description
UF-SFP-10G-20	1310nm, up to 10.3Gbps, SFP+20km, 0ºC ~ +70ºC

10GBASE-LR SFP+ 1310nm 20km Transceiver

Model:UF-SFP-10G-20
