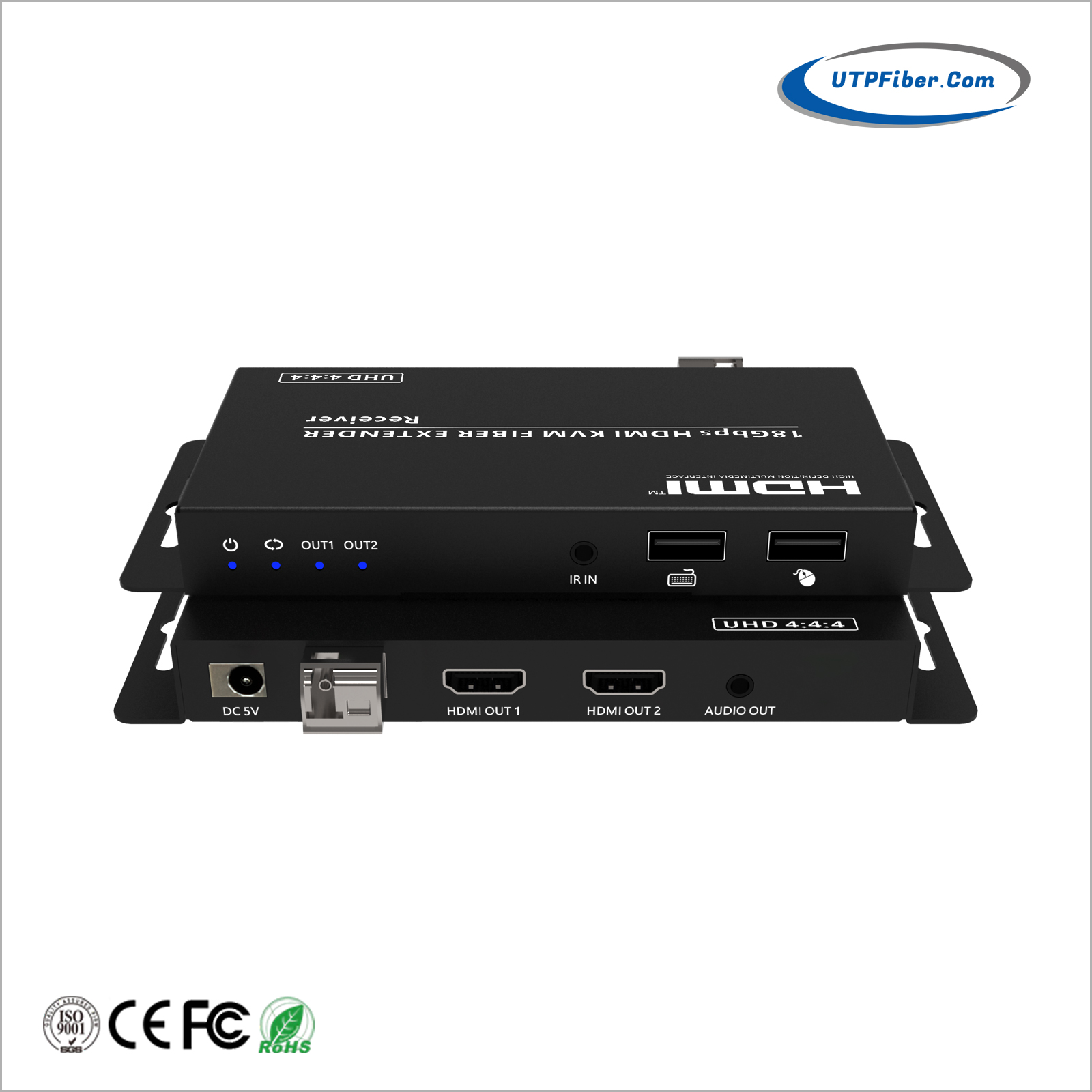

4K HDMI 2.0 KVM USB over Fiber Optic Extender
Model:UF-HDF201KM
- Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission
- HDMI 2.0, USB (keyboard / mouse)
- HDCP 2.2 compliant

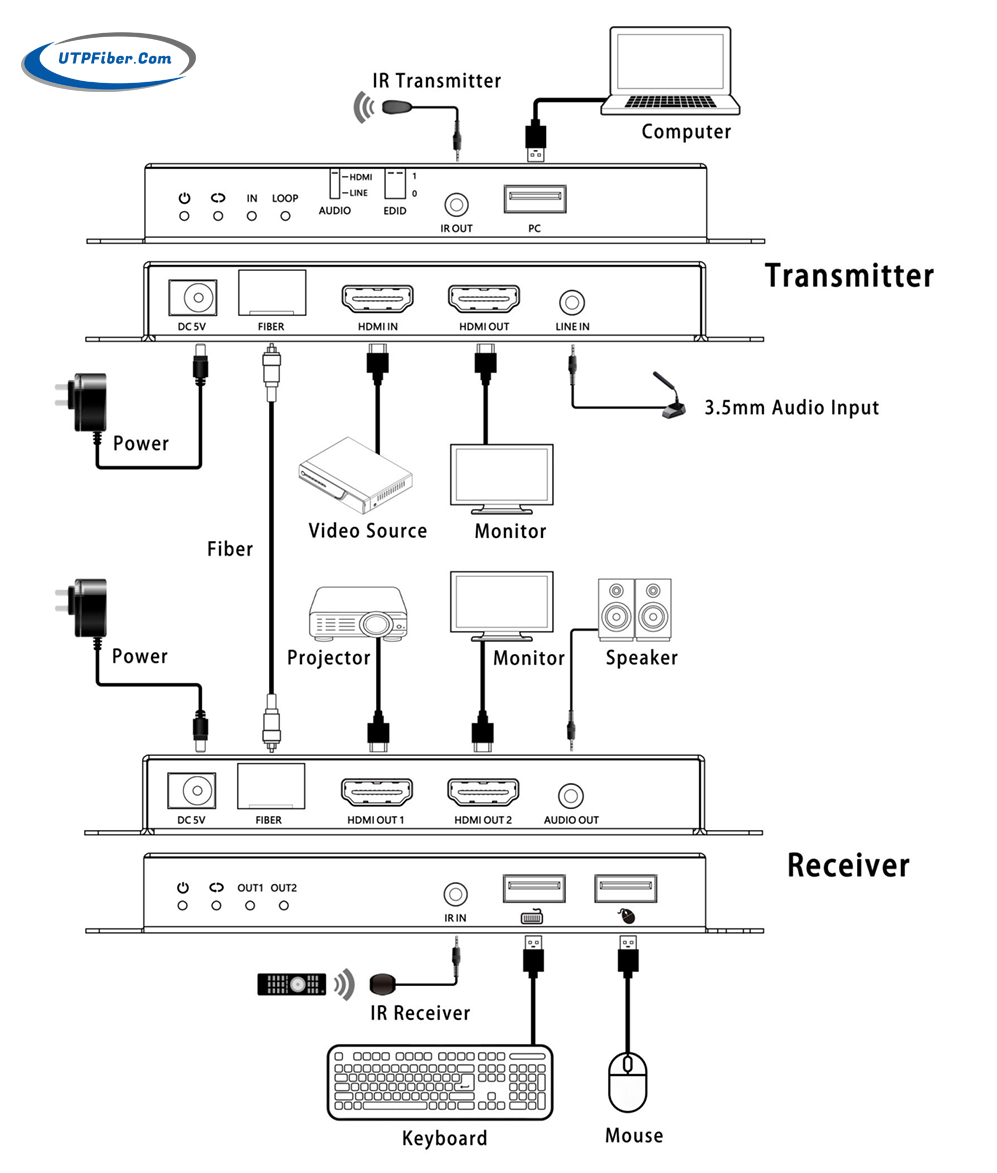

UF-HDF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
► Supports HDCP 2.2
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 2.0 and HDCP 2.2 |
|
Maximum pixel clock |
600MHz |
|
|
Maximum data rate |
18Gbps |
|
Resolution range |
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode or Multimode |
|
|
Wavelength |
Single-mode 1310nm, Multimode 850nm |
|
|
Interface bandwidth |
18Gbps |
|
|
Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -10℃ ~ +55℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
163 x 86 x 24(mm) |
|
|
Gross weight |
1.471KG |
|
|
The warranty |
1 year free warranty |
|
- Download FileName：UF-HDF201KM 4K HDMI2.0 KVM Fiber Extender Datasheet V1.0.pdf Size： 612KB
|
Model |
Description |
|
UF-HDF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
|
UF-HDF201KM -10 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
