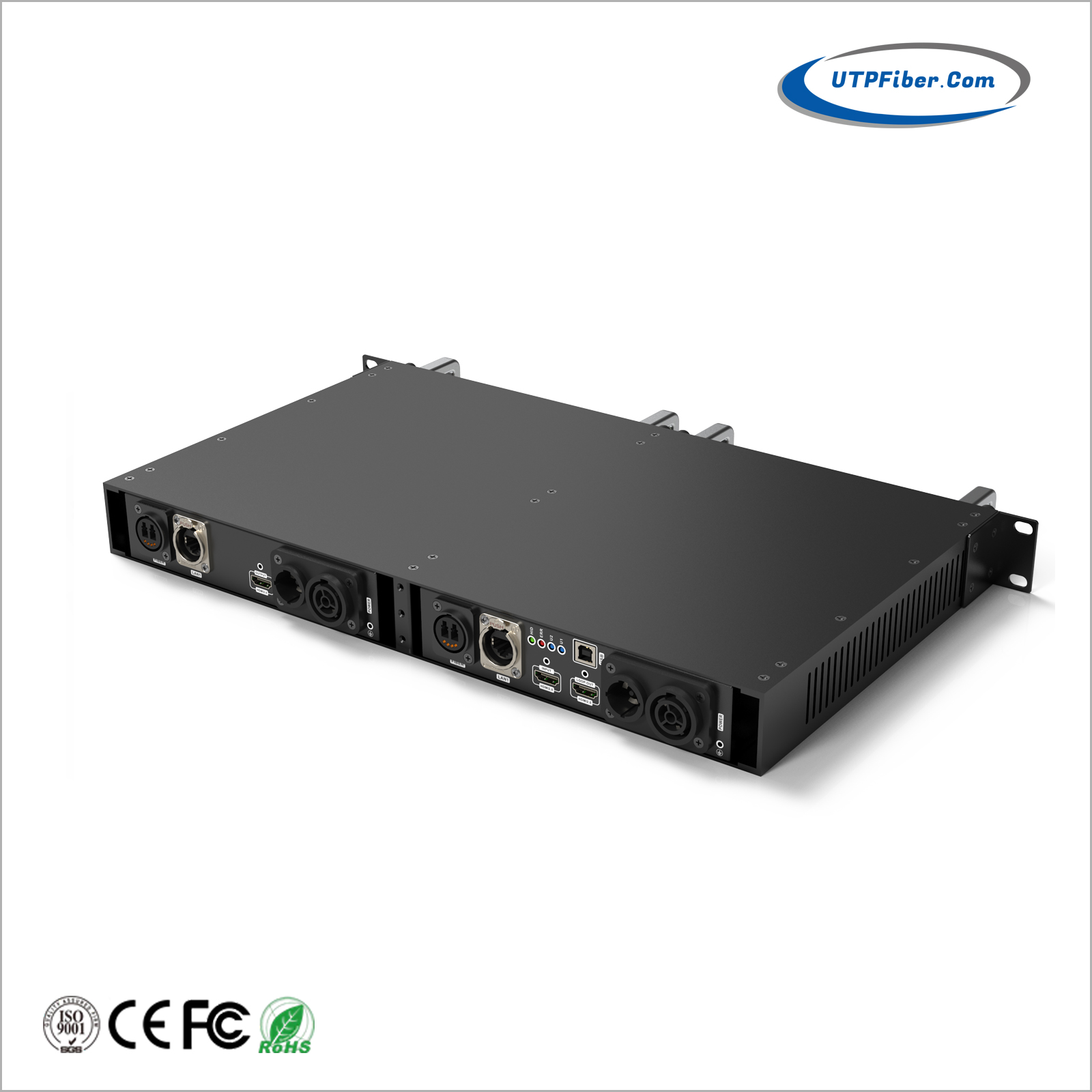

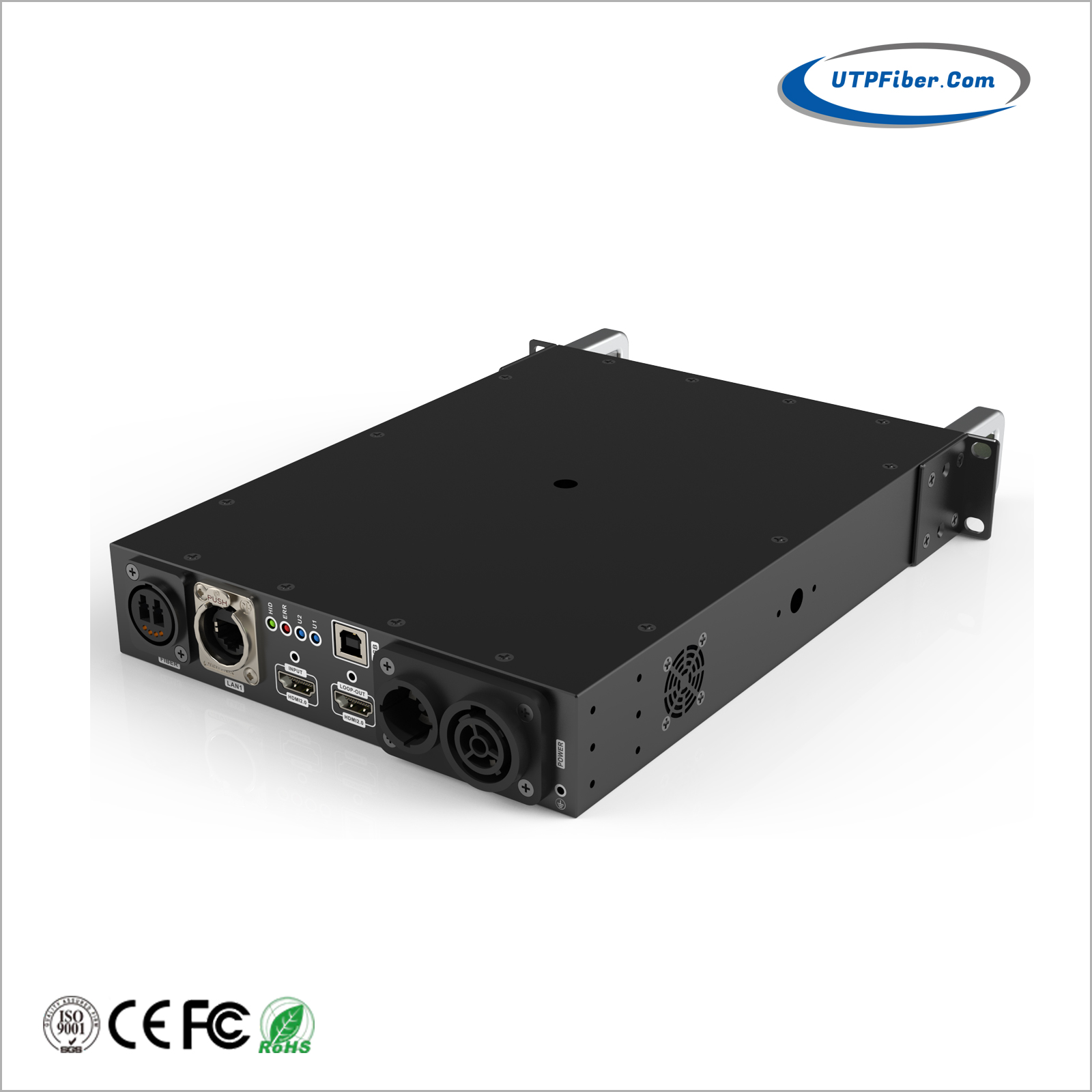

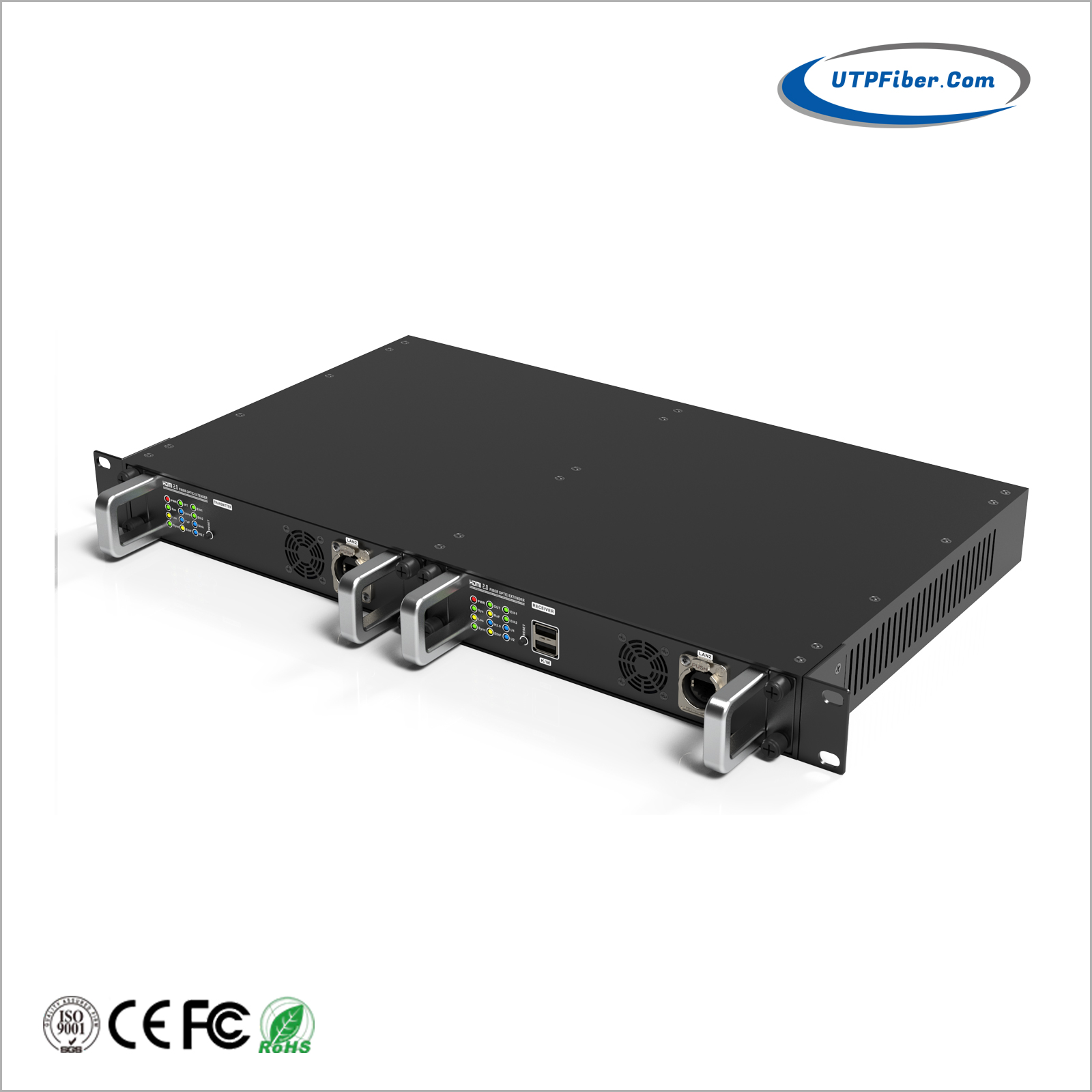

HDMI 2.0 4K 60Hz + 2Ch Gigabit Ethernet + KVM Fiber Optic Extender
Model:UF-HDF460KM-2GE-T/R
-
► Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
► Data rate up to 6Gbps /color,18 Gbps total
► Supports lossless 4K video up to 4096*2160/60P(4:4:4)
-
► Support 2 Giga Ethernet ports (LAN1/LAN2)
-
► Support USB Mouse, USB Keyboard or USB Touch Screen
-
► HDCP 2.3/2.2/1.4 Compatible
► Support 3D and HDR (only for bypass mode)
-
The UF-HDF460KM-2GE-T/R HDMI + Gigabit optical extender is a tour grade solution for extending HDMI 2.0 signals together with two Gigabit Ethernet channel (for TCP/IP networks, router extension, etc..) over long distances using Neutrik opticalCON DUO or conventional single mode LC fiber. UF-HDF460KM-2GE-T/R is your perfect partner for combining the highest HDMI video quality together with a Gigabit interface. This means you can get both signals over one duplex fiber optic cable which allows for unlimited applications.
► Real-time direct transmission technology, no video compression, no signal delay
► Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
► Data rate up to 6Gbps /color,18 Gbps total
► Supports lossless 4K video up to 4096*2160/60P(4:4:4),3840x2160/60P(4:4:4), 1920x1080/120P, 4096*2160/30P, 3840x2160/30P,1920x1080/60P, Compatible with other VESA standard resolutions and user-defined resolutions
► Support 8/10/12-bit color depth
► HDCP 2.3/2.2/1.4 Compatible
► Support 3D and HDR (only for bypass mode)
► Support HDMI 2.0 output scale-down,3840x2160/60P to 1920x1080/60P or 4096x2160/60P to 2048x1080/60P
► Built-in 3-ports Giga Ethernet Switch, Support 2 Giga Ethernet ports (LAN1/LAN2) and one 1000base-X fiber port
► Support IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
► Support USB Mouse, USB Keyboard or USB Touch Screen
► Receiver built-in Re-time chip, jitter Cleaning for best compliance
► Applies duplex fiber to connect the transmitter and the receiver
► Up to 300m by 9/125μm Single-Mode Fiber
► Low RFI / EMI profile for sensitive applications
► Plug-and-play, Hot-pluggable, Rack-mountable
Note:
The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and links.

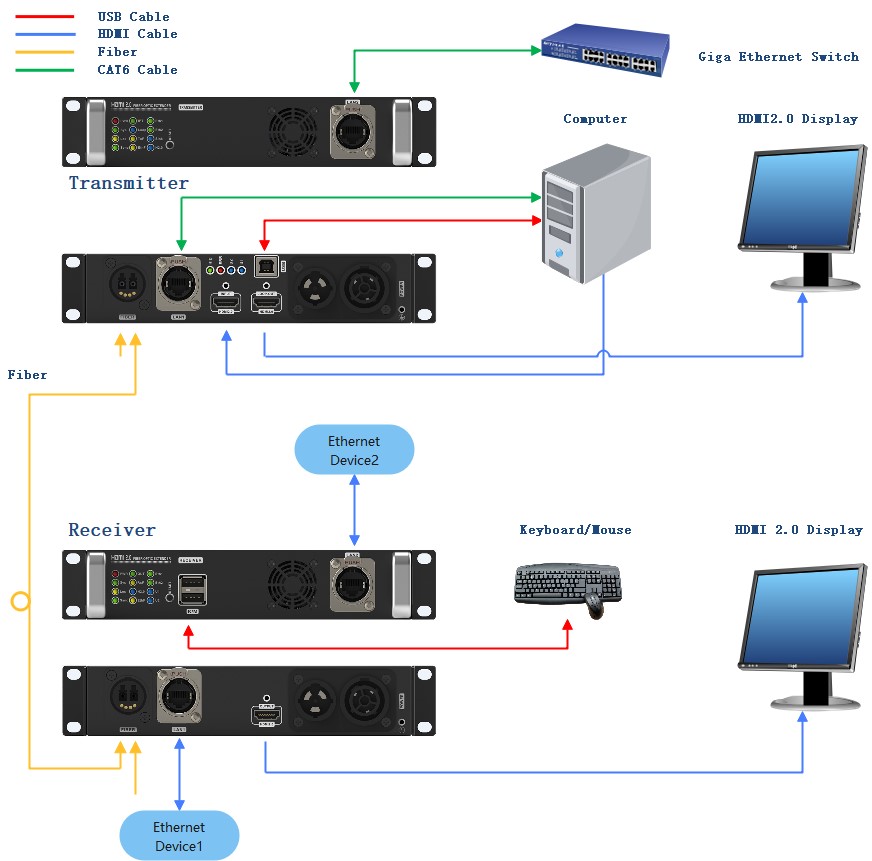

Application
|
※ KVM Seat Collaboration Manage System |
※ LED signboards in streets and in stadiums |
|
※ Remote monitor for traffic, industrial, military control |
※ Large video wall system |
|
※ Airplane On-board Video System |
※ LCD, Projector, Plasma display connection |
|
※ Passenger Information System |
※ Medical Imaging Equipment |
|
※ Factory assembly line |
※ Conference Room Video Equipment |
|
※ TV Broadcast Station |
※ Home Theater |
|
Video |
HDMI v2.0，HDCP2.0 / HDCP 1.4，DVI 1.0 |
|
|
Max. Pixel Clock |
600 MHz |
|
|
Max. Data Rate |
18 Gbps (6 Gbps Per Lane) |
|
|
Max. Resolution |
3840x2160/60P(YCbCr 444/RGB444)，4096*2160/60P(YCbCr 444/RGB444) 3840x2160/30P，4096x2160/30P, 1920x1200/60P，1920x1080/120P，1920x1080/60P， Compatible with other VESA standard resolutions and user-defined resolutions |
|
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit |
|
|
Connections |
Transmitter |
Receiver |
|
HDMI2.0 Input |
1 x HDMI Type A Female |
|
|
HDMI2.0 Loop-Out |
1 x HDMI Type A Female |
|
|
HDMI2.0 Output |
|
1 x HDMI Type A Female |
|
LAN1 |
1 x RJ45 Adapter |
1 x RJ45 Adapter |
|
LAN2 |
1 x RJ45 Adapter |
1 x RJ45 Adapter |
|
USB |
1 x Type B USB Female |
2 x Type A USB Female |
|
FIBER |
Duplex LC Adapter |
Duplex LC Adapter |
|
POWER |
NAC3PX-TOP |
NAC3PX-TOP |
|
Fiber Optics / Wave length |
||
|
Fiber Type /Max. Length |
9/125μ Single mode fiber: ≤300m |
|
|
Video Channel Wave length |
1270~1330nm Tx/1490nm Tx/1550nm Rx |
1270~1330nm Rx/1550nm Tx/1490nm Rx |
|
Ethernet Channel Wave length |
1310nm Tx / 1550 nm Rx |
1550nm Tx / 1310 nm Rx |
|
Control |
||
|
KVM |
USB Mouse x1, USB Keyboard x1 or USB Touch Screen x1 |
|
|
DDC（Digital Display Channel）/HDCP |
||
|
EDID /HDCP |
Passthrough |
|
|
Physical Properties |
||
|
Housing |
1U Alufer enclosure |
|
|
Dimensions (W x D x H) |
433mm x 255mm x 40 mm（without bracket）481mm x 255mm x 40 mm（with bracket） |
|
|
Weight |
UF-HDF460KM-2GE-T: 1500g UF-HDF460KM-2GE-R: 1500g |
|
|
Environmental |
||
|
Operating Temperature |
0°C to +50°C |
|
|
Storage Temperature |
-40°C to +85°C |
|
|
Operating Humidity |
5% to 80% (non-condensing) |
|
|
Storage Humidity |
5% to 95% (non-condensing) |
|
|
Power Requirements |
||
|
External AC Power Adapter |
Input: 100-240VAC / 50-60Hz 0.2A |
|
|
Power Consumption |
UF-HDF460KM-2GE-T: 10 W UF-HDF460KM-2GE-R: 10W |
|
|
Warranty |
||
|
Limited Warranty |
1 year warranty |
|
- Download FileName：UF-HDF460KM-2GE HDMI2.0 KVM Fiber Extender Datasheet V1.0.pdf Size： 1.22MB
Model
Description
UF-HDF460KM-2GE-T
Uncompressed
HDMI2.0 Fiber Transmitter: uncompressed HDMI 2.0 (with Loop Out) + EDID
pass-through + HDCP + USB KVM + 2Ch 1000M Ethernet(Neutrik EtherCON Female
Chassis Connector NE8FDP-B) , Dual LC Fiber Connector (Neutrik OpticalCON DUO
Female Chassis Connector NO2-4FDW) , Max. 300 meters, AC Power 220V
(Neutrik PowerCON TRUE Duplex Chassis Connector NAC3PX)
UF-HDF460KM-2GE-R
Uncompressed
HDMI2.0 Fiber Receiver: uncompressed HDMI 2.0 (with Loop Out) + EDID
pass-through + HDCP + USB KVM + 2Ch 1000M Ethernet(Neutrik EtherCON Female
Chassis Connector NE8FDP-B) , Dual LC Fiber Connector (Neutrik OpticalCON DUO
Female Chassis Connector NO2-4FDW) , Max. 300 meters, AC Power 220V
(Neutrik PowerCON TRUE Duplex Chassis Connector NAC3PX)
UF-R1U
1U
19" standard rack, suitable for 2 Transmitters or Receivers
