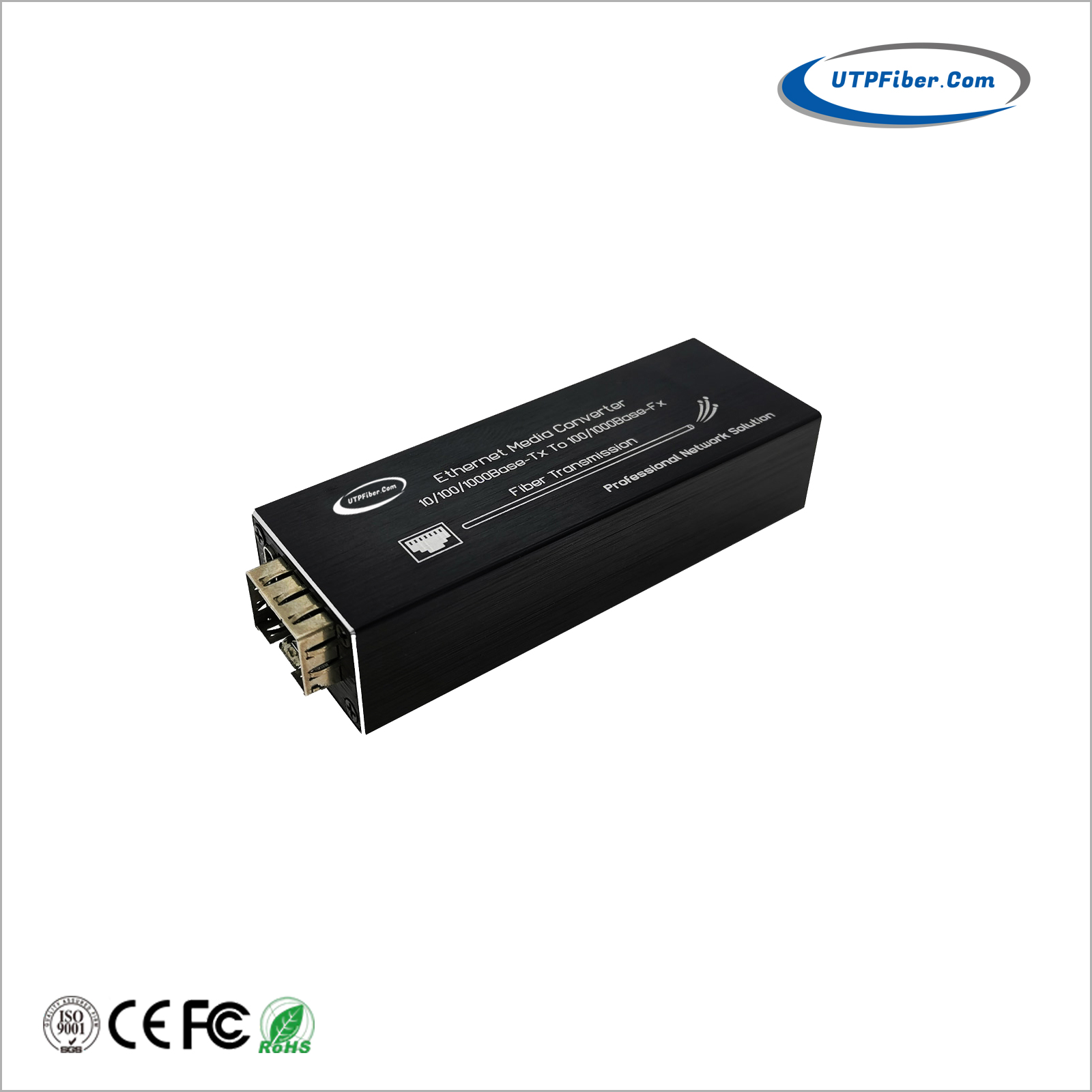

Micro Mini 10/100/1000T to 100/1000X SFP Media Converter
Model:UF-C3011SFP
► 10/100 /1000Base-T to 100/1000Base-X SFP
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

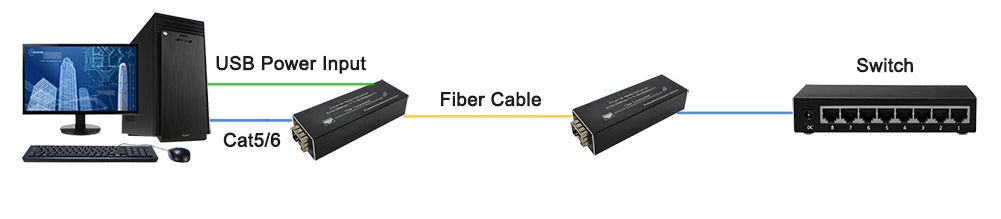

The UF-C3011SFP 10/100/1000BASE-T to 100/1000BASE-X SFP Micro Mini Media Converter is ideal for bringing fiber to desktop and mobile applications where lightweight, compact size, and low power requirements are critical. The SFP fiber port support 100/1000Base-FX, auto detect. You can choose 155M or 1.25G SFP module accordingly. This SFP fiber media converters use Type-C port for power input, with USB cable and power adapter included. You can simply use USB port on PC to power this device. Also you can use the AC-DC 5V adapter. The Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including an USB-C Power Supply
|
Ethernet |
|
|
Standards: |
IEEE 802.3, 10BASE-T |
|
IEEE 802.3u, 100BASE-TX/100BASE-FX |
|
|
IEEE 802.3ab, 1000BASE-T |
|
|
IEEE 802.3z, 1000BASE-SX/LX |
|
|
IEEE 802.3x Full-duplex flow control |
|
|
Flow Control: |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Jumbo Frame: |
9K |
|
Network Cables: |
10/100/1000BASE-T : Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 1000BASE-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000BASE-LX : 9/125μm single-mode fiber optic cable, up to 10/20/40/60/80/120 kilometers (varying on SFP module) 100BASE-FX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers (varying on SFP module) 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module) |
|
Connector: |
1 x 10/100/1000BASE-T RJ45 |
|
Optical Port: |
1x 100/1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
DC 5~15V (Type-C) |
|
Power Consumption: |
< 3W |
|
LED Indicators |
|
|
PWR: |
Power Status |
|
FX Link/Act: |
Fiber Link Status |
|
TX Link/Act: |
Ethernet Link Status |
|
Dimensions (LxWxH): |
78 x 27 x 18mm |
|
Weight: |
46g (device only) |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-C3011SFP Micro Mini SFP Media Converter Datasheet V1.0.pdf Size： 359KB
|
Model |
Description |
|
UF-C3011SFP |
Micro Mini 10/100/1000T to 100/1000X SFP Media Converter |
|
SFP |
155M or 1.25G SFP (to be purchased separately) Please select your SFP on our SFP Modules page for details. |
|
Mounting Options: |
► Desktop |
|
Power Options: |
► DC5V USB-C Power Supply |
