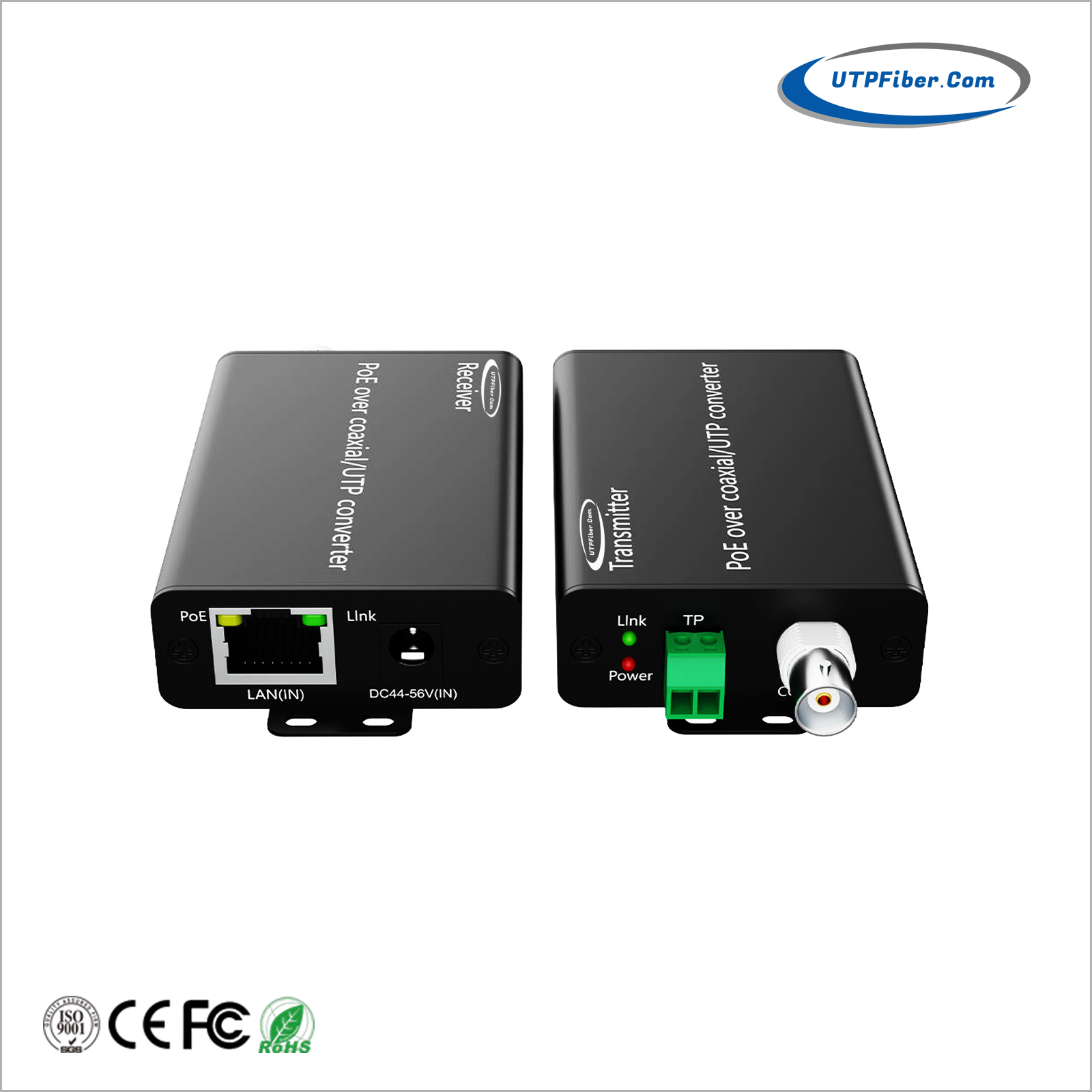

The UF-POC500 PoE over twisted pair or coaxial cable converter is a high-performance industrial-grade network transmission equipment, using advanced digital signal processing technology, through the standard twisted pair or coaxial cable to achieve high-speed and stable transmission of up to 500 meters over coaxial cable or 300 meters over twisted pair as 2-in-1 Kit, and at the same time support PoE power supply function.

With 100Mbps high bandwidth, the product can smoothly transmit 4K ultra-high-definition video with a delay of less than 5ms to meet real-time monitoring needs. Built-in intelligent signal enhancement and anti-inter-ference technology to ensure the stability of long-distance transmission. The device has industrial grade protection performance, operating temperature range -10 ℃ to 75 ℃, metal shielding shell design, lightning and surge protection, interface gold-plated processing, to ensure long-term reliable operation. It supports IEEE802.3af/at standard PoE power supply, maximum output power of 30W. and it's widely used in security monitoring, digital media, industrial automation and other fields, especially suitable for large-scale campus monitoring, intelligent transportation systems and other long-distance transmission scenarios. Compared with traditional solutions, it significantly reduces cabling costs, improves system stability, and is the ideal choice for professional security transmission system.

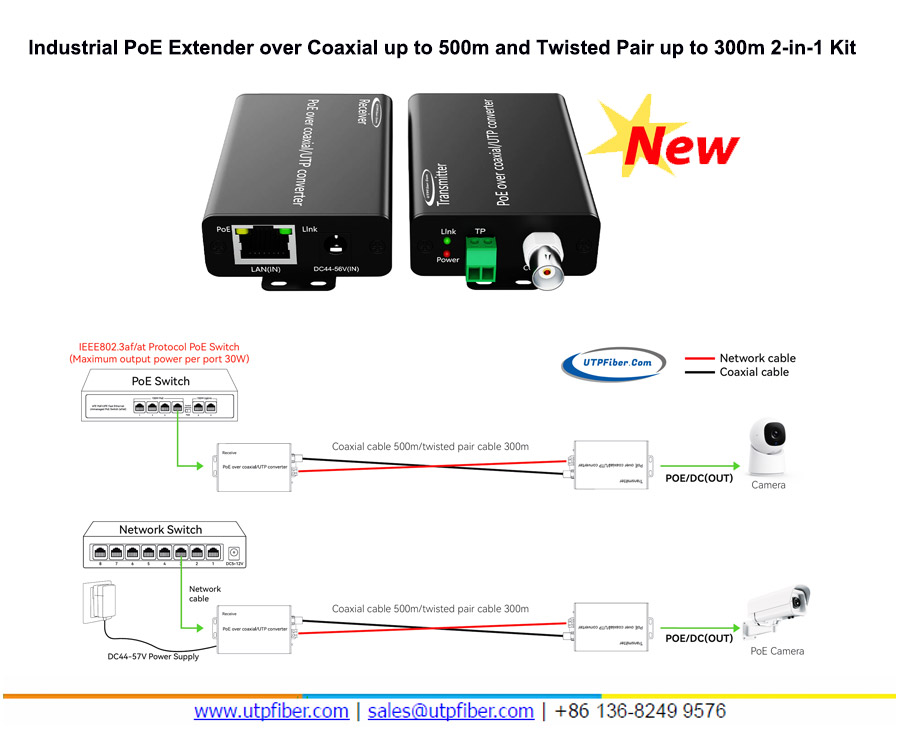

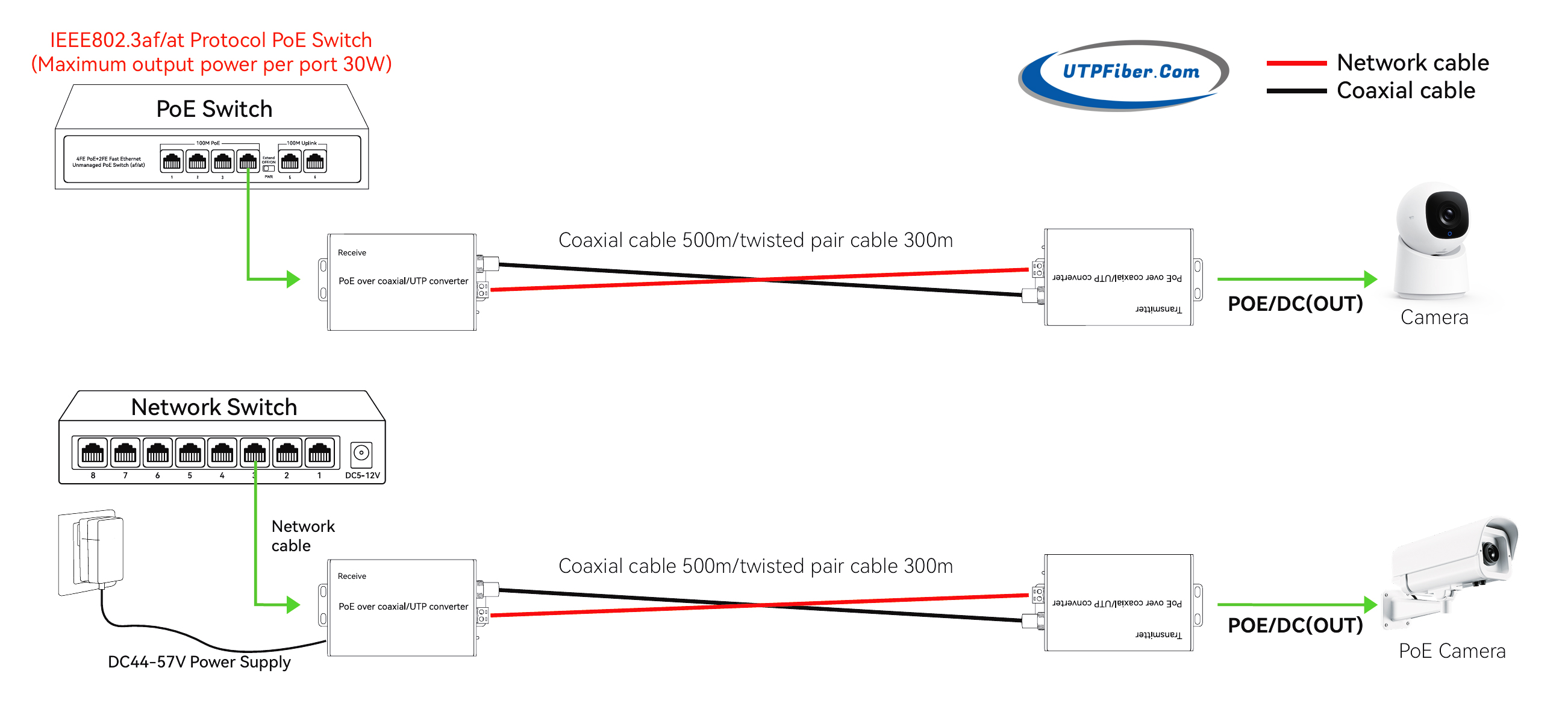

►     Ultra-Long Transmission Distance – Supports up to 500 meters over coaxial cable or 300 meters over twisted pair, ensuring stable high-speed data and power transmission.

►     4K HD Video Transmission – 100Mbps physical bandwidth with 94Mbps TCP throughput, capable of transmitting 4K video with <5ms delay, perfect for real-time surveillance.

►     PoE Power Supply Support – Compliant with IEEE802.3af/at, provides up to 30W PoE output for cameras or other powered devices.

►     Industrial-Grade Reliability – Operates stably from -10°C to 70°C, featuring metal shielding, lightning protection, anti-surge, and gold-plated connectors for long-term durability.

►     Plug-and-Play Design – No configuration required, supports IGMP multicast, and runs continuously 24/7 for maintenance-free performance.

►     Cost-Effective Solution – Greatly reduces cabling costs and simplifies setup for large-scale monitoring, industrial automation, and intelligent transportation systems.

• Download FileName：UF-POC500 PoE over Twisted Pair or Coaxial Cable Converter Datasheet V1.0.pdf Size： 830KB
