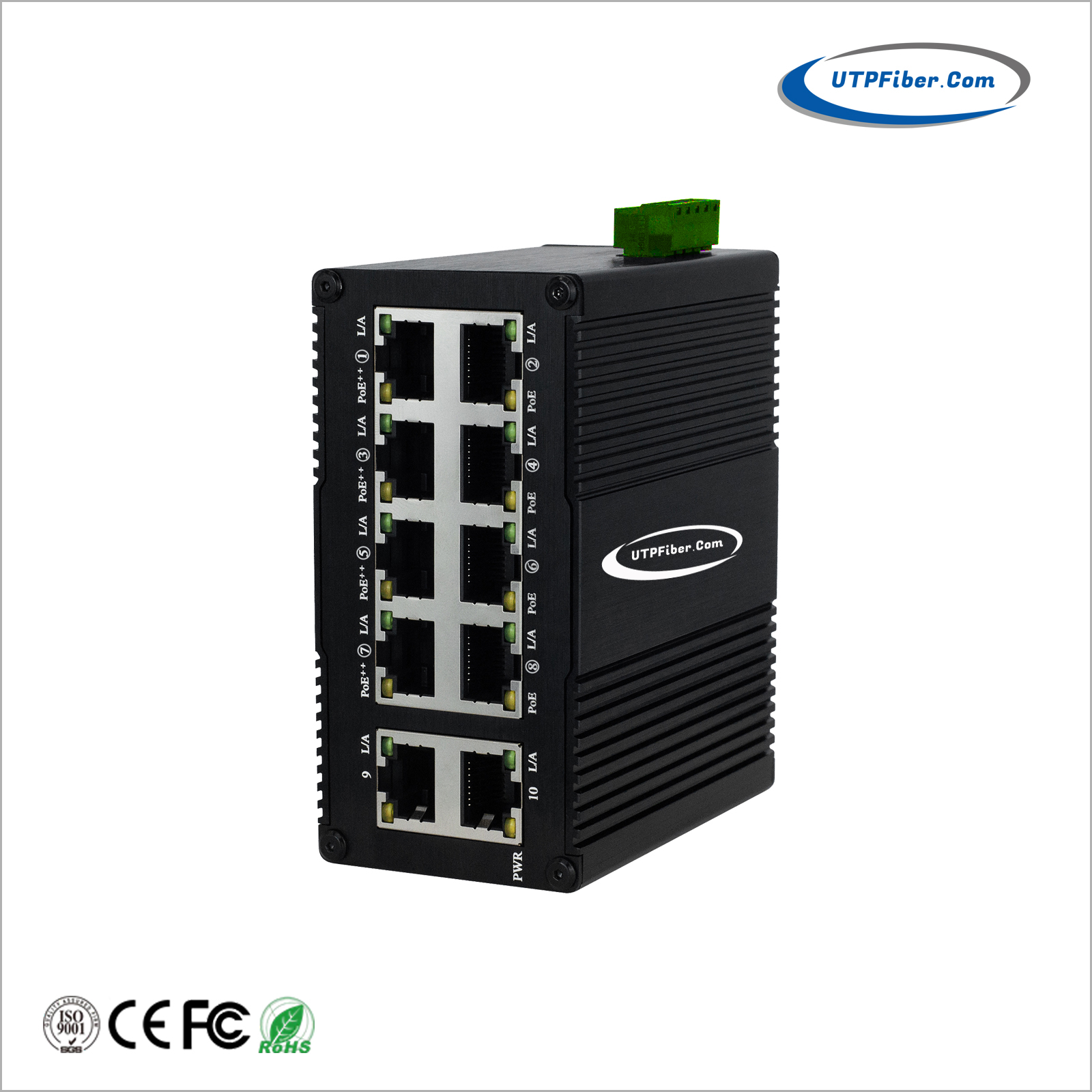

WEB Managed Mini Industrial 10-Port Gigabit PoE-Powered Switch/PoE Extender
Model:UF-WIS6010G90PD
► 1 x Gigabit PoE++ PD input port up to 95 W power input from a PoE injector or switch
► 8 x Gigabit PoE+ output ports compliant IEEE 802.3af/at
► PoE power budget up to 70 watts when using DC power or IEEE 802.3bt via PD input port
► DIN-Rail Mount Installation
The UF-WIS6010G90PD PoE-Powered 10-Port WEB Managed Gigabit Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.
The UF-WIS6010G90PD support three power supply modes: Supports 5V DC via USB-C (PoE function cannot be enabled), 48V DC via round charging port (can be used as a PoE device), and PoE power supply through the uplink PD RJ45 port. The uplink port (marked with PD) supports 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard power supply; when using PoE++ power supply, the total power output can reach up to 70W. When powered by 5V DC via USB-C, the switch functions as a Gigabit switch without PoE; when powered by 48V DC via the round charging port, ports 1-8 support PoE+ with up to 30W per port, and a total power budget of 240W.

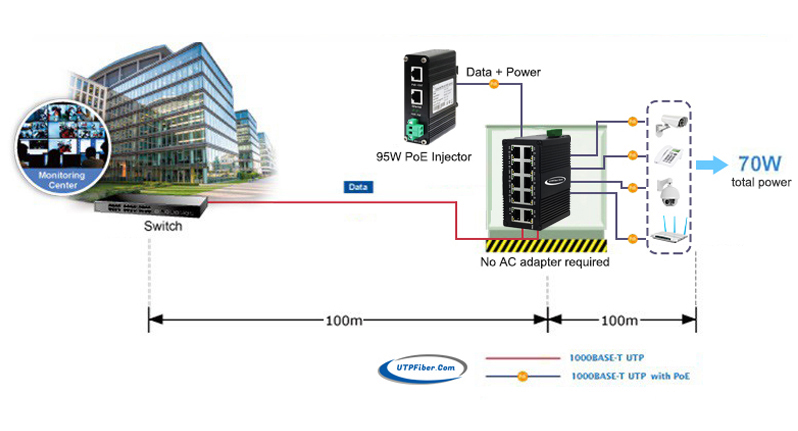

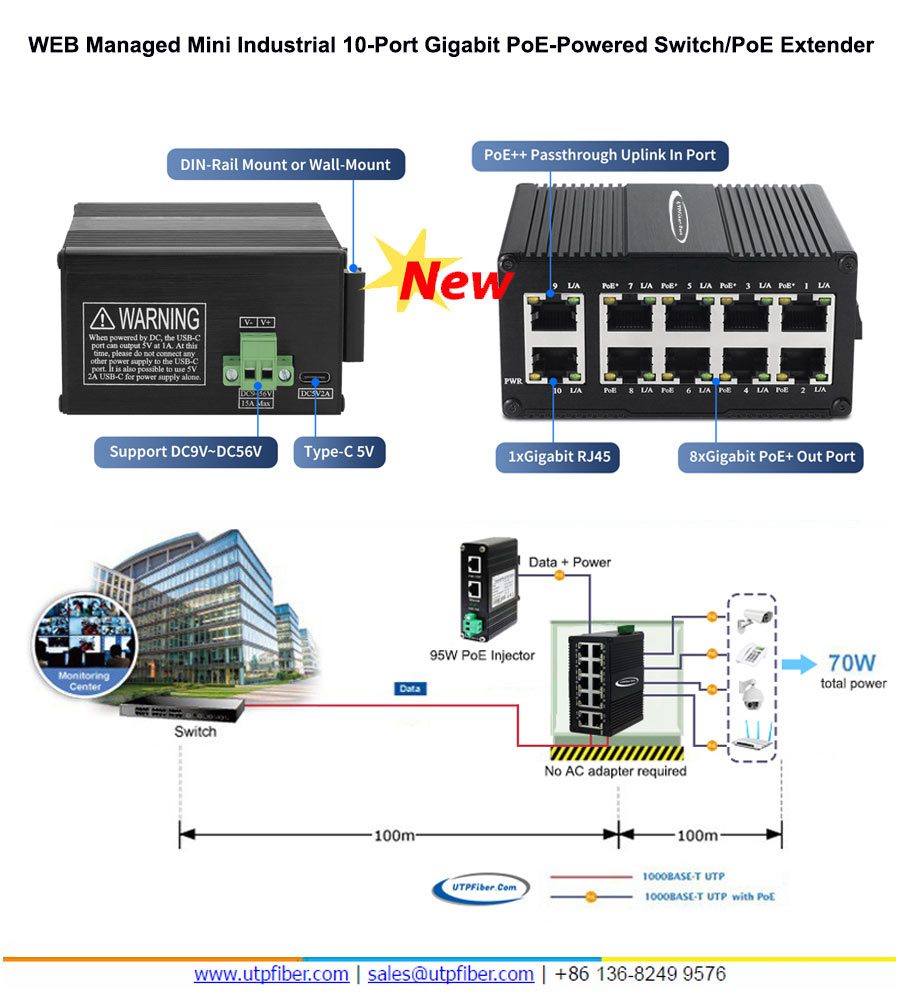

The WEB Managed switch can function as a PoE extender, providing up to 30W of power per port. Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
► 1 x Gigabit PoE++ PD input port up to 95 W power input from a PoE injector or switch
► 8 x Gigabit PoE+ output ports compliant IEEE 802.3af/at
► PoE power budget up to 70 watts when using DC power or IEEE 802.3bt via PD input port
► Three power input: PD Powered RJ45 input when using as PoE passthrough switch and PoE extender, 48VDC Power input as PoE Switch, 5VDC Type-C power input as Gigabit switch without PoE
► Supports WEB Management
► DIN-Rail or Wall-Mount Installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength aluminum case
► -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Flow Control and Back Pressure |
|
|
IEEE 802.3az Energy Efficient Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Size: |
4M |
|
Switch Fabric: |
20Gbps |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Copper Ports: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
PD Port: |
1 x Gigabit PoE++ in port |
|
PoE Output Ports |
8 x Gigabit PoE+ out port |
|
Gigabit Ethernet Port: |
1 x Gigabit Ethernet |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
|
PoE Power Supply Type |
Mid-span |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Power Output |
IEEE 802.3af Standard |
|
Power budget |
71W maximum@95W PD Power Input 240W maximum@48-57VDC Power Input |
|
Lightning protection |
The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. |
|
WEB Management |
|
|
Redundancy Protocols |
Support STP/RSTP |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3 |
|
VLAN |
Support IEEE 802.1Q 4K VLAN |
|
QoS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
WEB |
|
Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constrain |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
907,476 hours @ Telcordia SR-332 Standard |
|
Heat Dissipation: |
34 BTU/h (non-PoE mode) 853 BTU/h (with 240W PoE load) |
|
Cooling: |
Passive Cooling, Fanless Design |
|
Noise Level: |
0 dBA |
|
Electrical and Mechanical |
|
|
Input Power: |
PD Powered RJ45 input when using as PoE passthrough switch 48VDC Power input as PoE Switch 5VDC Type-C power input as Gigabit switch without PoE |
|
Connector: |
1 x DC Jack (48VDC), 1 x Type-C USB (5VDC) |
|
Protection: |
Overload Current Protection, Reverse Polarity Protection |
|
Power Consumption: |
250W Max. (PoE in use, 48VDC input) |
|
10W Max. (PoE not in use) |
|
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
100 x 83.5 x 50 mm |
|
Weight: |
500g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
- Download FileName：UF-WIS6010G90PD WEB Managed Mini Industrial 10-Port Gigabit PoE-Powered Switch Datasheet V1.0.pdf Size： 491KB
|
Model |
Description |
|
UF-WIS6010G90PD |
WEB Managed DIN-Rail Mini Industrial 10-Port Gigabit PoE-Powered Switch/PoE Extender: 1 x Gigabit PoE++ input port, 1 x Gigabit Ethernet output port, 8 x Gigabit PoE+ output ports |
|
Mounting Options |
► DIN-Rail or Wall Mount Installation |
|

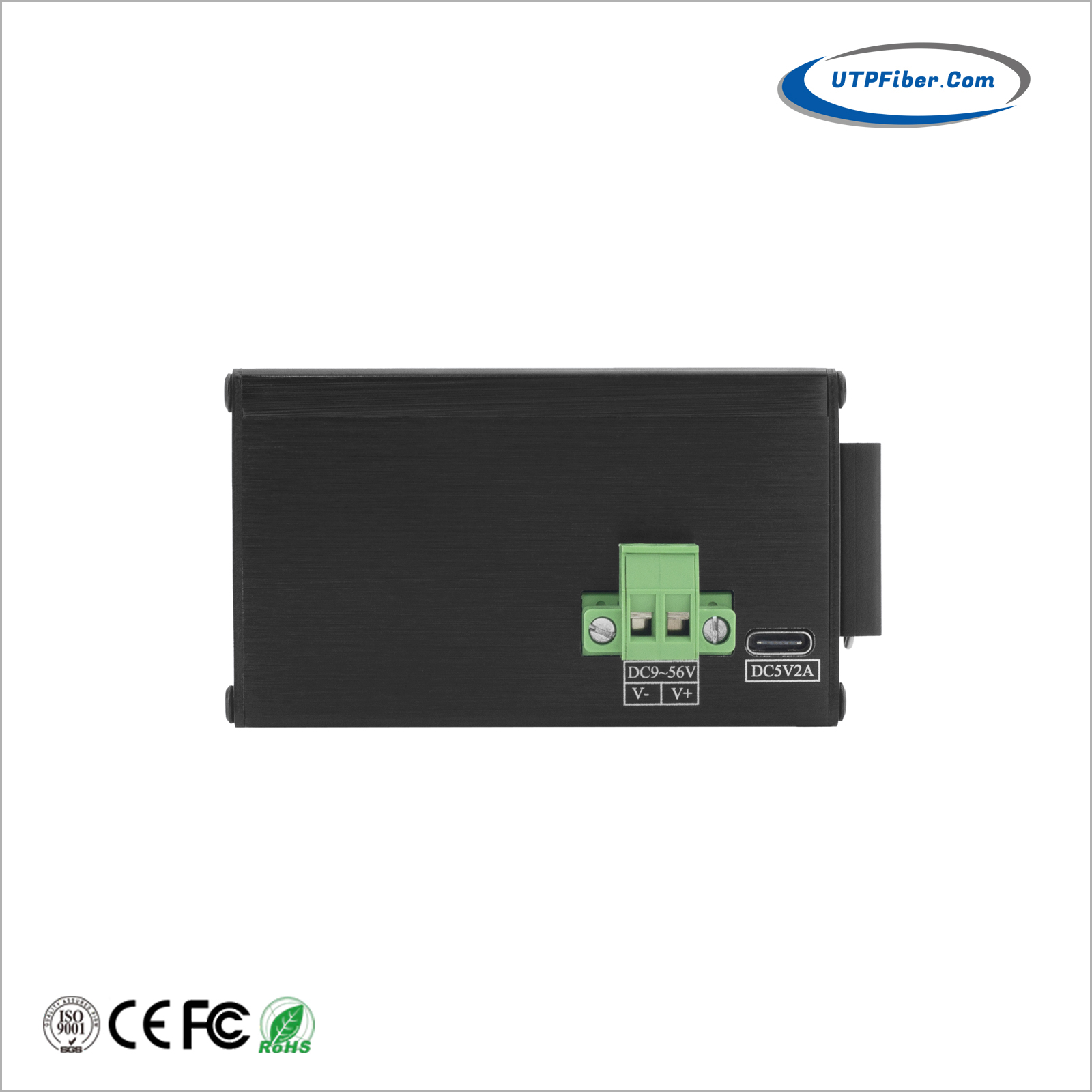

Power Options |
► Powered by PoE, no need external power adapter |
|
► 5VDC Power Input (Type-C USB) |
|
|
► 9-56VDC Power Input (2-pin terminal block) |
