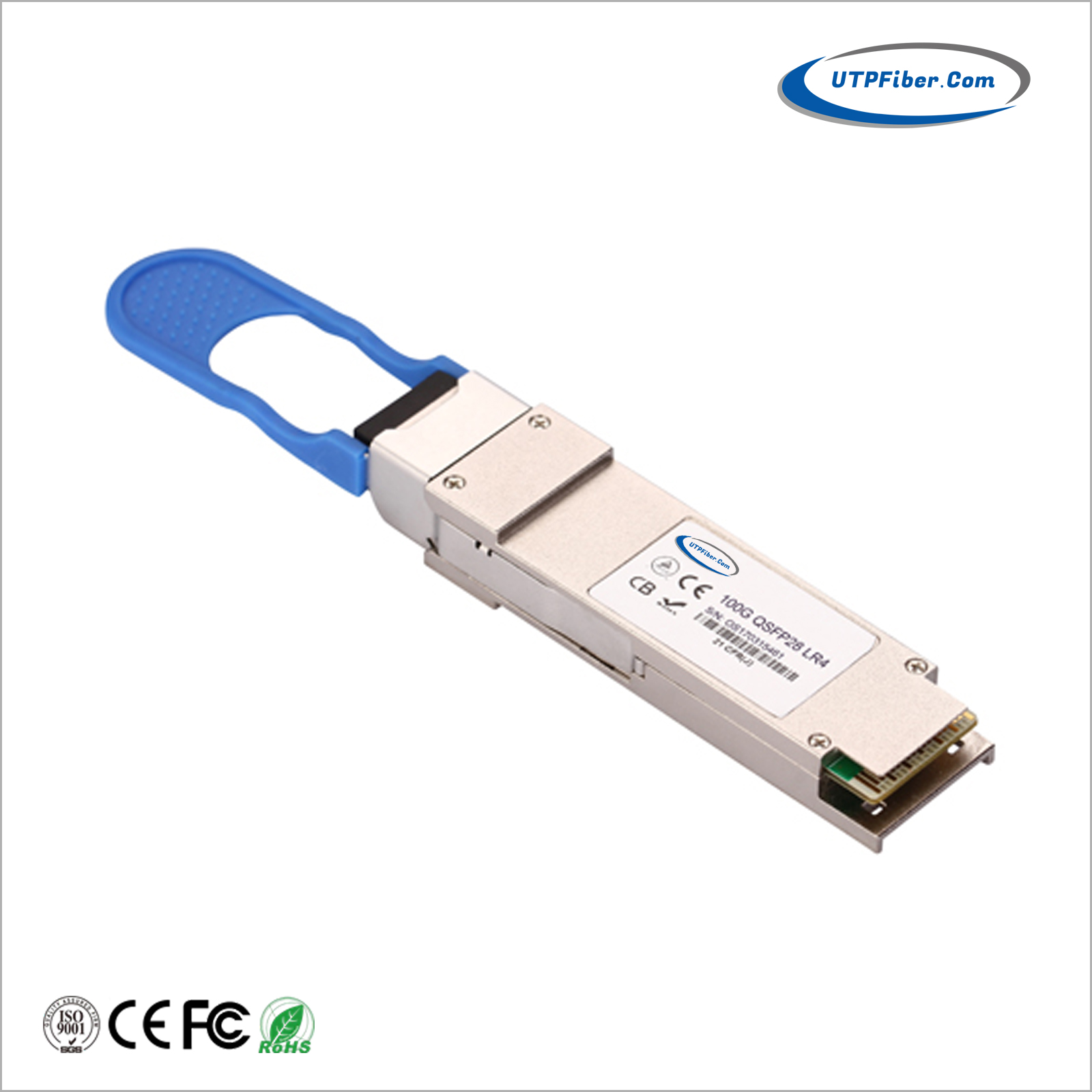

100GBASE-LR4 QSFP28 1310nm 10km Transceiver

Model:UF-QSFP28-LR4-10

•Data rate:100G
•Distance:10km
•Wavelength (nm): 1310
•Source:DML+PIN-TIA
•DDM: YES
•Media Type:SMF

The UF-QSFP28-LR4-10 is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

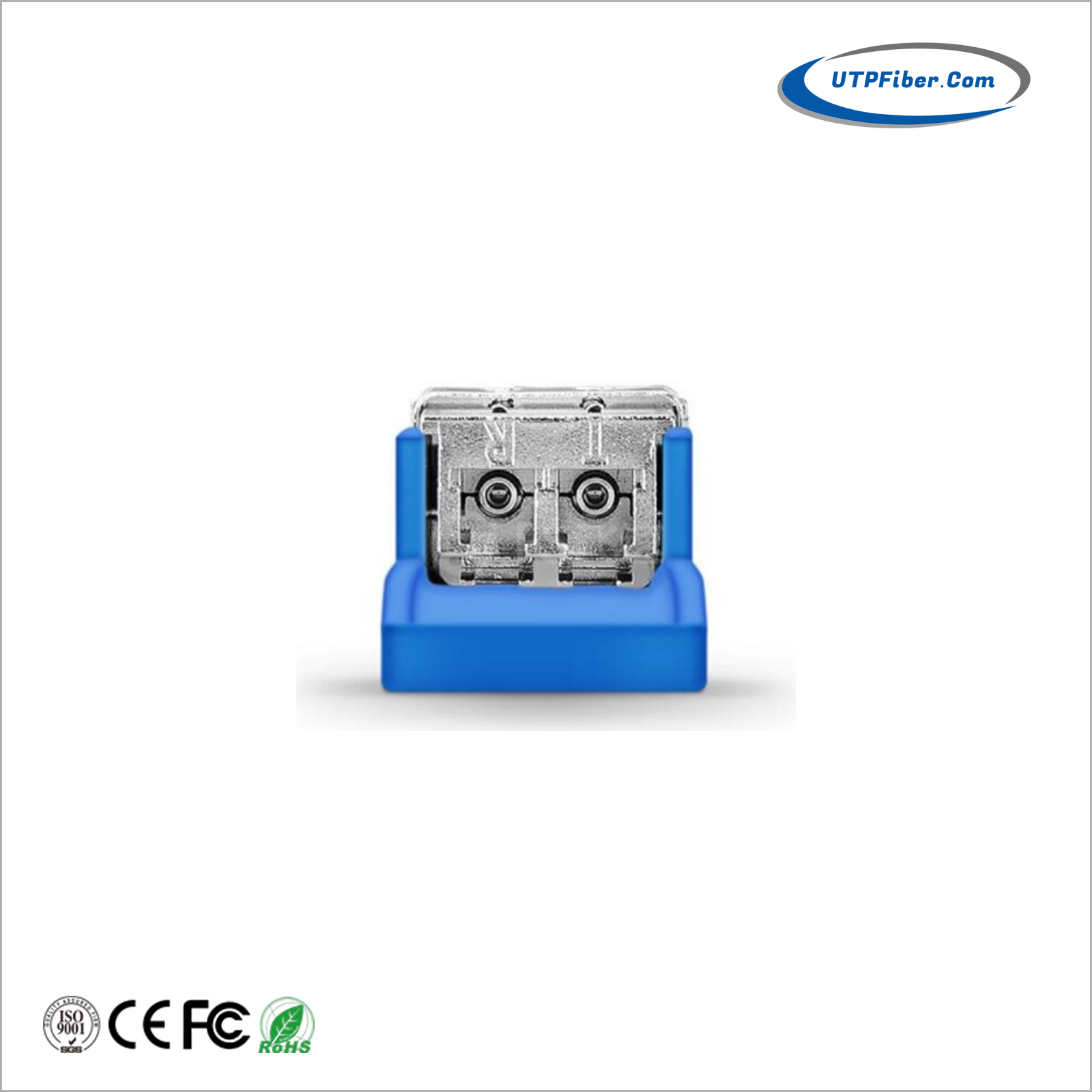

The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The UF-QSFP28-LR4-10 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

100GBASE-LR4 QSFP28 1310nm 10km Transceiver, QSFP28-100G-LR4 10km


  • 4 lanes MUX/DEMUX design
  • Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
  • Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
  • Aggregate bandwidth of > 100Gbps
  • Duplex LC connectors
  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard 
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part
  • Support FEC(Forward Error Correction)


Cisco Compatible QSFP-100G-LR4 Vendor Name UTP Fiber
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm
Max Cable Distance
10km
Connector LC Duplex Cable Type SMF
Transmitter Type 4 x LAN WDM DML (DFB) Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.3~4.5dBm Receiver Sensitivity <-10.6dBm
Powerbudget 6.3dB Receiver Overload 4.5dBm
Power Consumption ≤4W Extinction Ratio >4dB
Modulation Format NRZ CDR (Clock and Data Recovery) TX & RX Built-in CDR
Packaging Technology COB (Chip on Board) Packaging Host FEC Supported
EMC (Electro Magnetic Compatibility) Supported Bit Error Ratio (BER) 1E-12 (without FEC)
Protocols IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 MTBF 5,000,000 Hours
Application Data Center, 100G Ethernet Warranty 5 Years
  • Download FileName:UF-QSFP28-LR4-10 100GBASE-LR4 1310nm 10km Transceiver Datasheet V1.0.pdf Size: 1.52MB

Part Number

Product Description

UF-QSFP28-LR4-10

100G QSFP28 1310nm 10km LR4 LC
