Mini Industrial 1-Port 10G SFP+ + 1-Port 10G/5G/2.5G/1G/100BASE-T 802.3bt PoE++ Media Converter
Model:UF-IES10GP90-SFP
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function
► 10GBASE-X SFP+ slot interface
► Supports an IEEE 802.3bt-compliant PoE++ device
► Provides power output up to 90 watts for one PoE-compliant device
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
The UF-IES10GP90-SFP is a
mini IP40 rated gigabit Ethernet-to-Fiber media converter featuring a
10G/5G/2.5G/1G/100BASE-T Ethernet port that supports IEEE 802.3bt high power
PoE supplying up to 90 watts. It has a 10GBASE-X SFP+ slot and is perfectly
designed to fulfill industrial applications that require distance extension and
high bandwidth capabilities. This small form factor is ideal for saving space
in outdoor applications such as factory automation, security, ITS
transportation, power/utility, water wastewater treatment plants, and any other
extreme ambient weather environments.
The UF-IES10GP90-SFP is a

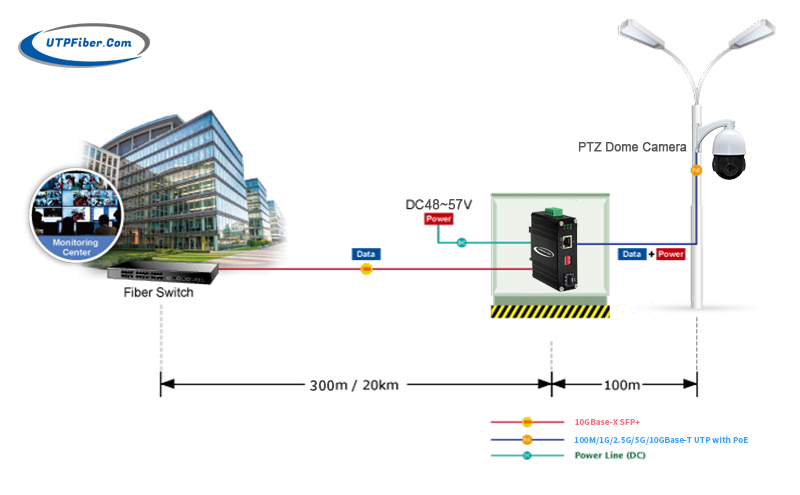

high power 802.3bt device also backward compatible with both 90W PoH and 60W
uPoE to be used as a general usage high power PoE product. The 90W PoE port is
used to power outdoor speed domes, outdoor lamps, and other ultra-high power PD
devices. It is designed for Security, Transportation and Telco applications to
expand your network distances. The operating temperature range from -40 to 80
Degree C allows UF-IES10GP90-SFP to be placed in almost any difficult
environment. With IP40 industrial case protection, the UF-IES10GP90-SFP
provides a high level of immunity against corrosion and electromagnetic
interference. UF-IES10GP-SFP also allows either DIN rail or wall mounting for
efficient use of cabinet space.
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function
► 10GBASE-X SFP+ slot interface
► Supports an IEEE 802.3bt-compliant PoE++ device
► Provides power output up to 90 watts for one PoE-compliant device
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Ports |
1 x 10000/5000/2500/1000/100 BASE-T RJ45 |
|
Pors Mode (Tx) |
Auto Negotiation Speed |
|
Full/Half Duplex Mode |
|
|
Auto MDI/MDI-X Connection |
|
|
Standards |
IEEE 802.3u 100BASE-TX |
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3bz 2.5G/5GBASE-T |
|
|
IEEE 802.3an 10GBASE-T |
|
|
IEEE 802.3ae 10Gbps Ethernet |
|
|
IEEE 802.3x full-duplex flow control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward Filter Rate |
100Mbps |
|
1000Mbps |
|
|
2.5Gbps |
|
|
5Gbps |
|
|
10Gbps |
|
|
Transmission Mode |
Store and Forward (full/half duplex mode) |
|
Fabric |
20Gbps |
|
Jumbo Frame |
16K |
|
Address Table |
9K entries, automatic source address learning and aging |
|
Power over Ethernet |
|
|
Standard |
IEEE 802.3af for POE IEEE 802.3at for POE+/POE++ IEEE 802.3bt for POE++ Compliant with 60W uPoE standard Compliant with 95W Power over HDBaseT (PoH) standard |
|
Port |
RJ45 |
|
Power Pin Assignment |
802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
|
PoE Power Budget |
95W |
|
Transmission Distance |
|
|
SFP+ Port |
10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|
RJ45 Port Transmission Distance |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) |
|
Power Information |
|
|
Input Power |
48-57VDC |
|
Power Consumption |
100W Max. (PoE in use) 5W Max. (PoE not use) |
|
Physical Characteristics |
|
|
Housing |
Aluminum case |
|
IP Rating |
IP40 |
|
Dimensions |
95 x 70 x 30 mm |
|
Installation Mode |
DIN-Rail/Wall-mount |
|
Weight |
0.25Kg |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ (-40 to 176 ℉) |
|
Operating Humidity |
5%~95% (non-condensing) |
|
Storage Temperature |
-40℃~85℃ (-40 to 185 ℉) |
|
DIP Switch |
|
|
#1 |
Reserved |
|
#2 |
Reserved |
|
#3 |
Reserved |
|
#4 |
Reserved |
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
|
|
LED Indicator |
|
|
PWR |
Power Status |
|
PoE++ |
PoE Status |
|
L/A |
Link/Activity at Ethernet Port |
|
TP |
Ethernet Status |
|
FX |
SFP+ Fiber Port Status |
|
Certification Standard |
|
|
EMC/EMI/EMS |
FCC Part15 Class A |
|
Shock |
IEC60068-2-27 |
|
Vibration |
IEC60068-2-6 |
|
Freefall |
IEC60068-2-31 |
|
Safety |
EN 60950-1 |
|
Package Contents |
|
|
Device |
1 x Mini Industrial 10G 90W PoE++ Media Converter |
|
Installation Kit |
1 x DIN-Rail Kit |
|
Documentation |
1 x Quick installation guide |
|
Warranty |
|
|
MTBF |
＞ 300,000 hours |
|
Defects Liability Period |
5 years warranty, lifetime technical support |
- Download FileName：UF-IES10GP90-SFP Mini Industrial 10G 90W PoE Media Converter Datasheet V1.0.pdf Size： 719KB
|
Model |
Description |
|
UF-IES10GP90-SFP |
Mini Industrial 1-Port 10G SFP+ + 1-Port 10G/5G/2.5G/1G/100BASE-T 802.3bt PoE++ Media Converter |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
