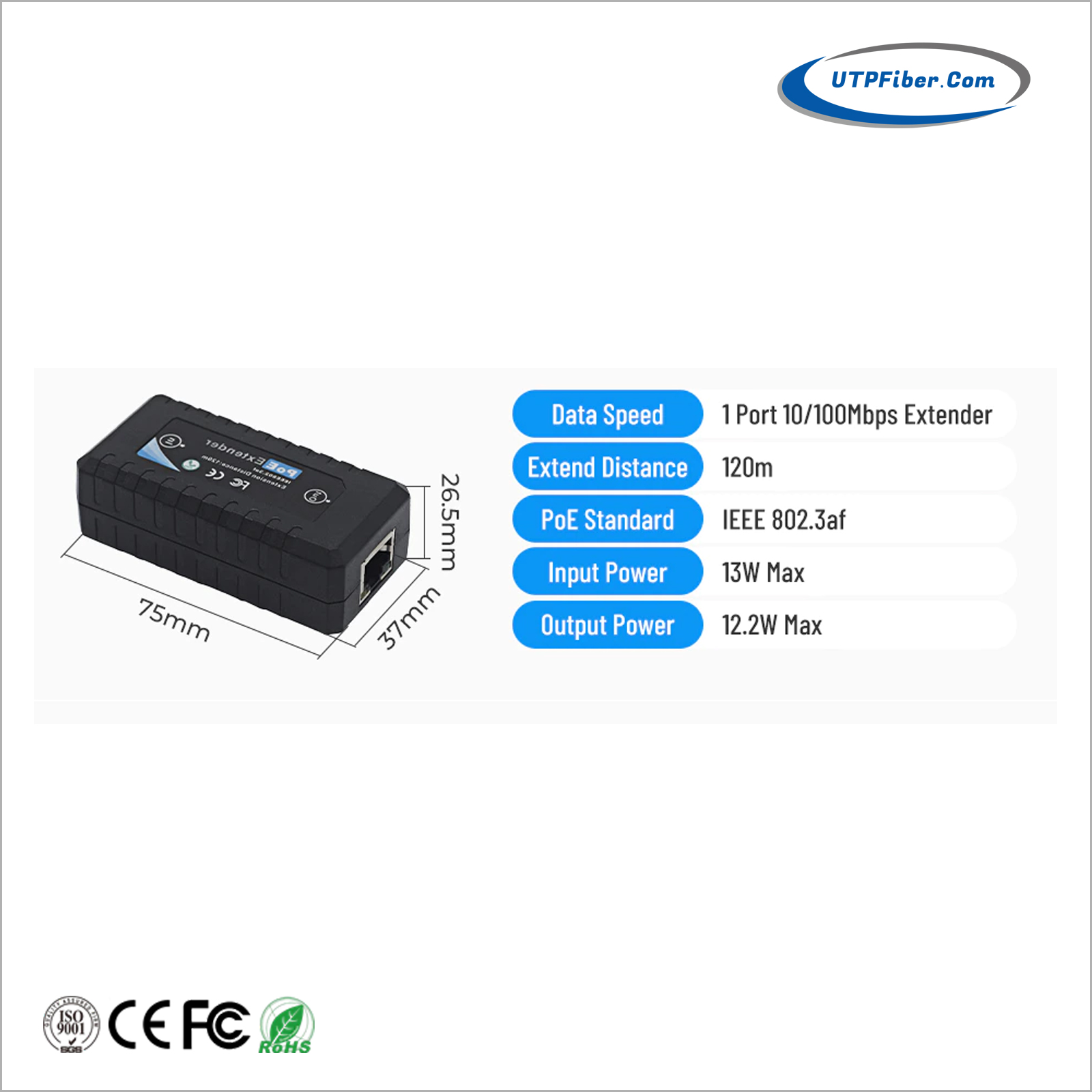

1-Port 10/100M IEEE802.3af PoE Extender
Model:UF-PE01P12
- 1 port for PoE input, and 1 port for PoE output.
- Complies with IEEE 802.3af
- The power input is 13W (802.3af)
- Power output is 12.2W (802.3af)
- Transmission distance for Ethernet data and PoE power up to 120m
UF-PE01P12 1-Port PoE extender has 2 10/100M LAN ports, among them, one for power input, the other for power output. Comply with 10/100 BASE-TX, IEEE802.3af (PoE). Power input for single port is 13W. Power output for single port is 12.2W. The PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable. It offers you great flexibility to extend the distance of PoE. Used with AP, IP camera, IP telephone and the other network equipment in situation of lack of power line or far distance Installed at hotels, schools, buildings, villages, etc.
► Comply with IEEE 802.3af Power over Ethernet.
► 10/100m Supported.
► Extend the range of PoE an additional 120 meters.
► Automatically detects and protects PoE equipment from being damaged by incorrect installation.
► Plug and play no configuration required.
► 1-port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 UTP cable.
|
Ethernet Port |
|
|
PoE Input Port |
10/100Base-TX RJ45, IEEE 802.3af PoE Input Input Power 48~57V DC, Max 13W |
|
PoE Output Port |
1*10/100Base-TX RJ45, IEEE 802.3af PoE Output Output Power: Max 12.2W in total |
|
Cascade connection |
Support 4 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet |
|
PoE Power Supply Type |
End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-) |
|
Switch Property |
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and forward |
|
Transmission Distance |
120m |
|
MAC Table |
2K |
|
Switching Capacity |
400Mbps |
|
Packet Buffer Memory |
48 Byte |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Environment |
|
|
Operating Temperature |
- 0~+40 degrees C |
|
Storage Temperature |
- 30~+70 degrees C |
|
Operating Humidity |
10~90% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (W*D*H) |
75x37x26.5mm |
|
Gross Weight |
60g |
|
Net Weight |
50g |
|
Material |
Plastic |
|
LED Display |
PoE working status, Ethernet |
|
Certifications |
|
Certifications |
FCC Part 15B RoHs Directive 2011/65/EU Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Diective 2004/108/EC |
- Download FileName：UF-PE01P12 10100M IEEE802.3af PoE Extender Datasheet V1.0.pdf Size： 621KB
|
Model |
Description |
|
UF-PE01P12 |
1-Port PoE Extender: Input 1 RJ45 PoE IEEE802.3AF13W, Output:1 RJ45 12.2W, 120m |
|
Mounting Options |
► Desktop |
