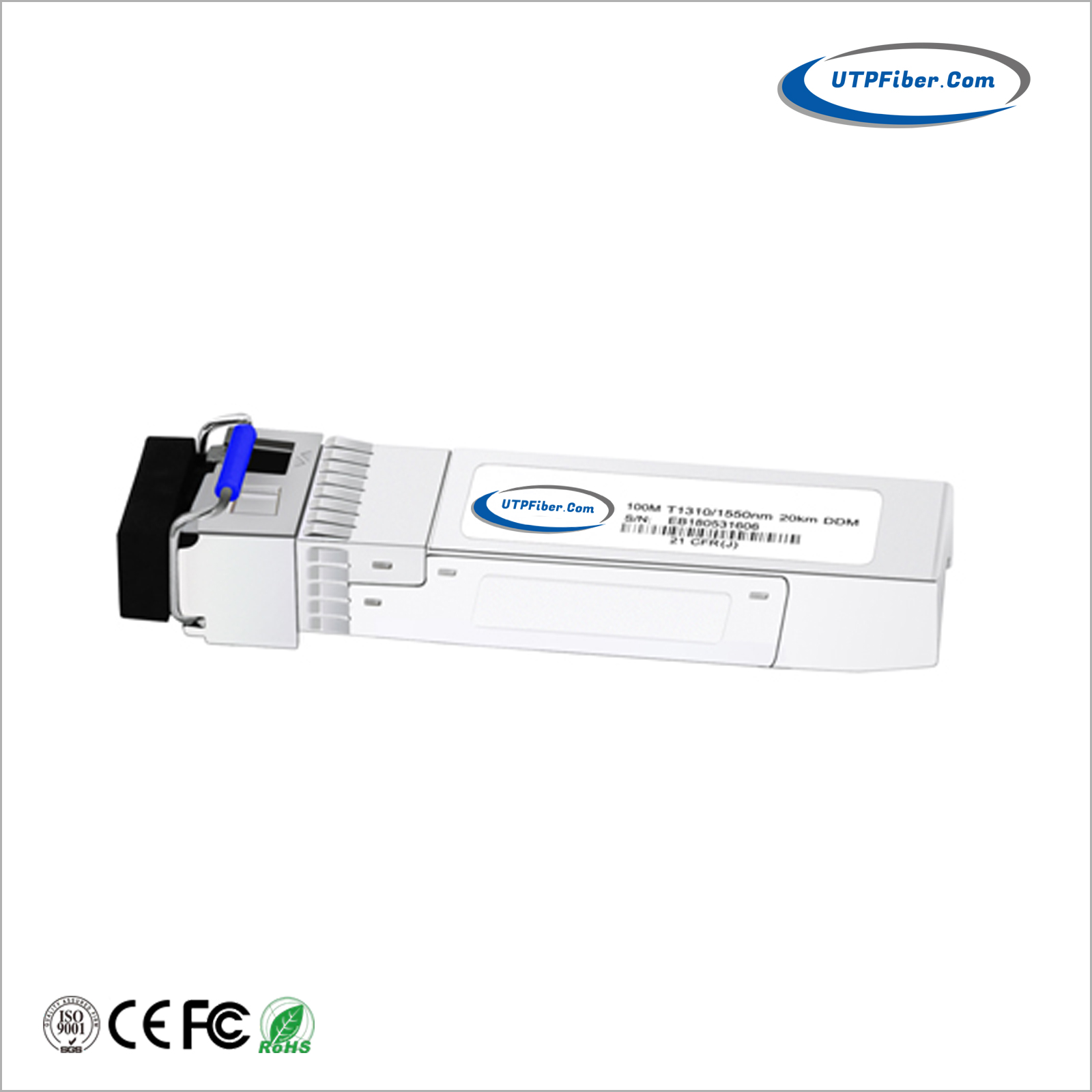

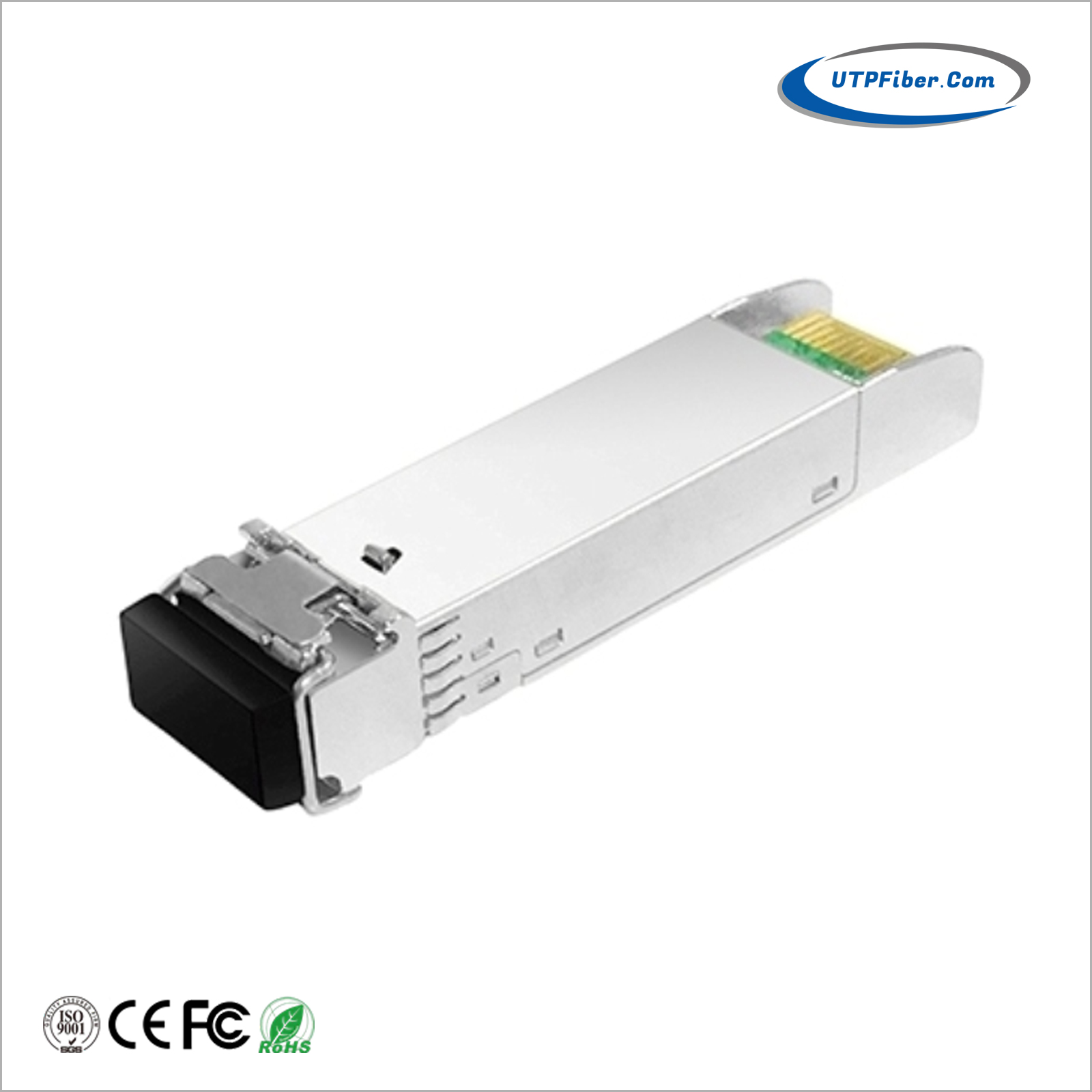

The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

• Up to 155Mbps data-rate
• 1550nm FP laser and PIN photodetector for20kmtransmission
• Digital Diagnostic Monitoring:
• Internal Calibration or External Calibration
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature range:
• Commercial:0°C to +70°C
• Industrial:-40°C to +85°C

• SDH STM-1
• SONET OC-3
• Other Optical Links

• Operating Data Rate up to 155Mbps
• Single 3.3V Power Supply
• Hot-Pluggable SFP Footprint with simplex LC receptacle
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Operating Temperature: Com.0°C ~+70°C/Ind.:-40°C ~+85°C
• Compliant with MSA SFP Specification
• Compliant with SFF-8472
• IIC communication rate does not exceed 400Kb/s

• Download FileName：UF-BSFP-155M-20D 155M BIDI SFP 1550T1310R 20KM SFP Datasheet V1.0.pdf Size： 321KB
