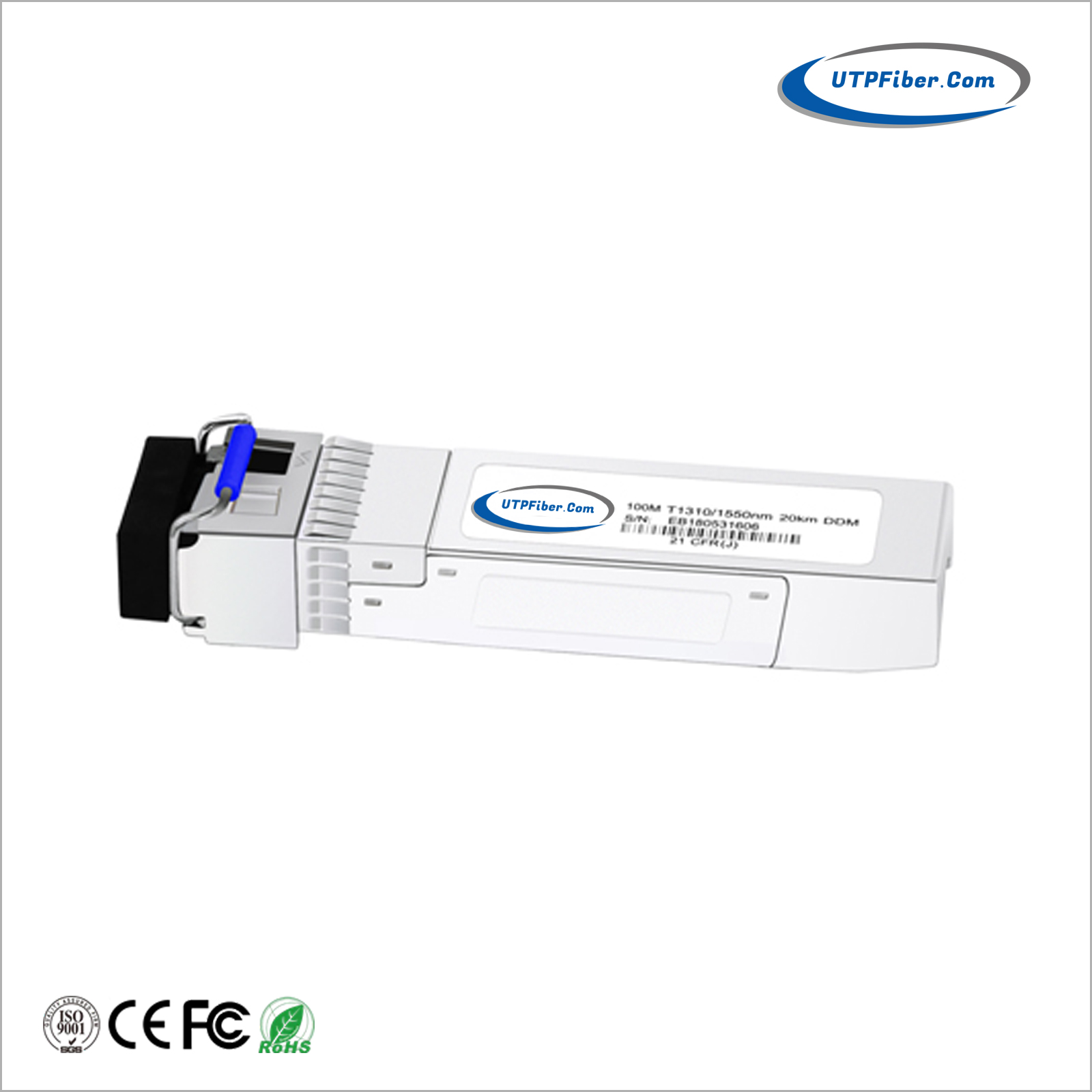

100BASE-BX SFP 1310nm-TX/1550nm-RX 20km Transceiver

Model:UF-BSFP-155M-20U

  • Data rate:100M/155M
  • Distance:20km
  • Wavelength (nm):TX1310/RX1550
  • Source:FP+PIN
  • DDM: YES
  • Media Type:SMF

The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km transmission distance with SMF.



The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

100BASE-BX SFP 1310nm-TX/1550nm-RX 20km Transceiver


  • Up to 155Mbps data-rate
  • 1310nm FP laser and PIN photodetector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
  • Internal Calibration or External Calibration
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Commercial:0°Cto +70°C
  • Industrial:-40°Cto +85°C


Applications

  • SDH STM-1
  • SONET OC-3
  • Other Optical Links


Features

  • Operating Data Rate up to 155Mbps
  • Single 3.3V Power Supply
  • Hot-Pluggable SFP Footprint with simplex LC receptacle
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Operating Temperature: Com.0°C ~+70°C/Ind.:-40°C ~+85°C
  • Compliant with MSA SFP Specification
  • Compliant with SFF-8472
  • IIC communication rate does not exceed 400Kb/s
  • Download FileName:UF-BSFP-155M-20U 155M BIDI SFP 1310T1550R 20KM SFP Datasheet V1.0.pdf Size: 321KB

Part Number

Product Description

LNK-BSFP-S155M-20U

1310nm TX/1550nm RX, 155Mbps, SC,20km, 0 to70°C, With Digital Diagnostic Monitoring

LNK-BSFP-S155M-L2U

1310nm TX/1550nm RX, 155Mbps, SC,20km, -40 to +85°C, With Digital Diagnostic Monitoring

UF-BSFP-155M-20U

1310nm TX/1550nm RX, 155Mbps, LC,20km, 0 to70°C, With Digital Diagnostic Monitoring

LNK-BSFP-155M- L2U

1310nm TX/1550nm RX, 155Mbps, LC,20km, -40 to +85°C, With Digital Diagnostic Monitoring
