Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

High Power PoE (90W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)

802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)

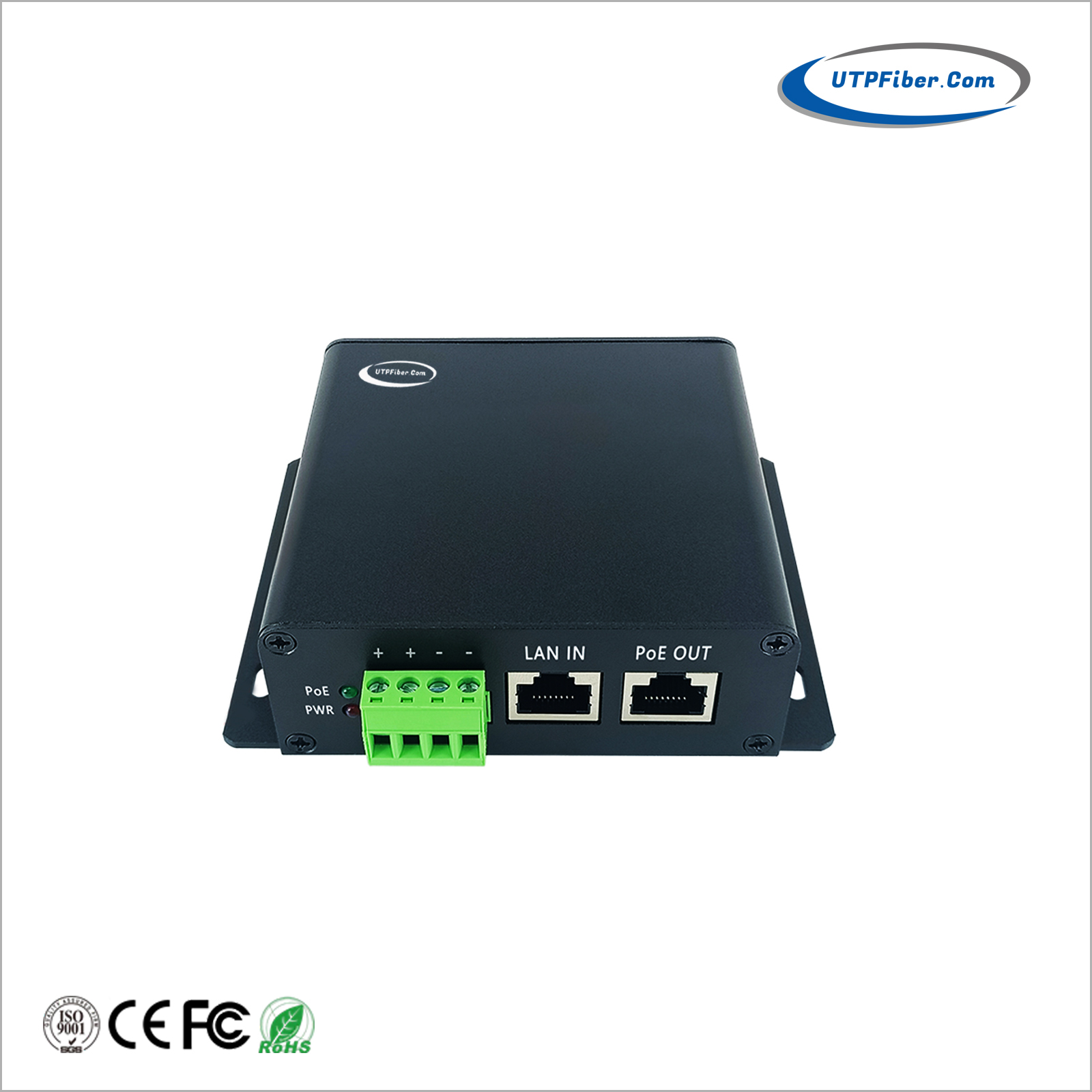

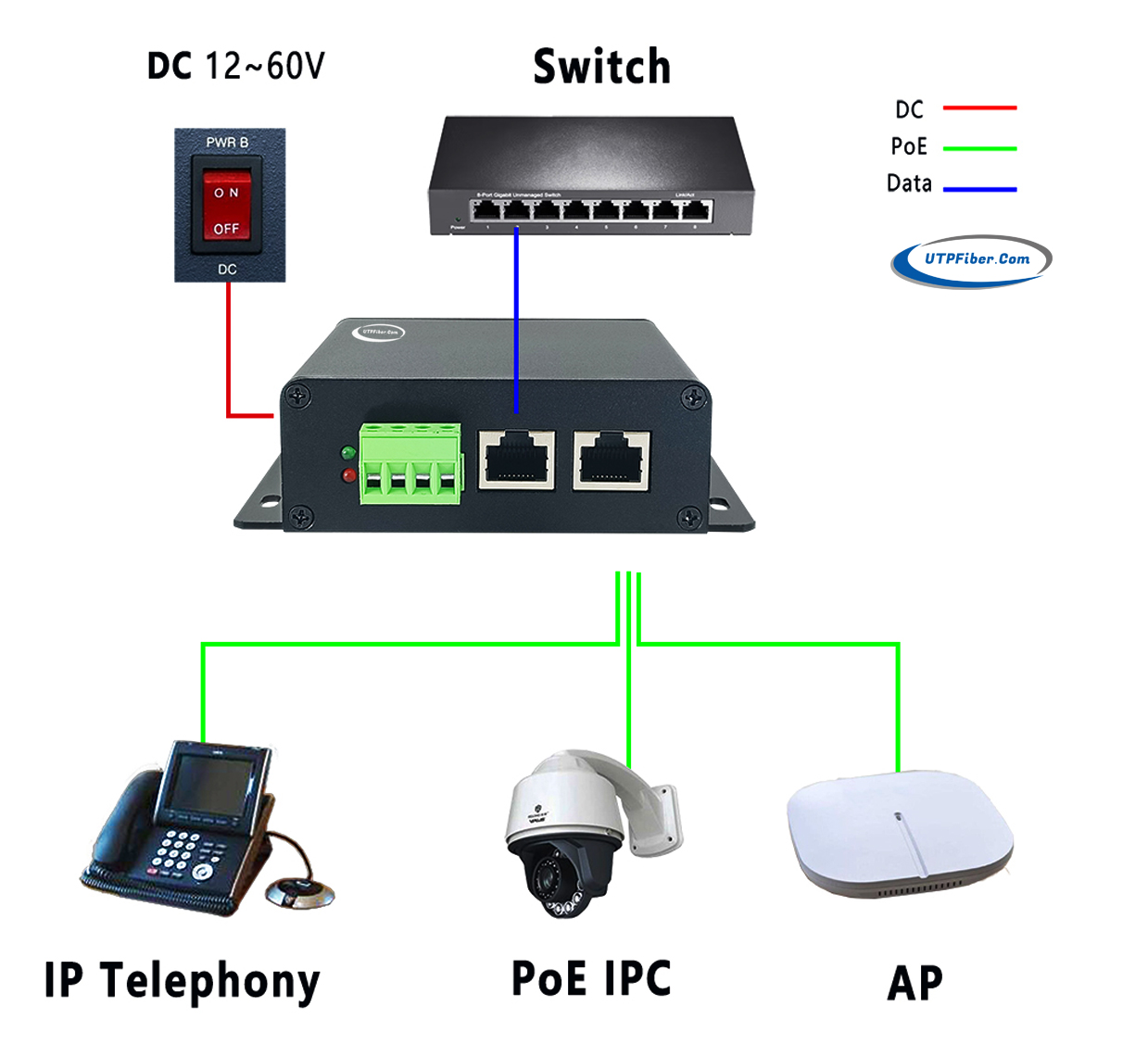

Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

DC Connector: 2 x DC Input power Terminal Block (4P PH5.08mm)

Environmental

Operating Temperature:

-30°C to 60°C (-22°F to 140°F)

Storage Temperature:

-30°C to 80°C (-22°F to 176°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>300,000hrs

Electrical and Mechanical

Input Voltage Range:

12-60VDC

Output Voltage:

DC 48-58V, 1.85A

Power Consumption:

95 watts max.

Circuit Protection:

Overheat protection, overvoltage protection

Overcurrent protection, short circuit protection

Surge Protection:

4KV

EMC:

IEC 61000-4-2/3/4/5/6

PoE (Power over Ethernet)

Standard:

IEEE 802.3af PoE

IEEE 802.3at PoE+

IEEE 802.3bt PoE++

Port:

RJ45

Pin Assignment

Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-)

PoE Power Output

DC 48-56V/90-watt PoE via 4-pairs

LED Indicators

Power:

Power Status (Red Color)

PoE:

PoE Status (Green Color)

Dimensions (L×W×H):

113 x 96 x 33.7mm

Weight:

207g

Casing:

Aluminum Case

Mounting Options:

Desktop or Wall-mounting (with wall-mount ear)

Regulatory Approvals

ISO9001, CE, RoHS, FCC
