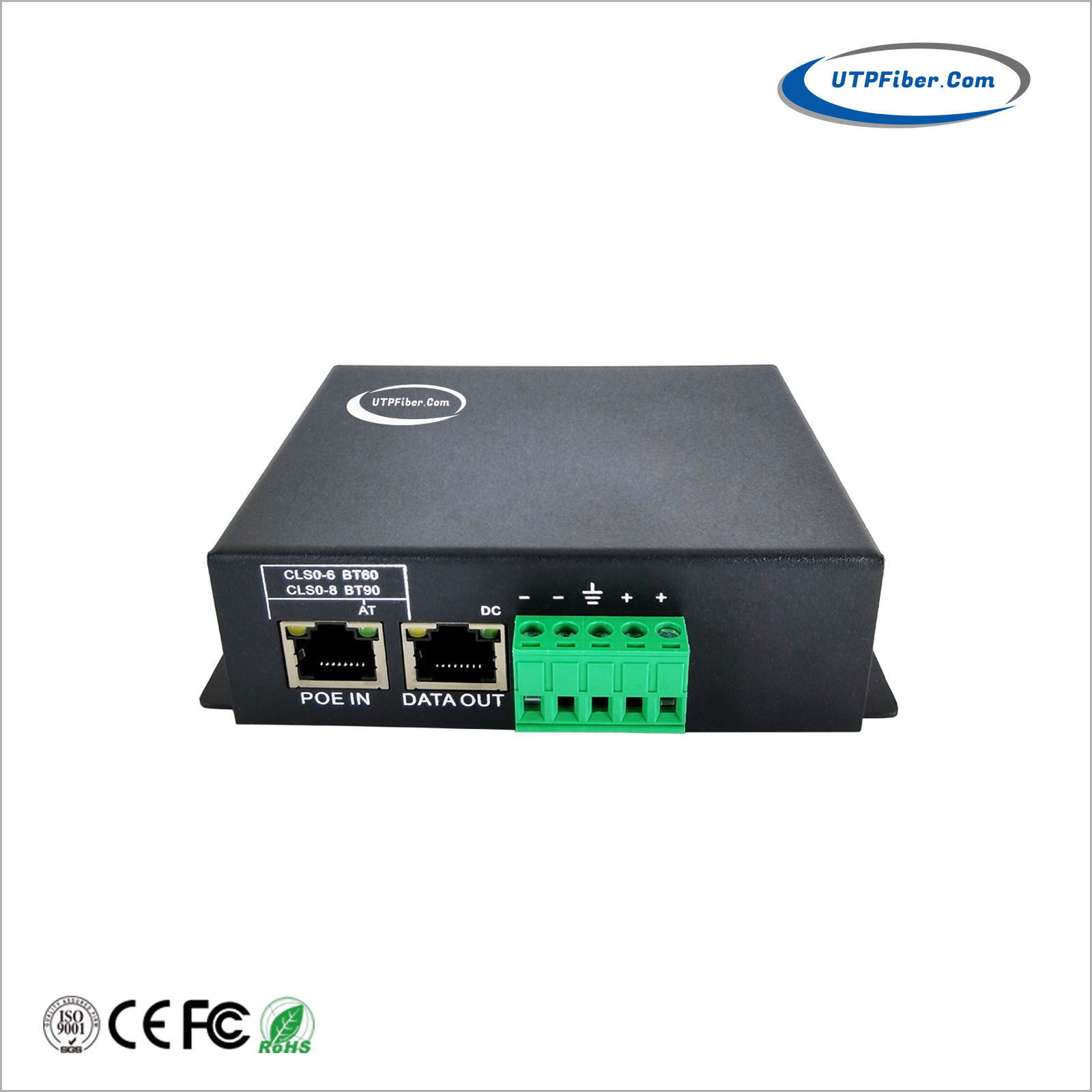

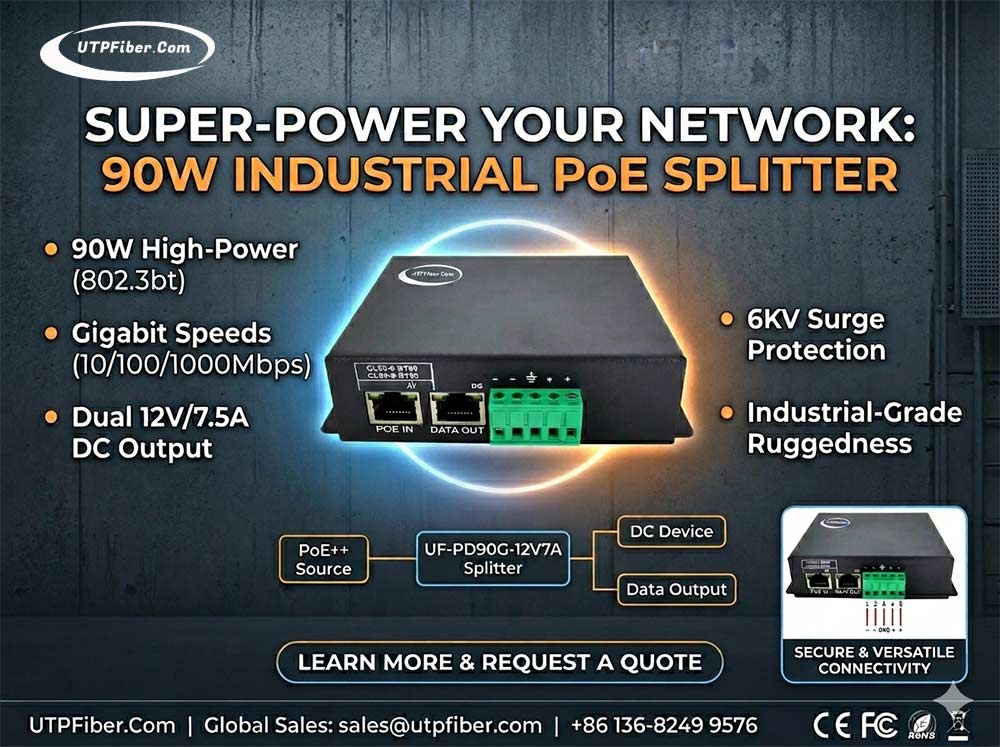

Industrial Gigabit IEEE 802.3bt PoE++ to 12V/7.5A Splitter (90W)
Model:UF-PD90G-12V7A
► Ultra High Power: IEEE 802.3af/at/bt compliant, delivering up to 90W with intelligent auto-handshake
► Dual DC Output: 12V/7.5A via secure 5-pin Phoenix terminal
► Gigabit Speed: 10/100/1000Mbps auto-adaptive transmission for high-speed data
► Flexible Setup: Compact form factor supporting both wall and desktop mounting

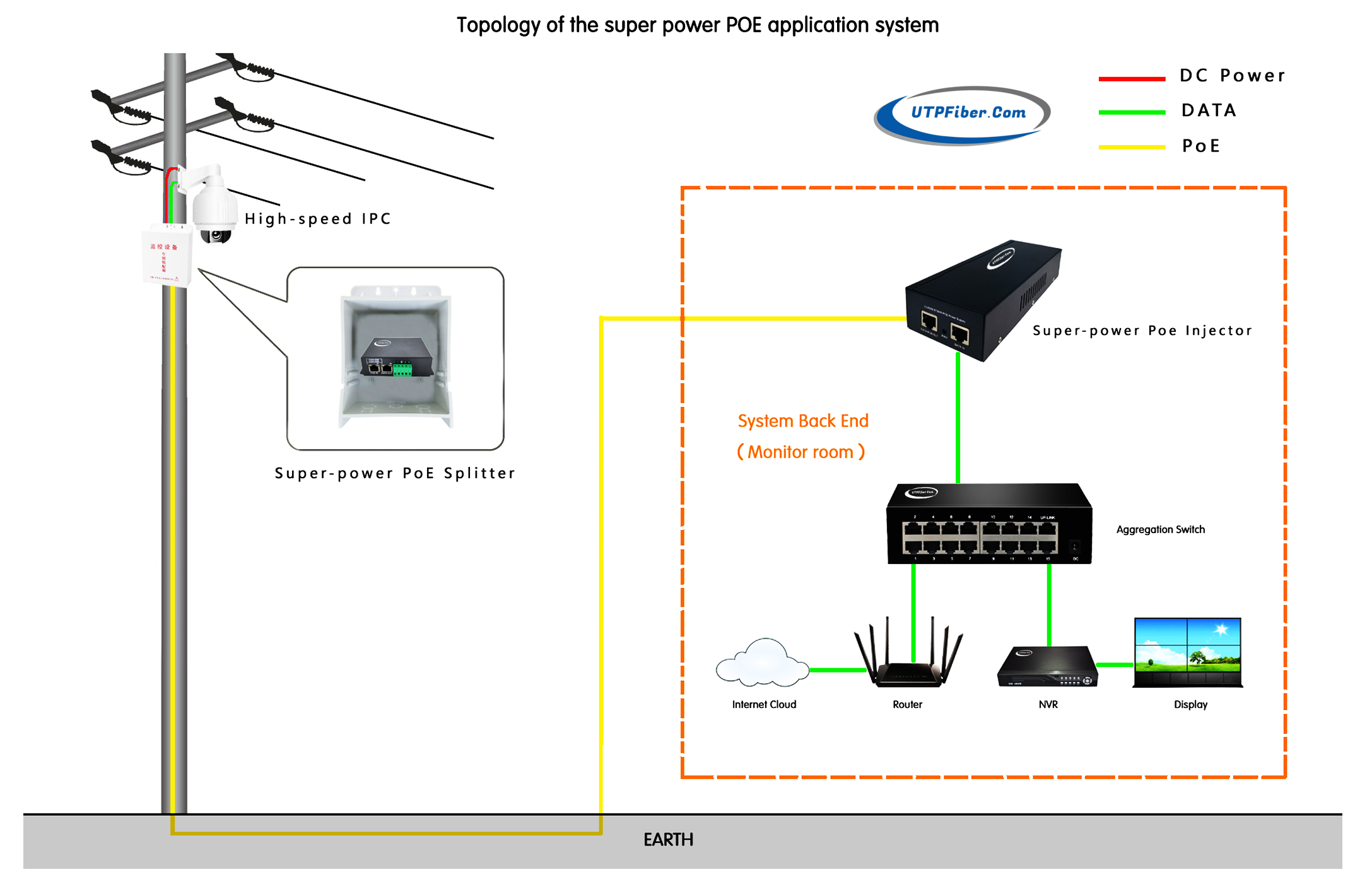

High-Power Performance & Versatile Compatibility
The UF-PD90G-12V7A is a high-performance Ultra PoE Splitter engineered to deliver up to 90W of power to non-PoE high-power equipment. Fully compliant with IEEE 802.3bt (Class 8) and backward compatible with 802.3af/at standards, it seamlessly separates power and data from a Gigabit PoE signal. It provides a stable 12V/7.5A DC output via a secure 5-pin Phoenix terminal, making it an ideal solution for outdoor deployments where power outlets are unavailable.
Industrial-Grade Design & Thermal Management
Built for durability and demanding environments, the unit features a rugged metal enclosure with integrated side ventilation grilles that optimize heat dissipation and protect internal components. The versatile housing includes built-in mounting ears, supporting both wall-mount and desktop installations for maximum flexibility. For real-time monitoring, a 4-LED indicator array provides instant visual feedback on DC output status and the specific PoE handshake level (from Class 3 up to Class 8).
Advanced Safety & Global Reliability
Safety is prioritized through an isolated circuit design paired with comprehensive industrial-grade protections, including lightning, short-circuit, overload, and high-temperature safeguards. Meeting rigorous EMC standards (IEC 61000-4-2/3/4/5/6) and holding CE, FCC, and RoHS certifications, this splitter ensures reliable performance in critical networking applications. With its 10/100/1000Mbps adaptive transmission, the UF-PD90G-12V7A is a trusted choice for professional projects in over 100 countries.
► Ultra High Power: IEEE 802.3af/at/bt compliant, delivering up to 90W with intelligent auto-handshake
► Dual DC Output: 12V/7.5A via secure 5-pin Phoenix terminal
► Gigabit Speed: 10/100/1000Mbps auto-adaptive transmission for high-speed data
► Advanced Hardware Protection: Features 6KV surge protection and a complete safety suite (Over-temperature, Over-voltage, Over-load, and Short-circuit protection)
► Robust Design: Rugged metal housing with cooling grilles and over 85% efficiency
► Flexible Setup: Compact form factor supporting both wall and desktop mounting
|
Hardware Specifications |
|
|
Interface |
PoE Input Port |
|
1 10/100/1000 BASE-T RJ45 |
|
|
Data Output Port |
|
|
1 10/100/1000 BASE-T RJ45 |
|
|
DC Out Plug Connector |
|
|
1 removable 5-pin terminal block |
|
|
DC output |
|
|
12VDC output |
|
|
LED Indicators |
DC: DC Power Output |
|
AT: 30W PoE Level BT60: 60W PoE Level BT60: 90W PoE Level |
|
|
Data Rate |
10/100/1000Mbps |
|
Dimensions (L x W x H) |
118 x 80 x 34 mm |
|
Weight |
298g |
|
Installation |
Wall-Mount |
|
ESD Protection |
6KV |
|
EFT Protection |
6KV |
|
Enclosure |
IP40-rated Metal Housing |
|
Power Requirements |
IEEE 802.3bt PoE++ |
|
PoE DC 38 ~ 56V |
|
|
Power Consumption |
System on with PoE input |
|
<5 watts |
|
|
Full loading with maximum |
|
|
12VDC, 7.5A output |
|
|
90 watts |
|
|
Power Output |
802.3 bt PoE++ input |
|
12VDC, 7.5A (max.) |
|
|
Network Cable |
802.3bt 95W PoE++ input |
|
2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) |
|
|
Circuit Protection |
Short-circuit Protection Overcurrent Protection Overvoltage Protection Overheating Protection |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3bt High Power over Ethernet Plus Plus |
|
Power Output |
12VDC |
|
PoE Power Supply Type |
End-span/Mid-span |
|
Power Pin Assignment |
12+36-/45+78- |
|
Conversion Efficiency |
85% |
|
Conversion Mode |
Isolated |
|
Standards Conformance |
|
|
Standards Compliance |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Environment |
|
|
Operating Temperature |
-20~ +80 degrees C |
|
Storage Temperature |
-40~ 85 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-PD90G-12V7A 101001000M 12V 7.5A PoE Splitter Datasheet V1.0.pdf Size： 796KB
|
Model |
Description |
|
UF-PD90G-12V7A |
Industrial Gigabit IEEE 802.3bt PoE++ to 12V/7.5A Splitter (90W) |
|
Mounting Options |
► Wall-Mount or Desktop Installation |
