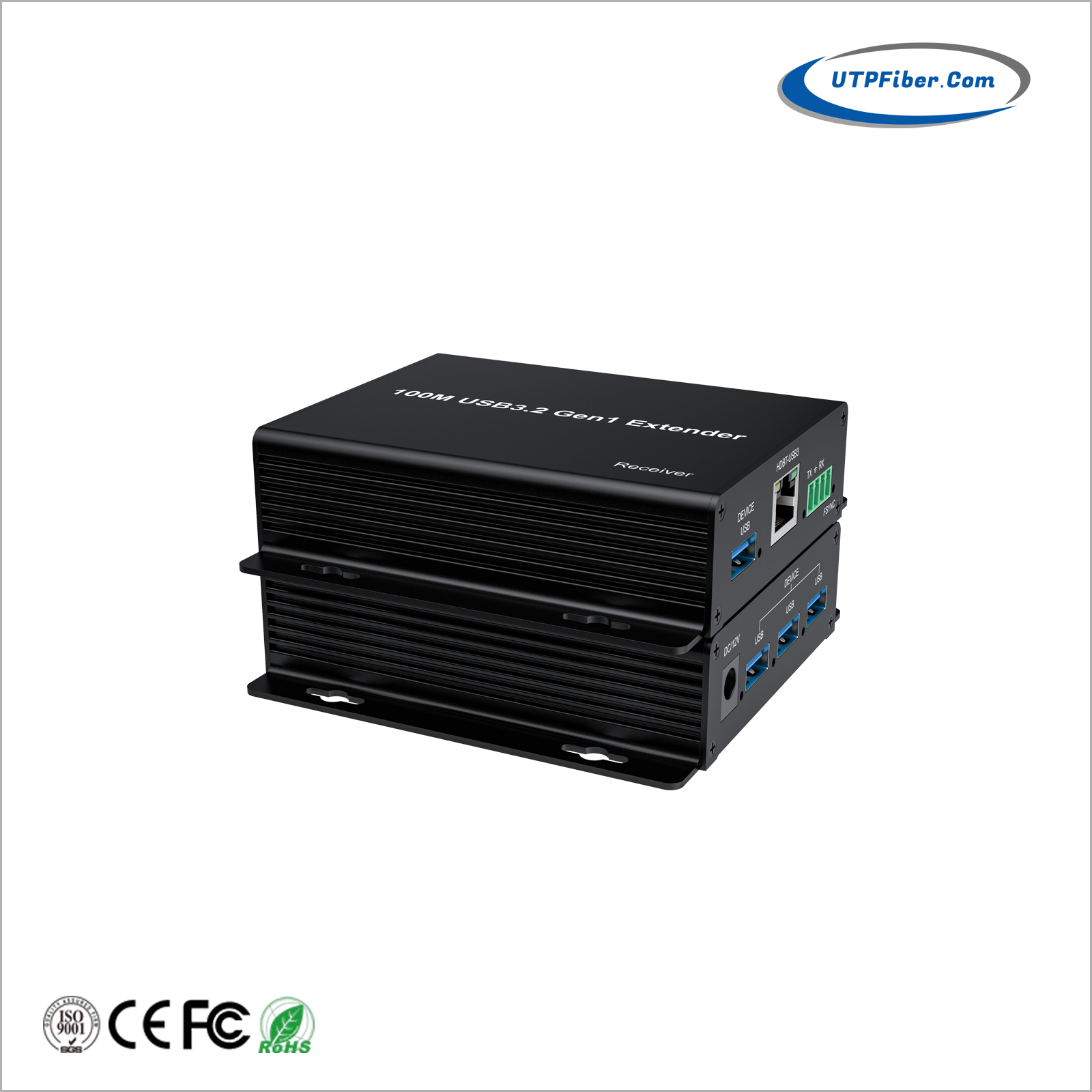

4-Port USB3.2 Gen1 over Cat6A 100m Extender

Model:UF-E4USB321-T/R

►     USB 3.0 data rate up to 5 Gbps;

►     Receiver with 4 USB 3.0 interfaces, Support for all USB 3.0, 2.0, 1.1 device;

►     Using a double-shielded network cable CAT6A to extend the distance up to 100 meters;

►     Point-to-point connection;

►     Real plug and play, No software driver;

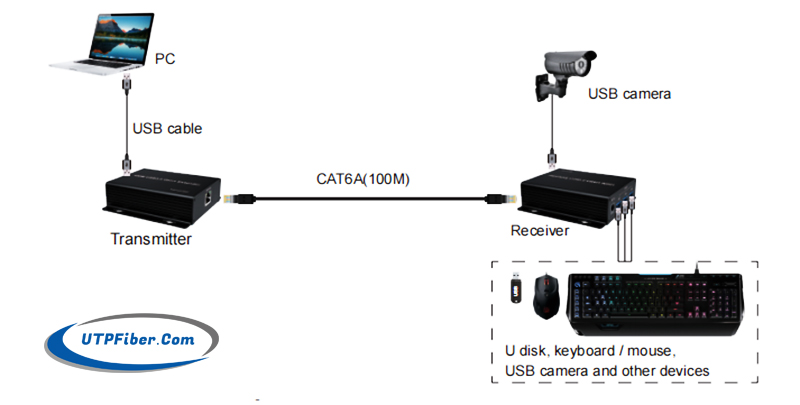

This product is the extender of USB3.0 protocol, the receiver with four USB3.0 interfaces, It’s compatible with USB2.0 and 1.1 protocol equipment. And suitable for USB printer, U disk, mobile hard disk, USB Somatosensory, camera, touch screen, Keyboard and mouse, USB to video / audio converter and other devices, using a double-shielded network cable CAT6A to extend the distance up to 100 meters.

This USB extender transmits signals over a double-shielded Cat6A Ethernet cable for distances up to 100 meters. It includes a transmitter and a receiver with four USB 3.2 ports, allowing it to function as both an extender and a USB hub for long-distance connectivity. It supports data transfer speeds of up to 5 Gbps and is compatible with multiple operating systems, including Windows, macOS, Linux, and Chrome OS. The extender enables seamless connection of various USB devices such as webcams, printers, scanners, USB drives, keyboards, and mice. With a plug-and-play design, it requires no additional drivers and installs automatically upon connection.

Note: the USB-IF organization has decided to include USB 3.0 / 3.1 interface into the category of USB 3.2 interface. USB 3.0 interface is called USB 3.2 Gen 1, USB 3.1 interface is called USB 3.2 Gen 2, and USB 3.2 interface is called USB 3.2 Gen 2x2.

USB3.2 Over Cat6A extender, 4-Port USB over Cat6a Extender Kit, USB 3.2 & USB 3.0 Extender via Cat6a/7 100M/328FT, USB 3.0 extender over Cat6A, USB3.2 HDBaseT Extender, USB 3.2 Gen 1 Extender over HDBaseT for Cat6a/Cat7, USB3.0 Extender 100m, 4-Port USB 3.2, 2.0 and 1.1 Over Cat6a Extender Kit, USB 3 Extenders, USB 3.2 Extender over one Cat cable 100meter, 4 Port USB3.2 Gen1 5Gbps Extender up to 100m

►     USB 3.0 data rate up to 5 Gbps;

►     Receiver with 4 USB 3.0 interfaces, Support for all USB 3.0, 2.0, 1.1 device;

►     The current of each USB port of the receiver is up to 1.5A (7.5W), and the maximum current of 4 USB ports does not exceed 21W.;

►     Using a double-shielded network cable CAT6A to extend the distance up to 100 meters;

►     Point-to-point connection;

►     Real plug and play, No software driver;

►     Mainstream operating systems: Windows, MAC OS, Linux and Chrome OS

Ethernet index

Port

RJ45

RJ45 cabling system

IEEE-568B

Cable

Standard double-shielded (S/FTP) RJ45 Cat6A cable

Ethernet

100/1000Mbps

Max baud rate

5Gbps

Transmission distance

The CAT6A cable between the transmitter and the receiver is 100 meters

USB index

Standard

USB3.0/USB2.0/USB1.1

Data Transfer Speed

Up to 5 Gbps

Input Port

1 USB3.0 Type-A female port

Output Ports

4 USB3.0 Type-A female ports

Effective current

Each USB port is up to 1.5A

Power index

Transmitter input voltage

DC 12V

Transmitter power consumption

1.2W

Receiver input voltage

DC 5V

Receiver power consumption

1.2W

Maximum operating current

300mA (no USB device connected)

Mechanical index

The shell metal

Aluminium alloy

Product size (LxWxH)

104*103*28mm

TX weight

171g

RX weight

177g

Way to install

Wall-mount or Desktop

Color

Black

Packing

Material

Kraft paper

Packing List

Transmitter  1 pcs

Receiver  1 pcs

Type-C USB3.0 to USB-A 3.0 Data cable (10 Gpbs) 1M  1 pcs

User Manual  1 pcs

DC / 12V 2A Power adapter  1 pcs

Package size (LxWxH)

275*220*55mm

Gross weight

0.5KG

Working environment

Working temperature

0°C to +45°C

Storage temperature

-–40°C to +85°C

Operating humidity

0%–95% (non-condensing)

MTBF

> 100,000 hours

  • Download FileName:UF-E4USB321 4-Port USB3.2 over Cat6A Extender Datasheet V1.0.pdf Size: 658KB

Model

Description

UF-E4USB321-T/R

4-Port USB3.2 Gen1 over Cat6A 100m extender, support for all USB 3.0, 2.0, 1.1 device, 1 USB for Local Unit (Transmitter), 4 USB for Remote Unit (Receiver), max distance 100m (cat6A cable), including Transmitter & Receiver, used by pairs

Mounting Options

► Wall-mount or Desktop

Power Options

12VDC 2A
