Product Name

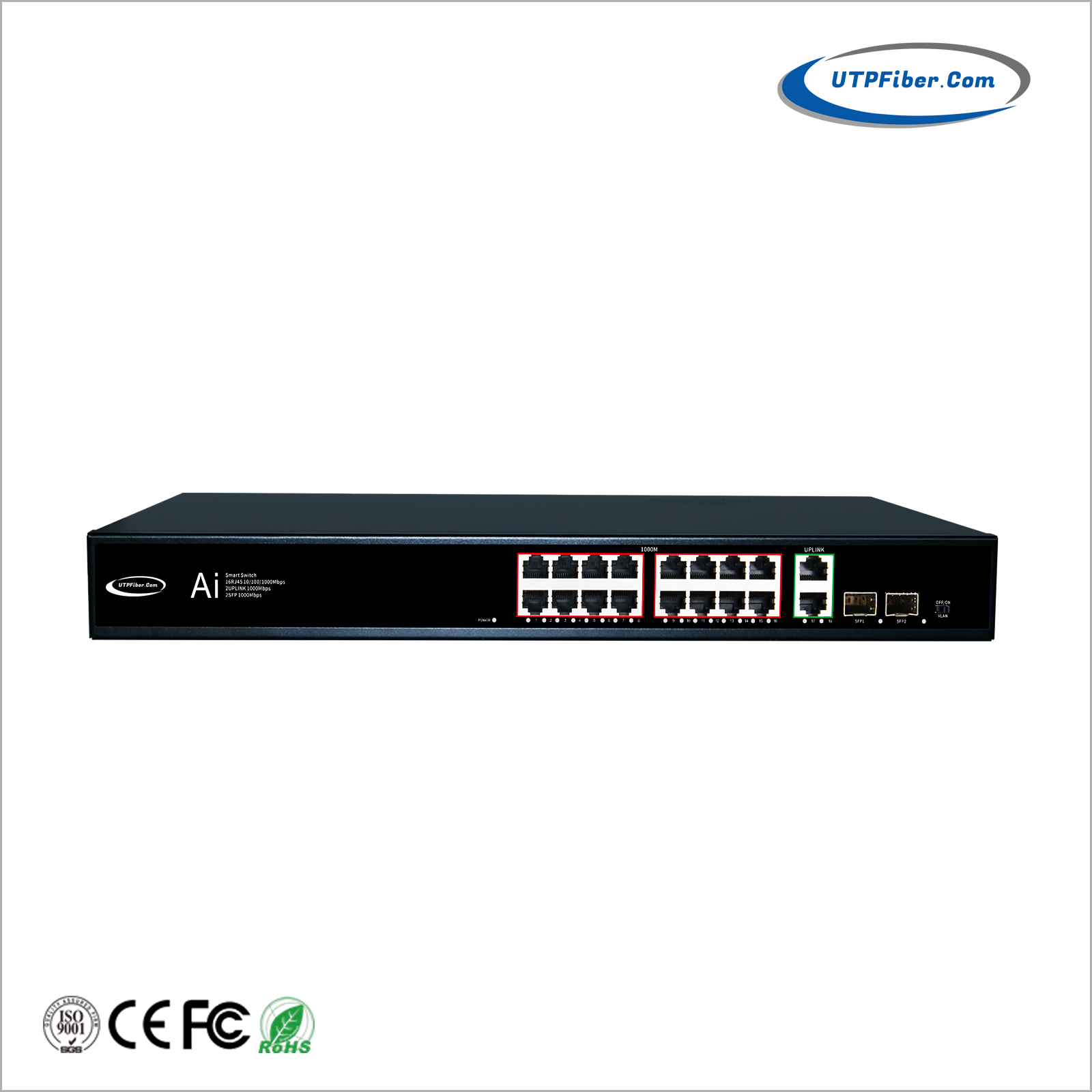

16 Port Full Gigabit POE Switch(16+2+2)

Product Model

UF-SW16GP2G2SFP

DATA PIN

1/2+,3/6-

Power Supply Type

Build In, Both 1/2+,3/6-

Max. PoE Power for single port

30W

Connector

16*10/100/1000Mbps POE port,2*10/100/1000Mbps UP-Link port,2*1000Mbs SFP

Network Medium

Cat5 (UTP) or more

Technology

Network Standards

IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z、IEEE 802.3ab 1000BASE-T

IEEE 802.3x Flow Control   IEEE 802.3af/at Power over Ethernet

PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6

Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size

8K MAC address

Buffer memory

48Kb embedded memory per unit

Backboard Bandwidth

40G

Network Latency

Less than 20us for 64 byte frames in store-and-forward mode for 1000Mbps to 1000Mbps transmission

Power

Input

AC 110-240 V, 50/60 Hz

PoE power consumption

30W per port(IEEE802.3af/at)

Overload current protection

Present

Mechanical

Casing

Metal

Installation

Rack mounting

Interface

LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification

Operating temperature

-10-55℃

Storage temperature

-40-70℃

Operating humidity

90% maximum relative humidity, non-condensing

Storage humidity

95% maximum relative humidity, non-condensing

Regulatory Approval

ISO

Manufactured in ISO9001 facility

Safety

CE/CCC

Warranty

2 years

Dimensions

440*190*45mm (L*W*H)

Weight

3Kg
