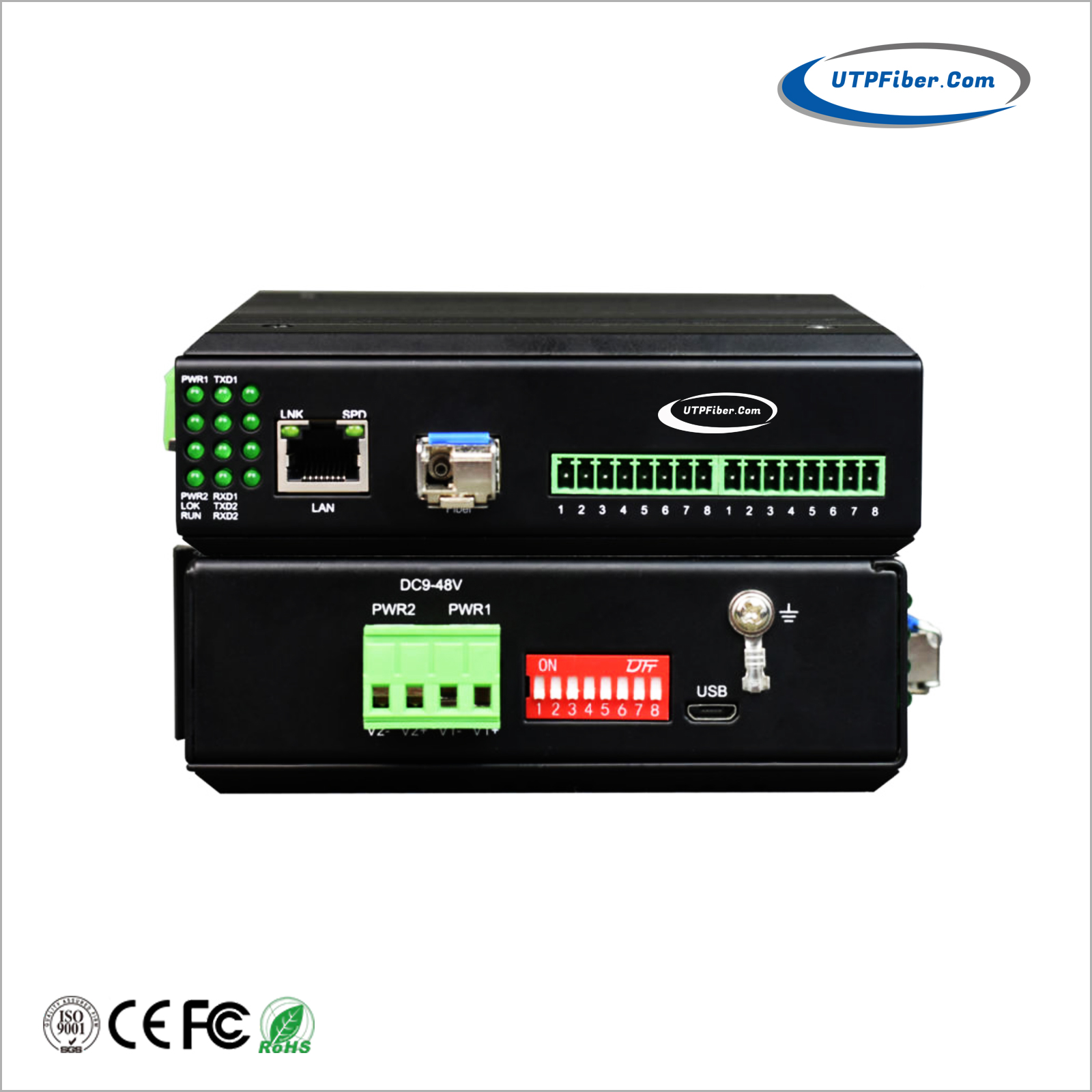

Industrial 1~4 Channel Serial RS232/422/485 to Ethernet Device Server w/ WEB & SNMP Management
Model:UF-DSE201 & UF-DSE401 Series
► Ethernet Interface: Supports 1x 100M Ethernet Combo port (1x 100M Copper port or 1x 100M SFP Fiber port); supports SFP module DDM (Digital Diagnostic Monitoring).
► Adaptive Connectivity: Ethernet supports 10/100Base-T(X) auto-sensing; supports Auto-Negotiation (Full/Half Duplex) and Auto-MDI/MDIX (automatic crossover detection).
► Serial Performance: Supports 300bps–921,600bps non-blocking line-speed communication; supports automatic baud rate detection and custom baud rate settings.
► Serial Interface Modes:
Option 1: Each port is fixed as RS-232, RS-422, or RS-485 per order.
Option 2: Each port supports RS-232, RS-422, and RS-485, selectable via on-board DIP switches.

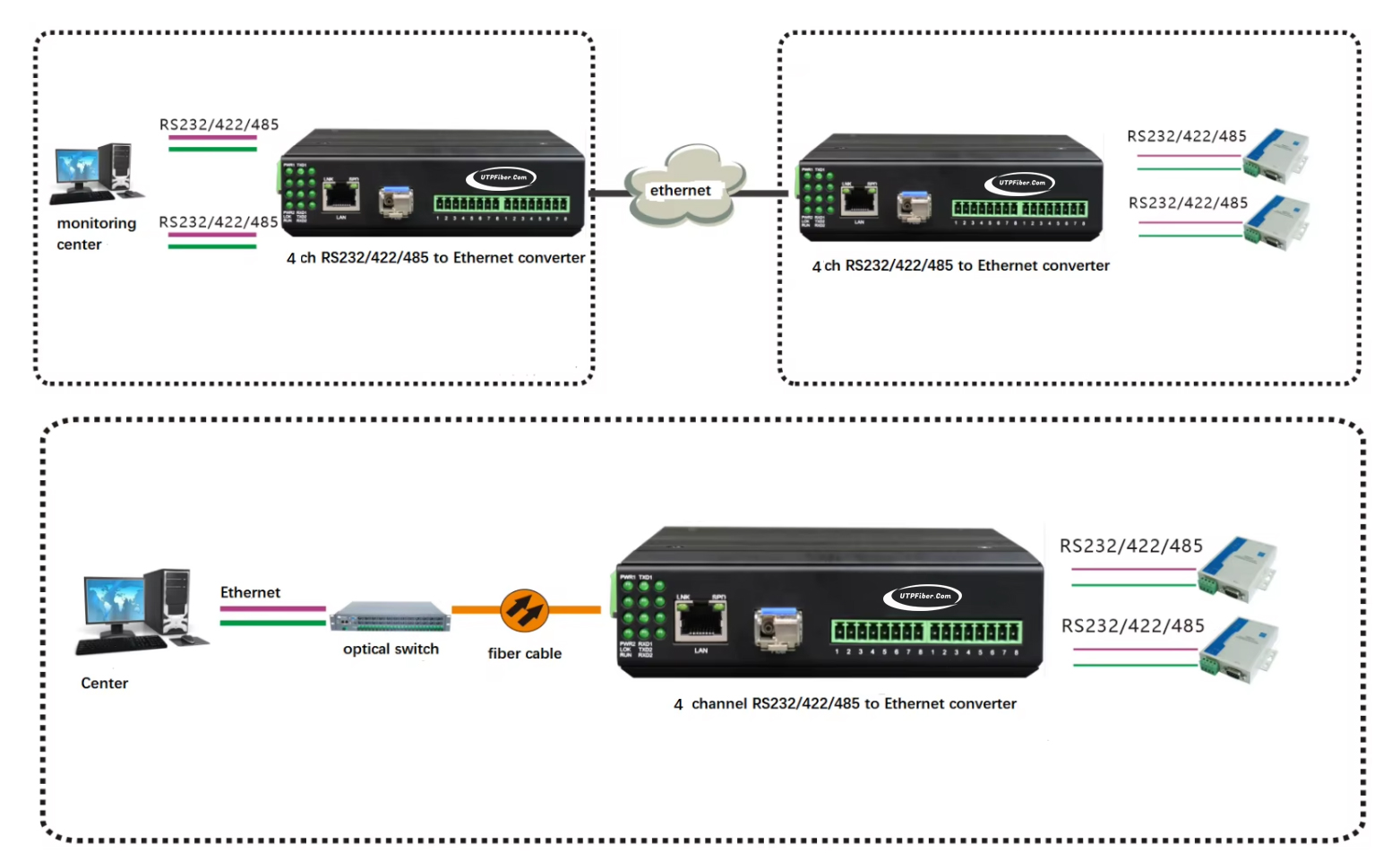

This industrial-grade DIN-rail serial device server, featuring an IP40 protection rating, is designed to provide legacy serial equipment with instantaneous networking capabilities. It facilitates the centralized management of distributed serial devices and host systems across a network. The product supports 1 to 4 channels of RS-232/422/485 to a single 100M Ethernet Combo port, which offers the flexibility of either a 100M copper port or a 100M fiber port. To meet the requirements of diverse application sites, the unit is compatible with both 35mm DIN-rail and wall-mount installations.
The server supports a comprehensive suite of network protocols, including TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP. It offers robust management functions such as access control, rapid configuration, and online firmware upgrades. Each serial port supports up to four concurrent TCP or UDP session connections, and the device operates in multiple modes including Modbus TCP, TCP Server, TCP Client, UDP Server, and UDP Client. Users can manage the device via a web-based interface or through the included Windows-based configuration utility, which provides a step-by-step guide to achieving immediate connectivity through simple settings. The network management system is designed with a user-friendly interface to ensure a seamless operational experience.
The hardware utilizes a fanless, low-power consumption design capable of operating across wide temperature and voltage ranges. Rigorously tested to meet industry standards, it is engineered to withstand harsh industrial environments with demanding EMC requirements. This device is widely applied in PLC control and management, building automation, medical healthcare systems, measuring instruments, and power environment monitoring. It serves as an essential component for various embedded network control applications, such as industrial production automation, networked security and access control (including alarm equipment and remote card readers), smart home gateways and switches, industrial remote I/O and relay control, building intelligence, energy monitoring, and medical monitoring equipment.
► Processor: Features an ARM Cortex-M4 processor with a 192MHz clock speed.
► Ethernet Interface: Supports 1x 100M Ethernet Combo port (1x 100M Copper port or 1x 100M SFP Fiber port); supports SFP module DDM (Digital Diagnostic Monitoring).
► Adaptive Connectivity: Ethernet supports 10/100Base-T(X) auto-sensing; supports Auto-Negotiation (Full/Half Duplex) and Auto-MDI/MDIX (automatic crossover detection).
► Serial Performance: Supports 300bps–921,600bps non-blocking line-speed communication; supports automatic baud rate detection and custom baud rate settings.
► Serial Interface Modes:
Option 1: Each port is fixed as RS-232, RS-422, or RS-485 per order.
Option 2: Each port supports RS-232, RS-422, and RS-485, selectable via
on-board DIP switches.
► Operating Modes: Supports Modbus TCP, TCP Server, TCP Client, UDP Server, and UDP Client.
► Protocol Conversion: Supports Modbus-RTU to Modbus-TCP transparent conversion for network-based data polling of serial devices.
► Status Monitoring: Supports real-time monitoring of serial port status and parameters for clear communication visibility.
► Network Compatibility: Supports communication across gateways and routers; supports Virtual COM driver access and automatic connection recovery.
► Data Framing: Flexible serial data framing settings to meet diverse packetization requirements.
► Socket Applications: Supports standard TCP/IP SOCKET access; TCP mode supports up to 4 concurrent connections for simultaneous device management.
► UDP Communication: Supports point-to-point or point-to-multipoint communication in UDP mode.
► Configuration Methods: Supports Windows configuration utility, serial console, WEB interface, and SNMP network management.
► Firmware Upgrades: Supports both local and remote system firmware upgrades.
► Power Input: Supports a wide-range DC9-55V or AC7-43V power input.
► Redundancy: Supports internal isolation and dual redundant power inputs.
► Circuit Protection: Features overload protection and reverse polarity protection.
► EMC Standards: Complies with Industrial Level 4 Electromagnetic Compatibility (EMC) requirements.
► Surge Protection: High-performance lightning protection, anti-static, and surge resistance.
► Thermal Design: Fanless high-efficiency heat dissipation to reduce maintenance frequency.
► Robust Housing: Anodized aluminum alloy shell with IP40 protection for harsh environments.
► Mounting: Supports 35mm DIN-rail or wall-mount installation.
► Operating Temperature: Wide temperature range: -40°C to +80°C.
► Reliability: 100% of all models undergo burn-in testing.
|
Serial Interface |
|
|
Standard |
EIA/TIA-232 RS-232 (ITU-T V.28) EIA/TIA-422 RS-422 (ITU-T V.11) EIA/TIA-485 RS-485 (ISO/IEC8284) |
|
Serial Port |
1~4 channel RS232/422/485 serial terminal interface |
|
Signals |
RS-422: TxD+ TxD- RxD+ RxD- GNC |
|
RS-485 4 wires: TxD+ TxD- RxD+ RxD- GND |
|
|
RS-485 2 wires: A(TX+) B(TX-) GND |
|
|
RS-232: RXD TXD GND |
|
|
TP/SFP Combo Interface – Ethernet |
|
|
Agreement |
IEEE 802.3, IEEE 802.1q (VLAN) |
|
Speed rate |
10/100M self-adaptive, full/half duplex fully self-adaptive |
|
MAC address table |
can learn 4096 MAC addresses |
|
Physical interface |
RJ45, support Auto-MDIX |
|
TP/SFP Combo Interface – Fiber |
|
|
Fiber Type |
Based on the selected SFP module |
|
Connector |
SFP port |
|
Maximum transmission distance |
Based on the selected SFP module |
|
Hardware |
|
|
Dimensions (L x W x H) |
133 x 120 x 40mm |
|
Weight |
650g |
|
LED Indicators |
PWR1/PW2: Power Status |
|
TXD1/TXD2: Serial Data Transmitting |
|
|
RXD1/RXD2: Serial Data Receiving |
|
|
LNK: Ethernet is linked/there is data transmitting and receiving |
|
|
LOK: Serial data network protocol is linked |
|
|
Power Supply |
DC power supply: Redundant dual power input DC9-55V or AC7-43V Overload protection: support; Reverse polarity protection: support; Redundancy protection: support Access terminal: 4-core 5.08mm pitch plug-in terminal |
|
Power Consumption |
< 5 watts |
|
Material |
Aluminum alloy shell |
|
Installation |
DIN-Rail or Wallmount |
|
MTBF |
>100,000 hours |
|
Management |
|
|
Management Interfaces |
Web management |
|
SNMP management |
|
|
IP Acquisition Method |
Static IP (default), DHCP |
|
DNS Domain Name Resolution |
Support |
|
IP Address |
192.168.0.148 |
|
User Name |
admin |
|
Password |
admin |
|
Subnet Mask |
255.255.255.0 |
|
Gateway |
192.168.0.1 |
|
Operation Mode |
■ TCP Server Mode |
|
■ TCP Client Mode |
|
|
■ UDP Server Mode |
|
|
■ UDP Client Mode |
|
|
Standards Conformances |
|
|
Regulatory Compliance |
FCC Part 15 Class A, |
|
CE Certification Class A |
|
|
Standards |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 958 NTP |
|
|
RFC 2068 HTTP |
|
|
RFC 2131 DHCP Client |
|
|
RFC 2732 Format for Literal IPv6 Addresses in URL's |
|
|
RFC 3315 DHCPv6 Client |
|
|
RFC 3513 IPv6 Addressing Architecture |
|
|
RFC 4443 ICMPv6 |
|
|
EIA/TIA RS232/422/485 |
|
|
Regulatory Approval |
CE, RoHS, FCC |
|
Environment |
|
|
Operating Temperature |
-40 ~ 80 degrees C |
|
Storage Temperature |
-40 ~ +85 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-DSE401 Industrial 1~4Ch Serial Device Server Datasheet V1.0.pdf Size： 844KB
|
Model |
Description |
|
2Ch Serial Device Server |
|
|
UF-DSE201 |
Industrial 2-Channel RS232/422/485 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE201-232 |
Industrial 2-Channel RS232 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE201-422 |
Industrial 2-Channel RS422 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE201-485 |
Industrial 2-Channel RS485 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
4Ch Serial Device Server |
|
|
UF-DSE401 |
Industrial 4-Channel RS232/422/485 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE401-232 |
Industrial 4-Channel RS232 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE401-422 |
Industrial 4-Channel RS422 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE401-485 |
Industrial 4-Channel RS485 Serial to Ethernet Converter w/ one 100M TP/SFP Combo Port, Support WEB & SNMP Management, DC9-55V input, redundant dual power supply, DIN-Rail or Wallmount installation. Operation temperature: -40℃～+80℃ |
