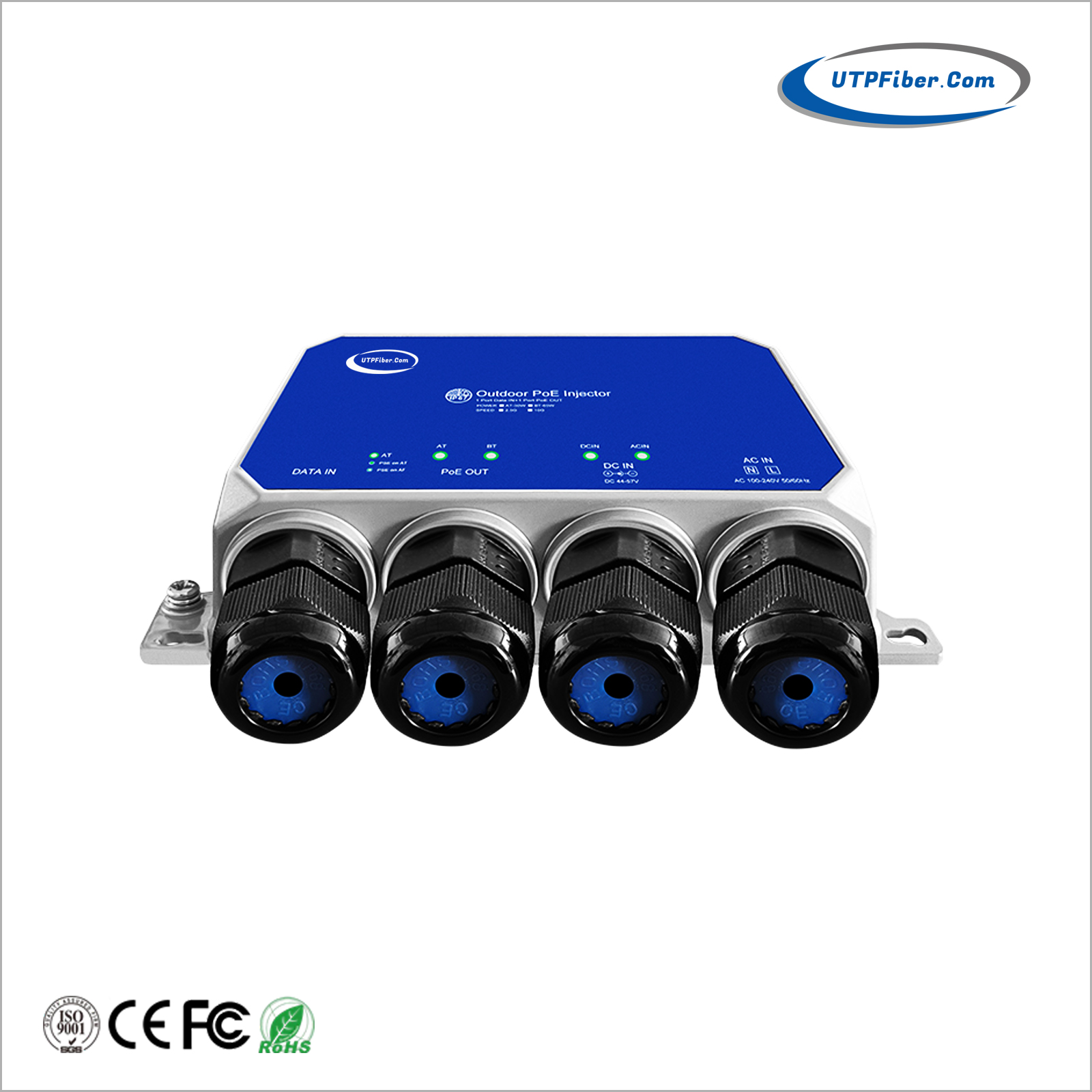

AC+DC Powered Industrial Gigabit IP67 Waterproof 60W 802.3bt PoE++ Injector
Model:UF-PSE60W-AC
► Outdoor IEEE 802.3bt PoE Plus Power over Ethernet Injector, 56VDC, 60W max (backward compatible with IEEE 802.3af/at)
► Two 10/100/1000Mbps RJ45 port for Data+ Power output and Data input
► support AC 90-265V or DC 44-57V power input
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
UF-PSE60W-AC is a Industrial Gigabit IP67 Waterproof 60W 802.3bt PoE++ Injector built for rugged environments with IP67-level protection. This injector complies with IEEE 802.3af/at/bt standard, enabling seamless integration with various PoE compliant devices like APs, IP Cameras, and IP Phones. With dual power input, the PoE++ Injector supports AC 90-265V or DC 44-57V power input, you can choose AC or DC power input according to your project requirement.
UF-PSE60W-AC supports 10/100/1000Mbps transmission rates, delivering increased power over 4 pairs of wires. With a remarkable 100-meter range for remote power and data feeding, Its robust metal shell design, short-circuit protection, and plug-and-play convenience make it a durable and user-friendly solution. UF-PSE60W-AC offers exceptional power and data delivery, making it a versatile solution for various applications. Its rugged build and IP67-industrial level protection ensure robust performance even in harsh conditions. With intelligent power management and a IK10 vandal-proof design, this injector is your reliable, hassle-free choice for expanding network connectivity.
► Outdoor IEEE 802.3bt PoE Plus Power over Ethernet Injector, 56VDC, 60W max (backward compatible with IEEE 802.3af/at)
► Two 10/100/1000Mbps RJ45 port for Data+ Power output and Data input
► support AC 90-265V or DC 44-57V power input
► Complies with IEEE802.3af/at/bt Standard
► Auto detect power device

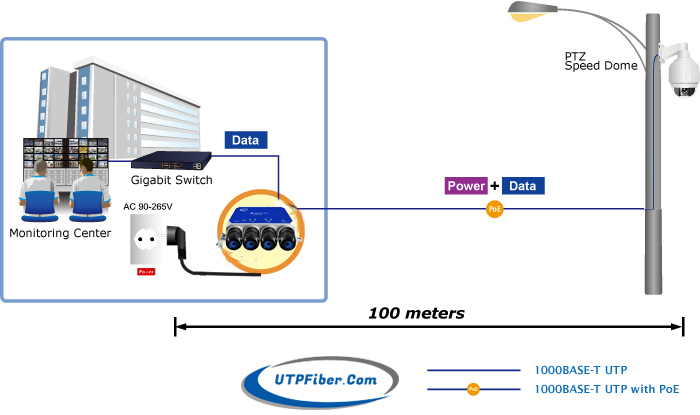

► Remote power and Data feeding up to 100m
► Plug-and-play, requires no configuration
► Intelligent protection and Short Circuit Protection
► Wall-mount design with Mounting holes and Earthing kit included
► IP67-rated, dustproof and waterproof
► IK10-rated, vandal-proof
|
Hardware Specifications |
|
|
Interface |
Input Port |
|
1 x 10/100/1000BASE-T “Data” in RJ45 port |
|
|
Output Port |
|
|
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++ |
|
|
“Data + DC” out RJ45 port |
|
|
Input Power |
|
|
1*AC: 2P*3.5mm terminal AC 90~265V 50/60Hz |
|
|
1*DC: DC 44-57V MAX 65W |
|
|
Data Rate |
10/100/1000Mbps |
|
Waterproofing Grade |
IP67 |
|
Material |
Aluminum die-casting body Nylon waterproof joint |
|
Wire Diameter |
Support network cables with a Φ of 4-8mm |
|
LED Indicator |
Af/at: Port af/at PoE out ON Bt: Port Bt PoE out ON AC input LED DC input LED |
|
Input Voltage |
AC 90-265V or DC 44-57V |
|
AC Power Out |
MAX 0.8A 65W |
|
ESD Protection |
Air 8KV DC |
|
Contact 6KV DC |
|
|
Surge Protection |
6KV |
|
Enclosure |
IP67-rated and IK10 aluminum metal case |
|
Installation |
Wall-mount or Desktop |
|
Dimensions (L x W x H) |
177 x 145 x 43 mm |
|
Weight |
560g |
|
MTBF |
>100,000 hours |
|
Network Cable |
10BASE-T: UTP category 3, 5 cable (≤100m) |
|
100BASE-TX: UTP category 5,5e cable (≤100m) |
|
|
1000BASE-T: UTP category 5e,6 cable(≤100m) |
|
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3bt PoE++ types 3 PSE |
|
Backward compatible with IEEE 802.3at PoE+ |
|
|
PoE Power Output |
802.3bt End-span/Mid-span |
|
PoE Power Supply Type |
55V DC Max. 60 watts to 802.3bt PoE++ PD Max. 30 watts to 802.3at PoE+ PD |
|
Power Pin Assignment |
802.3bt: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) End-span: 1/2 (-), 3/6 (+) Mid-span: 4/5 (+), 7/8 (-) |
|
POE out Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-T: Cat6 or later UTP (100 meter) |
|
Standards Conformance |
|
|
Regulatory Compliance |
FCC Part 15 Class A |
|
CE |
|
|
Stability Testing |
IEC 60068-2-32 (Free fall) |
|
IEC 60068-2-27 (Shock) |
|
|
IEC 60068-2-6 (Vibration) |
|
|
Standards Conformances |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
Environment |
|
|
Operating Temperature |
-40 ~ 80 degrees C |
|
Storage Temperature |
-40 ~ 85 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-PSE60W-AC Industrial Gigabit IP67 Waterproof 60W PoE Injector Datasheet V1.0.pdf Size： 736KB
|
Model |
Description |
|
UF-PSE60W-AC |
Industrial Gigabit IP67 Waterproof 60W 802.3bt PoE++ Injector, support AC 90-265V or DC 44-57V power input |
|
Mounting Options |
► Wall Mount or Desktop Installation |
|
Power Options |
► AC 90-265V or DC 44-57V power input |
