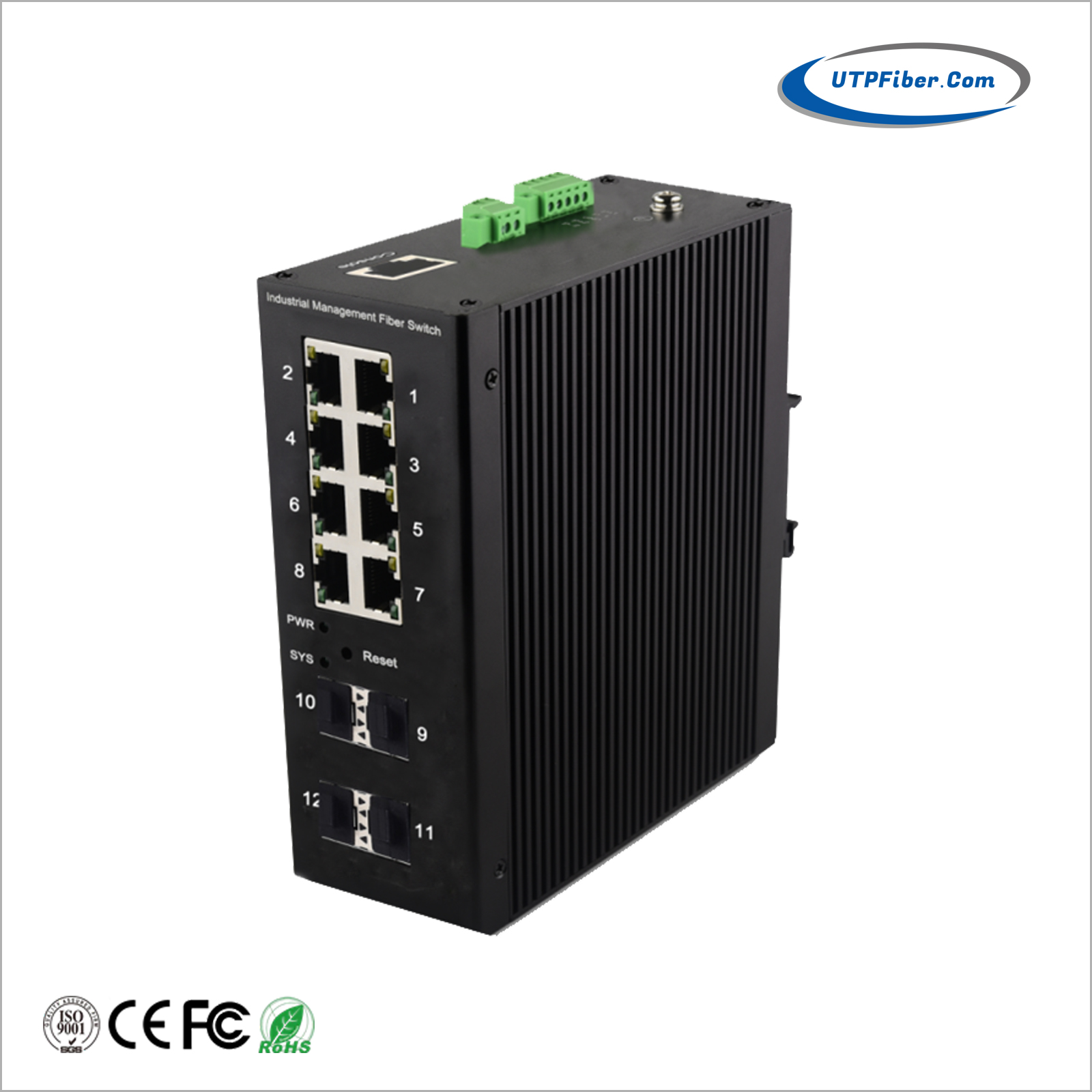

L3 Managed 4-Port 1000T 90W BT PoE + 4-Port 1000T 30W AT PoE + 4-Port 1G/10G SFP+ Ethernet Switch
Model:UF-MIS74X8GP90
- 1G/10GBASE-X SFP slots with auto detection
- Supports 4-Port 10/100/1000T 90W 802.3bt PoE + 4-Port 10/100/1000T 30W 802.3at PoE, with a maximum total PoE Power Budget of 480 watts
- Full gigabit L3 management, easily manageable industrial network through CLI/Web GUI/NMS
- Installation method: DIN-Rail mounting

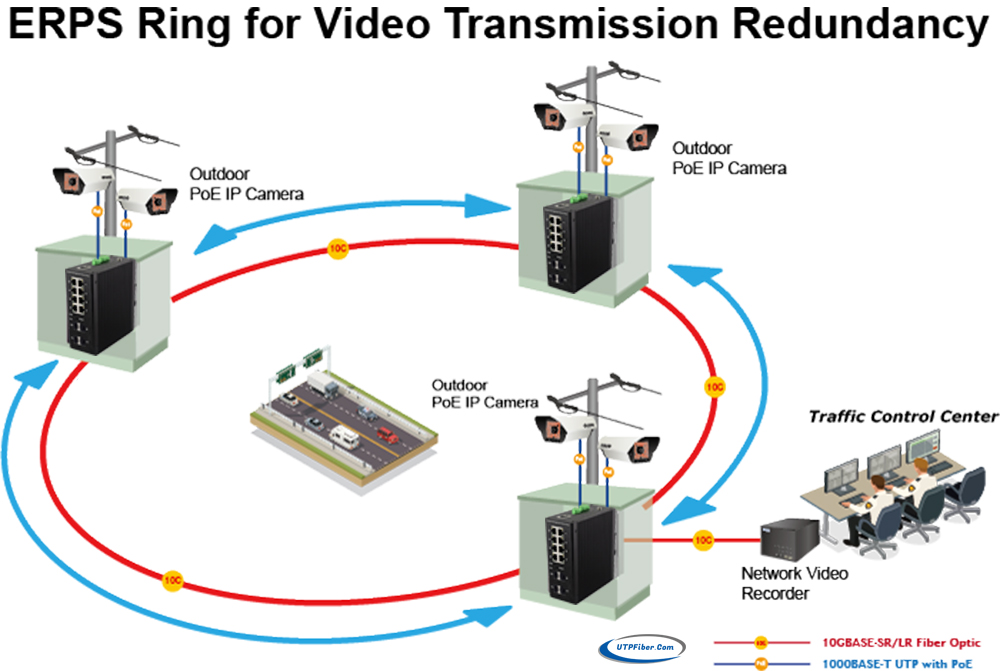

This UF-MIS74X8GP90 series is a managed industrial-grade three-layer 10G fiber-optic Ethernet switch independently developed by our company. It supports 4 100/1000/10G SFP/SFP+ optical ports and 8 10/100/1000 Base-T adaptive RJ45 ports (4-Port 10/100/1000T 90W 802.3bt PoE + 4-Port 10/100/1000T 30W 802.3at PoE). The UF-MIS74X8GP90 switch fully complies with the design and materials of industrial products. The shell adopts a guide rail design, a wide range of working environment temperature, DC48-57V dual power supply redundancy and other technologies, providing excellent industrial-grade quality such as high/low temperature resistance and lightning protection; it supports powerful management functions, including system management, comprehensive two-layer management functions, three-layer routing management , QOS queue management, comprehensive network security management and monitoring and maintenance management; the industrial-grade three-level ESD protection is suitable for a variety of occasions, such as intelligent transportation, outdoor monitoring, industrial network, safe city and other deployment requirements in harsh environments.
The product also adopts fanless, low-power, industrial-grade design, -40 to 80℃ working temperature range, which can meet the requirements of various industrial sites and provide economical solutions. The equipment can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, smart transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy and oil fields.
- 1G/10GBASE-X SFP slots with auto detection
- Supports 4-Port 10/100/1000T 90W 802.3bt PoE + 4-Port 10/100/1000T 30W 802.3at PoE, with a maximum total PoE Power Budget of 480 watts
- Supports 16K bytes giant frame and is compatible with various extension protocols
- Supports IEEE802.3az energy efficient Ethernet technology
- IPv6 Protocol and Electric 4KV surge protection
- Full gigabit L3 management, easily manageable industrial network through CLI/Web GUI/NMS
- Power input polarity protection design to prevent wrong operation
- Metal case with a fanless design
- Installation method: DIN-Rail mounting
|
Interface |
|
|
Physical Interface |
4 *100/1000 /10G Base-X SFP /SFP+, 8 * 10/ 100/1000Base -T RJ45 adaptive |
|
Management Interface |
1 Console RJ45 control port |
|
Power interface |
5pin Phoenix terminal |
|
Relay alarm output |
2pin Phoenix terminal |
|
LED Light |
Power indicator: PWR (green); System indicator: SYS (green); Network port indicator: yellow (1000) green (100); Optical port indicator: green (in the middle of the SFP slot) |
|
Cable type and distance |
|
|
Single mode fiber |
20/40/60/80/100KM (depend on SFP module) |
|
Multimode Fiber |
550m/2KM (depend on SFP module) |
|
Fiber Optic Interface |
LC/SC |
|
Network topology & scale |
|
|
Ring topology |
support |
|
Star topology |
support |
|
Bus topology |
support |
|
Tree topology |
support |
|
Hybrid topology |
support |
|
Electrical Characteristics |
|
|
Input voltage |
DC 48~57V redundant power input |
|
Power consumption |
Full load (Total power) < 15W , POE full load < 480W , |
|
Power over Ethernet (PoE) |
|
|
PoE Port |
1- 8 |
|
PoE Protocol |
1-4: IEEE802.3af/at 5-8: IEEE802.3af/at/bt |
|
PoE Pinout |
802.3at: 1/2 (+), 3/6 (-) 802.3bt: 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) |
|
PoE Management Mode |
support |
|
Layer 2 switching |
|
|
Switching capacity |
128 G |
|
Packet forwarding rate |
71.42 Mpps |
|
MAC address table |
16 K |
|
VLAN support and quantity |
4K support |
|
Report buffer |
12 M |
|
Forwarding Delay |
<10us |
|
Port Features |
Cross-connection and direct connection |
|
Flow Control |
support |
|
Jumbo Frames |
Support 12Kbytes |
|
Spanning Tree Protocol |
Support STP/RSTP/MSTP |
|
Server Configuration |
Radius / DHCP / TACACS + |
|
Ring Network Protocol |
Support ERPS |
|
Link Aggregation |
Support 8 groups |
|
Multicast |
Support IGMP / MVR |
|
Port Mirroring |
Support |
|
Storm Suppression |
Support unicast/multicast/broadcast |
|
Port traffic statistics |
Support |
|
Port traffic statistics |
Support |
|
VLAN |
Support access, trunk, and general modes |
|
Support GVRP/ GMRP / VLAN based on MAC address / VLAN based on IP address segment / Voice VLAN configuration |
|
|
QINQ |
Support |
|
LLDP |
Support |
|
DHCPSERVER |
Support |
|
DHCPL2 Relay Agent |
Support |
|
IP RELAY Proxy |
Support |
|
DHCPv6SERVER |
Support |
|
DHCPv6 relay |
Support |
|
DNS |
Support |
|
Port rate limit |
Support |
|
User Configuration |
Supports 2 levels of viewing and writing |
|
MAC address learning |
support |
|
MAC address binding |
Support IP/VLAN/port binding |
|
IPV4/IPV6 Configuration |
Support |
|
Management VLAN Configuration |
Support |
|
UDLD |
Support |
|
Ring network protection |
Support |
|
Layer 3 switching |
|
|
Support IPV4 and IPV6 dual stack, support IPV4 and IPV6 static routing and default routing, support RIP/OSPF/OSPFV3/BGP/VRRP/ BFD /IGMP/PIM |
|
|
Protection |
|
|
IP Rating |
IP40 |
|
Power surge protection |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) |
|
Radiated immunity |
IEC 61000-4-3 Level 3 (10V/m) |
|
Transient pulse anti-interference |
IEC 61000-4-4 Level 3 (1V/2V) |
|
Conducted interference immunity |
IEC 61000-4-6 Level 3 (10V/m) |
|
Power frequency magnetic field immunity |
IEC 61000-4-8 Level4 (30A/m) |
|
Voltage drop |
IEC 61000-4-11 Level3 (10V) |
|
EMI |
CLASS A |
|
Anti-static interference |
IEC 61000-4-2 Level 4 (15KV/30KV) |
|
Free fall |
0.5m |
|
Network security controls |
|
|
Access Control List (ACL) |
Support 500 ACLs; |
|
Support IP standard ACL; |
|
|
Support MAC extended ACL; |
|
|
Support IP extended ACL; |
|
|
Certification Management |
Support 802.1x/Enable level/HTTP/HTTPs/Dot1x |
|
DOS Management |
Support DOS attack configuration |
|
Port Security |
Support |
|
Port Isolation |
Support |
|
Private VLAN |
Support |
|
DHCP snooping |
Support |
|
IPSG |
Support |
|
Dynamic arp check |
Support |
|
Quality of Service (QOS) |
Support 802.1P priority |
|
Support IP DSCP priority |
|
|
Support port queue priority |
|
|
Support QoS queue discard priority |
|
|
Management Features |
|
|
Command Line |
Support |
|
Management Serial Port |
Support |
|
Telnet |
Support |
|
SSH |
Support |
|
WEB MANAGEMENT |
Support |
|
SNMP |
Support SNMPv1/v2c / V3 |
|
Sflow |
Support |
|
User Management |
Support |
|
System log |
Support |
|
File Upgrade |
Support |
|
File Transfer |
Support tftp, ftp, scp, sftp |
|
Firmware Upgrade |
Support dual firmware management |
|
Device restart |
support |
|
Equipment Diagnosis |
Support PINGV4/PINGV6/Traceroute IPv4/Traceroute IPv6 |
|
SFP Module DDM |
Support |
|
Environmental conditions |
|
|
Operating temperature |
-40 ℃ ~+ 80 ℃ |
|
Storage/Transportation Temperature |
-40 ℃ ~ +85℃ |
|
Relative humidity |
5%~95% non-condensing |
|
Cooling method |
Fanless design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
Mechanical structure |
|
|
Size (LxWxH) |
160 x 141.5 x 50 mm |
|
Installation |
DIN-Rail installation |
|
weight |
1 KG |
|
Shell material |
Industrial aluminum alloy |
|
Accessories |
|
|
Supporting Equipment |
Equipment, terminals, certificates, instructions |
- Download FileName：UF-MIS74X8GP90 L3 Industrial 8G+4x10G SFP+ Managed BT 90W PoE Switch Datasheet V2.0.pdf Size： 302KB
| Model | Description |
| UF-MIS74XGP90 | L3 Managed 4-Port 10/100/1000T 90W 802.3bt PoE + 4-Port 10/100/1000T 30W 802.3at PoE + 4-Port 1G/10G SFP+ Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| SFP module is to be purchased separately. | |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | 480W 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| Power Supply is to be purchased separately. |
