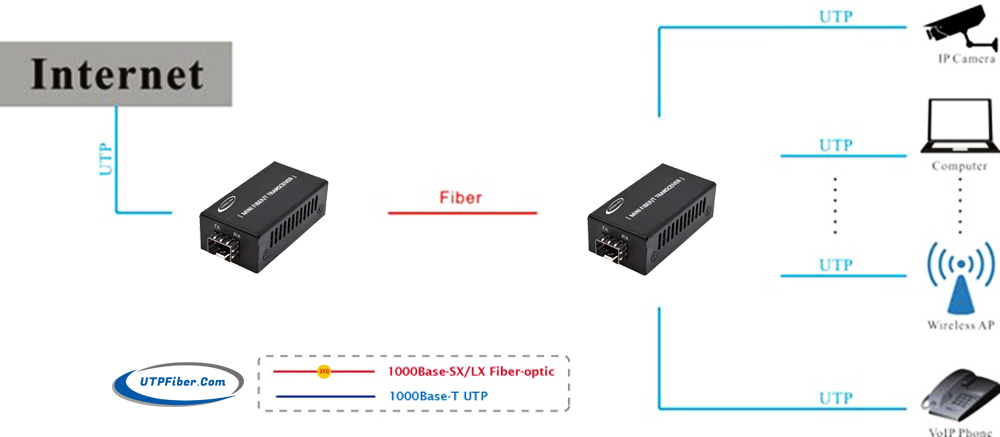

Ethernet

Standards:

IEEE 802.3, 10BASE-T

IEEE 802.3u, 100BASE-TX

IEEE 802.3u, 100BASE-FX

IEEE 802.3ab, 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Flow Control:

Back pressure for half duplex

IEEE 802.3x pause frame for full duplex

Jumbo Frame:

9K

Network Cables:

Twisted-pair

  10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m

  100BASE-TX: 2-pair UTP Cat. 5, up to 100m

  1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

1000BASE-SX:

  50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.

1000BASE-LX:

  9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Processing Type:

Store and Forward

MAC Table Size:

2K

Buffer Space:

1Mbit

Maximum Packet Length

9K bytes

Time Delay:

＜20μs

Connector:

1 x 10/100/1000BASE-T RJ45

Optical Port:

1 x 1000Base-X SFP

Environmental

Operating Temperature:

0°C to 55°C (32°F to 131°F)

Storage Temperature:

-10°C to 70°C (14°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

Storage Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

5-12V DC, 1A max.

Power Consumption:

0.75W～3W

LED Indicators

PWR:

Power Status

FX:

Fiber Link Status

TP:

Ethernet Link Status

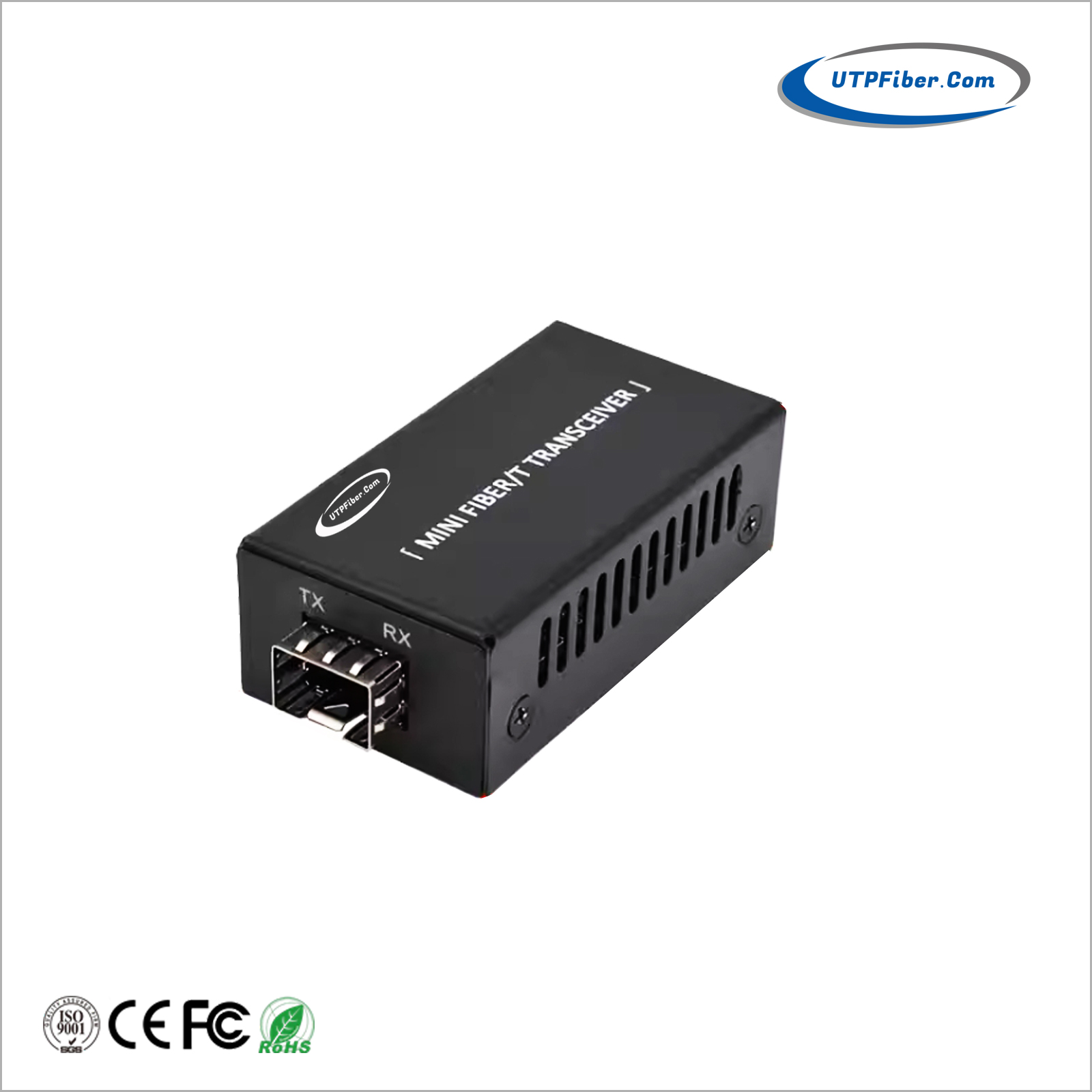

Dimensions (LxWxH):

70 x 37 x 24mm

Weight:

50g (device only)

Casing:

Compact-sized aluminum case

Mounting Options:

Desktop

Regulatory Approvals

CE, RoHS, FCC
