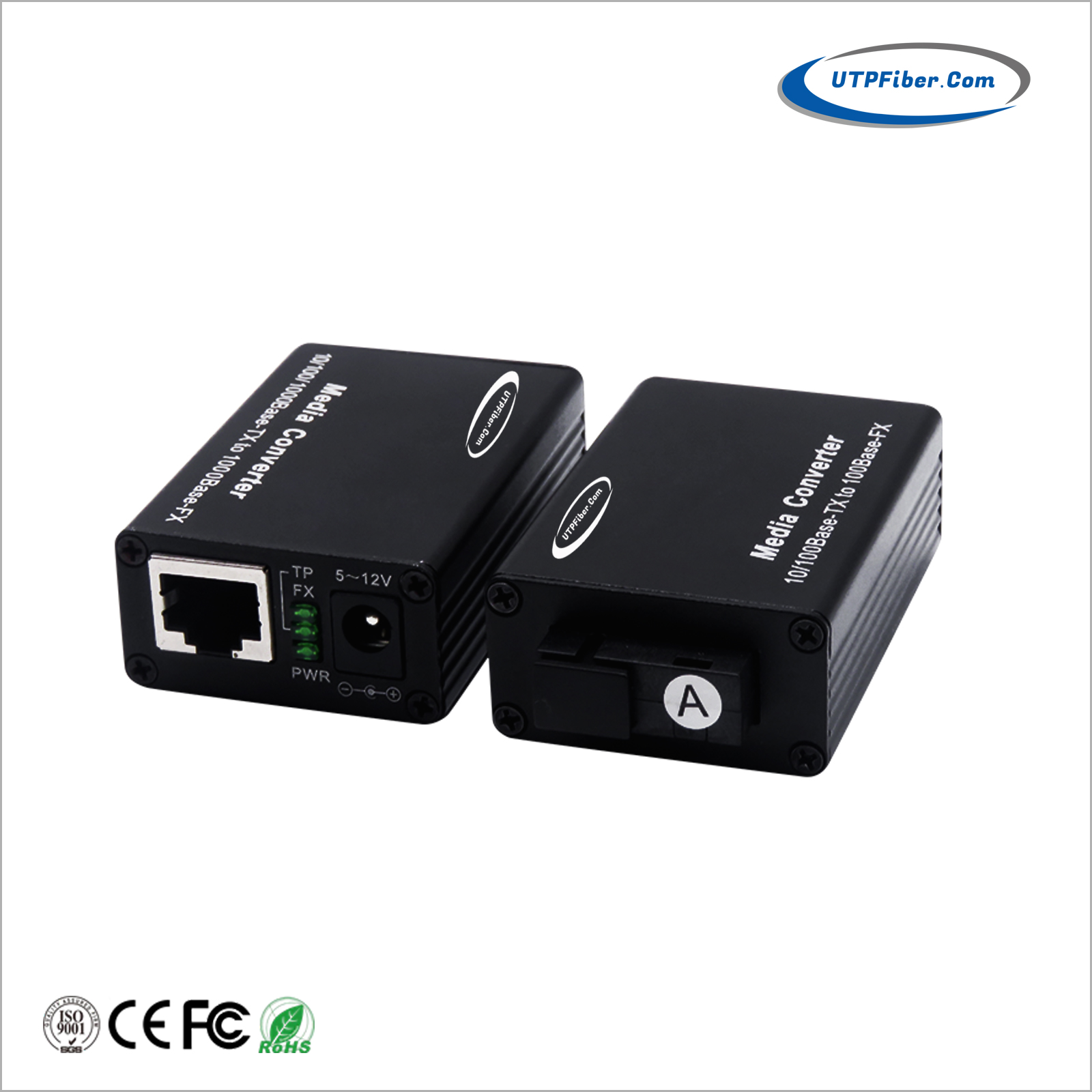

Micro Mini 10/100Base-TX to 100Base-FX Bridge Media Converters
Model:UF-M1FE series
► 1×100Base-FX to 1×10/100Base-TX Port
► 1*155Mbps full duplex fiber port, 1*10/100M adaptive Ethernet port
► Support wide voltage input of 5V-12V
► Small volume, suit for all narrow spaces
► Light weight, only 0.05kg, save freight for long distance transportation

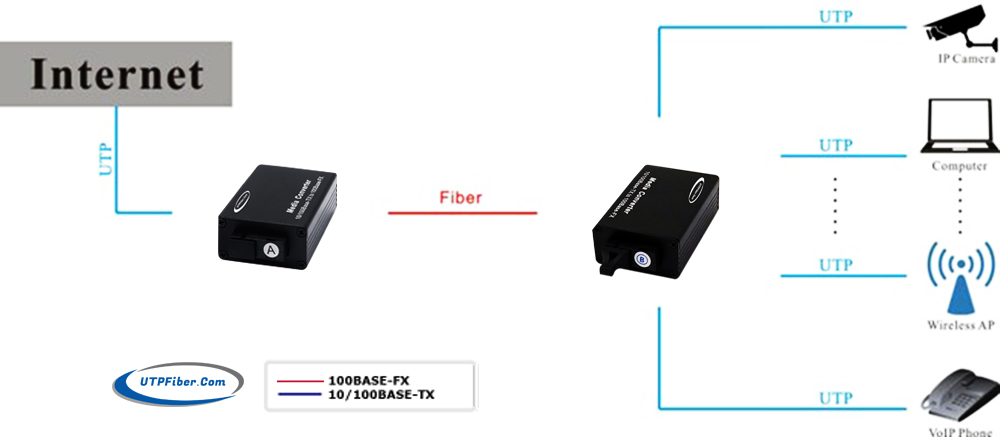

The UF-M1FE series is a 10/100Mbps adaptive fast Ethernet micro mini Media Converter. It has one 10/100Mbps Ethernet port and one 155Mbps fiber port. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. There are also have many other advantages such as isolation protection, good data security, working stability and easy maintenance. The mini media converter adopts aluminum alloy casing, which has better heat dissipation performance and looks more delicate.
► 1×100Base-FX to 1×10/100Base-TX Port
► 1*155Mbps full duplex fiber port, 1*10/100M adaptive Ethernet port
► Support 10/100M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive
► Each port has the complete LED Indicator light
► Support IEEE802.1d Spanning Tree
► Support high performance QoS function on each port
► Support broadcast storm protection
► Support wide voltage input of 5V-12V
► Support max forwarding packet length 1552 bytes
► Only 1.5W in full loaded condition
► Requires no configuration and will instantly operate as soon as you power it up
► Small volume, suit for all narrow spaces
► Light weight, only 0.05kg, save freight for long distance transportation
|
Ethernet |
|
|
Standards: |
IEEE 802.3, 10BASE-T |
|
IEEE 802.3u, 100BASE-TX |
|
|
IEEE 802.3u, 100BASE-FX |
|
|
IEEE 802.3x Full-duplex flow control |
|
|
Flow Control: |
Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
|
Network Cables: |
Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m Fiber-optic Cable 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (vary on 1x9 optical transceiver) 9/125μm single-mode cable for 25/40/60/120km (vary on 1x9 optical transceiver) |
|
Processing Type: |
Store and Forward |
|
MAC Table Size: |
1K |
|
Buffer Space: |
448bit |
|
Maximum Packet Length |
1552 bytes |
|
Time Delay: |
＜150μs |
|
Connector: |
1 x 10/100BASE-TX RJ45 |
|
Optical Port: |
1x 100Base-FX SC (in default)/ST/FC (Optional) |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
5-12V DC, 1A max. |
|
Power Consumption: |
0.7W～1.5W |
|
LED Indicators |
|
|
PWR: |
Power Status |
|
FX: |
Fiber Link Status |
|
TP: |
Ethernet Link Status |
|
Dimensions (LxWxH): |
62.3 x 42.3 x 22mm |
|
Weight: |
50g (device only) |
|
Casing: |
Compact-sized aluminum case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-M1FE Mini 10100M Fiber Media Converter Datasheet V1.0.pdf Size： 509KB
|
Model |
Description |
|
UF-M1FE |
10/100BASE-TX to 100BASE-FX (SC, MM) Bridge Media Converter -- 2km |
|
UF-M1FE-T |
10/100BASE-TX to 100BASE-FX (ST, MM) Bridge Media Converter -- 2km |
|
UF-M1FE-F |
10/100BASE-TX to 100BASE-FX (FC, MM) Bridge Media Converter -- 2km |
|
UF-M1FE-25 |
10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 25km |
|
UF-M1FET-25 |
10/100BASE-TX to 100BASE-FX (ST, SM) Bridge Media Converter -- 25km |
|
UF-M1FEF-25 |
10/100BASE-TX to 100BASE-FX (FC, SM) Bridge Media Converter -- 25km |
|
UF-M1FE-40 |
10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 40km |
|
UF-M1FE-60 |
10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 60km |
|
UF-M1FE-80 |
10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 80km |
|
UF-M1FE-120 |
10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 120km |
|
UF-M1FE-S20A * |
10/100BASE-TX to 100BASE-FX (WDM TX:1310nm, SC, SM) Bridge Media Converter -- 20km |
|
UF-M1FE-S20B * |
10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SC, SM) Bridge Media Converter -- 20km |
|
UF-M1FE-S40A * |
10/100BASE-TX to 100BASE-FX (WDM TX:1310nm, SC, SM) Bridge Media Converter -- 40km |
|
UF-M1FE-S40B * |
10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SC, SM) Bridge Media Converter -- 40km |
|
UF-M1FE-S60A * |
10/100BASE-TX to 100BASE-FX (WDM TX:1490nm, SC, SM) Bridge Media Converter -- 60km |
|
UF-M1FE-S60B * |
10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SC, SM) Bridge Media Converter -- 60km |
|
UF-M1FE-S80A * |
10/100BASE-TX to 100BASE-FX (WDM TX:1490nm, SC, SM) Bridge Media Converter -- 80km |
|
UF-M1FE-S80B * |
10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SC, SM) Bridge Media Converter -- 80km |
|
UF-M1FE-S120A * |
10/100BASE-TX to 100BASE-FX (WDM TX:1490nm, SC, SM) Bridge Media Converter -- 120km |
|
UF-M1FE-S120B * |
10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SC, SM) Bridge Media Converter -- 120km |
|
Remarks * |
The WDM Media Converters should run in pair. It means you must connect A to one end while B to the other end. |
|
Mounting Options: |
► Desktop |
|
Power Options: |
► 1A 5VDC Power Supply |
