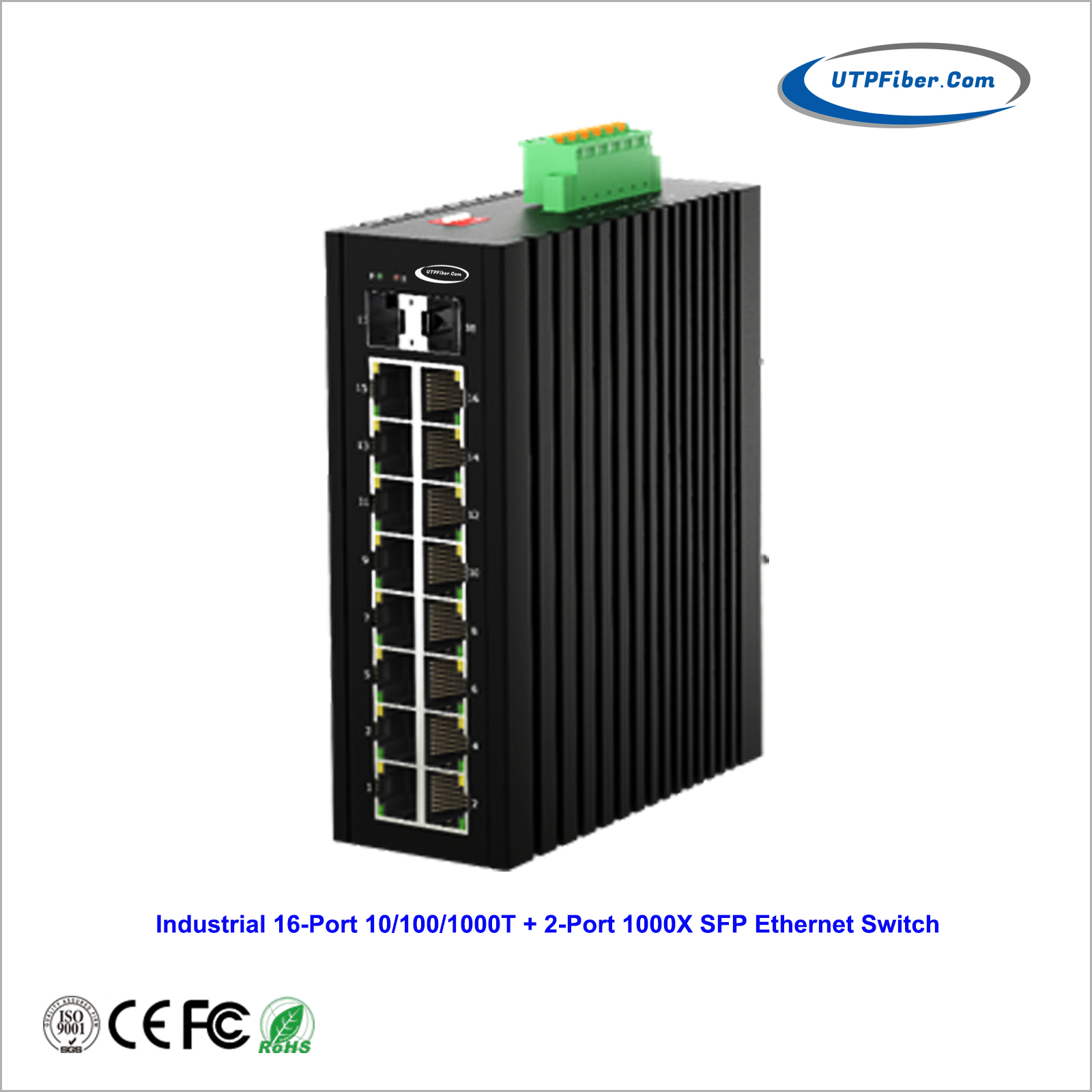

Unmanaged Industrial 16-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch
Model:UF-IS6216G-SFP
► 16*10/100/1000Base-T RJ45 PoE ports, 2*1000Base-X SFP
► DC 12-58V input, redundant power supply with polarity reverse/over-voltage protection
► Support one channel output relay alarm (terminal block Pin 5/6)
► Support powerful DIP switch function: 1. Link aggregation; 2. Flow control; 3. QoS (1-2 ports); 4. Broadcast storm restrain
The UTP UF-IS6216G-SFP is the highly reliable industrial Ethernet switch with 16-port 10/100/1000-T RJ45 and 2-port 1000Base-X SFP slots. It is featuring with link aggregation, flow control, QoS(1-2 ports) and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.

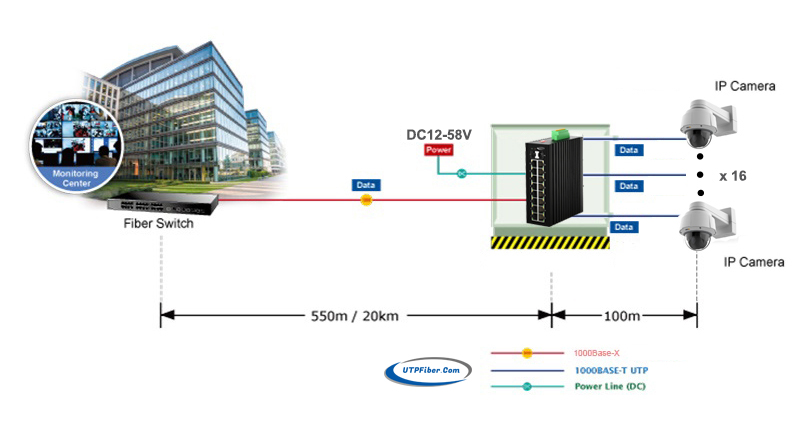

UF-IS6216G-SFP is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 80°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
► 16*10/100/1000Base-T RJ45 PoE ports, 2*1000Base-X SFP
► DC 12-58V input, redundant power supply with polarity reverse/over-voltage protection
► Support one channel output relay alarm (terminal block Pin 5/6)
► Support powerful DIP switch function: 1. Link aggregation; 2. Flow control; 3. QoS (1-2 ports); 4. Broadcast storm restrain
► Support 10K Bytes Jumbo frame
► Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
► IP40 fan-less and Din-rail hardware design
► Operation temperature: -40 ℃ ~+80℃
|
Model No. |
UF-IS6216G-SFP |
|
|
Interface |
Fiber ports |
Copper RJ45 ports |
|
2 |
16 |
|
|
Ethernet |
16*10/100/1000Base-T 2*1000Base-X |
|
|
Alarm port |
One relay output for power failure. Alarm relay current carry ability: 1A@24VDC |
|
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
|
|
Dip Switch |
1. Link aggregation 2. Flow control 3. QoS(1-2 ports） 4. Broadcast storm restrain |
|
|
LED Indicators |
||
|
P(Power indicator) Green |
Off: the device is power off or failed |
|
|
On: the device power on is normal |
||
|
S(System indicator) Red |
Off: the chip is normal |
|
|
On: the chip read/write is unnormal |
||
|
1-16 (Copper ports) |
Green indicators |
Yellow indicators |
|
Off: ports link down |
Off: port on 10/100M |
|
|
On: ports link up |
On: port on 1000M |
|
|
Blinking: data on TX/RX |
|
|
|
17-18 (Fiber ports) Green |
Off: ports link down |
|
|
On: ports link up |
||
|
Blinking: data on TX/RX |
||
|
Power parameters |
||
|
Input voltage |
12-58VDC, redundant power input |
|
|
Input current |
0.8A Max |
|
|
Total power consumption |
Full loading≤10W |
|
|
Connector |
Removable 6-pin terminal block, Pin 5/6 for relay alarm output |
|
|
Reverse polarity protection |
Support |
|
|
Over-voltage protection |
Support |
|
|
Over-current protection |
Support |
|
|
Switching features |
||
|
Switching capacity |
36G |
|
|
Packet forwarding rate |
53.5Mpps |
|
|
MAC address table |
8K |
|
|
VLAN |
4K |
|
|
Buffer |
2M |
|
|
Forwarding delay |
<5us |
|
|
Jumbo Frame |
Support 10Kbytes |
|
|
MDX/MIDX |
Support |
|
|
Watchdog |
Support |
|
|
Network Topology |
||
|
Star topology |
Support |
|
|
Bus topology |
Support |
|
|
Tree Topology |
Support |
|
|
Mechanical structure |
||
|
Case protection |
IP40 |
|
|
Installation method |
Din-rail |
|
|
Dimension(W*D*H)mm |
54*115*158mm |
|
|
Weight |
1.41 Kg |
|
|
Operating environment |
||
|
Operating temperature |
-40℃~+80℃ |
|
|
Storage/transportation temperature |
-40℃~+85℃ |
|
|
Relative humidity |
5%~95%（non-condensing） |
|
|
Industry standard |
EMI：FCC Part 15B Class A |
|
|
Surge protection of power: IEC 61000-4-5 6KV/4KV（8/20us） |
||
|
Surge protection of Ethernet ports：IEC 61000-4-5 6KV/2KV（10/700us） |
||
|
RS: IEC 61000-4-3 80 MHz-1 GHz：10 V/m |
||
|
EFT: IEC 61000-4-4 power interface: 4K；Ethernet ports: 2K |
||
|
CS: IEC 61000-4-6 10V |
||
|
ESD: IEC 61000-4-2 Level 4（8K/15K） |
||
|
Shock: IEC 60068-2-27 |
||
|
Free fall: IEC 60068-2-32 |
||
|
Vibration: IEC 60068-2-6 |
||
|
Certification |
CCC/CE/FCC/RoHS |
|
|
Warranty |
5 years |
|
- Download FileName：UF-IS6216G-SFP Unmanaged Industrial 16G+2SFP Ethernet Switch Datasheet V1.0.pdf Size： 774KB
|
Model |
Description |
|
UF-IS6216G-SFP |
Industrial Ethernet Switch with 16*10/100/1000Base-T RJ45 ports and 2*1000Base-X SFP slots, DC12-58V input, redundant dual power supply, Din-rail installation. Operation temperature: -40℃～+80℃ |
|
Mounting Options |
► DIN-Rail Installation |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
