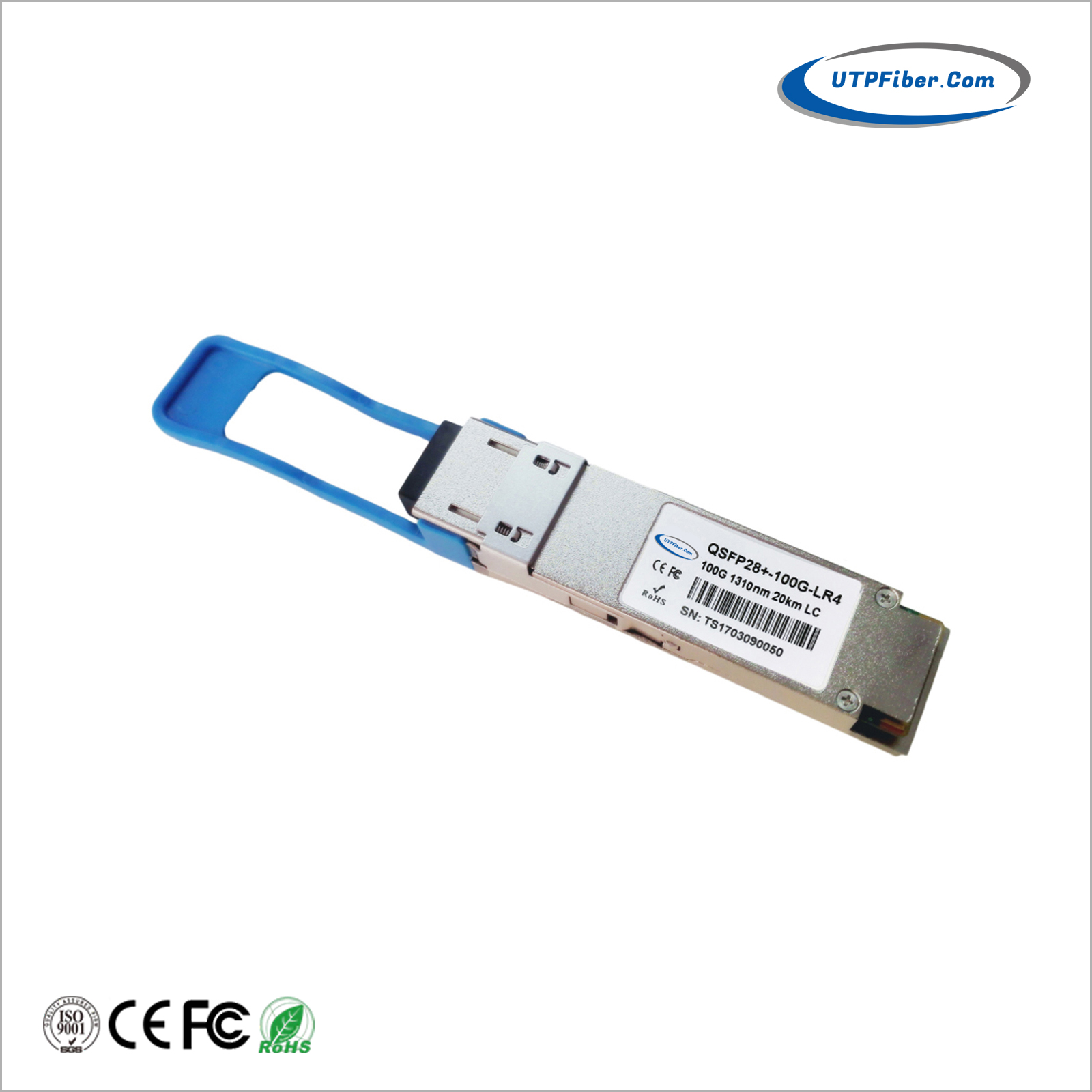

100G QSFP28 LR4 1310nm LWDM4 20km LC SMF DDM Transceiver Module

Model:UF-QSFP28-LR4-20

Ø 4 lanes MUX/DEMUX design

Ø Integrated LAN WDM TOSA / ROSA for up to 20 km reach over SMF

Ø Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Ø Aggregate bandwidth of > 100Gbps

Ø Duplex LC connectors

上一张

下一张

100G QSFP28 LR4 LAN-WDM Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 20km LC DDM)

The 100G QSFP28 LR4 optical transceiver module is designed to support 100G Ethernet and OTN OTU4 for data center and telecom links up to 10 km or 20 km on single-mode fiber. The 100G QSFP28 LR4 module operates at four LWDM (short for LAN-WDM) wavelengths of 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665, and SFF-8636 standards.

Ø 4 lanes MUX/DEMUX design

Ø Integrated LAN WDM TOSA / ROSA for up to 20 km reach over SMF

Ø Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Ø Aggregate bandwidth of > 100Gbps

Ø Duplex LC connectors

Ø Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard 

Ø Single +3.3V power supply operating

Ø Built-in digital diagnostic functions

Ø Temperature range 0°C to 70°C

Ø RoHS Compliant Part

Ø Support FEC (Forward Error Correction)

P/N	UF-QSFP28-LR4-20	Vendor Name	UTP Fiber
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	20km
Connector	Duplex LC	Transmitter Type	LAN WDM DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-1.0~+4.5dBm	Receiver Sensitivity	< -12.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Download FileName：UF-QSFP28-LR4-20 QSFP28 100GBASE-LR4 1310nm 20km Transceiver Datasheet V1.0.pdf Size： 908KB

Part Number	Product Description
UF-QSFP28-LR4-20	100G QSFP28 1310nm 20km LR4 LC

100G QSFP28 LR4 1310nm LWDM4 20km LC SMF DDM Transceiver Module

Model:UF-QSFP28-LR4-20

100G QSFP28 LR4 LAN-WDM Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 20km LC DDM)
