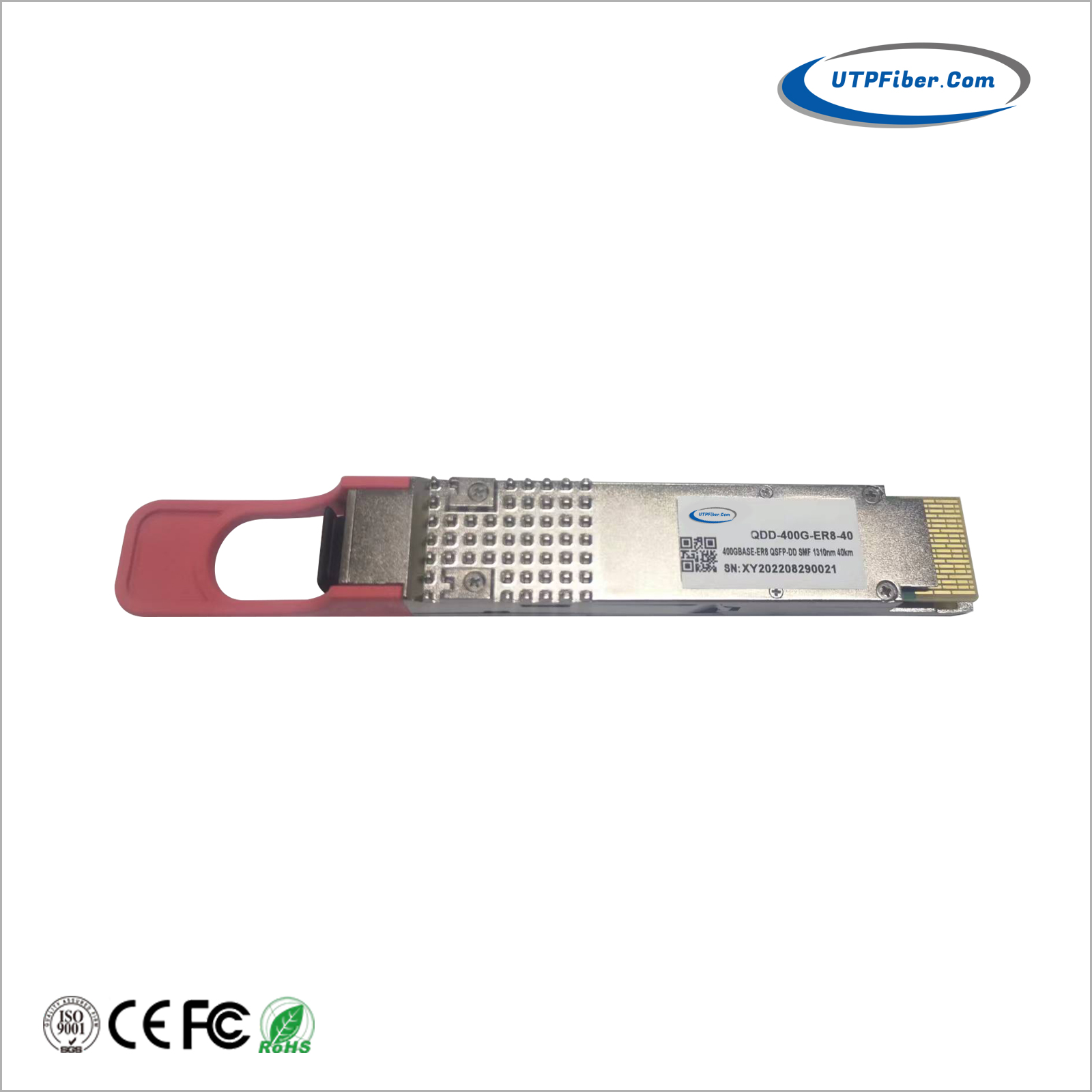

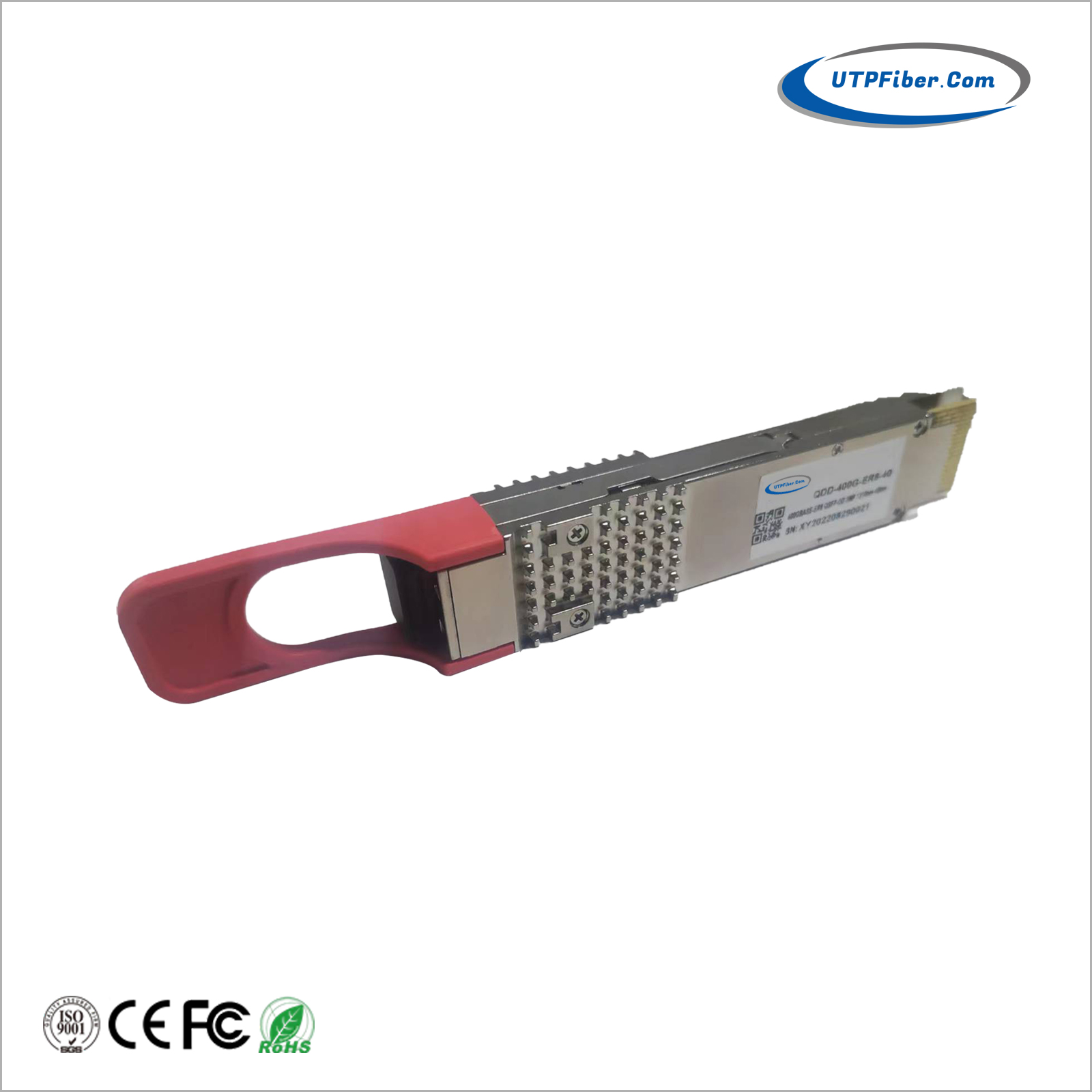

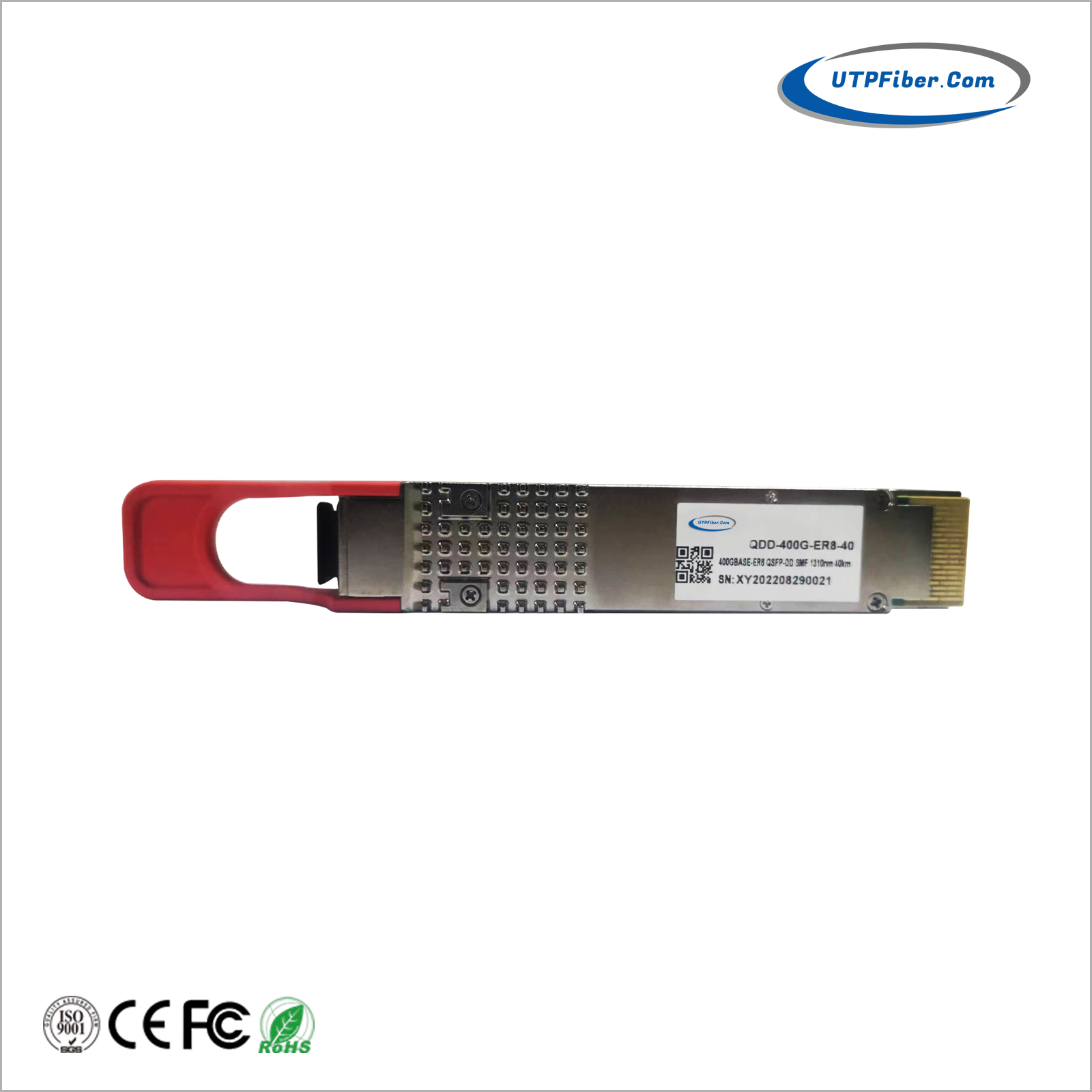

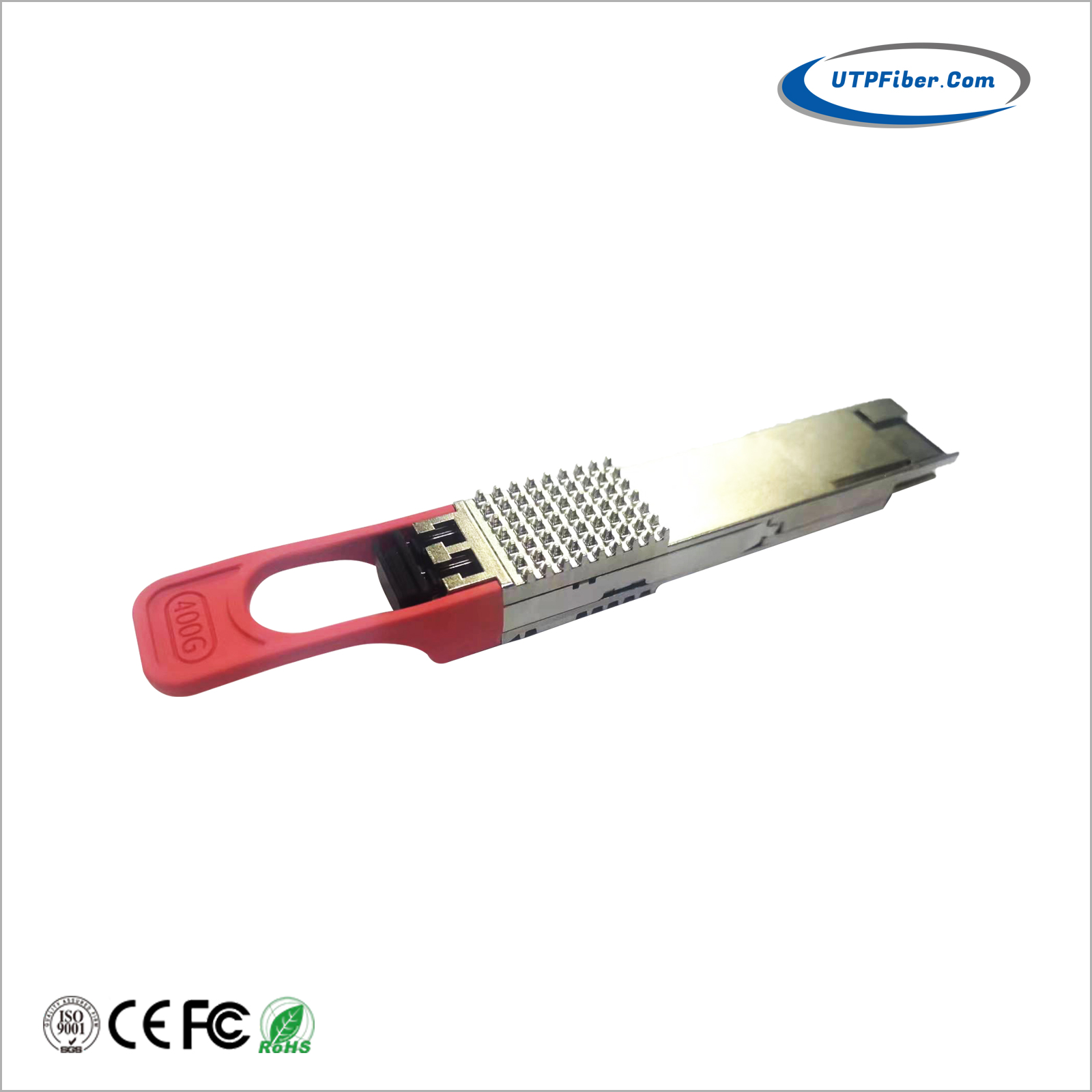

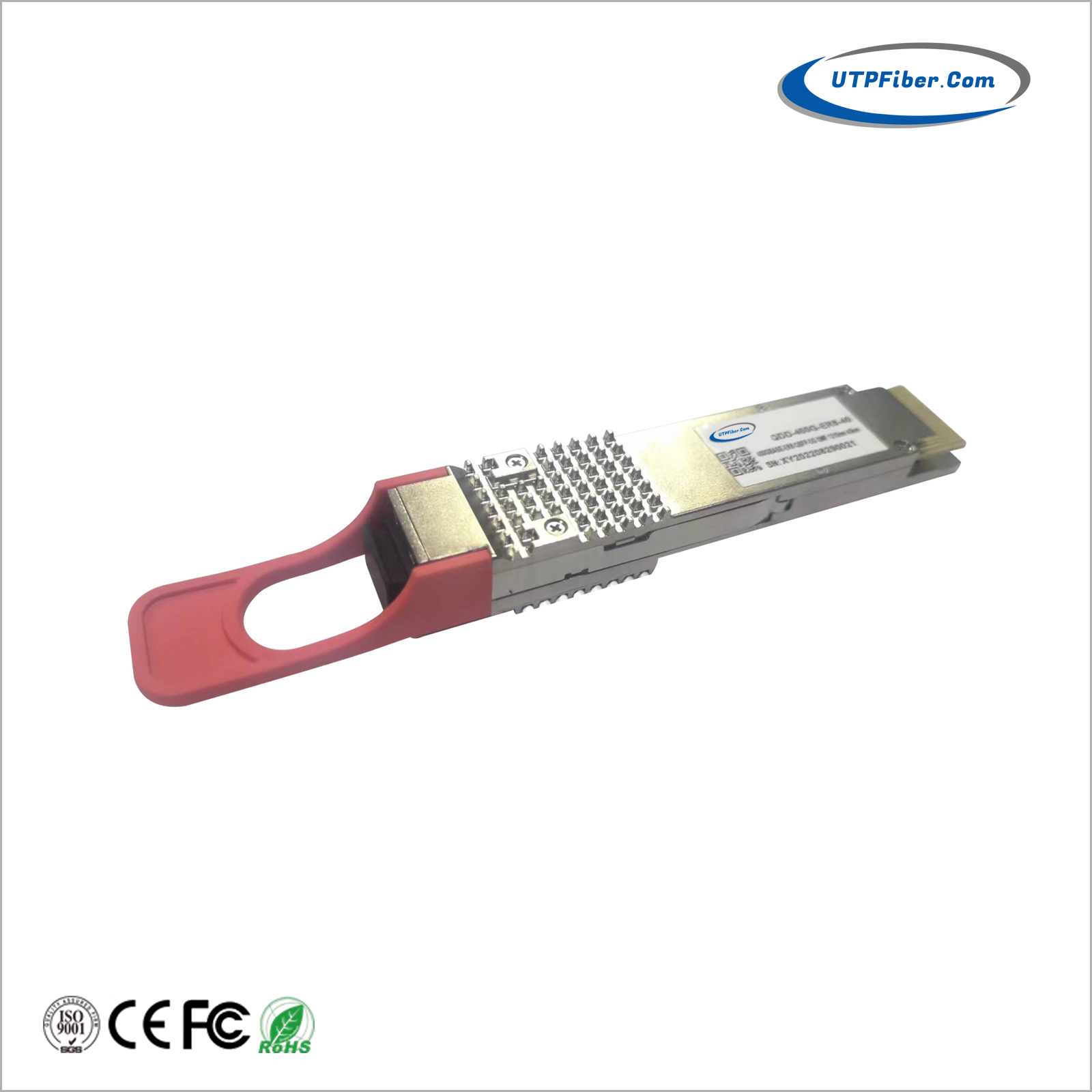

400GBASE-ER8 QSFP-DD 1310nm 40km Transceiver

Model:UF-QDD-ER8-40

Compliant with IEEE std 802.3cnTM-2019:
- 400GBASE-ER8 optical interface
- 400GAUI-8 electrical interface
Compliant with QSFP-DD MSA HW Rev 5.1 with duplex LC connector
Compliant with QSFP-DD CMIS Rev 4.0

上一张

下一张

400G QSFP-DD ER8 PAM4 8 LAN-WDM MUX/DEMUX design Optical Transceiver Module (LWDM8 SMF LC 40km with FEC DDM)

The 400GBASE-ER8 module supports link lengths of up to 40km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs 400GBASE-ER8. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

Compliant with IEEE std 802.3cnTM-2019:
- 400GBASE-ER8 optical interface
- 400GAUI-8 electrical interface
Compliant with QSFP-DD MSA HW Rev 5.1 with duplex LC connector
Compliant with QSFP-DD CMIS Rev 4.0
Case operating temperature 0°C to 70°C
Two wire serial Interface with digital diagnostic monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1/1M Lase

P/N	UF-QDD-ER8-40	Vendor Name	UTP Fiber
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	40km
Modulation Format	PAM4	Host Required	FEC
Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML	Receiver Type	PIN
TX Power	-18.6~-4.4dBm	Receiver Sensitivity	< -16.1dBm (SECQ–17.5dBm)
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 15.4W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-ER8	Application	400G Ethernet, Telecom Networking, Infiniband Interconnects

Download FileName：UF-QDD-ER8-40 400G QSFP-DD ER8 1310nm 40KM Transceiver Datasheet V1.0.pdf Size： 663KB


Part No.	Application	Data Rate	Laser Source	Distance
UF-QDD-ER8-40	400GBASE-ER8	400GB Ethernet	EML	40km

400GBASE-ER8 QSFP-DD 1310nm 40km Transceiver

Model:UF-QDD-ER8-40

400G QSFP-DD ER8 PAM4 8 LAN-WDM MUX/DEMUX design Optical Transceiver Module (LWDM8 SMF LC 40km with FEC DDM)
